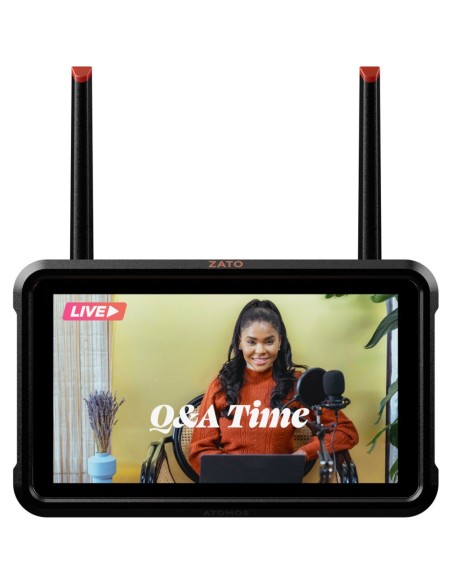

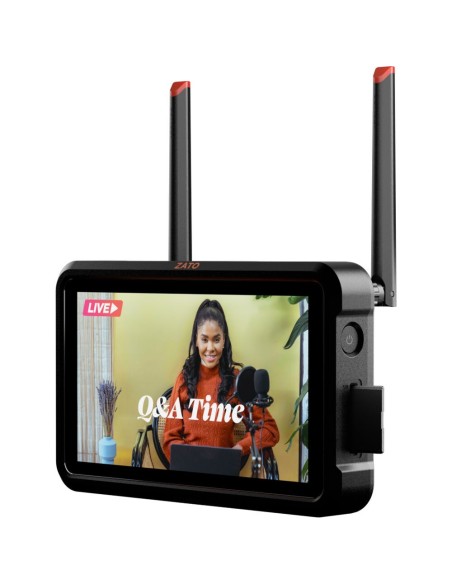

Atomos ZATO CONNECT 5.2" Network-Connected Video Monitor & Recorder 1080p60

imultaneously stream and record HDMI and USB video with the ZATO CONNECT from Atomos and its 1920 x 1080 resolution 5.2" touchscreen display. The ZATO CONNECT works as a gateway to the ATOMOS Cloud Studio software thanks to its Wi-Fi 5, Gigabit Ethernet, and cellular hot spot connectivity. This allows you to fully customize your livestreaming experience by switching between video sources and mixing different audio sources—all with a single, compact device small enough to mount on a DSLR camera rig.

One HDMI input, one HDMI output, and two corresponding USB Type-C ports can transform various video equipment into livestream or webcam sources. The ZATO CONNECT can record up to 1080p60 HDMI video and up to 1080p30 USB video. One 3.5mm audio input integrates a microphone or line source, which can be easily mixed with the embedded HDMI or USB signals thanks to the ZATO's audio mixer. AtomOS Lite software further customizes your recordings and streams with effects and frame guides to reinforce your branding. Power to the device can be achieved with an L-series battery or via the USB Type-C PD input.

Stream from Anywhere

• Support for HDMI and USB UVC cameras and video sources

• Equipped with Wi-Fi 5 and Gigabit Ethernet via USB Type-C

• Ability to join cellular hostspots

• Stream to Facebook Live, Twitch, YouTube with ATOMOS Cloud Studio

• Create high-quality video for Microsoft Teams, Slack, and Zoom

• Each livestream is recorded as local H.264 backup to an SD card up to 128GB

• Combine recorded sources with live content

Comprehensive I/O

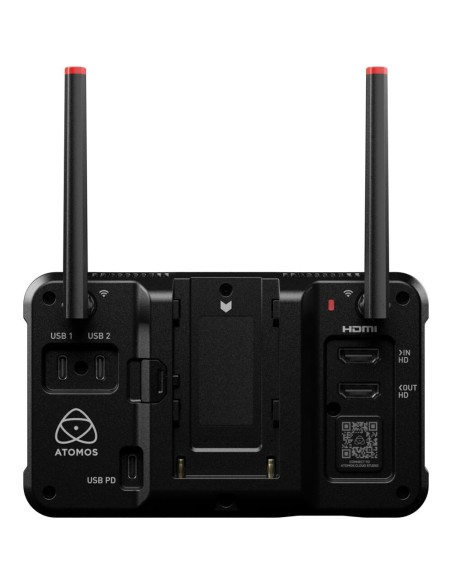

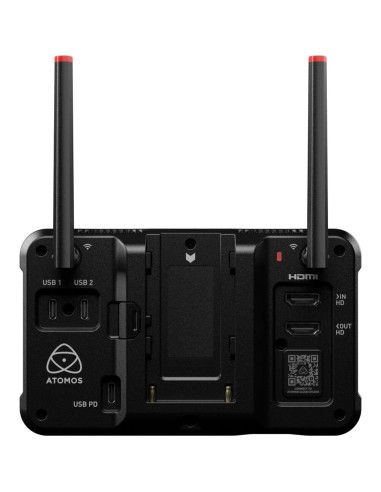

• Input and output ports for both HDMI and USB to transform a wide variety of video equipment into a livestream or webcam source

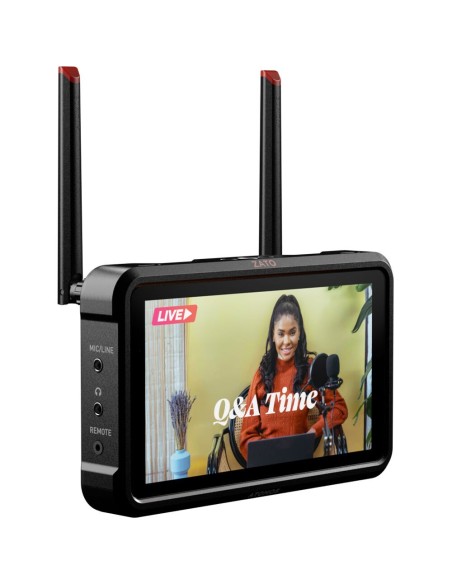

• 3.5mm audio jack can add microphone or line sources and mix them with embedded audio from HDMI and USB

• Each channel can be adjusted independently and mixed down to a single stereo track for livestream, recording, or video presentation

AtomOS Lite Software

• Configure streams, switch between sources, record and playback video, mix audio, and add effects

• Key tools like overlay effects, image zoom, and frame guides

• Add graphic overlays to streams or watermark recorded content

Display

• 5.2" SuperAtom IPS LCD panel with capacitive touch

• 1920 x 1080 resolution

• 178° horizontal and vertical viewing angle

• 427 ppi, 1000 cd/m² brightness

• Rec709 color gamut

Monitor Assist Functions

• Display flip (vertical and horizontal)

• Frame guides (1:1, 4:3, 4:5, 9:26, 16:9, 1.91)

• Grid markers (9 grid)

• Zoom (tap to zoom)

Power Options

• L-series battery compatibility up to 7.6V

• USB Type-C PD input connector from 6.2 to 16.8V

• DC input connector via locking DC jack on separately available battery eliminator

• D-Tap via separately available D-Tap to DC cable

In the Box

• Atomos ZATO CONNECT 5.2" Network-Connected Video Monitor & Recorder 1080p60
• 2 x Wi-Fi Antenna
• White Antenna Cap
• Red Antenna Cap
• Yellow Antenna Cap
• Black Antenna Cap
• Green Antenna Cap
• 2 x Antenna Top Cap
• 2 x Antenna Mount Cover
• USB Type-C to USB Type-C Cable
• Antenna Storage Pouch
• Screen Cloth
