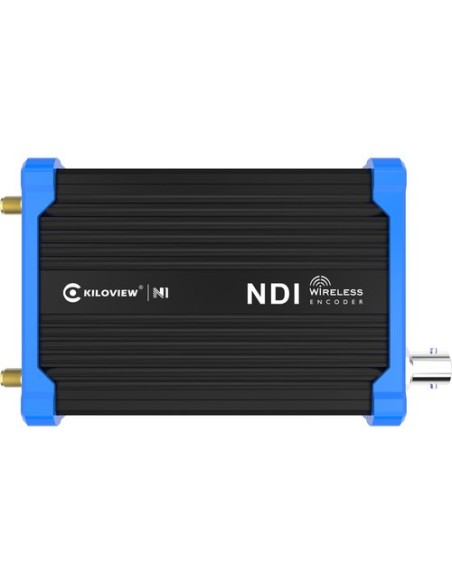

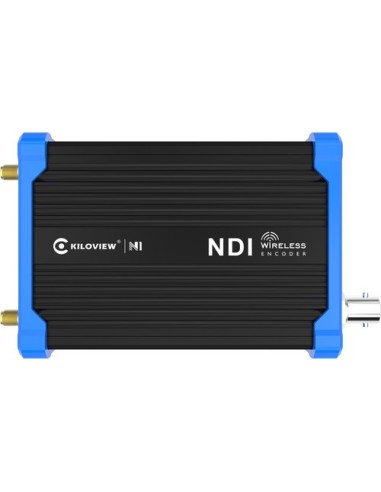

Kiloview N1 Portable Wireless SDI to NDI Video Encoder, New Tek NDI® is an open network device interface protocol with ultra-low latency, accurate frame video, data stream mutual recognition and communication, makes video real-time production possible. N1 SDI to NDI video encoder is a professional video encoding device for NDI video production
Paga 20.91€ in 11 mesi senza nessuno costo
New Tek NDI® is an open network device interface protocol with ultra-low latency, accurate frame video, data stream mutual recognition and communication, makes video real-time production possible. N1 SDI to NDI video encoder is a professional video encoding device for NDI video production. It can encode SDI video source into NDI protocol stream, and transmit video over wired network or wireless WIFI network which is available for any NDI compatible systems, devices or software.
Features
• NDI Protocol
• Equipped with hot shoe
• Voice intercom supported
• Portable with wifi
• No messy & expensive cables
• Up to 1080P60Hz
• Built-in battery
• Lossless image quality
• Provide SDK for second development
Advantage
Authorized by NewTek, compatible with other NDI hardware and software products.
• Available as sources for other NDI compatible systems and software, no cables everywhere anymore.
• Ultra low-latency, mutual identification and communication of multiple data streams.
• Smart connection, discovered and connected by other NDI devices automatically.
Portable design, small compact and stable NDI Wireless transmission.
• Built-in 5.0GHz WIFI realizes stable NDI Wireless transmission, or USB-extend Ethernet transmission.
• 115*75*35mm, 380g only, hot shoe mountable makes it easy to install on the camera for portable application.
• Built-in large-capacity lithium battery, supports 5-16v external mobile power supply, no need to consider wired power supply.

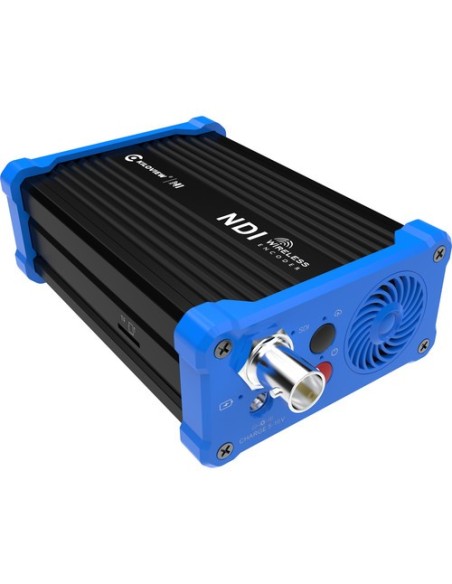

• Internal cooling fan makes it adapts to high temperature conditions, stable and reliable operation.
• Easy to operate, it supports wireless remote management using mobile phone/PAD terminal APP.
Powerful encoding function, dual stream output, customized graphic overlay, voice intercom, local recording.
• Wide adjustable code rate (64kbit/s to 40 Mbit/s).
• Dual stream output, the main code rate supports video encoding up to 1080p60Hz, and the sub-stream supports 720p 60Hz video encoding.
• Capable with customized text and image overlay function, which can be at any position on the screen.
• Voice intercom function (need to deploy voice intercom software).
• With SD/TF card slot, it supports local recording, and supports NAS network storage.
Parameter
• Input: 1*BNC (SD/HD/3G-SDI)
• Network support: Enhanced WIFI (Enhance 5.0GHz frequency+PA), USB-extend Ethernet
• Media transmission protocol: NDI-HX/RTMP/TS over UDP/HLS/SIP
• Video resolution:
Up to 1080P60Hz:
- 1080p23.98/24/25/29.97/30
- 1080p50/59.94/60
- 1080i50/59.94/60
- 720p23.98/24/25/29.97/30
- 720p50/59.94/60
• Video encoding: H264/AVC, Motion-JPEG, NDI HX; Audio encoding: AAC/G.711
• Recording: SD/TF card slot, local recording, NAS network storage
• Latency: End-to-end by cable is about 150 ms
• Image and text overlay: Custom text, image overlay function, can be superimposed to any position on the screen
• Voice intercom: Supported (required a voice intercom software)
• Management: Web/APP

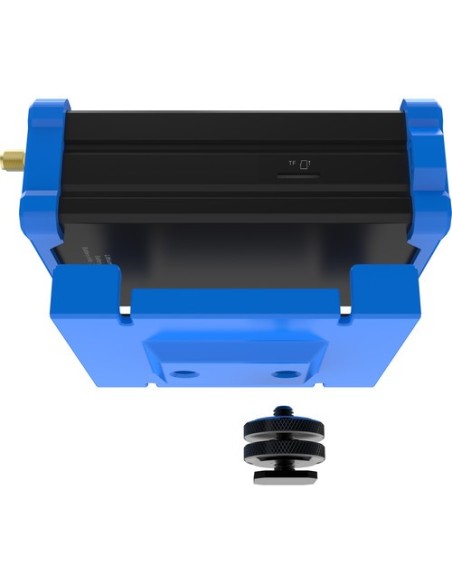

• Hot shoe: Removable
• Battery capacity: 3.7V 6800mAh(29.6Wh)
• Power supply: DC 12V 1A
• Power consumption: 6.5w
• Working temperature: -20℃~45℃
• Physical: Size: 115*75*35mm(4.53*2.95*1.38in); Weight: 380g(13.4oz)
In the box
1x power supply 230V
1x USB charging cable
1x USB-RJ45 adapter

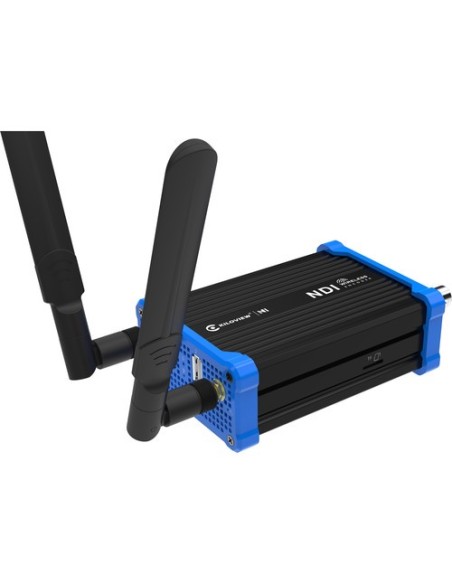

2x antennas
1x screw foot
1x manual
