DigitalFoto Solution Limited THANOS-PRO II Gimbal Support System

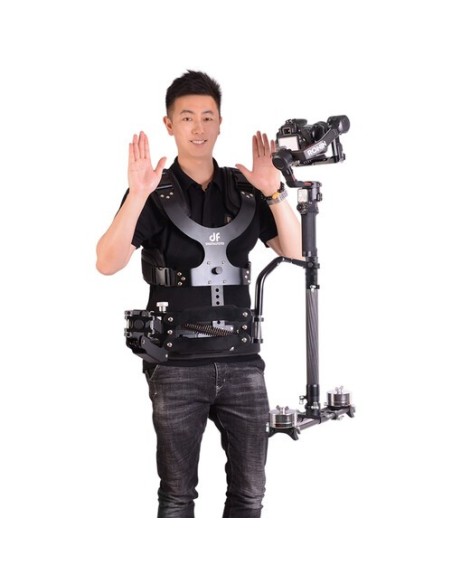

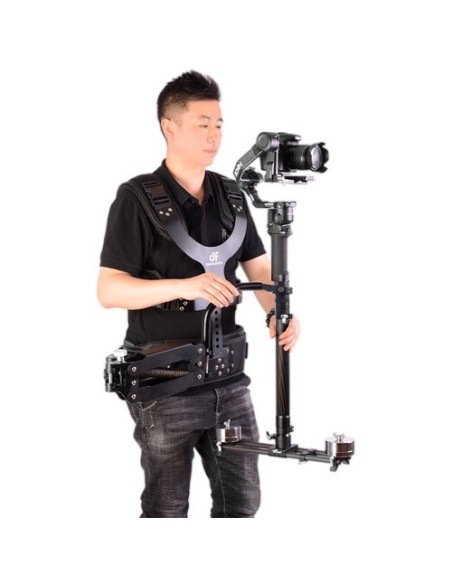

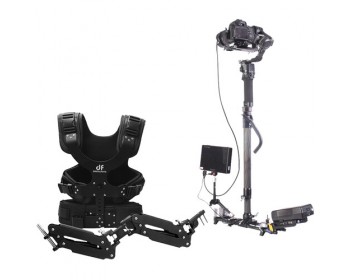

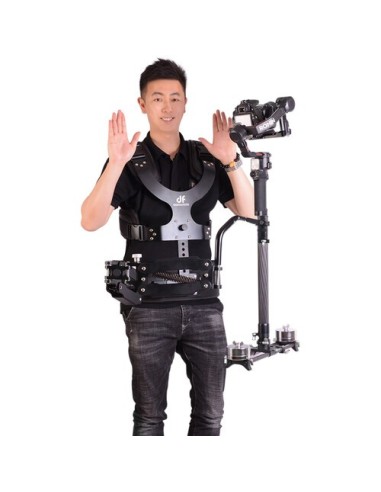

Adding a carbon fiber monopod sled, the THANOS-PRO II is DigitalFoto's second-generation body-worn support system for single-grip gimbals such as the DJI RS 2, RSC 2, and Ronin-S, Zhiyun-Tech CRANE 2S and 3S, Moza Air 2, and more. A dual-spring arm secures to the adjustable vest. The monopod sled attaches to a yoke and collar, and the collar inserts into a receptacle on the spring arm. Your gimbal then attaches to the monopod sled, which offers both 1/4"-20 and 3/8"-16 mounting points (via conversion) to support virtually all handheld gimbals. The THANOS-PRO II supports up to 23 lb of gimbal weight and relieves the weight off your arm, shoulder, and back muscles while providing additional stability, so you can achieve even smoother rich-looking professional shots.

The yoke and collar allow you to effortlessly tilt the monopod sled as well as flip it upside down for underslung shots with your gimbal. The monopod sled is adjustable between 18 and 32" in length. A sled base with counterweights attaches to the bottom of the monopod sled. Between the adjustment of the monopod sled and the counterweights, you can easily find the ideal balance for your gimbal for different shooting scenarios. The sled base also has feet that allow you to set the entire setup on the ground.

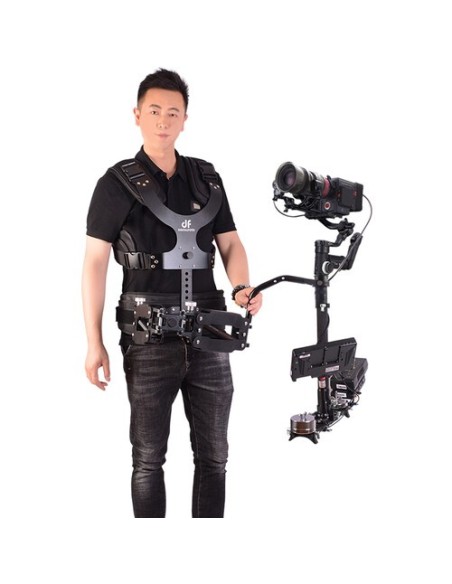

Also included are an 11" articulating arm and a V-mount battery plate with USB, D-Tap, and three DC ports. The battery plate comes with a set of DC and dummy battery cables for connecting to various cameras and devices, including the Sony a7S and a7R models, Canon 5D and 6D models, and the BMPCC 4K/6K. The articulating arm can be attached to a 1/4"-20 thread on the sled base to support monitors and other devices and accessories.


Additional Features

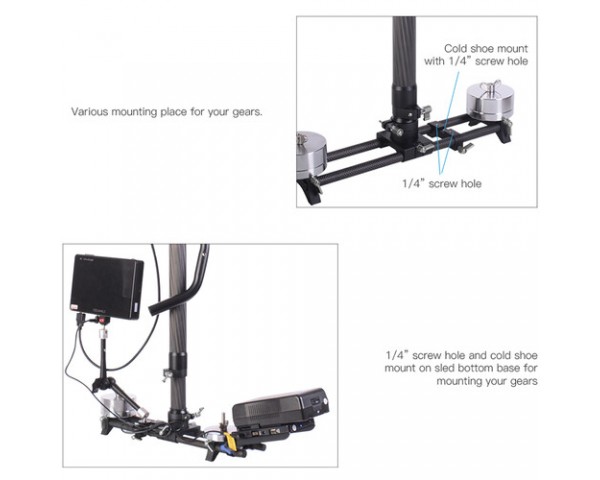

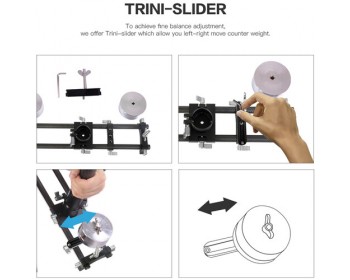

The sled base consists of dedicated 15mm LWS brackets attached to 15mm carbon fiber rods. All the brackets are slide-adjustable on the rods, including the ones that hold the counterweights, allowing you to further adjust overall balance. One of the brackets is for attaching accessories. It offers a shoe mount and 1/4"-20 threads.

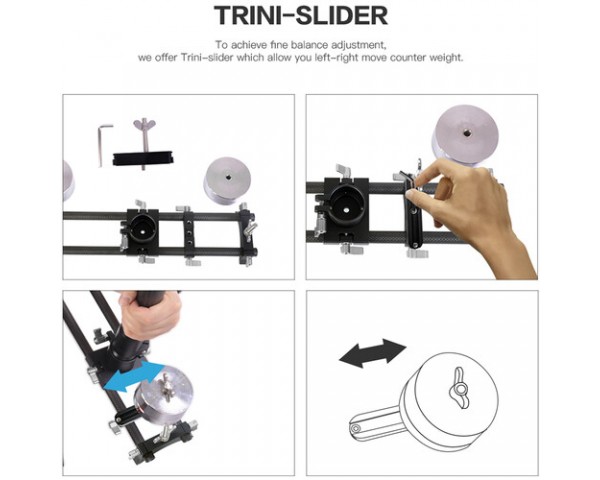

The counterweights are mounted on a long stud on the appropriate bracket and are secured tool-free via wingnuts.

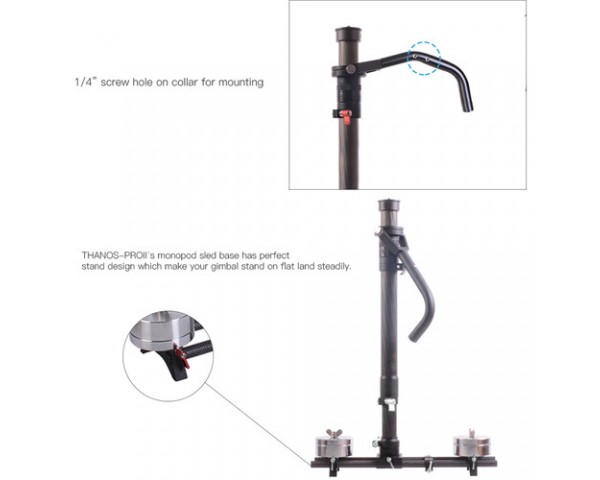

There are two additional 1/4"-20 threads on the collar.


V-Mount Battery Plate
The battery plate features a USB Type-A, 14.8V D-Tap, and three DC ports (8V, 12V, and 15V).
The battery plate comes with multiple cables, including a D-Tap cable and dummy battery cables that support cameras such as the Sony a7 and a7 II, a7S and a7S II, a7R and a7R II, a6500, and a6300; Canon 5D Mark II, III, IV, 5DS R, 6D, and 6D Mark II; and Blackmagic Pocket Cinema Camera 4K/6K.

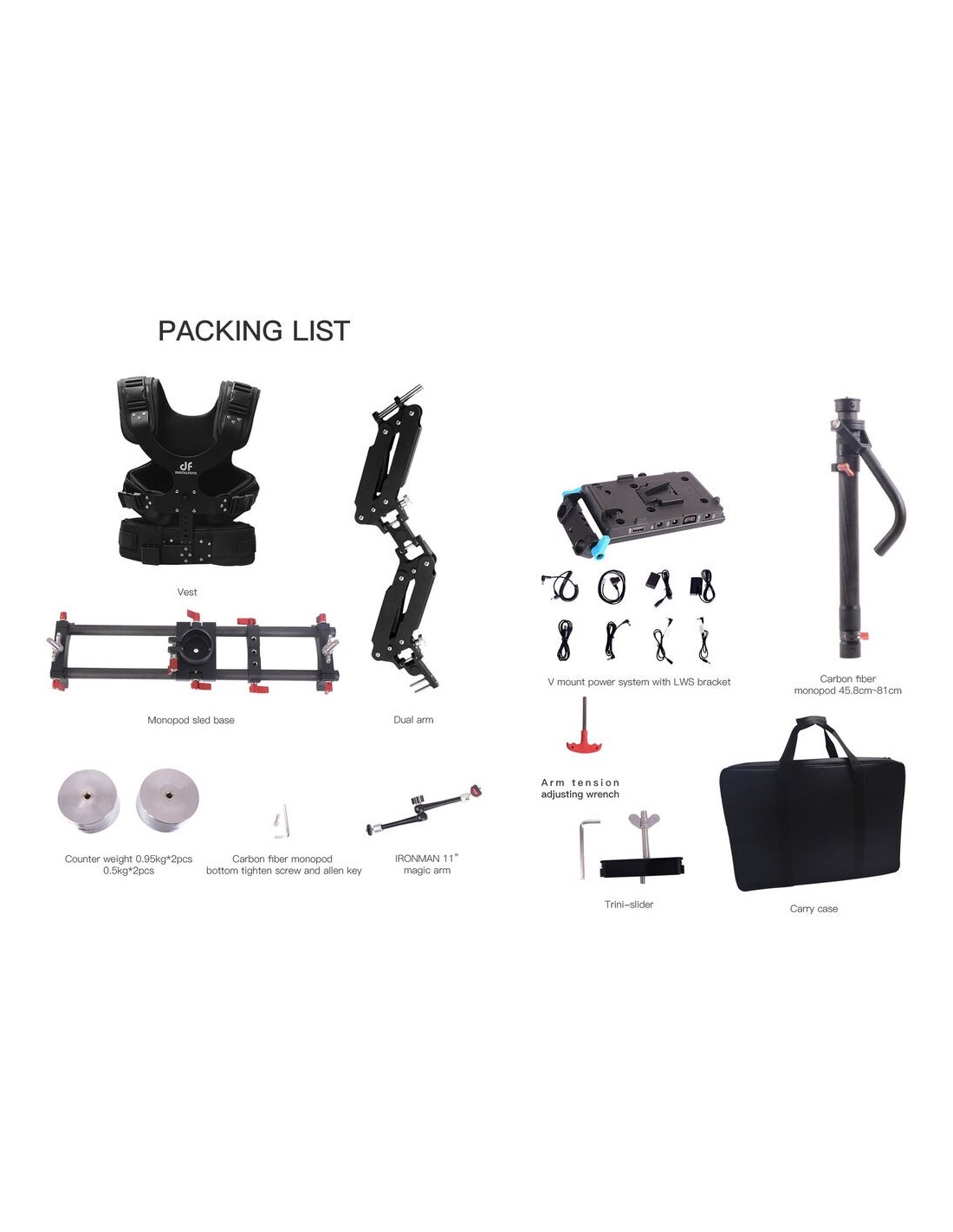

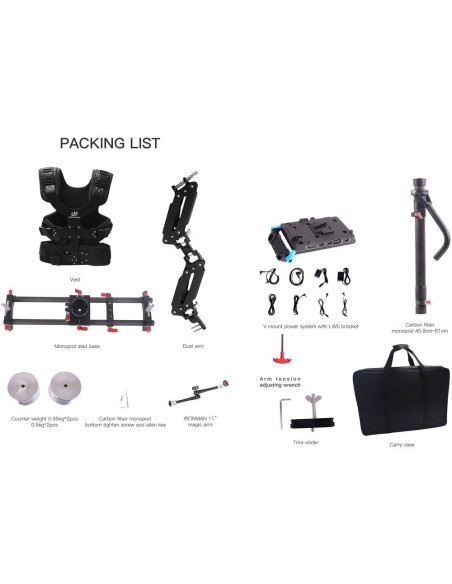

In the Box

• DigitalFoto Solution Limited THANOS-PRO II Gimbal Support System
• Vest
• Dual-Spring Arm
• Adjustable Carbon Fiber Monopod Sled
• Monopod Sled Base
• Yoke
• Collar
• V-Mount Battery Plate with 15mm LWS Rod Mount Bracket
• D-Tap to DC Cable for BMPCC
• DC Cable for Monitors
• Sony NP-FW50 Dummy Battery Cable
• Canon LP-E6 Dummy Battery Cable
• USB Type-A to DC Cable
• 2 x Counterweight (2 lb)
• 2 x Counterweight (1.1 lb)
• DigitalFoto Solution Limited Ironman Magic Arm (17 lb Payload, 11")
• Security Screw for Bottom of Sled
• Slide Bracket for Sled
• Set of Multiple Allen Keys
• Carry Case
