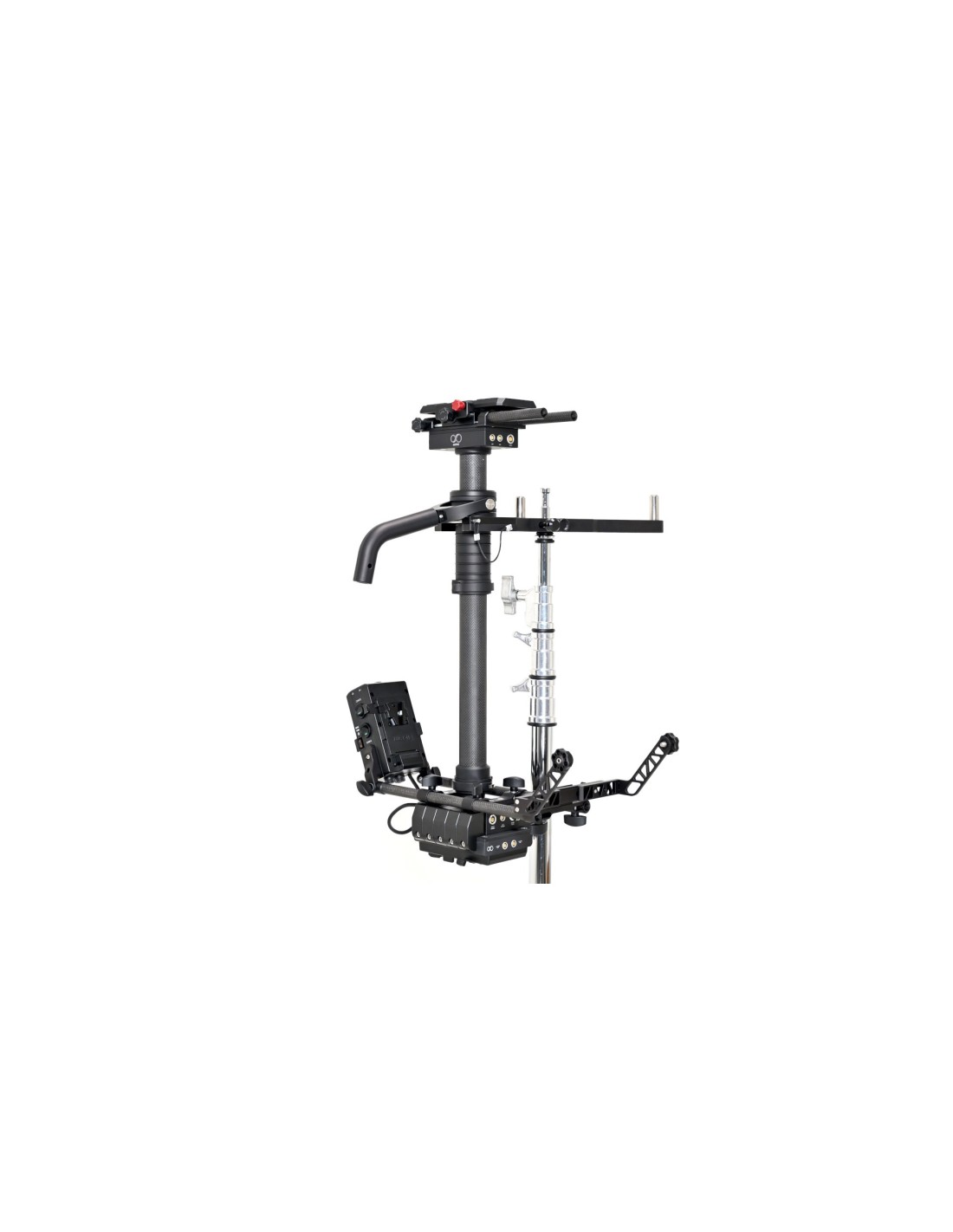

SmartSystem Matrix Sled Pro

MATRIX IS TOOL FREE

You won’t need to use keys any longer to set up your Matrix Sled.
When you work, it’s required a good operating speed.
The possibility to make slight movements is essential. The use of an exclusive locking levers system and knobs with an ergonomic handle guarantee speed, accuracy and reliability.

1.5″ CARBON TELESCOPIC POST (40mm) – Tool-free

First rate carbon telescopic post with a 40mm diameter to ensure a great strength and a great lightness as well.

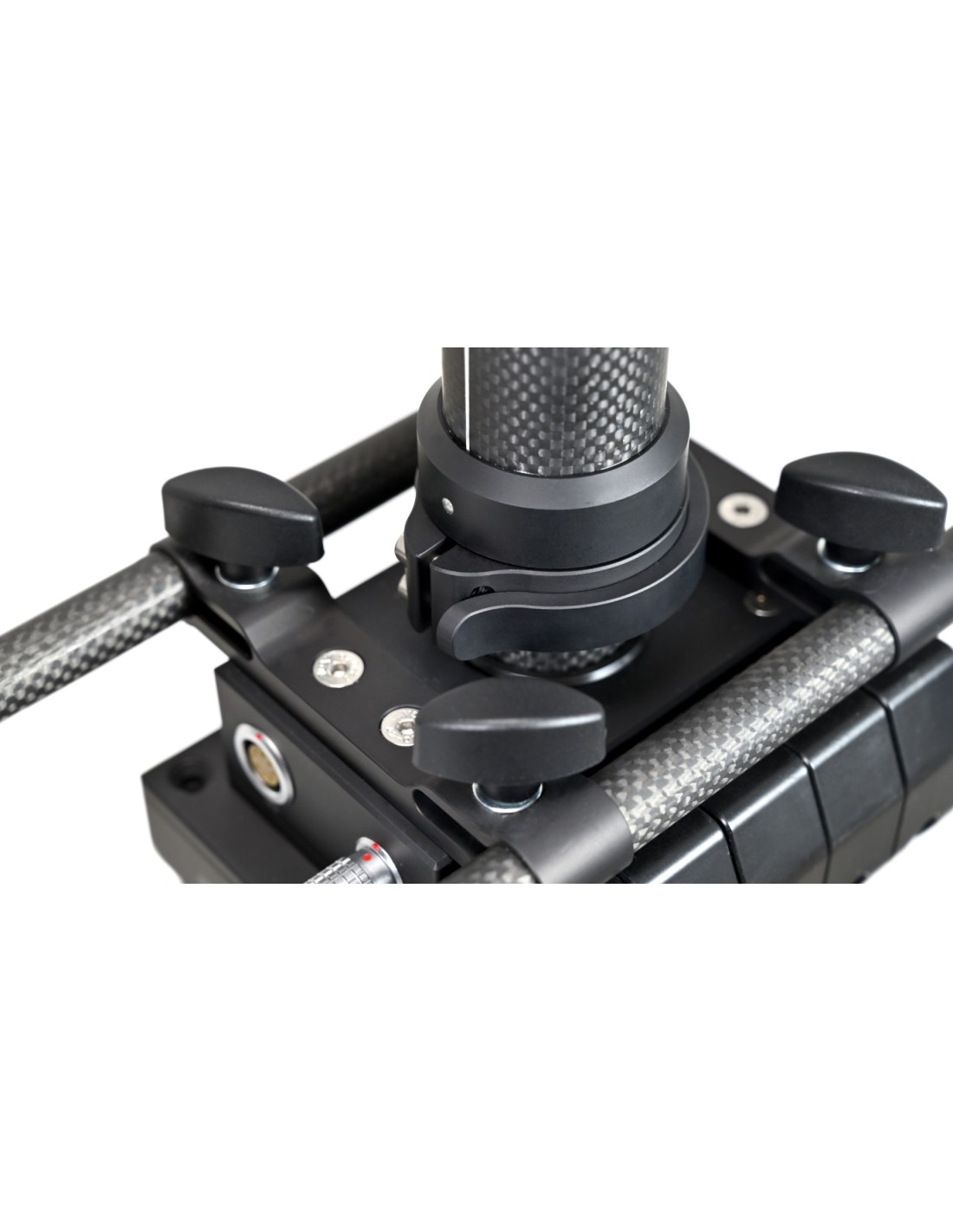

ULTRA-FLUID AND TOOL-FREE PROFESSIONAL GIMBAL

The gimbal, as well as being surprisingly fluid, has got an innovative locking clamp, able to minimize the force necessary for the fastening.

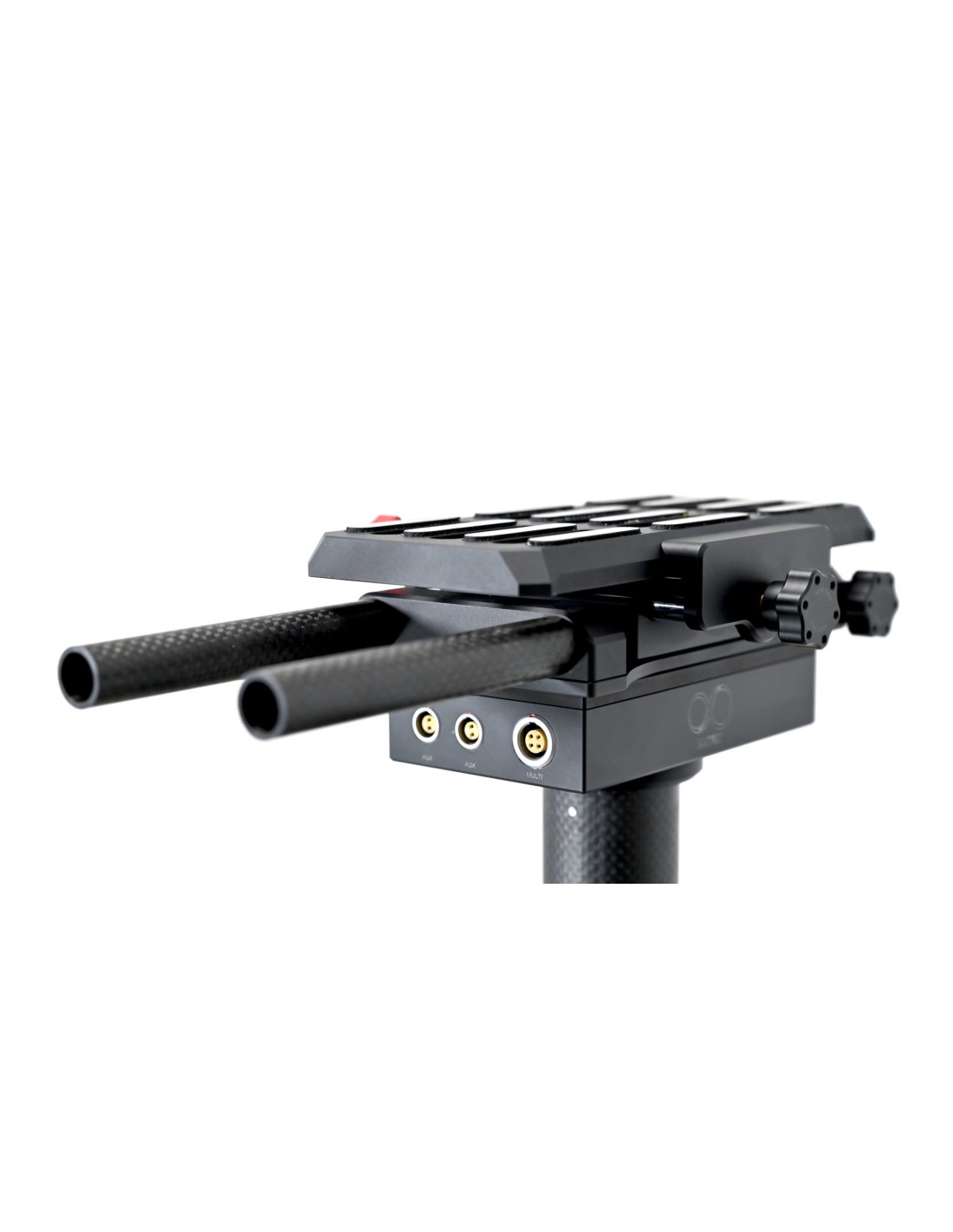

SMARTHEAD

Solutions arise from needs. Smarthead allows the operator to disconnect integrally the sled’s head and create new configurations. Thanks to this technology, you can keep your sled up to date and prepared to accommodate the future releases by SmartSystem. Furthermore you can realize a customized head, according to your specific needs.

LCD MONITOR HOLDER

MATRIX SLED can accommodate the most common LCD monitors on the market thanks to the new adjustable stand, specifically designed for

DEDICATED WIRING

Every component of your equipment could need a particular voltage in order to work properly. Most commercial sleds has only one wiring in order to connect your battery pack from the lower side of the sled to the upper one. Matrix Sled give to you the opportunity to connect up to three different voltages from your batteries to the component that needs to be powered up.

This translates in completely freedom and versatility

C BATTERY INCLUDED

Matrix Sled Pro is equipped with an additional C Battery plate giving to you more endurance or more flexibility to your setup.

COUNTERBALANCE ADDITIONAL WEIGHT

The essence of a steadycam sled is the ability to balance the weight of your camera (accessories included like remote follow focus or particular cinema lenses)

More weight on the upper part of your sled can be counterbalanced increasing the distance of the batteries or monitor from the fulcrum represented by the gimbal. This translates in a less pratical sled setup reducing the ability to boom down (you’ll risk to touch the ground with batteries or lower part of sled) or touch the sled with your legs during fast movements.

Matrix Sled PRO give to you the possibility to add up to to ten counterbalance weight (225gr each) in order to reach the perfect balancing without sacrificing the versatility of your setup

HIGH QUALITY CONNECTORS

From the original Neutrik XLR to the BNC connector with gold plated contacts, the power and the video signal (Full-HD-HD-SDI) are guaranteed by the absence of any Insertion Loss.

LEMO® – FISHER®

Our main target: easyness and quickness. Often, the worst enemies of a steadicam operator are the cables themselves.

The standard connectors used on our sleds are strong, easy to find and, above all, have excellent electrical features.

To all those who have an equipment already provided with Fischer® or Lemo® connectors, it’ll be possible to use their own cables and connect this equipment to our Sled Matrix, thanks to the innovative SmartBOX (coming soon).
