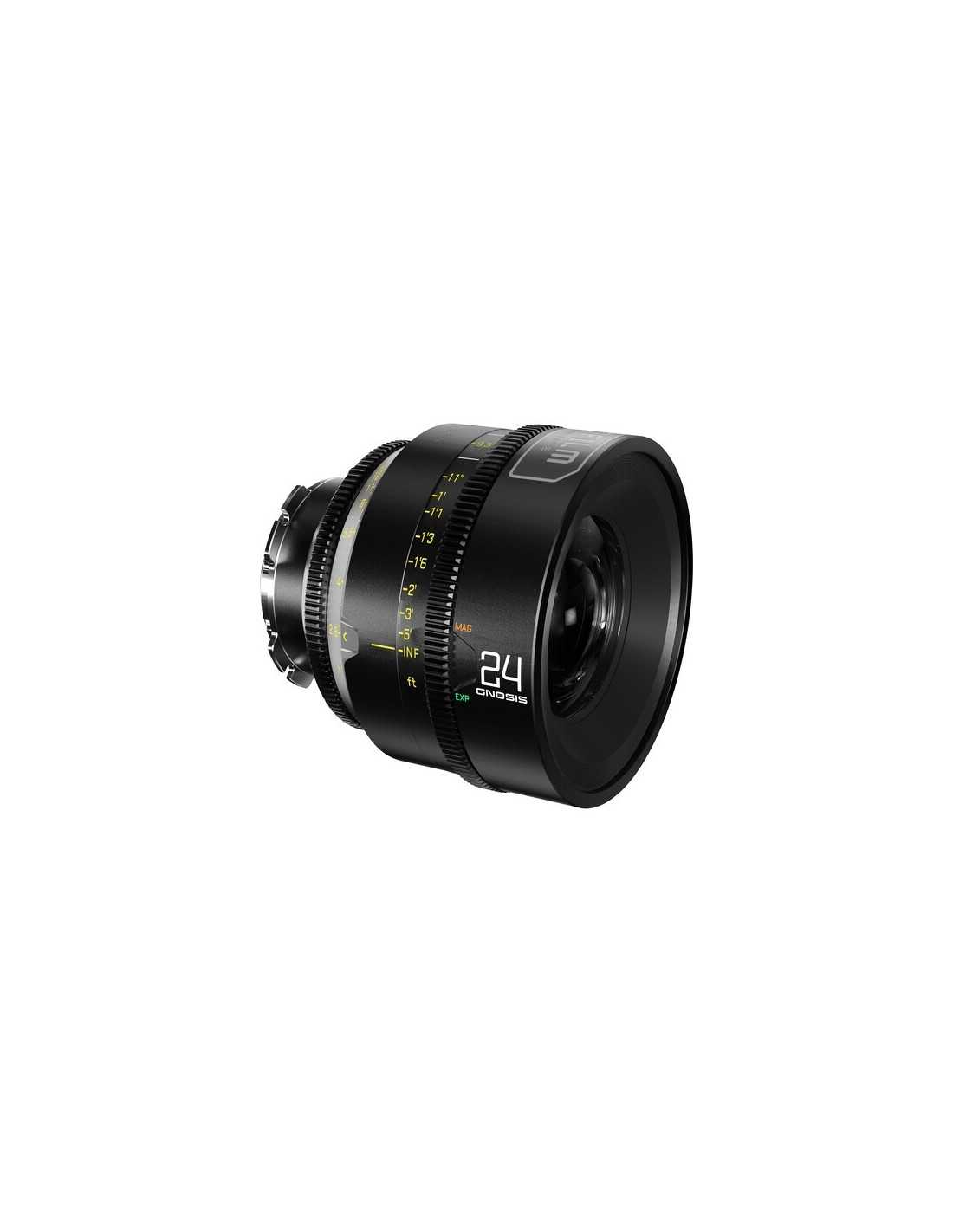

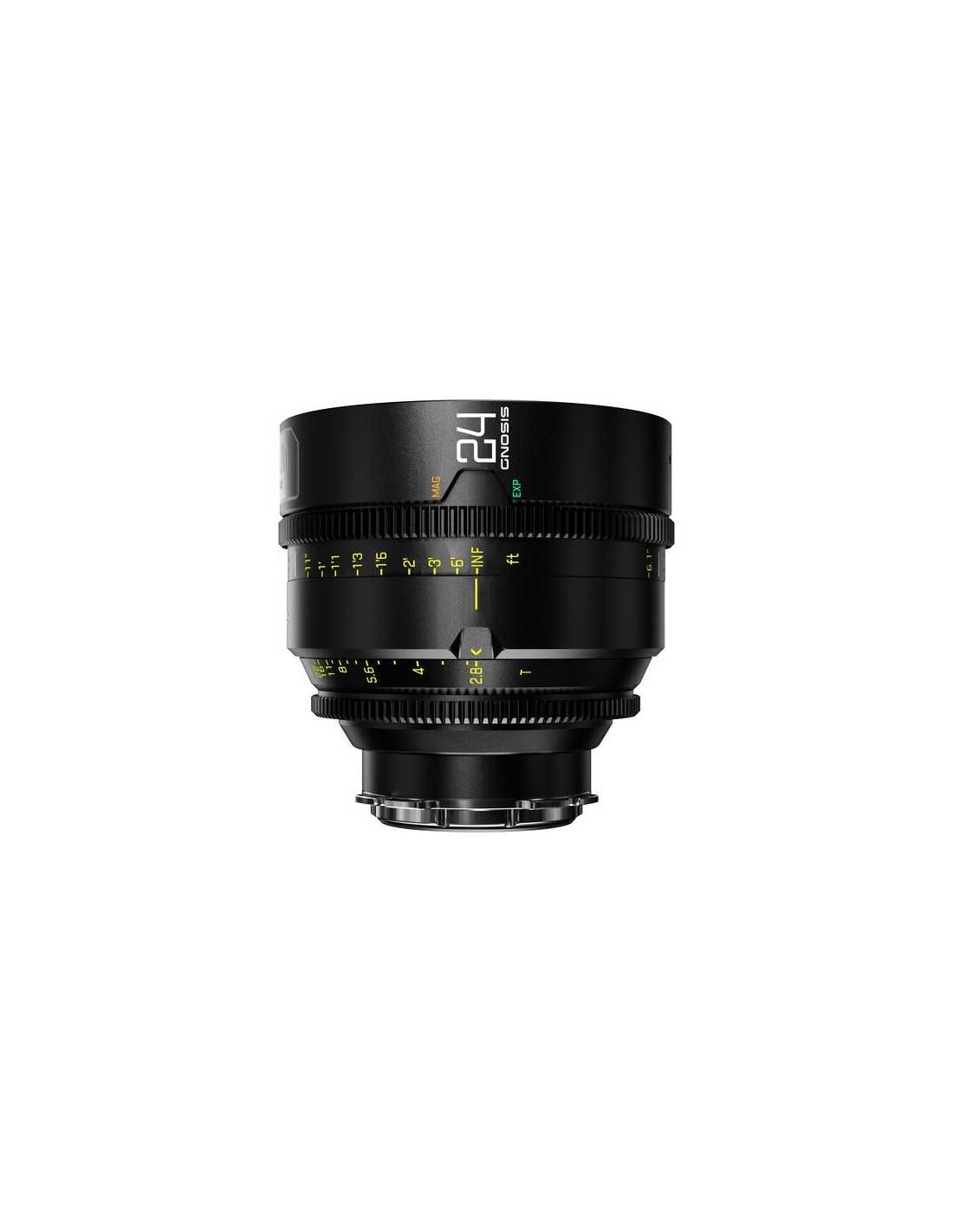

DZOFilm 24mm T2.8 Gnosis Macro Prime Lens (LPL with PL & EF Mounts, Feet)

The 24mm T2.8 Gnosis Macro Prime Lens from DZOFilm provides immersive close-up views of your subjects with up to 0.8:1 magnification and a wider, encompassing field of view. This ARRI LPL-mount lens with focus marks in feet comes with both ARRI PL and Canon EF mounts, enabling you to use it with a wide range of cine-style cameras.

Full-Frame Coverage
This wider lens provides an 83.8° field of view in full-frame and an 88° FOV in VV (VistaVision) format.

Wide-Angle Macro Lens
The Gnosis 24mm T2.8 Macro uniquely combines a wide-angle view with the creativity of a macro lens, letting you craft an immersive view with an impression of greater depth.
This wider lens includes more of your background, revealing additional details of your shot.
Provides a wide-angle, immersive view with 0.8:1 macro magnification at 6.1".

Interchangeable Mount
The ARRI LPL-mount 24mm Gnosis lens also comes with both ARRI PL and Canon EF lens mounts.
This lens mount versatility provides compatibility with a wider selection of cine-style and mirrorless cameras.

Fast T2.8 Aperture
A fast T2.8 maximum aperture enables you to capture extremely sharp images, even at lower light levels.


Quality Optical Design
A superior optical design incorporates a 16-blade aperture for both attractive bokeh and precise exposure control.
Two low-dispersion and three HRI (high refractive index) elements help to control chromatic aberration and provide vibrant colors and natural gradations in tone, creating a cinematic look.

Focus Marks in Feet
Focus scales are marked in feet.

Features
Covers Full-Frame, VV Formats
Native LPL + PL and EF Mounts
0.8:1 Reproduction at 6.1"
Fast T2.8 Maximum Aperture Range
16-Blade Iris, Appealing Bokeh
Vibrant Colors, Natural Gradations
Cine-Geared Focus and Iris Rings
Lens Scale Marked in Feet

Compatibility
AJA CION
ARRI ALEXA 35
ARRI ALEXA LF
ARRI ALEXA Mini LF
ARRI ALEXA SXT
ARRI AMIRA
Blackmagic Design Cinema Camera 6K
Blackmagic Design Pocket Cinema Camera 6K
Blackmagic Design Pocket Cinema Camera 6K G2
Blackmagic Design Pocket Cinema Camera 6K Pro
Blackmagic Design URSA 4K
Blackmagic Design URSA Broadcast G2
Blackmagic Design URSA Mini 4.6K
Blackmagic Design URSA Mini 4K
Blackmagic Design URSA Mini Pro 12K
Blackmagic Design URSA Mini Pro 4.6K
Blackmagic Design URSA Mini Pro 4.6K G2
Canon EOS 1D X
Canon EOS 1D X Mark II
Canon EOS 1D X Mark III
Canon EOS 5D Mark II
Canon EOS 5D Mark III
Canon EOS 5D Mark IV
Canon EOS 5D Mark IV Canon Log
Canon EOS 5DS
Canon EOS 5DS R
Canon EOS 6D
Canon EOS 6D Mark II
Canon EOS 70D
Canon EOS 77D
Canon EOS 7D Mark II
Canon EOS 80D
Canon EOS 90D
Canon EOS C100
Canon EOS C100 Mark II
Canon EOS C200
Canon EOS C300
Canon EOS C300 Mark II
Canon EOS C300 Mark III
Canon EOS C500
Canon EOS C500 Mark II
Canon EOS C700
Canon EOS C700 FF
Canon EOS C700 GS
Canon EOS Rebel SL1
Canon EOS Rebel SL2
Canon EOS Rebel SL3
Canon EOS Rebel T5
Canon EOS Rebel T5i
Canon EOS Rebel T6
Canon EOS Rebel T6i
Canon EOS Rebel T6s
Canon EOS Rebel T7
Canon EOS Rebel T7i
Canon EOS Rebel T8i
For.A FT-ONE
JVC GY-LS300
Kinefinity MAVO LF MKII
Kinefinity MAVO S35 MKII
Panasonic AU-EVA1
Panasonic VariCam 35
Panasonic VariCam 35B
Panasonic VariCam LT
RED DIGITAL CINEMA DSMC2 BRAIN
RED DIGITAL CINEMA DSMC2 BRAIN Monochrome
RED DIGITAL CINEMA EPIC-W
RED DIGITAL CINEMA Komodo
RED DIGITAL CINEMA RANGER
RED DIGITAL CINEMA RAVEN
RED DIGITAL CINEMA SCARLET-W
RED DIGITAL CINEMA V-RAPTOR XL
RED DIGITAL CINEMA WEAPON
Sony BURANO
Sony BURANO CineAlta Digital Cinema Camera
Sony PMW-F3
Sony PMW-F5
Sony PMW-F55
Sony SRW-9000PL
Sony VENICE 2 6K Digital Motion Picture Camera
Sony VENICE 2 8K Digital Motion Picture Camera
Sony VENICE 4K LIVE BUNDLE
Sony VENICE 6K Digital Motion Picture Camera
Z CAM E2-F6
Z CAM E2-F6 Pro
Z CAM E2-F8
Z CAM E2-S6
Z CAM E2-S6G

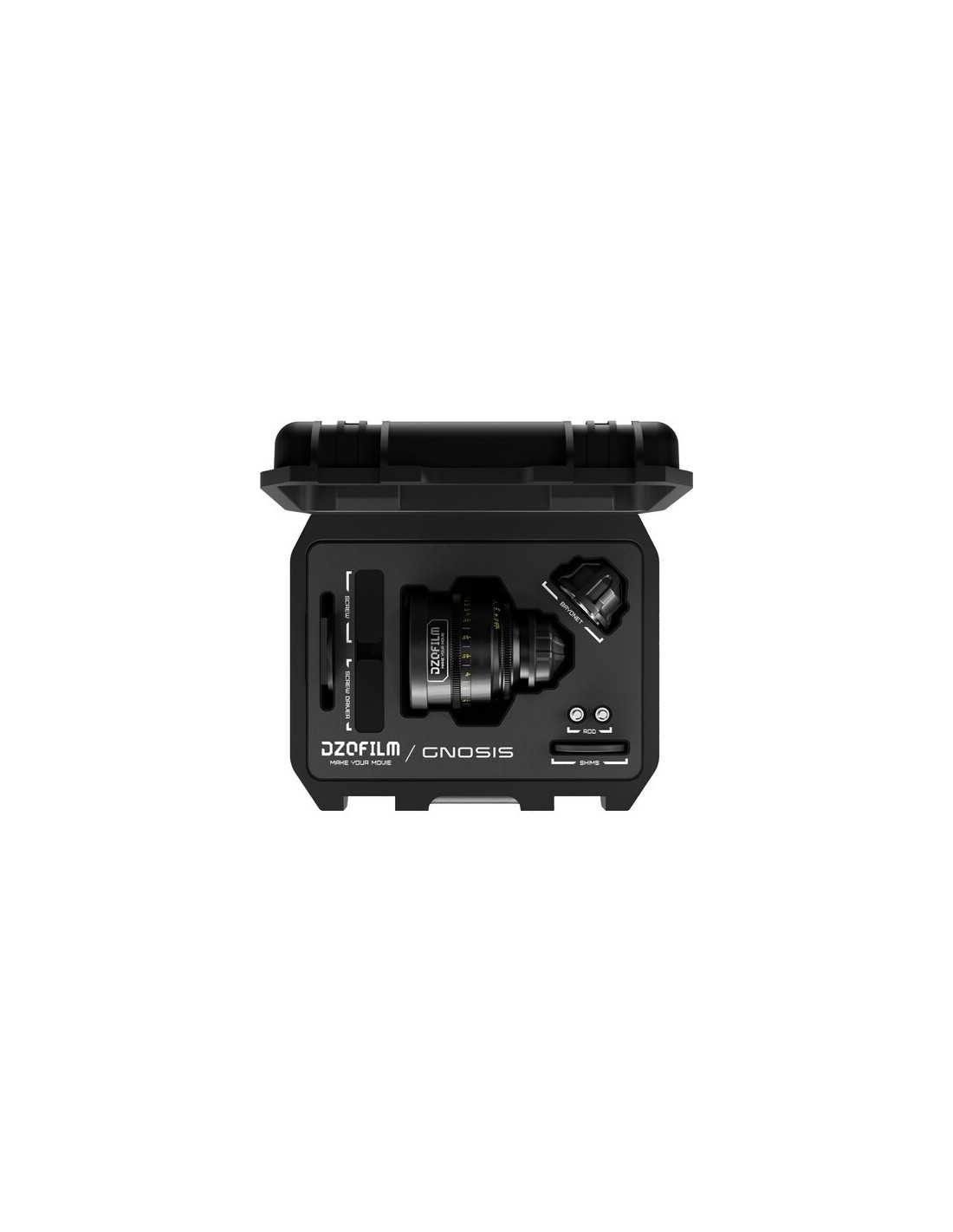

In the box
DZOFilm 24mm T2.8 Gnosis Macro Prime Lens (LPL with PL & EF Mounts, Feet)
PL Mount
EF Mount
Mounting Hardware

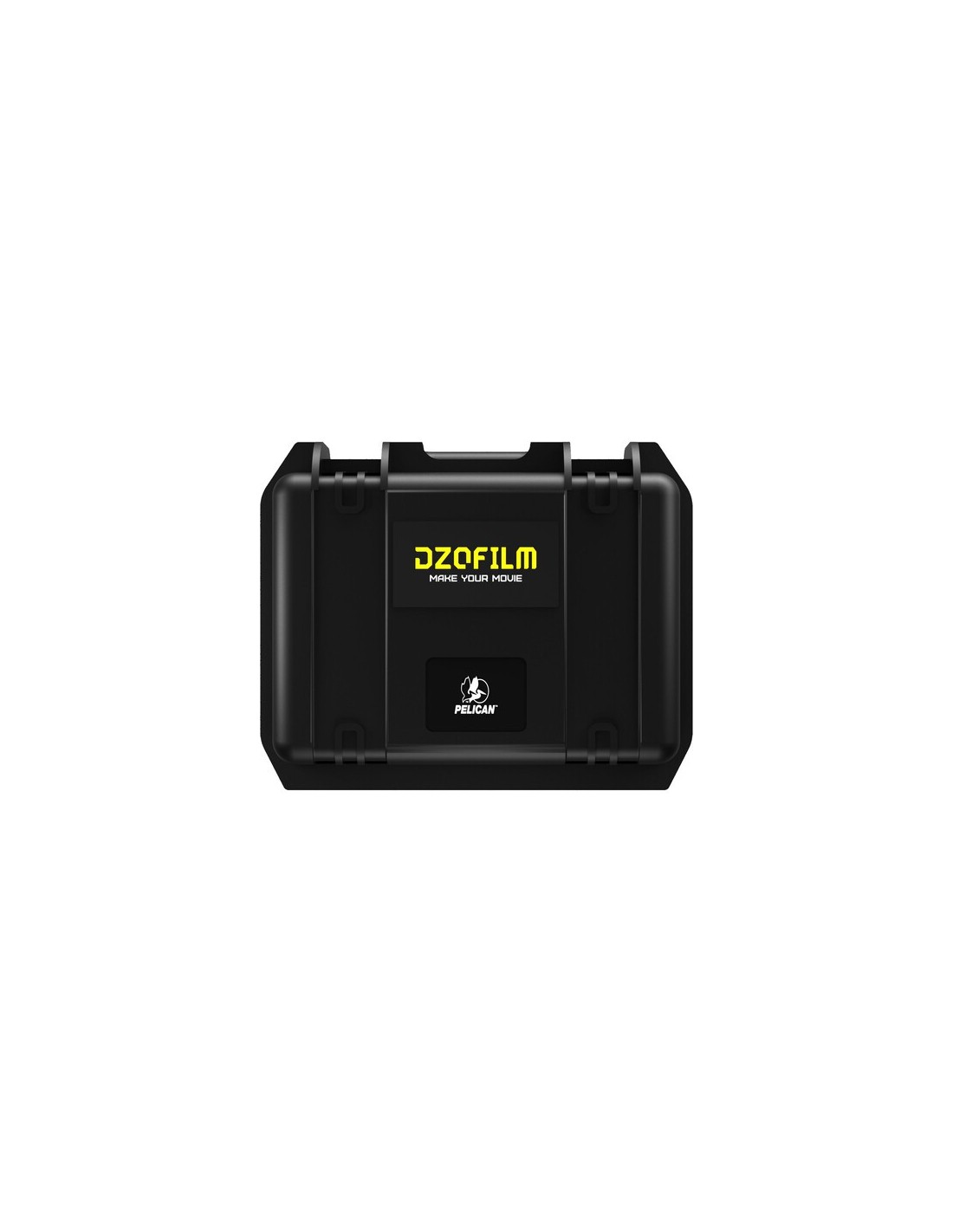

Hard Case

Specifications
Focal Length 24mm
Maximum Aperture T2.8
Minimum Aperture T22
Lens Mount ARRI LPL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Focus Scales Imperial
Optical Design 12 Elements in 10 Groups
Filter Thread 105 mm
Minimum Focus Distance From Camera Sensor: 6.1" / 15.5 cm
Maximum Magnification Ratio 0.8:1
Diaphragm Blades 16
Image Stabilization No
Electronic Communication No
Weight 2.78 lb / 1.26 kg
