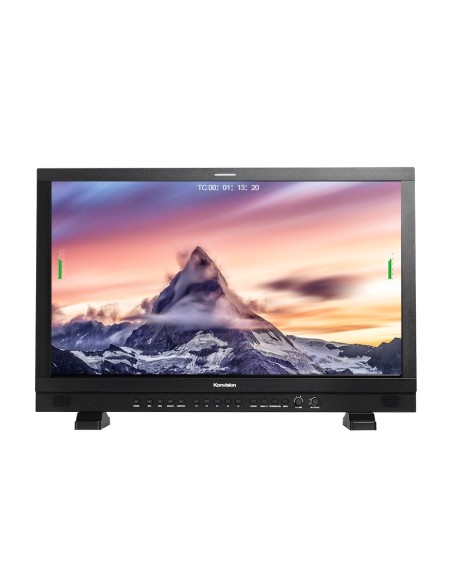

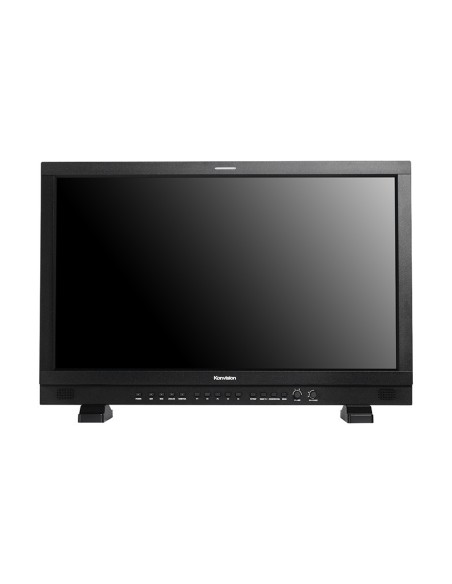

Konvision KVM-2260W 21.5" HDR Premium Broadcast Monitor

HDR display:

Offering high dynamic range(HDR) display,which including PQ(SMPTE ST2084),HLG and S-Log 3 in flexible mode.It provides extremely high level of picture quality and image reproduction.

3D LUT Color Calibration

Integrated 3D LUT color calibration technology, Konvision KVM-6X series monitors are compatible with Lightspace and Calman. Support various color gamuts like REC709/DCI-P3/EBU/SMPTE-C/REC2020/USER1/USER2, user can import their own lut files into the monitor. Lightspace and Calman for Konvision are competible with popular colorimeters including CA210, CA310, CS200, CR100, CR250, Klein K10A, X-rite i1 Display OEM.

Waveform, Vector, Audio Meter for All Signals

All SDI1, SDI2 and HDMI support Waveform, WaveformAlarm, Vectorscope, Histogram, Pixel Measurement, Audio Meter display etc professional picture analysising functions.

Pixel Measurement

Select any single pixel or block of pixels,using a movable crosshair to obtain real time readouts of YRGB values and the percent difference, make the comparison easily.

Features:

21.5" 1920×1080 native resolution

3G-SDI 4:4:4 12bit signals (SMPTE 425M A/B)

12 Bit Video Processing

3D LUT Color calibration with LightSpace & CalMAN

Color space: REC709/DCI-P3/EBU/SMPTE-C/REC2020/USER1/USER2

HDR supporting PQ, HLG and S-Log 3

User 3D LUT file import

2K/3G/HD-SDI 2x In & 2x Out

Composite/Component In/Out

PBP/PIP(size/position adjustable)

Waveform, Vectorscope for SDI1 and SDI2

Waveform, Vectorscope for HDMI/DVI

Pixel Measurement and Audio Phase

Picture Flip, Histogram, H/V Delay

Focus Assist, Zoom, False Colour, Zebra

Over Scan, Markers, Blue Only/Mono Only

Audio Level Meter(16CH for SDI, 2CH for HDMI)

Dynamic UMD(TSL3.1/4.0), Time Code Display

LED Tally Light and On-screen Tally display

On-screen Alarms: no video, video black, freeze frame, no audio

F-key configuration and Key Lock function

Remote control: Ethernet/GPI, RS422 In/Out

Built-in AC IN and DC IN power supply

Specification:

LCD :

Display Size 21.5"

High Resolution 1920×1080

Aspect Ratio 16:9

Wide Viewing Angle 178°(H) / 178°(V)

Pixel Pitch 0.265×0.265(mm)

Color Depth 16.7M

Back Light LED

Brightness 250cd/m2

Contrast Ratio 1000:1

INPUT:

2 × BNC SDI1/2 Channel Input (3G/HD/SD-SDI Auto-Detected)

3 × BNC YPbPr/Video/Y/C

1 × HDMI  HDMI Imput

1 × DVI  DVI/VGA input

OUTPUT:

2 × BNC SDI1/2 Channel Output (3G/HD/SD-SDI Auto-Detected)

3 × BNC YPbPr/Video/Y/C

COMPANTIBLE SDI FORMATS:

SMPTE-425M-A/B

4:2:2 YCbCr 10-bit 1080p(60/59.94/60)

4:4:4 YCbCr/RGB 10-bit 1080i(60/59.94/50)

4:4:4 YCbCr/RGB 12-bit 1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)

4:2:2 YCbCr 12-bit 1080i(60/59.94/50)

1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)

4:4:4 YCbCr/RGB 10-bit 720p(60/59.94/50/30/29.97/25/24/23.98)

SMPTE-274M 1080i(60/59.94/50)

1080P(30/29.97/24/25/23.9830sF/29.97sF/25sF/24sF/23.98sF)

SMPTE-296M 720p(60/59.94/50/30/29.97/25/24/23.98)

SMPTE-260M 1035i(60/59.94)

SMPTE-125M 480i(59.94)

ITUR BT.656 576i(50)

AUDIO IN / OUT:

SDI Audio In 16 Channel Embedded Audio

Audio Meter Display(VU+PPM) H/V Audio Level Meter Display (VU-PPM)

Analog Audio Input 3.5mm Headset Switch Cable

Audio Headset Output 3.5mm Headset Jack

Built-in Speaker 2.5W×2

GENERAL:

Operating Temperature -10℃50℃

Input Voltage DC 12V/AC 100-240V 50/60Hz

Power Consumption 37W

Power-Saving Mode Turn off unimportant Key Automatically if No Signal Input

VESA Installation ESA MIS-D(100X100mm)

Shell Materials Aluminum on Front-Shell/Rust-Proof iron on Back-Shell

Accessory Power Cord /Desktop stand
