Canon DP-V1830 18.4" UHD 4K Reference Display

The DP-V1830 is a new 18-inch 4K professional reference monitor that is both compact and lightweight, while delivering exceptional imaging performance. It features numerous advanced HDR monitoring tools to analyse every aspect of the image. Designed with professionals in mind, this monitor satisfies major industry standards including Dolby Vision, making it ideal for on-set HDR monitoring, broadcast studios, OB trucks, and post-production.

Canon DP-V1830 Professional Display

With a compact and lightweight design for either studio or on-set environments, the DP-V1830 Professional Monitor provides exceptional 4K HDR imaging performance.

A compact professional 4K HDR Display for the new generation

Designed with portability in mind, the DP-V1830 HDR Monitor features award-winning monitoring tools and uncompromising 12G-SDI connectivity, making it ideal for live broadcast studios, production trucks and on-set HDR monitoring.

HDR Monitoring Tools

The DP-V1830 features Canon’s award-winning advanced HDR monitoring tools to assist in evaluating HDR content, providing detailed and accurate information regarding every aspect of the displayed signal.

HDR Waveform Monitor

Analyse the brightness of an image from left to right with a monitor scale supporting IRE, PQ, HLG and even Log signals from multiple manufacturers.

HDR False Colour

Visually represents exposure and image clipping based on detailed and customisable colour scales for IRE, PQ or HLG.

Range Check

Switches the display output to monochrome and enables users to specify a peak brightness level to easily identify areas that require adjustment.

Pixel Value Check

Accurately examine the colour and brightness values of a specific pixel. A CIE diagram is also displayed to illustrate the pixel colour space location.

Out of Gamut Display

Switches the display output to monochrome and highlights colours outside the selected colour gamut. Users can select either ITU-R BT.709 or Native gamut.

HDR/ SDR Compare View

An advanced function that converts HDR content to SDR for side-by-side evaluation. This function can be used to compare original content alongside enabled User LUTs or CDLs.

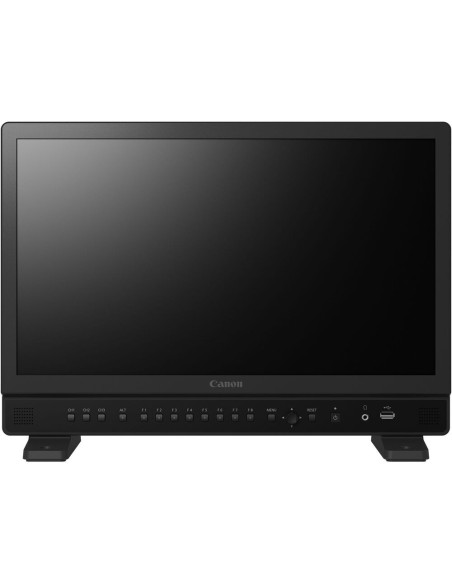

18” Display with Exceptional Brightness

The DP-V1830 features an 18-inch 4K UHD LCD Panel with full-screen and uniform brightness up to 1,000 cd/m². Complimented by an ultra-low black level of 0.001 cd/m², this monitor produces flawless HDR performance and accuracy.

Faithful Colour Reproduction and Detailed HDR Image Quality

Canon’s advanced display and local dimming technology provides cutting-edge brightness, detailed shadows and wide colour gamut across the entire screen. Producing exceptional HDR content, achieving Dolby Vision certification and Grade1A in EBU TECH3320 standards1.

1 Grade 1A rating achieved for contrast ratio, peak luminance, black level, luminance uniformity and delay time.

Simultaneous Dual/Quad Display and 8K Support

The DP-V1830 supports simultaneous viewing up to 4K in either Dual or Quad array for consolidated multi-cam monitoring. It is also capable of supporting 8K signals, ready for future high-resolution workflows.

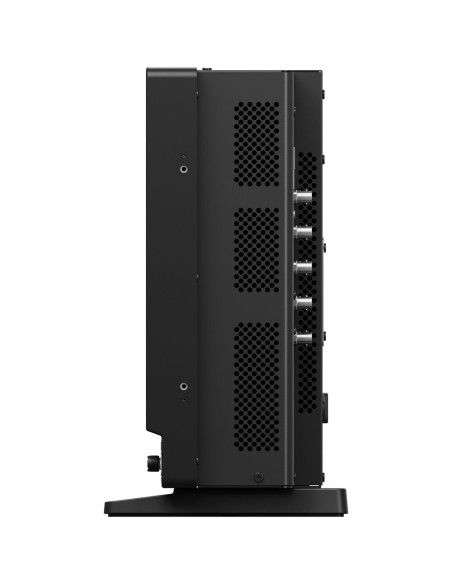

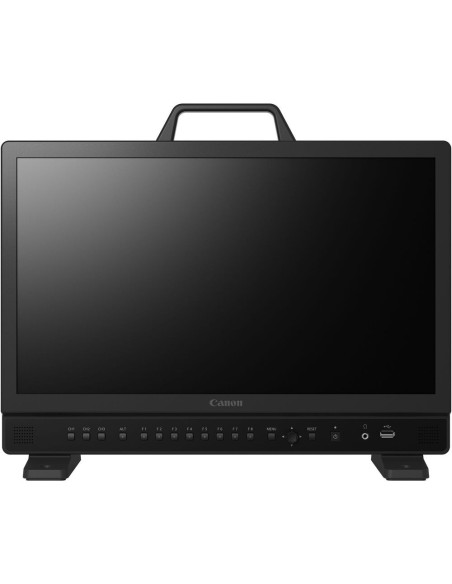

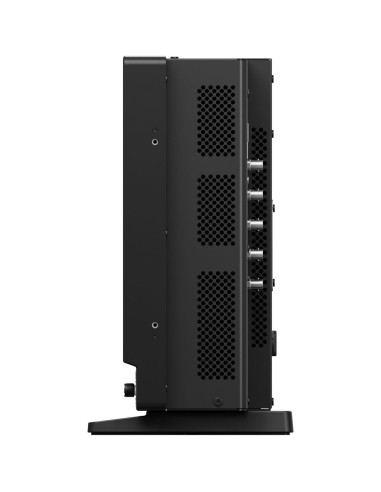

Lightweight and Portable Design

A compact 7.5kg body makes the DP-V1830 ideal for productions on the move. Options for DC input, VESA and 19” rackmount installation provides exceptional flexibility.

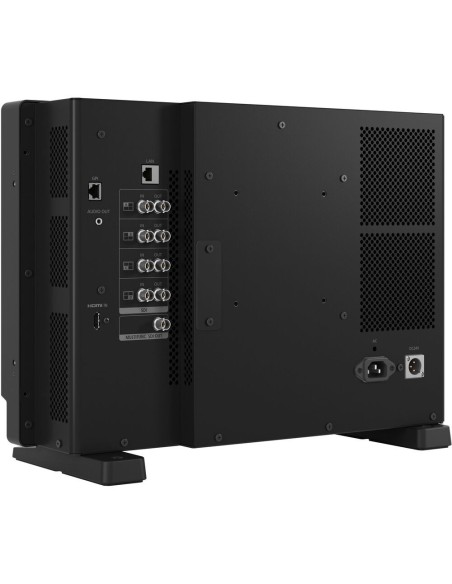

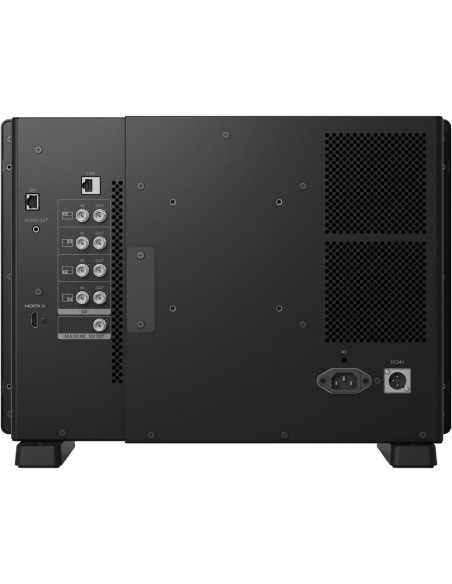

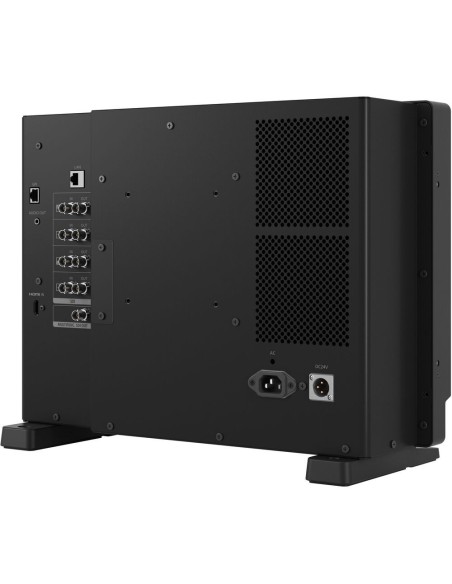

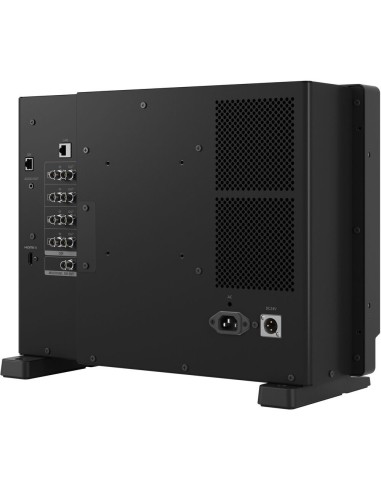

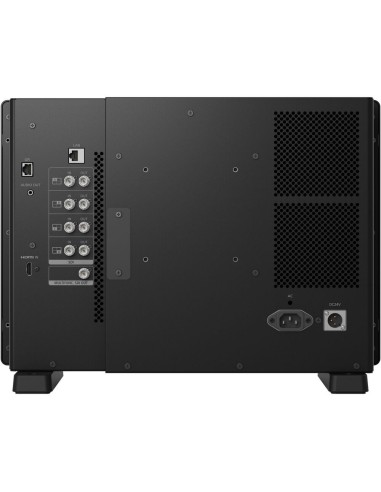

Uncompromised Connectivity for Easy Integration

The DP-V1830 is equipped with 1x HDMI input and 12G-SDI Terminals (4x Inputs and 4x Outputs) capable of delivering 4K60P 4:2:2 10-bit or 4K30P 4:4:4 12-bit signals, ideal for seamless integration into multiple workflows
