Blackmagic Design MultiView 16 - Ingressi 6G-SDI

Blackmagic Design MultiView 16 - Ingressi 6G-SDI

Name: Blackmagic Design MultiView 16 - Ingressi 6G-SDI
Brand: Blackmagic Design
SKU: HDL-MULTIP6G/16
Price: 1828.78 EUR
Availability: PreOrder

Blackmagic Design MultiView 16 - HDL-MULTIP6G/16, 16x 6G-SDI Inputs con Loop Outputs, 4x SDI & 1x HDMI Multi-View Outputs, Supports SD, HD, Ultra HD 4K, DCI 4K, 2x2, 3x3, 4x4 Configurations, Built-in LCD with Spin Knob Control, Push Buttons on Front Panel, Ethernet for Remote Control, 1RU Machined Aluminum Chassis, Built-in Multi-Voltage Power Supply

Paga 20.91€ in 11 mesi senza nessuno costo

Con Blackmagic Design MultiView 16 è possibile monitorare fino a 16 sorgenti video SDI utilizzando un monitor HD Ultra oppure un televisore 4K UltraHD in modo da ottenere il doppio della risoluzione ! Si possono monitorare video da SD, HD o sorgenti HD-SDI Ultra in qualsiasi combinazione, in qualsiasi ordine! Caratteristiche full frame re-sync su ogni ingresso.

The Blackmagic Design MultiView 16 features sixteen 10-bit 6G-SDI inputs that let you monitor SD, HD, or 4K sources in any combination on Ultra HD monitors or TVs. This lets you take advantage of the high resolution displays to view each source with increased clarity. The MultiView 16 allows for 4, 9, or 19 views to be selected, with each input fully re-synchronized. Two HD-SDI, two 6G-SDI, and one HDMI multi-view outputs are provided, as well as a loop output for each 6G-SDI input for passing the signals to additional devices.

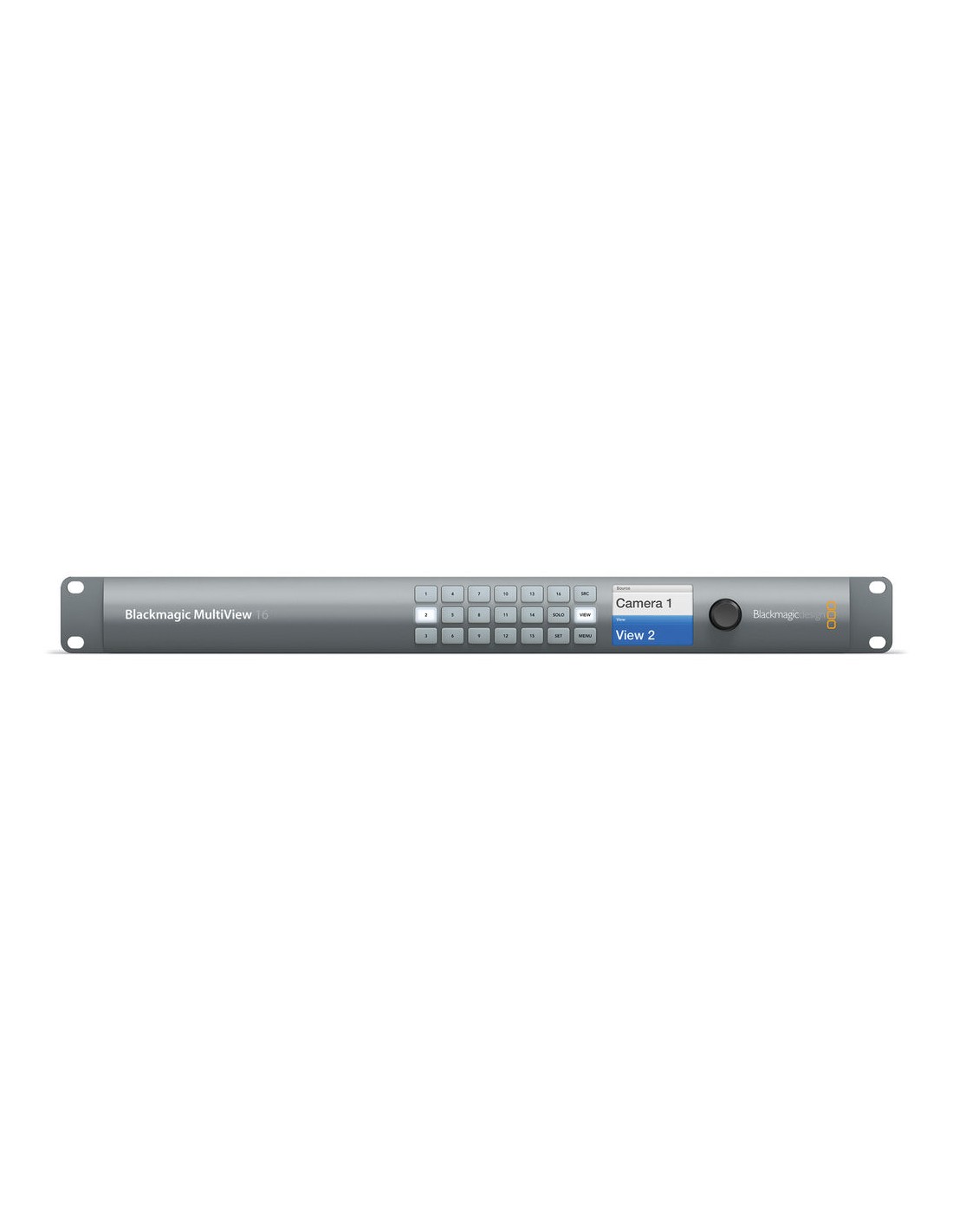

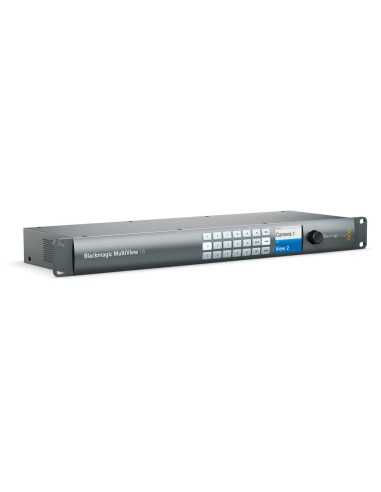

Housed in a 1RU machined aluminum frame, the MultiView 16 is ready for use in the studio, broadcast truck, or even on location. It can be controlled using the illuminated buttons, spin knob, and 1.5" LCD screen on the front panel, or with the included control software via the Ethernet port. A SOLO button lets instantly full screen a single source. For easy integration into any facility, a built-in multi-voltage power supply supports 90 to 240VAC.

Note: IEC power cable is not included.

Native Ultra HD multi-view output
16x 6G-SDI inputs; accepts SD, HD, and Ultra HD resolutions
Supports Ultra HD 4K (3840x2160) up to 30p; DCI 4K (4096x2160) at 24p
2x 6G-SDI, 2x HD-SDI, and 1x HDMI multi-view outputs
16x SDI loop outputs
2x2, 3x3, and 4x4 multi-view configurations
SOLO button for instant full screen of single source
1RU machined aluminum chassis
Front panel control using illuminated buttons, spin knob, and 1.5" LCD screen
Software control over Ethernet; supports Videohub router protocol
Built-in 90 to 240VAC power supply
IEC power cable required

Specifications

Connections
SDI Video Input	16 x 10-bit SD/HD/6G-SDI
SDI Video Output	16 x 10-bit SD/HD/6G-SDI loop outputs
Multi-View Outputs	2 x 10-bit 6G-SDI 2 x 10-bit HD-SDI 1 x HDMI, type A (supports EDID of the monitor)
Reference Input	Blackburst and TriSync for SD, HD, and 4K
Multi-Rate Support	Auto detection of SD, HD, or 6G-SDI. Simultaneous viewing of 4K, HD, and SD video.
Updates	USB 2.0 high speed (480 Mb/s) interface or via Ethernet
Control	16 buttons 5 buttons and scroll wheel for control of LCD display 1 x RJ45 Ethernet 1 x RS-422 input (for configuration layouts)
Configuration	Via front panel LCD or use either RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting
Reclocking	On all SDI outputs; auto switching between SD, HD, or 6G-SDI video

Standards
Format Support	SD Format Support 625/25 PAL 525/29.97 NTSC HD Format Support 720p 50/59.94/60 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/30/50/59.94/60 2K Format Support 2048x1080p 23.98/24/25 2048x1080PsF 23.98/24/25 4K Format Support 3840x2160p 23.98/24/25/29.97/30 4096x2160p 24
SDI Compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656, and ITU-R BT.601
SDI Video Rates	SD-SDI: 270 Mb/s HD-SDI: 1.5 Gb/s 3G-SDI: 3 Gb/s 6G-SDI: 6 Gb/s
SDI Video Sampling	4:2:2 and 4:4:4
SDI Color Precision	4:2:2 and 4:4:4 10-bit
SDI Color Space	YUV or RGB
SDI Audio Sampling	48 kHz and 24-bit
SDI Metadata Support	Video payload identification ancillary data as per SMPTE 352M

Software
Software Control	Multi-view control software included free for Windows and Mac OS X
Internal Software Upgrade	Via included updater application

General
Display	1.5" (3.81 cm) LCD (for menu settings)
Power Supply	IEC power cable required 90 to 240 VAC input
Power Fail Protection	Settings preserved and restored instantly at power on
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-4 to 113°F (-20 to 45°C)
Relative Humidity	0 to 90% non-condensing
Rack Space	1 RU

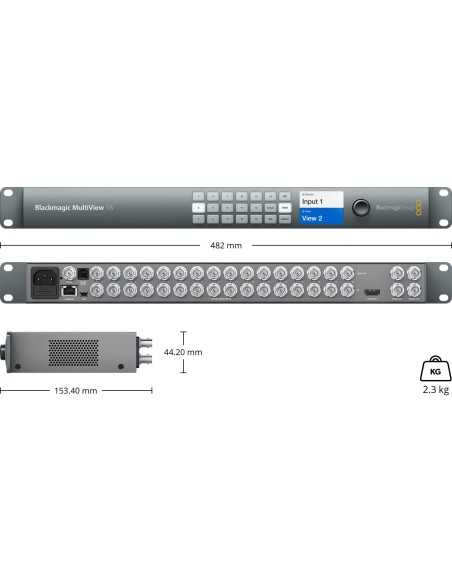

Dimensions (W x H x D)	18.97 x 1.74 x 6.03" (48.18 x 4.42 x 15.32 cm)
Weight	4.62 lb (2.1 kg)

Riferimento HDL-MULTIP6G/16

Condizione Nuovo

ean13 9338716002850
