AXEL Oxygen 3000 Plus 8, 12 o 16 fader

Codice Prodotto
OXYGEN 3000 PLUS 8F-1AIO
EAN
Condizione
Nuovo
Disponibile per l'ordine
Spedito in 5-7 giorni - Soggetto a variazioni
Leggi le nostre recensioni
5.849,90 €
( 4.795,00 € + IVA )

AXEL Oxygen 3000 Plus  powerfull broadcast digital console, Digital broadcast console 8 Faders; 5 Mic IN with +48v; 3 bal. stereo IN; 2 USB Audio I/O; 1 Telephone Hybrid; 1 Bluetooth I/O; 1 Telco Audio; GPIO; 4 bal. stereo Out; 1 Digital I/O; 1 Headphones; Streaming I/O. 7" Display. HDMI out. Remote control software

Parla con un esperto
Whatsapp Live Chat

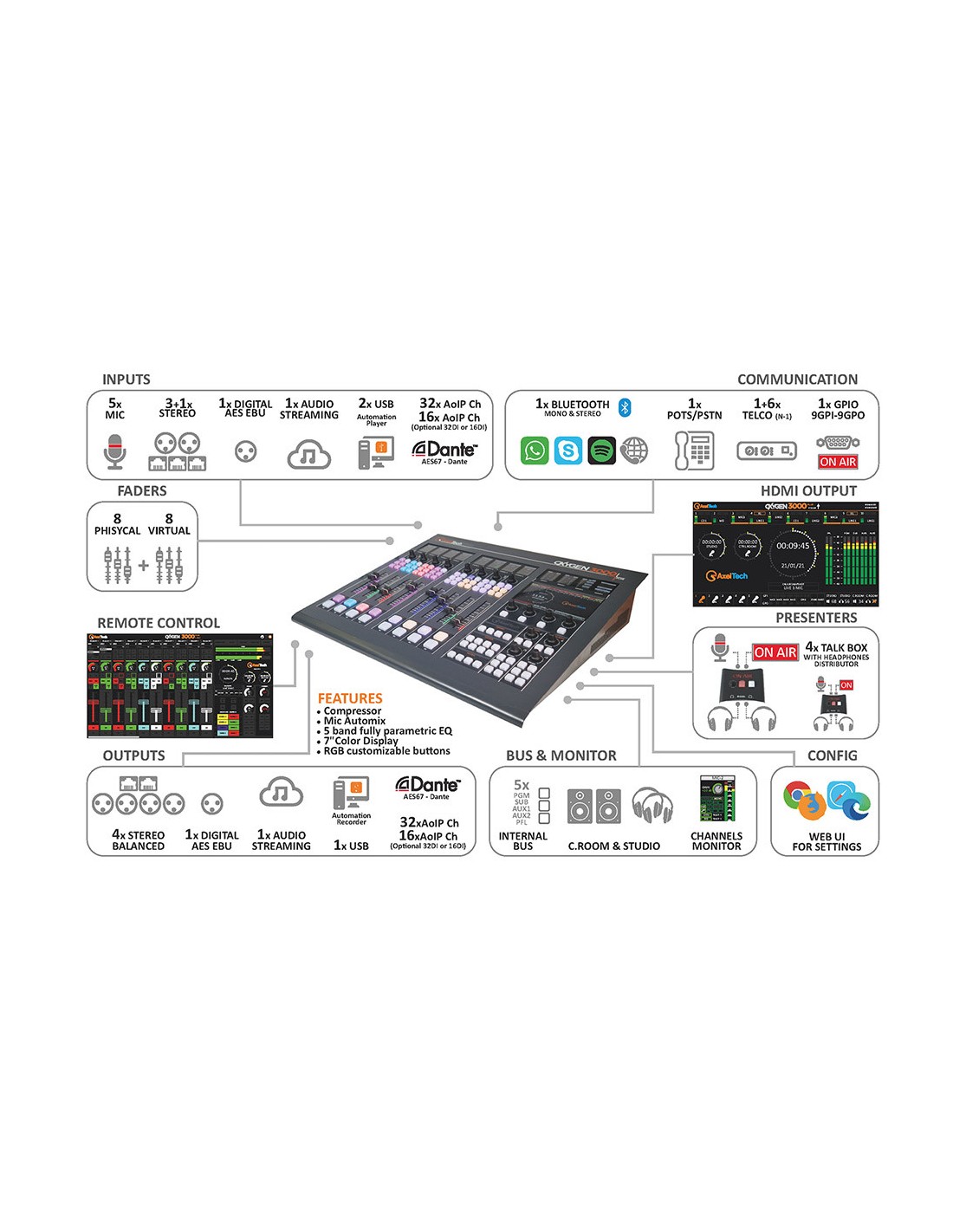

Oxygen 3000 Plus: much more than a Digital Broadcast Mixer! A full range of powerful features for Radio On-Air and Production available in 3 different formats and flexible configurations: 8, 12 and 16 faders with 1 or 2 Audio I/O Boards and 16+16 or 32+32 Dante™ I/O. Oxygen 3000 Plus is the best-equipped console of its category: Low Latency, Users Preset, Smart Keys, EQ, Compressors, Telephone Hybrid, HDMI Output, Analogue and Digital I/O, USB, Bluetooth, Dante™ AoIP, Telco, Presenter Talk Box, Streaming In/Out.


The DSP based processing guarantees high-end quality audio and of course you will find the easiness of use that marks all the AxelTech’s products. Oxygen Remoter Software, which enables up to 8 additional virtual faders for a full I/O control is available on Oxygen 3000 Plus as it is, for free, in any Oxygen Digital Console model.


Input & Output with 1 Audio I/O Board

  • Up to 5 microphone inputs with Automix
  • 2 stereo analogue inputs, up to 4 Stereo analogue inputs using other input sources
  • 4 stereo analogue outputs
  • 1 built-in telephone hybrid or 1 Telco with GPIO
  • Up to 4 Telco using other input sources
  • 1 Bluetooth audio interface or 1 stereo analogue input
  • 1 digital In (AES/EBU) or 1 USB Input (play)
  • 1 digital Out (AES/EBU)
  • Up to 2 USB audio Input (play)
  • 1 USB audio Output (rec)
  • 1 Streaming In + 1 Streaming Out
  • 16 inputs + 16 outputs or 32 inputs + 32 outputs via Dante™ (optional) configurable as mono/stereo/telco
  • Input & Output with 2 Audio I/O Boards
  • Up to 10 microphone inputs with Automix
  • 4 stereo analogue inputs, up to 8 Stereo analogue inputs using other input sources
  • 8 stereo analogue outputs
  • 1-2 built-in telephone hybrid or 1-2 Telco with GPIO
  • Up to 8 Telco using other input sources
  • 1-2 Bluetooth audio interface or 1-2 stereo analogue input
  • 1-2 digital In (AES/EBU) or 1-2 USB Input (play)
  • 2 digital Out (AES/EBU)
  • Up to 4 USB audio Input (play)
  • 2 USB audio Output (rec)
  • 1 Streaming In + 1 Streaming Out
  • 16 inputs + 16 outputs via Dante™ (optional) configurable as mono/stereo/telco


General

  • Fully Digital Broadcast Console for Radio Broadcasting with 8, 12 or 16 faders
  • Knob with A/B Fast source switch or source selection for each fader
  • 4+1 busses (PGM, SUB, Aux1, Aux2, PFL)
  • Near 0 latency (< 0,7 ms I/O)
  • Digital Signals Routing 50×50 matrix with direct Input to Output
  • Assignable Stereo N-1 on any output
  • Complete Remote Control by means of an application replicating the surface
  • Remote configuration and maintenance via Web Interface
  • User-definable Presets & Snapshots
  • 5 bands fully parametric Equalizer on each input
  • Dynamic Processor with expander and compressor section on each microphone input
  • Advanced and configurable Monitor Facilities for Control Room and Studio
  • Customizable RGB colored buttons
  • 7” TFT IPS Graphic Color Display for console configuration
  • Four 2,2” TFT IPS displays for the output levels monitoring
  • 2,2” TFT IPS displays on top of each fader displaying channel status, levels and source name
  • HDMI Out for console status display
  • 2 Timers (Ctrl-Room and Studio microphones on HDMI Monitor)
  • START/ON Buttons for each fader
  • 4 recall Snapshot buttons
  • 4 direct Talkback buttons
  • RGB led Bar for each fader
  • Studio & Control Room Monitor Section
  • 8 customizable Smartkey Buttons
  • 2 customizable Function Keys for each fader
  • TalkBox for guest and presenter (optional)
  • Redundant PSU (optional)
  • Built In Decoder and Streamer
  • Oxygen 3000 Plus, in addition to analog/digital/AoIP inputs and outputs, is open to integration with the IP world thanks to the ability to decode an audio streams (stereo or mono) as input and generate an output audio stream (stereo or mono).


Versions
Oxygen 3000 Plus 8 Fader 1 Audio I/O Board
Oxygen 3000 Plus 8 Fader 1 Audio I/O Board Dante™ 16
Oxygen 3000 Plus 8 Fader 1 Audio I/O Board Dante™ 32
Oxygen 3000 Plus 12 Fader 1 Audio I/O Board
Oxygen 3000 Plus 12 Fader 1 Audio I/O Board Dante™ 16
Oxygen 3000 Plus 12 Fader 1 Audio I/O Board Dante™ 32
Oxygen 3000 Plus 12 Fader 2 Audio I/O Board
Oxygen 3000 Plus 12 Fader 2 Audio I/O Board Dante™ 16
Oxygen 3000 Plus 16 Fader 1 Audio I/O Board Dante™ 32
Oxygen 3000 Plus 16 Fader 2 Audio I/O Board
Oxygen 3000 Plus 16 Fader 2 Audio I/O Board Dante™ 16


Options
Redundant power supply
Talk Box
Dante™ I/O board
RJ45 adapters for:
Mic
Line In
Line Out
Telco
GPIO

OXYGEN 3000 PLUS 8F-1AIO
