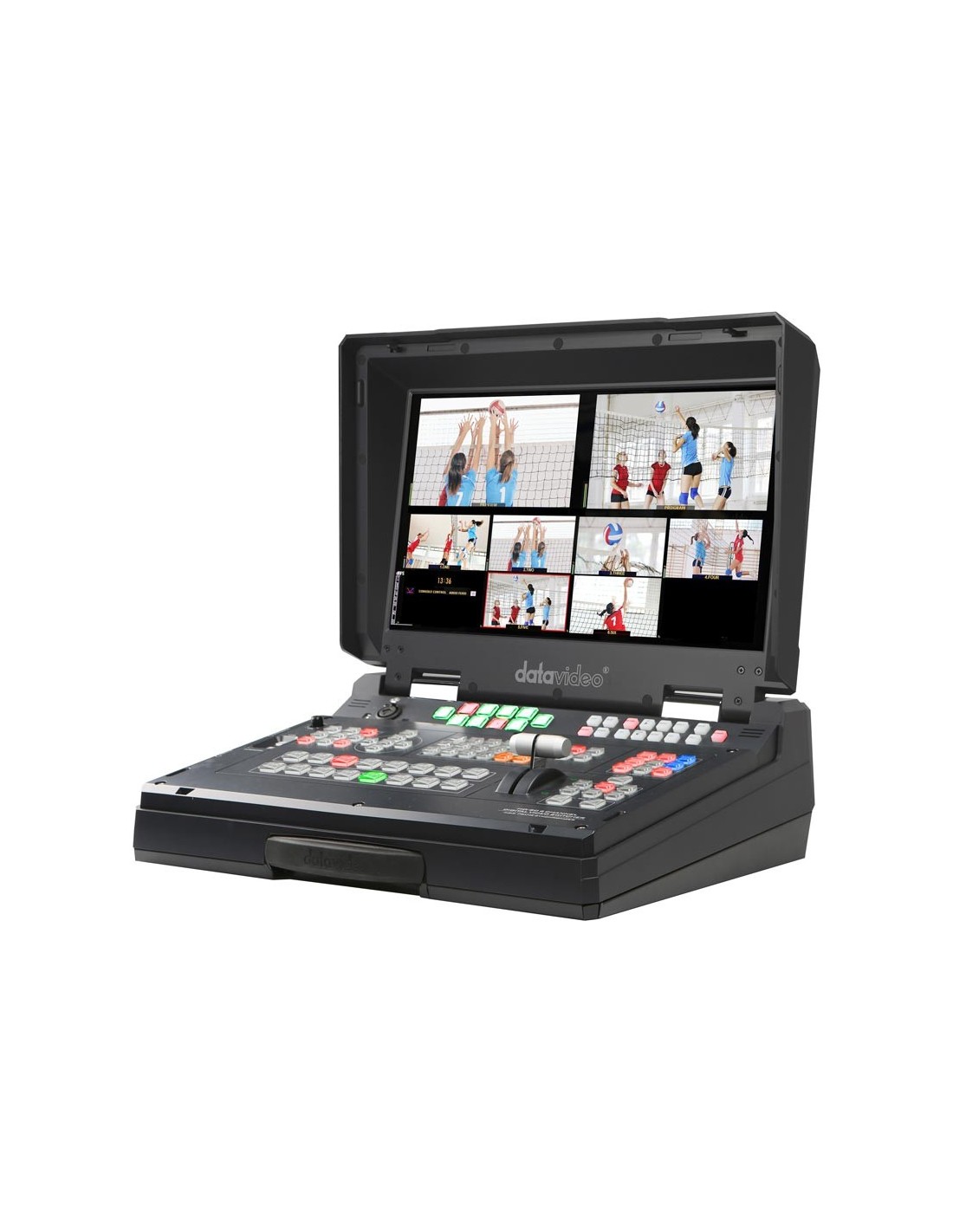

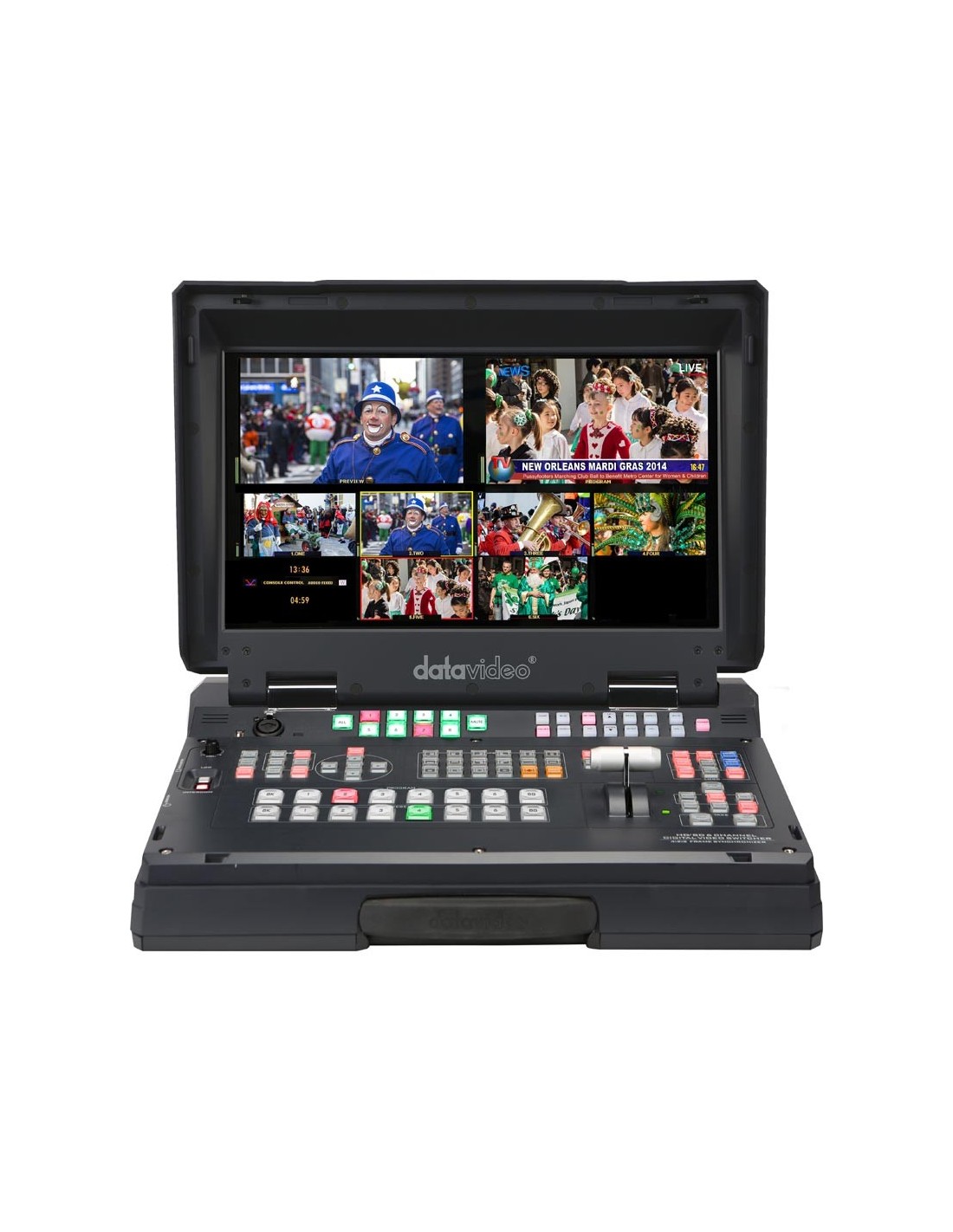

Datavideo HS-2200 HD 6-Channel Portable Mobile Cast Video Studio

HS-2200 combines SE-2200 with a 17.3” HD LCD monitor and an 8 channel talkback/tally system.

Packed into a durable case, HS-2200 is a convenient and powerful portable video studio. HS-2200 includes a built-in monitor for displaying all incoming input video sources as well as program and preview with tally indicator, on a single multi-view screen.

The HS-2200 also feature an 8-channel intercom system complete with tally lights, belt packs and headset (supplied with four cameraman belt packs & four 20m cables included).

Features

6 input HD broadcast quality Mobile Switcher

Ideal for live production venues, religious worship, meetings or conference purposes

Inputs: 6 x HD-SDI, 2 x HDMI (CH 5 & 6)

Dual PIP and a built-in title creator system that works with Datavideo CG systems, PowerPoint and other graphics programmes

Built in 8 Channel Intercom/Talkback system (4 x belt packs supplied)

17.3" HD LCD monitor

Program and Preview on a multi-view screen

Specifications

Video Standard HD & SD

Video Format :
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
576i 50Hz
480i 59.94Hz

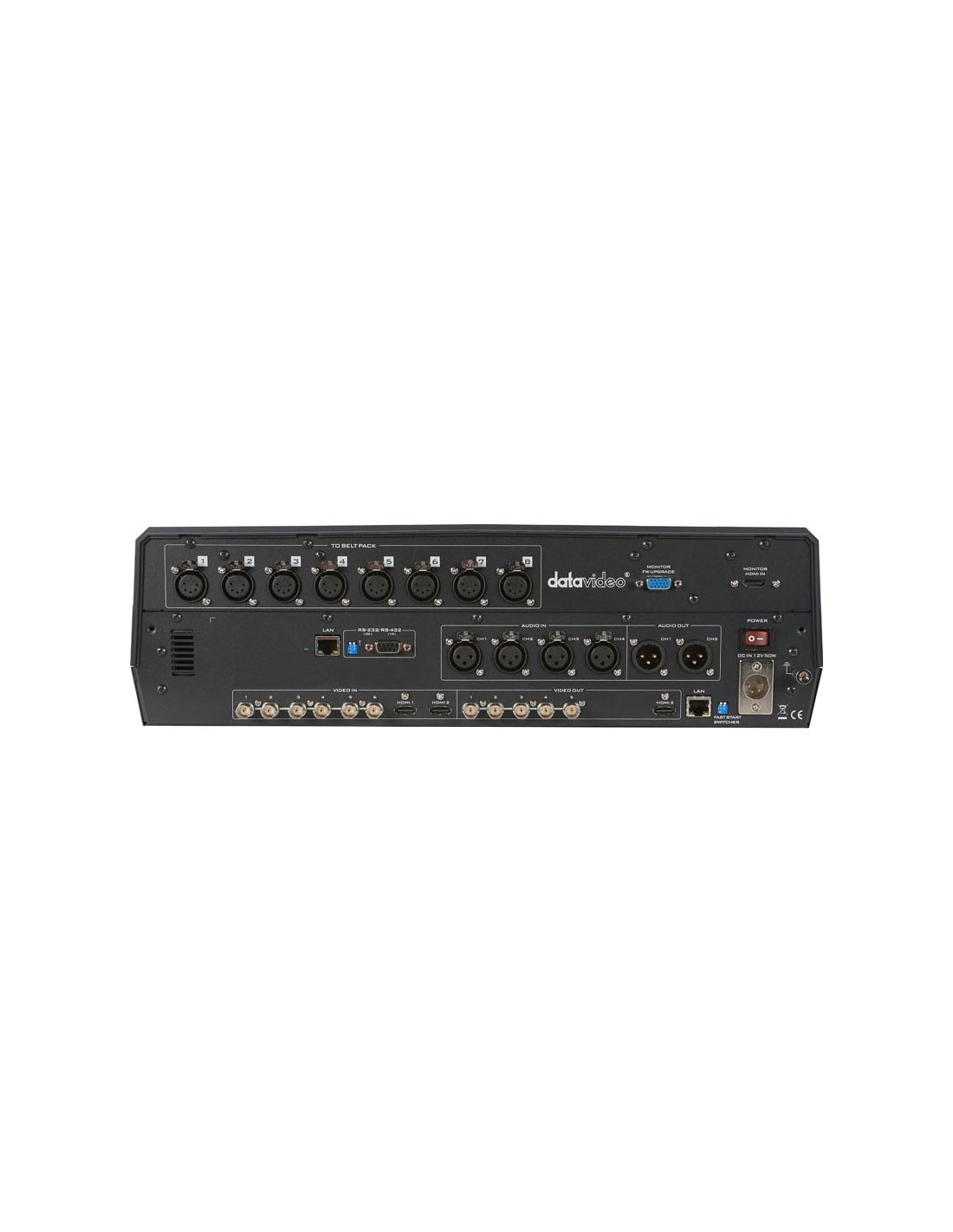

Input Routable / Crosspoint All 6, repeatable
Video Input 6x HD-SDI, 2x HDMI (on CH5 & 6)
Computer Graphic Interface 2 via HDMI
Down-converted Output N/A

Video Output :
5x SDI Outputs assignable: AUX 1-4, PGM, PVW, PGM Clean or multiview
1x HDMI multi-view

Audio Input 4x Balanced XLR
Audio Output 2x Balanced XLR

Embedded Audio Support:
Input up to 16 channels,
Output 4 channels

Audio Delay Calibration N/A
A+V Switching Yes
USK N/A
DSK 1, support Lumakey & Linear key (Key / Fill)
Picture in Picture 2
Logo Insertion 2 (or 1 logo + 1 clock)
Title Creator Yes, CG-200 software free download
Built-in Audio Mixer N/A
Built-in Monitor Display 17.3” HD TFT LED backlit, 1600x900 pix
Built-in Intercom & Tally 8 channels (4 belt-packs incl.)

Special Features :
Built in TC-200 CG interface
6x6 matrix seamless switch

Dimension (LxWxH) 455 x 355 x 134 mm
Weight 16.5 Lbs (7.5 kg), Reinforce Plastic Case
Power DC 12V, 5A
Operating Temp. Range 0~40 °C
Options CB-22H/23H/46/47/60/61/62

What's in the Box :
1 x HS-2200 Unit
1 x AD Switch DC 12V with AC Cord
1 x CB-41 / XLR to XLR Cable
4 x CB-3 / XLR cable
1 x USB Light
1 x Goose neck MIC
4 x Headphone Microphone
4 x ITC-100SL
1 x Tally light
4 x Velcro
1 x Thank You Card
