Ikan Lyra Bi-Color Soft Panel 1 x 1 Studio and Field LED Light

The Lyra comes with a multi-voltage AC power supply but it also has a battery-powered option thanks to the inclusion of Gold Mount and V-Mount battery plates, while the four-leaf barndoors provide control over light spill, and feature removable light intensifiers to suit your taste. The yoke is angled forward 30°, which allows you to open the barndoors all the way without hitting the yoke when the light is pointed straight forward. The fixture also has a combo Baby receiver/Junior pin on the yoke so you can mount it on a stand or hang it from a grid with optional clamps.

Color Temperature Adjustment and Dimming

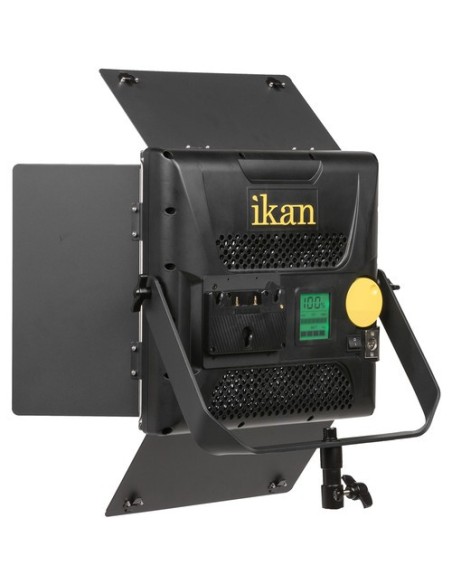

The big yellow knob on the back of the unit controls both the color temperature selection and the dimming of the unit. It features an indent for fingertip control and is positioned at the edge of the fixture, which is cut away allowing you to adjust the knob from the side of the unit when the back is difficult to access. When you power on the light the yellow dimming knob defaults to controlling the dimming, pressing in the knob switches it to color temperature control (3200 to 5600K), pressing it again reverts back to dimming.

Consistent Light Levels

The light output stays consistent as you transition across the color temperature range, preventing the brightness spike that happens with many LED lights around 4300K.

Soft Source, Single Shadow

The 1/2 white diffusion softens the light and provides a 110° beam spread and a single source shadow.

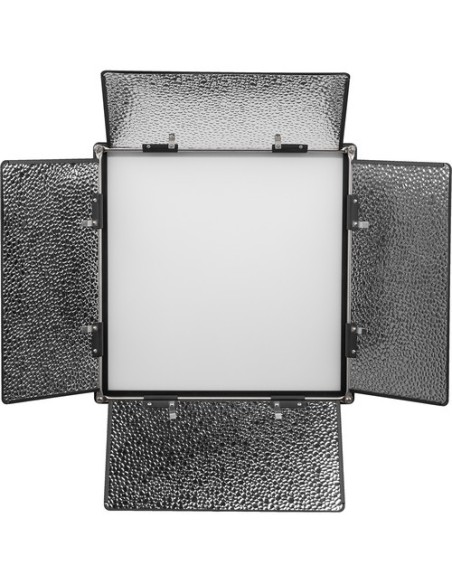

Removable Intensifiers

While some users may enjoy the small increase in light output that intensifiers bring, other users prefer to use barndoors without intensifiers. The removable intensifiers that come with this light attach securely to the barndoors. You do not have to attach all four intensifiers, which allows you choose how many barndoors to use for bumping up your output and how many barndoors to use to cut spill. The top and bottom barndoors integrate gel clips for attaching diffusion or gels.

Battery Power

The fixture features an interchangeable Gold Mount battery plate. Removing four screws and disconnecting the snap connector allows you to swap out the included V-Mount plate.

LCD Info Screen

On the back of the fixture is an LCD info screen that displays the battery power remaining, brightness percentage and color temperature.

Features

95 CRI Chip LEDs paired with 1/2 stop soft diffusion panel
Bi-Color adjustable from 3200K-5600K
Bright consistent light across all color temperatures
Beam Angle of Soft panel 110 degrees
A clean single shadow without the artifacts
Baby 5/8 inch/Junior 1-1/8 Combo Pin adaptor with right angle receiver hole
30 degree angled yoke for unobstructed movement
Stronger steel tension knobs for locking the light into place
Single knob control for adjusting color or brightness
New LED Readout screen giving you precise adjustments
Gold mount or V-mount battery plates included
Included barn doors with intensifiers
Watts equivalent to 850 watts incandescent soft light
RF Remote Control allows you to turn on and off the light

In the Box

Remote control
V-Mount Battery Plate
Yoke Mount
Power Supply w/ cable
Gold Mount Battery Plate
1 x 1 Light Fixture

Specification

Photometrics :
3200K
201 fc / 2169 Lux at 3.3' / 1 m*
24 fc / 264 Lux at 9.8' / 3 m

5600K
231 fc / 2491 Lux at 3.3' / 1 m*
28 fc / 306 Lux at 9.8' / 3 m

*Standard Metric Calculated Internally Based on Closest Distance

Color Temperature 3200 to 5600K

Color Accuracy Standard:
CRI 96 at 3200K
CRI 96 at 5600K
TLCI 98 at 3200K
TLCI 98 at 5600K

Cooling System Passive
Dimming Yes -10 to 100% (Stepped)
Display None
Housing Material Resin
Number of LEDs 900
Beam Angle 110°

Battery Plate :
1 x Gold Mount
1 x V-Mount

Fixture Mount Combination 1-1/8" Stud and 5/8" Receiver
Accessory Mount None
Remote Control Type Proprietary Wireless
AC Input Power 110 to 220 VAC, 50 / 60 Hz
DC Input Power 18 VDC
Power Source AC Adapter, External Battery
Consumption Per LED 0.2 W
Max Power Consumption 74 W

Power Supply Output 15 VDC, 7 A
IP Rating IP20
Fixture Dimensions 14.0 x 14.0 x 3.0" / 35.6 x 35.6 x 7.6 cm
Fixture Weight 6.0 lb / 2.7 kg
