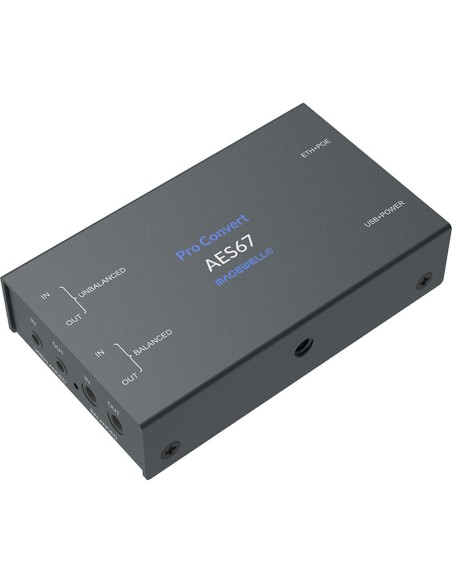

Magewell Pro Convert AES67 Multi-Format Bidirectional Analog/IP Audio Converter

The Magewell Pro Convert AES67 is a flexible multi-format encoder, decoder, and capture device for IP audio. This device allows users to transmit analog and digital audio data over AES67, SRT, NDI® and more IP standards.

Due to the support for AES67, it possible to send and receive up to 8-channel unicast or multicast AES67 audio streams from third-party audio equipment. This device features driver-free installation and gets intantly reckognized by streaming, conferencing and production software. Users can also switch to the NDI protocol and transmit uncompressed audio over IP. The low-latency SRT protocol can be selected for Advanced Audio Coding (AAC).

The Pro Convert AES67 offers a wide variety of value-added features in an ultra-compact housing, making it ideal for portable field-use. Live production is made easy with the included Magewell WebUI for remote control.

Main features:

- Offers a seamless bridge between analog audio, software and IP standards including AES67, NDI®, SRT and more

- Provides a flexible, virtual audio matrix to allow routing or mixing of any analog or IP-based input channel to any output

- Enables mixed-technology local and remote production workflows and ProAV installations

- Power source: POE, power adapter, or USB.

Key Features

■ Compatible with ST 2110-30

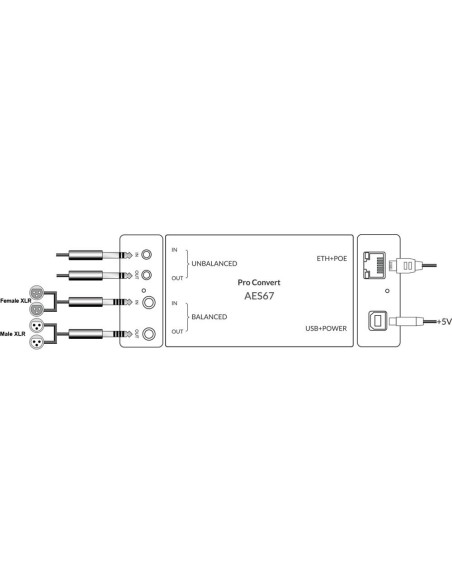

■ Input and output for 3.5mm unbalanced/4.4mm balanced/USB Audio Class/Icecast/AES67/NDI/SRT

■ Nanosecond accuracy timing synchronization is provided using IEEE 1588- 2008 Precision Time Protocol (PTP) Version 2 (PTPv2)

■ Integrated A/D and D/A audio converters

■ Remotely monitor and configure, working status, input signal status, and settings via Magewell Cloud and Web UI

■ Compatible with a wide variety of TCP/IP devices, including PC and audio processing software

■ Dual power input options, powered by Power over Ethernet (PoE) switch, a PoE injector (802.3 af) or DC 5V via MicroUSB connector

■ 3 System Requirements Network Supported Web Browser for the Web UI PoE injector (802.3 af) or DC 5V via MicroUSB connector

Web UI Configuration

Remote streaming and production sessions with the pro convert AES67 are made easier thanks to the Magewell WebUI. Remotely monitor and configure, working status, input signal status, and settings via Magewell Cloud and Web UI

■ Check Device, Audio, Stream, Ethernet status and many more

■ Global settings (set parameters)

■ PTP configuration

■ Stream (NDI, SRT, Icecast TX/RX sessions)

■ Audio matrix tab - Switching matrix for selectively connecting incoming signals to desired output paths.

In the Box

Magewell Pro Convert AES67 Multi-Format Bidirectional Analog/IP Audio Converter

4.4mm to Dual XLR Male Cable

4.4mm to Dual XLR Female Cable

USB-A to USB-B 2.0 Cable

Universal Power Adapter

L Bracket
