INOGENI USB 3.0 VGA Video Capture Card

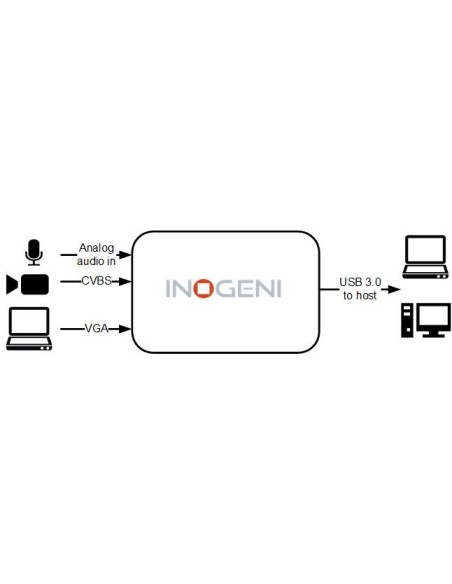

The Inogeni USB 3.0 VGA Video Capture Card allows you to capture uncompressed video with analog audio from a composite video source or your computer's VGA output on your PC for recording, editing, videoconferencing, and streaming applications. No driver installation is necessary and it will work on all motherboard and USB 3.0 chipsets. It features a VGA input, composite video input, 3.5mm analog stereo audio input, and a USB 3.0 output. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OSX, Linux, and Android operating systems, and is UVC-compliant, so it will work with all DirectShow compatible software. This capture card is backward compatible with USB 2.0 devices. However, due to bandwidth restrictions, the card will only be able to operate at resolutions below 1080p.

The converter supports SD and HDTV video formats up to 1080p60 and most computer graphic formats. All SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0. Analog stereo audio from the 3.5mm input is converted and output as two-channel LPCM. A USB 3.0 cable comes included.

Features
VGA/Composite capture to USB 3.0 (Backward compatible with USB 2.0)
Supports 1080p, 1080i, 720p, 480p, and 576p video formats
Supports 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480 graphic formats
Analog audio support
Fluid technology - Internal frame buffers maximize frame rate regardless of PC
Hardware-based color space and sampling conversion
Automatic scaling and frame rate conversion
Customizable video processing functions
Image controls: Brightness, contrast, saturation and hue settings
Bus powered from USB port
Compatible with Windows, Max OSX, Linux, and Android

Note: Not all resolutions will be supported on some devices with input bandwidth restrictions

 Specs
