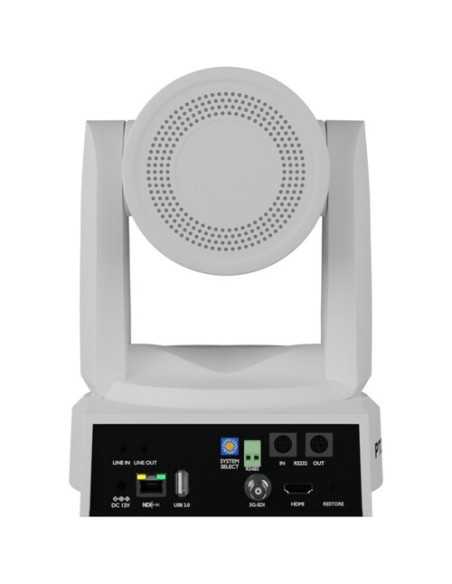

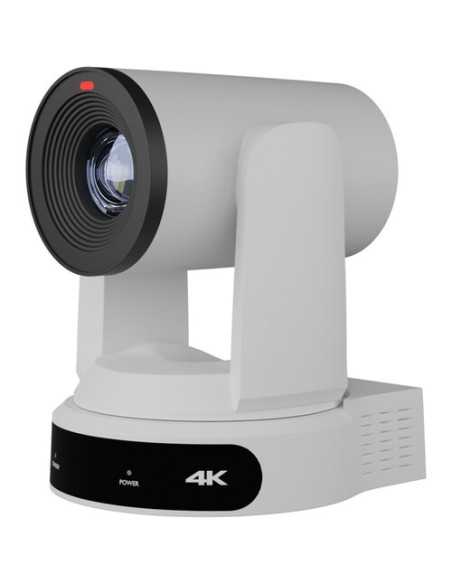

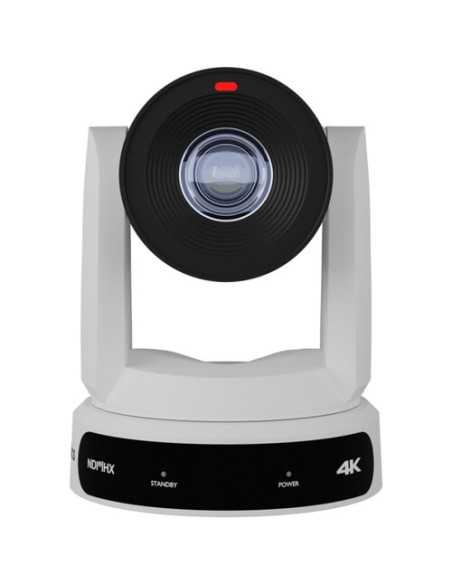

PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 30x Optical Zoom (White)

Add a high-resolution streaming and tracking camera to your classroom, house of worship, or conference room for remote meetings with software such as Skype, Microsoft Teams, or Zoom with the white Move 4K SDI/HDMI/USB/IP PTZ Camera with 30x Optical Zoom from PTZOptics. The Move 4K camera captures resolutions up to UHD 4K60 with its Sony CMOS sensor, and it features auto-tracking for presentations where your subject moves around the room, great for education, how-to, and corporate environments without the need for an operator. Its wide dynamic range, 3D noise reduction, and low-bandwidth, high-quality NDI|HX 3 capabilities provide a sharp, consistent image, even in low light.

Auto-Tracking PTZ Camera
The Move 4K is the latest PTZ camera from PTZOptics, featuring auto-tracking for a more intelligent video production workflow. The Move 4K is capable of 4K60 (1080p60 over SDI), future-proofing your technology investment while still accommodating HD and Full HD video resolutions equipment. The Move 4K offers high performance in low-light scenarios, PoE+ capabilities, and a built-in tally light.

Multiple Output Options
Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDI|HX for unparalleled performance and versatility. The Move 4K offers built-in auto-tracking capabilities with no need to run software on another computer, freeing teams of the need for a camera operator.

Pan, Tilt, Zoom, Track
Control your production from behind the scenes or right in front of them. The Move 4K's auto-tracking can lock into a specific person, even while other people are in frame. Users can switch between on-stage presenters with the click of a button.
The Move 4K can track subjects up to 300' away. In addition to the auto-tracking features, users will also have access to the latest Web UI, updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, great for novice producers navigating the settings for the first time.

Control Your Way
Mount your PTZOptics Move 4K camera above, below, or beside the action to capture the ideal view every time.
The new automatic video inversion feature senses the camera's orientation and saves time on installation and setup.
Users can control Move 4K cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive, or Tricaster, or a PTZOptics hardware joystick controller such as the IP joystick, serial joystick, or SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.
Move 4K cameras can be controlled remotely from anywhere in the world using a variety of tools, including NDI and cloud-based software such as Zoom. Users can also live stream directly to content delivery networks such as Facebook and YouTube.

Software App
PTZOptics cameras are compatible with a wide range of free software solutions, including:
Camera Management Platform (CMP) for camera management, control, color correction, auto-tracking
Control apps for desktop and mobile devices
Plugins and integrations for popular platforms, including OBS and Twitch
Camera configuration and management tools
Support and testing utilities

Features
1/1.8" Sony CMOS 8.42MP 4K Sensor
Capture Video Resolutions up to UHD 4K60
30x Optical Zoom, 16x Digital Zoom
HDMI, 3G-SDI, USB, NDI|HX 3 & IP Output
255 Presets, 3.5mm Stereo Audio In/Out
High Performance in Low Light
RS-232, RS-485 & IP Control Support
Supports H.265/H.264/MJPEG Compression
DC & PoE+ Support, Tally Light

In the box
PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 30x Optical Zoom (White)
IR Remote Control
12 VDC Power Adapter
USB-A to USB-A Cable
RS-232 Cable
2 x AA Battery

Specifications
Image Sensor 1/2.5”-Type CMOS
Sensor Resolution Effective: 8.42 Megapixel (3840 x 2160)
Shutter Speed 1/10000 to 1/30 Seconds
Optical Zoom Ratio 30x
Max Digital Zoom 16x

External Recording Modes
HDMI / RJ45 / USB
UHD 4K (3840 x 2160) at 25/29.97/50/59.94/60.00 fps
HD (1920 x 1080p) at 25/29.97/50/59.94/60.00 fps
HD (1920 x 1080i) at 50/59.94/60.00 fps
HD (1280 x 720) at 59.94/60.00 fps
SDI/BNC
HD (1920 x 1080p) at 25/29.97/50/59.94/60.00 fps
HD (1920 x 1080i) at 50/59.94/60.00 fps
HD (1280 x 720) at 59.94/60.00 fps

Broadcast Output NTSC/PAL

IP Streaming
H.264, H.265, HTTP, MJPEG, ONVIF, RTMP, RTMPS, RTSP, SRT, TCP, UDP
640 x 360 to 3840 x 2160 to
320 x 240 to 720 x 480 to

Supported Control Protocols
IP
IR
Pelco-D
Pelco-P
RS-232
RS-485
VISCA

PoE Support PoE 802.3af
Material of Construction Aluminum, Plastic

Dimensions (W x H x D) 228 x 181 x 170 mm
Weight 2 kg (Body Only)
