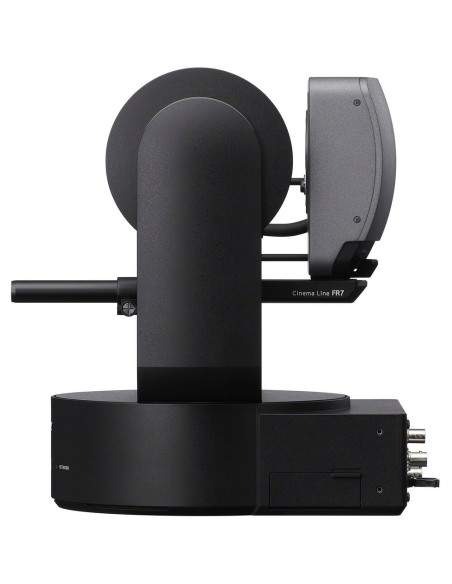

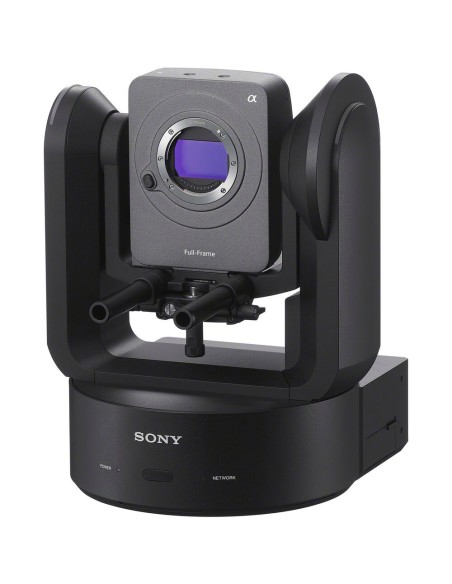

Sony FR7 Cinema Line PTZ Camera

Capture cinematic, full-frame footage in PTZ form for broadcast use, reality shows, houses of worship, and live events and sports with the black FR7 Cinema Line PTZ Camera from Sony. This versatile camera features the unique ability to use interchangeable Sony E-mount lenses and is currently compatible with up to 70 E-mount lenses ranging from 12 to 1200mm. The large image sensor provides 15+ stops of dynamic range, captures up to UHD 4K120 video, offers live streaming, supports S-Cinetone, Cine EI, and MLUT looks for matching select Sony cameras, and enables you to create shallow depth-of-field bokeh effects.

The FR7 PTZ camera features flexible PoE++ (Power-over-Ethernet) installation, up to 100 preset positions, tally lamps, a built-in electronic ND filter, 5-pin XLR audio input, and multicamera functions like timecode and Genlock. Versatile control options include an IR remote, compatibility with controllers like the Sony RP-IP500, and a remote web app for tablets and computers.

Expressive 4K Imaging

Full-Frame Sensor

• The FR7 combines a 4K full-frame sensor and compatibility with Sony E-mount lenses to produce outstandingly expressive, cinematic imagery

• 15+ stops of dynamic range and a base ISO of 800 that is expandable from 12,800 to 409,600 for capturing optimal video in an array of lighting conditions

Sony E-Mount

• Compatibility with up to 70 Sony E-mount lenses covers a range of 12 to 1200mm, enabling you to capture the widest vistas and the closest details

• Use with G Master (GM) lenses to obtain impressive resolution and pleasing bokeh

Imaging Functions

Capture rich detail and wide color using Sony S-Log3 and create nuanced contrast with Hybrid Log Gamma (HLG)

Built-In ND Filters

• An integrated, electronic ND filter offers variable ND filtration ranging from 1/4 (2 stops) to 1/128 (7 stops)

• Use the ND filter to compensate for changes in exposure without affecting your depth of field

• Create shallow depth-of-field effects by adding the ND and opening the iris

SDI Raw Output

The FR7 can output raw video via the SDI (BNC) output to an external recording for color grading and other post-production tweaking

UHD 4K 120p Recording

Record UHD 4K video at rates up to 120 fps for slow-motion effects

Remote & Robotics Functions

IP Control

Use the IP remote function to control your camera from a distance like a broadcast truck and/or to control multiple cameras

Smooth Movement

Slow, smooth pan and tilt movements enable you to unobtrusively zoom in on the action and reframe accordingly

Video Output & Streaming

• Output video using the HDMI and up to 12G-SDI video outputs

• Stream RTSP, SRT, or NDI|HX (requires NewTek license) using the LAN port

Control Options

• The included IR remote can be used for pan, tilt, zoom (PTZ), focus, recording, playback, and other camera settings

• Use with the separately available RM-IP500 control panel with joystick zoom rocker, and buttons

• Web app remote control can be accessed from a tablet or PC browser

Mounting

• Mount on a tripod or riser using the two 1/4"-20 threads

• Use the optional mount to attach the FR7 camera to a ceiling

• Attach camera accessories using the 15mm rod mounts

Cinematic Multicamera Use

Cine-Style Capture

• Bring a cinematic look to your PTZ capture and match footage from other Sony cameras with the S-Cinetone picture profile

• The Cine EI mode with MLUT management can be used with S-Log3 or raw recording

• XAVC recording with metadata capture supports up to 10-bit, 4:2:2 color and HDR recording

Hybrid Autofocus

Fast hybrid autofocus with face detection and touch tracking enable you to keep even dynamic action in focus

Up to 100 Presets

Quick control with up to 100 preset positions

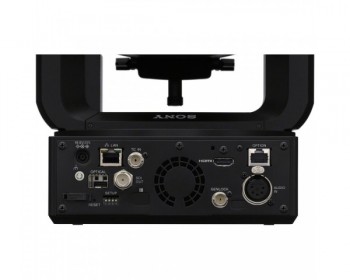

Interfaces

• A robust interface includes a LAN port for network and PoE++ use, timecode input, a genlock connector, and red/green tally indicators

• Dual media slots are compatible with both CFexpress Type A and SDXC memory cards

In the Box

Sony FR7 Cinema Line PTZ Camera

RMT-RC1 Remote Commander

Lens Mount Cap for Body

AC Adapter

Power Cord

HDMI Cable Clamp
