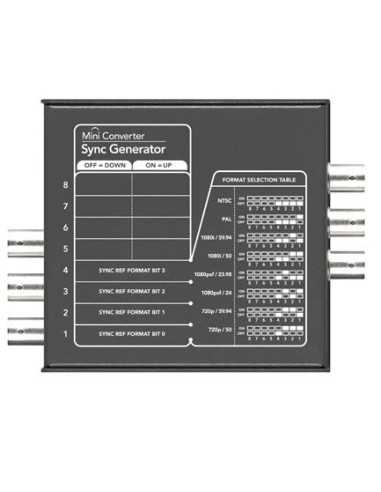

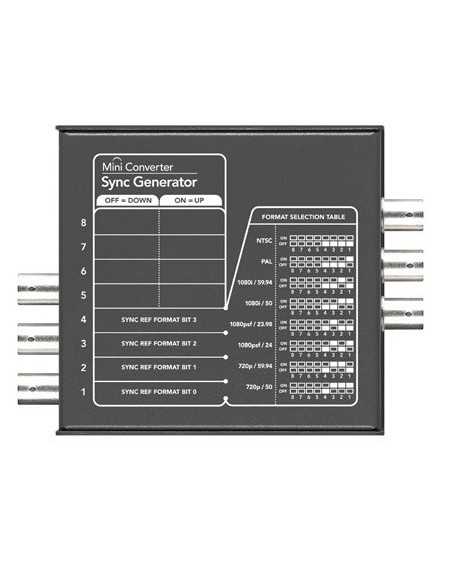

Blackmagic Design Mini Converter Sync Generator

Panoramica

Il Mini Converter Sync Generator di Blackmagic Design è un generatore di sincronismo con sei uscite video  stabilizzate per fornire il riferimento a tutte le apparecchiature sia in standard SD con standard televisivi Blackburst sia in standard HD con standard Tri-Sync. Perfetto per piccoli studi o unità di regia mobile.

Caratteristiche Tecniche

Connections

• Analog Video 6 x common reference outputs.
• Multi Rate Support Via mini switches.
• Updates and Configuration Via USB 2.0 high speed. (480 Mb/s)
• Re-clocking Yes

Standards

• Analog Format Support 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 720p50 and 720p59.94.
• Copy Protection For legal reasons HDMI input is unable to receive copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Extras

• Software Control Mac OS X™ and Windows™ software upgrade via USB.
• Settings Control Mini Switches or USB software.
• Firmware Upgrade Via included firmware updater application.
• Format Conversion None
• Power Supply +12V universal power supply included with international socket adapters for all countries. Cable tie point.
• 110 Volt Power Consumption 36 mA
• 220 Volt Power Consumption 18 mA
• Operational Voltage Range 12V
• Product Warranty 3 Year Limited Manufacturer's Warranty.
