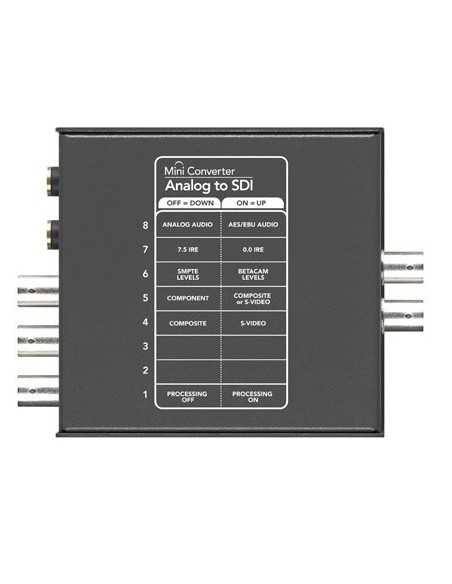

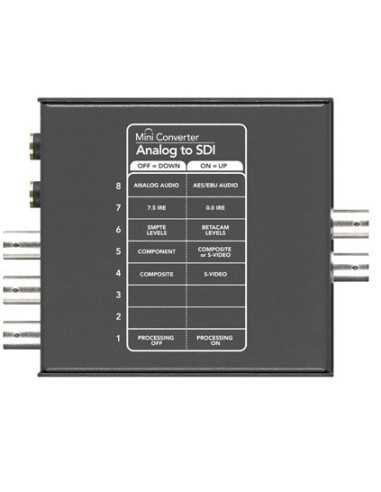

Blackmagic Design Mini Converter Analog to SDI 2

Il Mini Converter Analog to SDI di Blackmagic Design è un convertitore video dalle ridotte dimensioni che permette di trasformare il segnale video da analogico Component, Composito e S-video ad SDI.

Ideale per collegare dispositivi analogici come Betacam SP, VHS, set top box, console di gioco e telecamere HDV ad apparecchiature SD/HD-SDI video. Non effettua down conversione da HD a SD.

Caratteristiche Tecniche

Connections

• SDI Video Input Switchable between SD, HD and 3 Gb/s SDI.
• SDI Video Outputs Automatically matches the SD, HD and 3 Gb/s SDI video input.
• Analog Video Component SD/HD, NTSC, PAL and S-Video.
• Analog Audio 2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
• AES/EBU Digital Audio 2 channels of professional balanced digital with standard 1/4 inch jack connections.
• Multi Rate Support Auto detection of HD or standard definition SDI inputs.
• Updates and Configuration Via USB 2.0 high speed. (480 Mb/s).
• Re-clocking Yes

Standards Video

• SDI Format Support 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.
• SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI.
• SDI Video Rates SDI video connections are switchable between standard definition and high definition.
• SDI Video Sampling 4:2:2
• SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit.
• SDI Color Precision 4:2:2
• SDI Color Space YUV
• SDI Auto Switching Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI.
• Analog Format Support 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.
• Analog Color Space YUV
• Analog Color Precision 4:2:2
• HDMI Format Support 625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC, 1080p23.98/24, 1080i50, 1080i59.94/60, 720p50 and 720p59.94/60.
• HDMI Color Precision 4:2:2 and 4:4:4
• HDMI Color Space YUV and RGB
• Copy Protection For legal reasons, capture devices from Blackmagic Design are designed not to capture, convert or transmit video or audio from copy-protected sources, e.g. video devices using HDCP

Extras

• Software Control Mac OS X™ and Windows™ software upgrade via USB.
• Settings Control Mini Switches or USB software.
• Firmware Upgrade Via included firmware updater application.
• Power Supply +12V universal power supply included with international socket adapters for all countries. Cable tie point.
• 110 Volt Power Consumption 67 mA
• 220 Volt Power Consumption 34 mA
• Operational Voltage Range 12V
• Product Warranty 3 Year Limited Manufacturer's Warranty.
