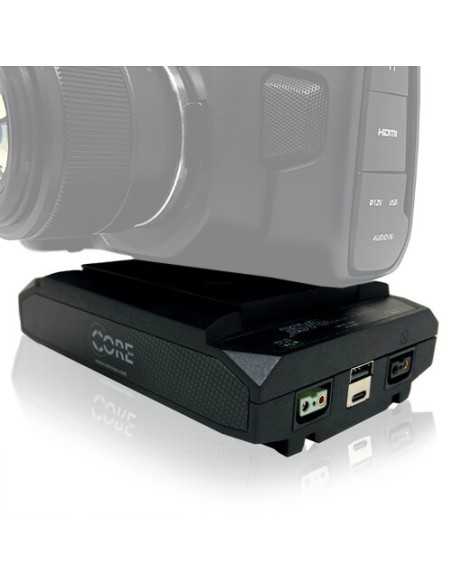

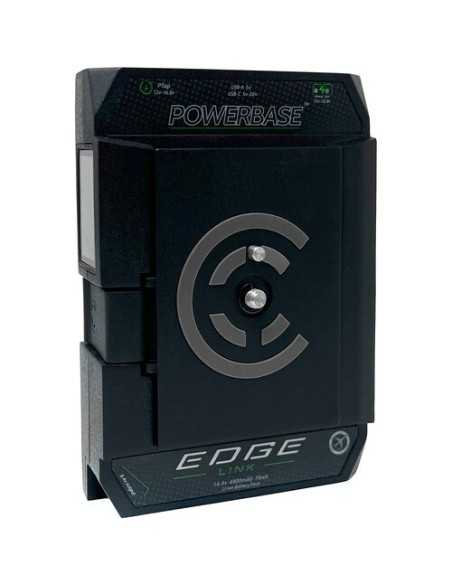

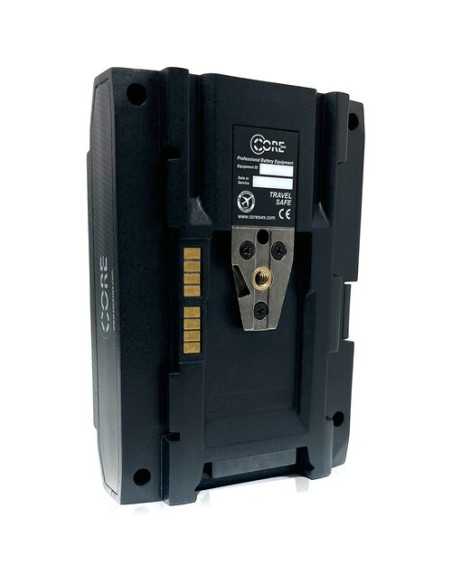

Core SWX Powerbase EDGE LINK 70Wh Battery Pack (V-Mount)

Power your camera and its accessories for more than 12 hours with this V-mount Powerbase EDGE LINK 70Wh Battery Pack from Core SWX. This 14.8V battery has a maximum continuous draw of 8A and can be linked with other packs using its V-mount to double or triple its capabilities. Featuring a dovetail-style quick release plate and multiple 1/4"-20 threads, the battery can easily attach and disengage from your camera for a modular fit.

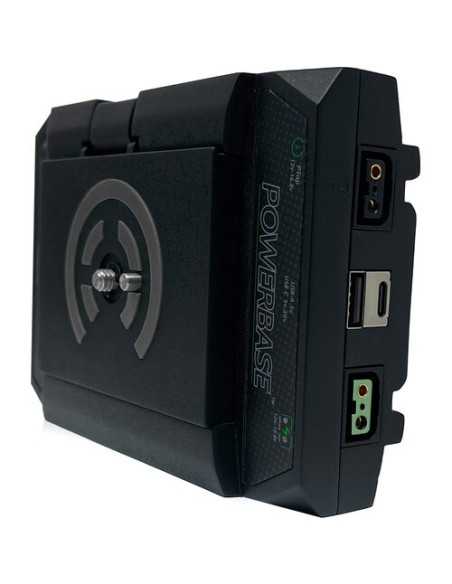

Two unregulated D-Tap ports on the device can power your on-camera monitor or wireless transmitter, while one USB Type-A output and one USB Type-C output can charge everything from mobile devices to laptops. Another 8V output is compatible with legacy battery paddle cables to attach to your DSLR camera or camcorder. Monitoring your battery's status is easy with the built-in runtime LCD. The Powerbase EDGE LINK can be recharged with a separately available D-Tap or V-mount charger.

Features at a Glance
Multiple 1/4"-20 threads for mounting
Dovetail-style quick release plate on top
Battery packs can link together to increase runtime
12-hour+ total runtime
Quick charge mobile devices with USB Type-A port
USB Type-C port with adaptive 5-20V output for charging larger devices like laptops
8V output for legacy Powerbase EDGE battery paddle cables to power cameras
Charge with D-Tap or V-mount charger
After 7 days of inactivity, the pack shuts down to preserve power

LCD Display
When in standby, LCD shows percentage and grid
When under draw, LCD shows remaining runtime, percentage, and grid
When charging, LCD shows remaining charge time, percentage, and grid

Features
70Wh, 14.8V V-Mount Battery Pack
8A Draw, 12-Hour+ Runtime
Quick Release Top Plate, 1/4"-20 Threads
USB and D-Tap Output Ports
Runtime LCD

Specifications

Mount / Series Type V-Mount
Battery Capacity 70 Wh
Output Voltage 14.8 VDC
Maximum Load 8 A

Accessory I/O
2x D-Tap / P-Tap Output Unregulated
1x USB-A Output 5
1x USB-C Output 5-20

Maximum Load (Accessory I/O) 3 A (USB-A)
USB Output 5 V-20 V
Accessory Mounting Thread 4x 1/4"-20 Female
Dimensions (W x H x D) 5.6 x 3.9 x 1.7" / 14.2 x 9.9 x 4.3 cm
Weight 1.4 lb / 0.6 kg
