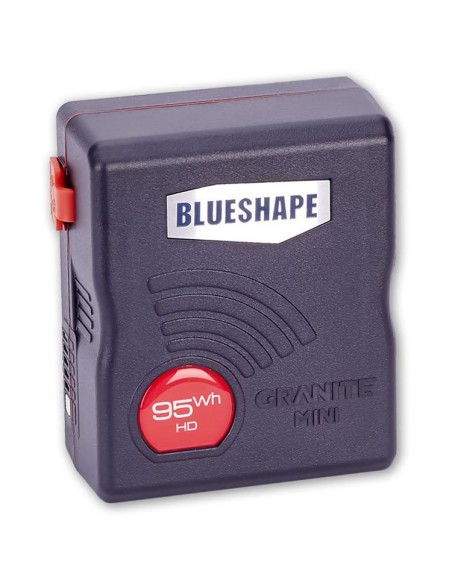

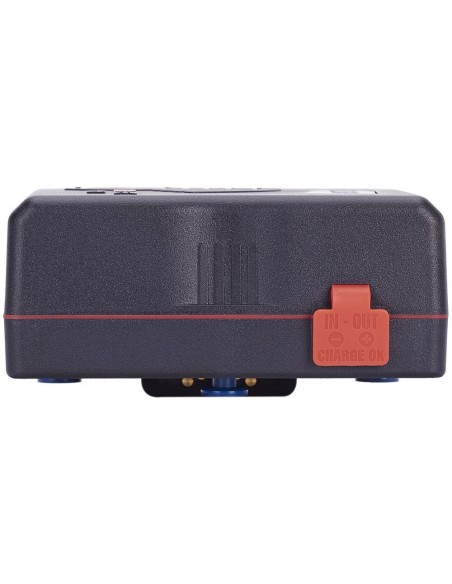

BLUESHAPE BG140HD MINI CAMERA BAT 3-STUD 14.4V GRANITE MINI

BLUESHAPE is upgrading the GRANITE line-up, proudly introducing GRANITE MINI - the new series of small, compact and powerful battery packs, ideal for smaller cinema cameras, featuring the innovative and handy Wi-Fi connectivity.

The GRANITE construction features remarkable resistance to impacts and bumps, ideal for harsh production environments.

This streamlined battery pack features high draw and an unparalleled energy density in the industry by implementation of the best world class Li-Ion chemistry that provides superior and long lasting electrochemical performances in a reduced core, making this battery perfect for high demanding video applications.

This battery is fully compatible with the 3-Stud standard: it can be charged correctly and with full communication on most original 3-Stud chargers available on the market. Furthermore, when it is installed on cameras enabled with fully functional 3-Stud mounts, it communicate the Relative State of charge (%) to the camera viewfinder.

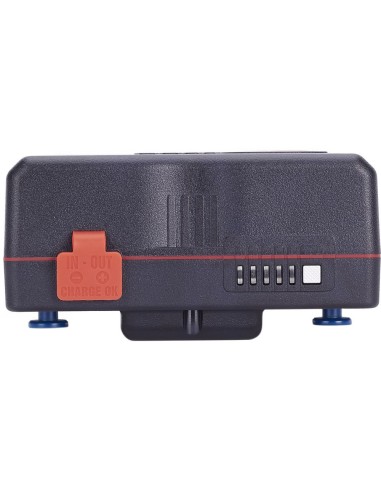

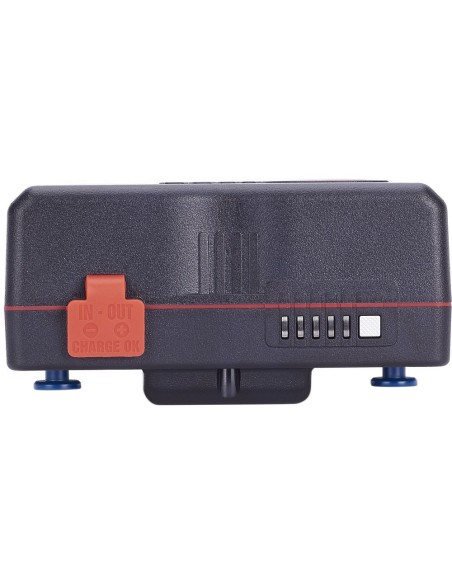

Featuring a 5 LED precise gauge for accurate capacity display integrated with state-of-the-art battery safety, balancing and monitoring technology and also providing digital communication with enabled devices. Furthermore, this battery provides 2 additional power outlets through D-Tap sockets conveniently located on the battery sides, protected by rubber covers. Both outlets are directly connected to the battery terminals for maximum power on the D-Tap ports, and can also be used for immediate and intuitive charging using inexpensive AC-DC D-Tap style chargers. They can be conveniently used to power devices working at 14.4V nominal, or even USB powered gadgets and chargers through the PT-USB adapter.

It has IATA restrictions, only 2 pcs per passenger can be transported in hand luggage only, or in the checked-in luggage if installed in the equipment.

Specification:

Reduced form factor: only 95 x 116 x 58 mm (3.74" x 4.56" x 2.28")

GRANITE LINK, Wi-Fi enabled remote control

2 Auxiliary D-Taps (nominal 14.4V) provide maximum power, up to the battery permissible current draw. Both can be used as a charging inlet

GRANITE construction, robust, shockproof and IP54 certified

Fully compatible with most original 3-Stud chargers

Nominal Voltage: 14.4V

Voltage range: 10.0V ~ 16.8V

Nominal Capacity: 9.9Ah, 143Wh

Max. discharge current: 12A

Compact and lightweight

Weight: 0.89Kg (1.96lbs)
