Tally Technologies Pro Base8 Wireless Transmitter

Developed for use in production and broadcast studios, the TallyTec Base8 Transmitter can support up to 8 channels for receivers, giving a wireless range of up to 2km. Powered through mains or 12v battery, this robust transmitter continuously outputs both live and preview signals from a wide variety of mixers to a receiver.

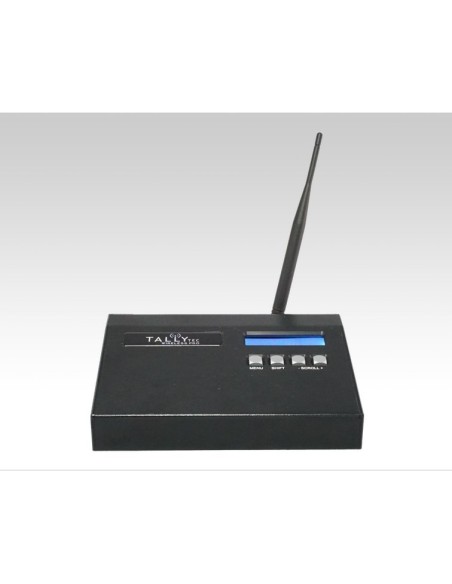

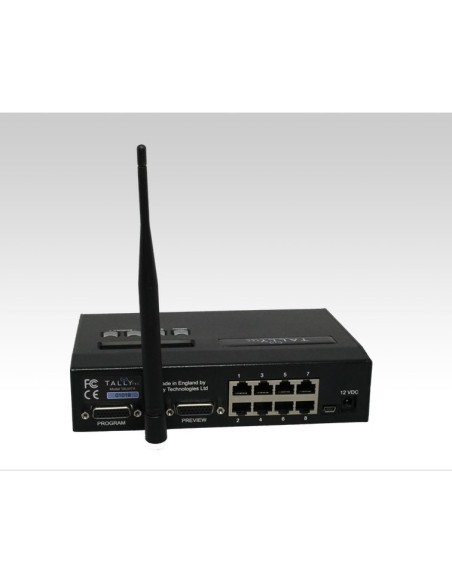

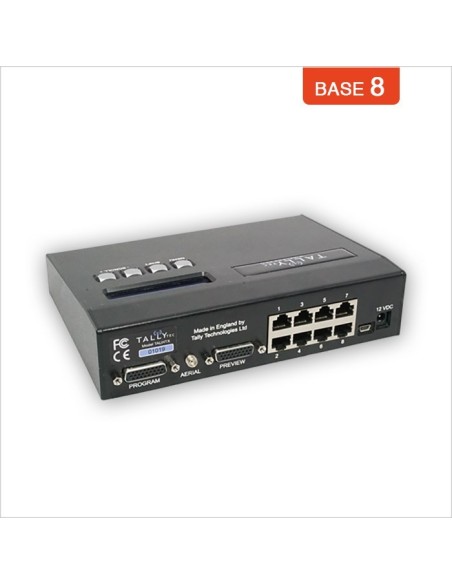

TallyTec's Base8 case incorporates a small screen for displaying the receiver status, an alarm button with a flashing light should a receiver deactivate, and a menu for managing the remote receivers. The transmitter also displays the battery charge level for each wireless receiver in use. The rear of the case has x8 RJ45 ports that can be used for charging the receiver and for use with wired receivers via Cat5/6 cable. The Base16 transmitter manages up to 8 receivers. The transmitter also has the ability to operate with any vision mixers using open/closed contact or +5v or -5v.

The transmitter receives information from a mixer's PGM output and sends a pulse to turn on the red LED on both the front and back of the receiver assigned to this camera. If the mixer also generates information from the selected camera's preview channel. The Base8 also transmits this channel and turns a green LED on located at the back of the receiver. The green LED can be switched off at any time if required.

Compatible with most vision mixers

Management of the Tally Program and Preview on mixers which support both functions

Supports up to 8 receivers

8 channels supported in the 866/915MHz transmission waveband

2km wireless range

Powered through mains or 12V battery

LED panel
Compatible with any vision mixers using open/closed contact or +5v or -5v

Specifications:

Dimensions: 25x32x6cm (9.8x12.5x2.3")

Weight : 1.5kg

Supported Wireless: 8 Channels

Range: 2km Wireless- Wired: 8 Channels

Power : Mains- 12V Battery

Ports : x8 RJ45

INCLUDED IN BOX:

Base8 Transmitter

Antenna

USB Cable

Power Supply
