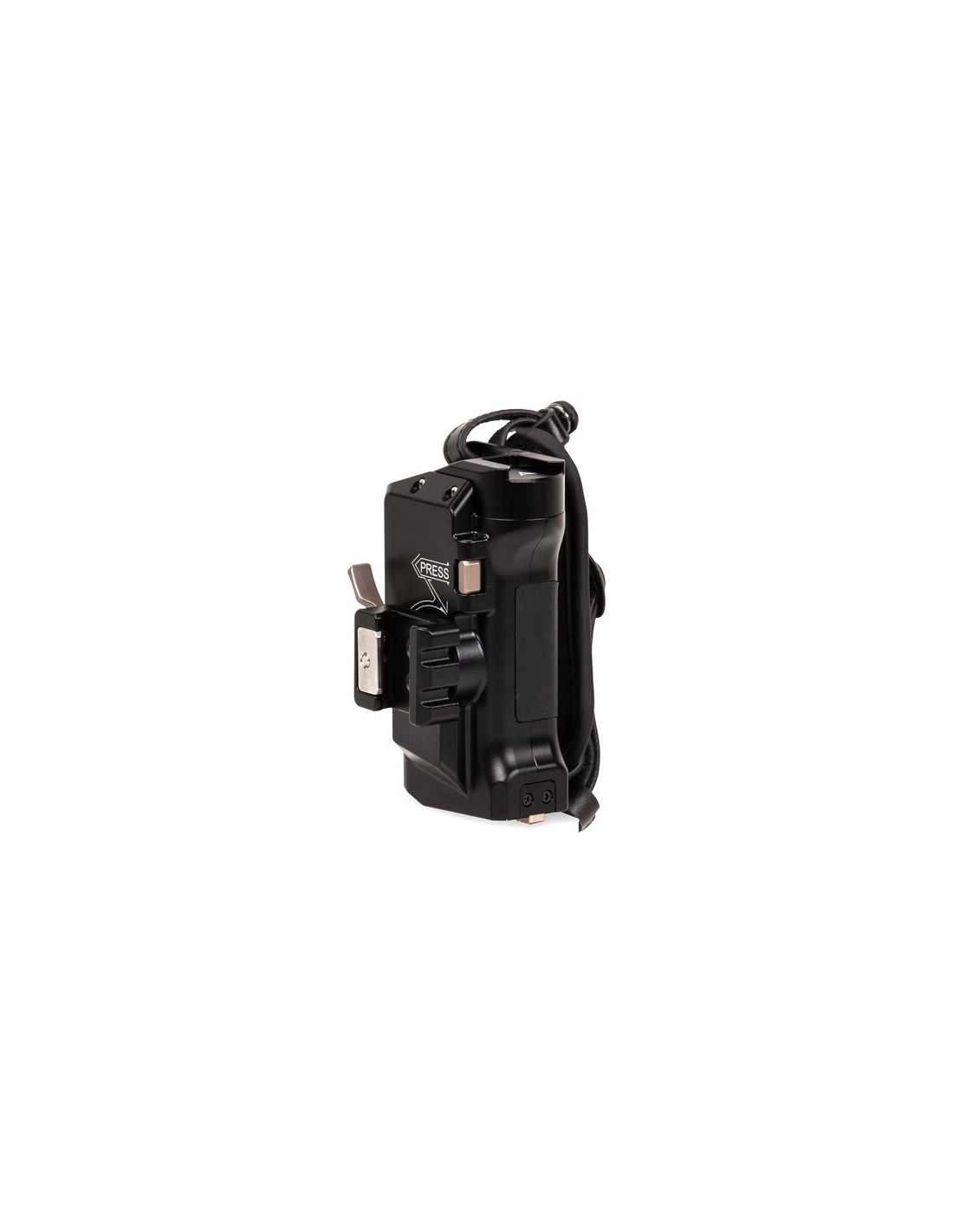

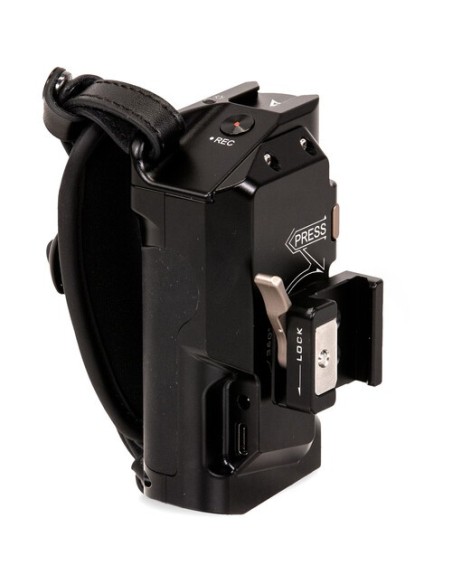

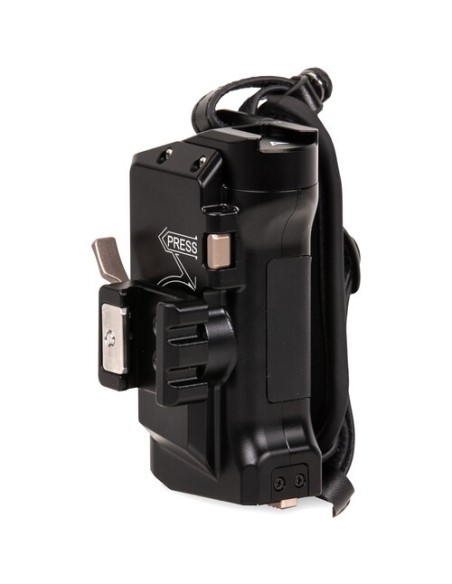

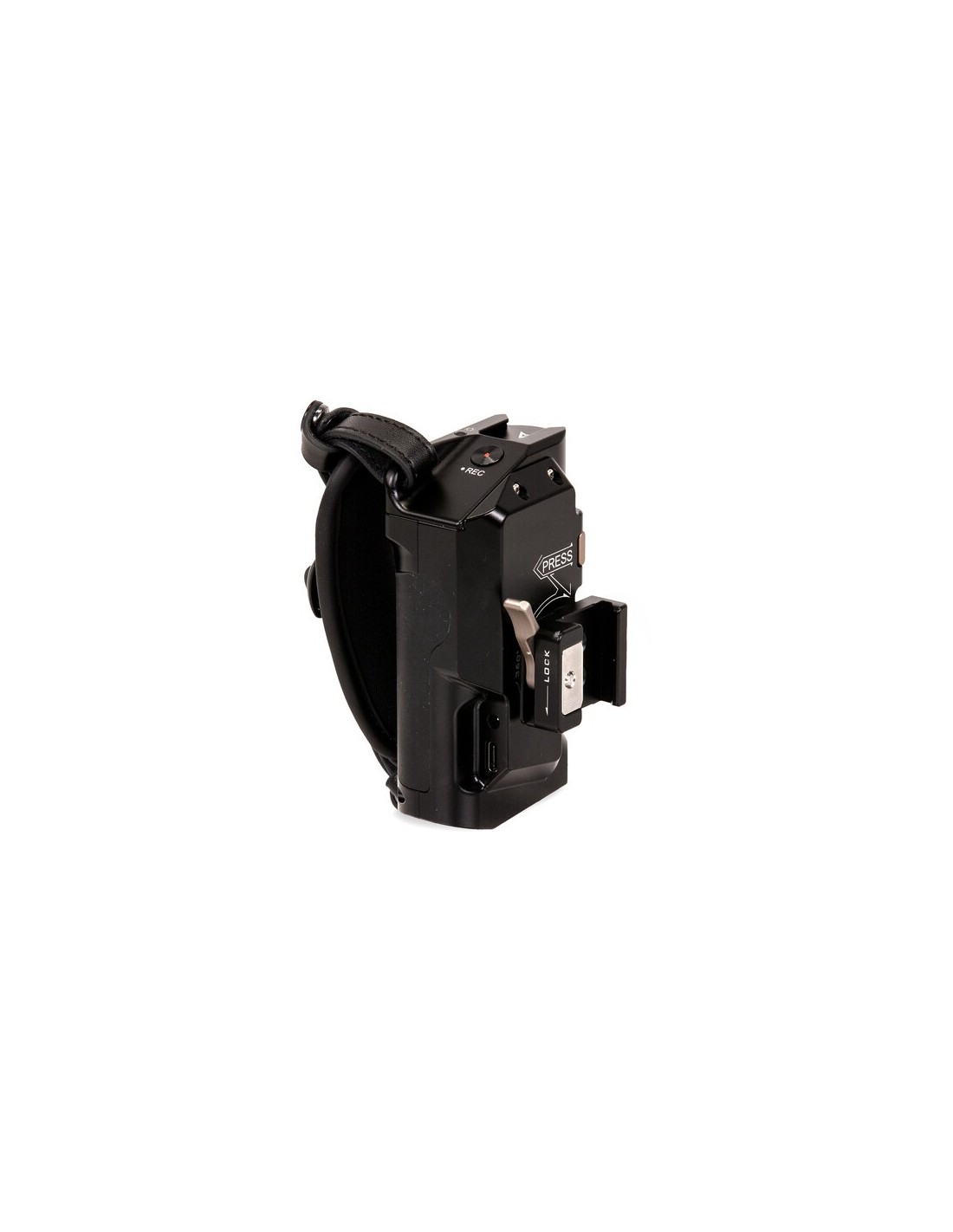

Tilta TA-LRH4-57-B Left-Side Advanced Focus Handle for F570 Battery (Black, Type IV)

Power your Nucleus Nano lens motor and add start/stop control for select cameras with the type-IV Left-Side Advanced Focus Handle for F570 Battery from Tilta. This handgrip with a black finish features two threaded mounting holes that allow you to choose from a variety of attachment options for mounting on your camera cage or baseplate (attachment is not included and required). The comfortable handgrip accepts an F55/F570 L-series battery internally, allowing you to power your Nucleus Nano focus control motor via the built-in thumbwheel, and it includes a run/stop cable. The handgrip also features a 12 VDC output port.
The handgrip features a record start/stop button and a calibration feature for use with a variety of lenses. The integrated female mounting threads permit 360° rotation for adjustment of the handgrip's angle, and it allows you to choose your mounting attachment such as the Tilta Rosette Attachment, ARRI Locating Pin Attachment, NATO Rail Adapter, and more. An included adjustable wrist strap helps keep your hand comfortably on the handgrip.

Required Attachment Bracket
The handgrip requires an attachment device, which is not included, and it works with the following Tilta products:
Rosette Attachment
ARRI Locating Pin Attachment
NATO Rail Adapter
NATO Extender
Extender Arm
Dovetail Adapter (left)

Battery

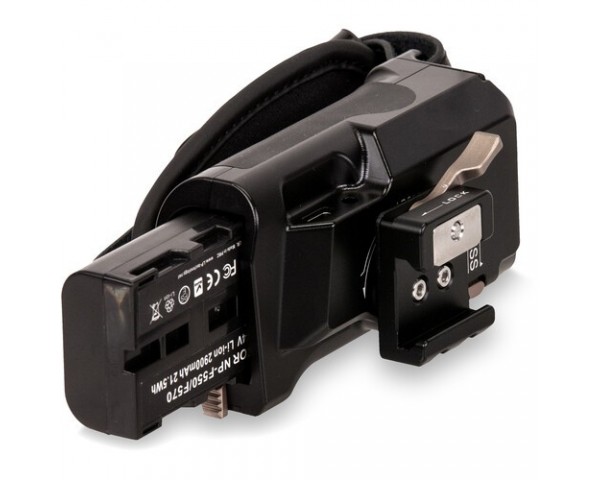

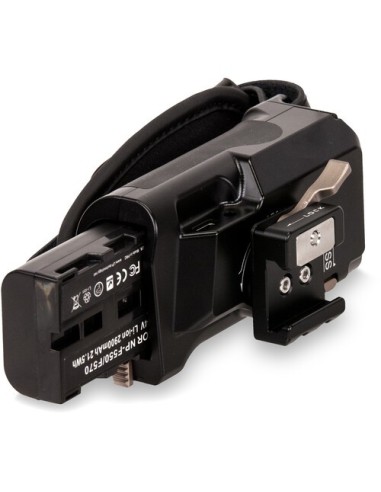

The handgrip accepts an F550/F570 L-series battery (not included) for powering the motor.

Features

Power Nucleus Nano Motor
Control Focus and Start/Stop
Accepts Select L-Series Batteries
360° of Rotation

Specifications

Grip Type Left-Side Handgrip
Rotation Yes, 360°
Built-In Controls Remote Trigger, Focus Control
Attachment Method Attaches via 2 Screw (Unspecified Type)
Battery
1 x Sony L-Series Battery (Not Included)
Powers Focus Motor
Ports 1 x USB Type-C (8 VDC)
1 x DC Barrel (12 VDC)
Construction Aluminum, Silicone
Dimensions 4.2 x 2.4 x 1.7" / 106.2 x 60.8 x 43 mm
Weight 7.2 oz / 204 g
