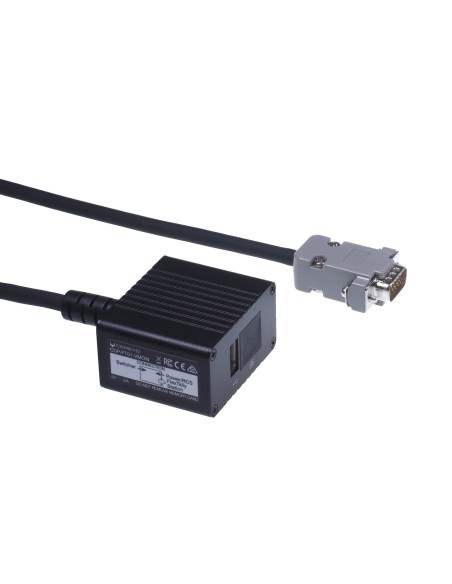

Cerevo USB-GPIO Converter for FlexTally

USB-GPIO Converter for FlexTally is a converter for using FlexTally in a video switcher that outputs tally signals via USB. FlexTally supports video switchers with Ethernet, GPIO, and software connections, and by using this product, you can also use a new USB connection.

As of December 2019, there are a total of three models that have been confirmed to work, Roland V-1HD / V-1 SDI and Lumantek ez-Pro VS4.

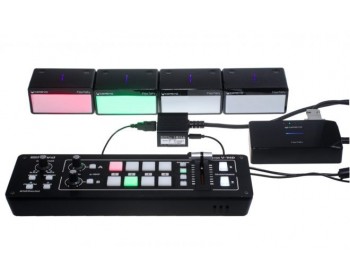

This product can use FlexTally as a tally lamp with a video switcher by connecting the USB type-A terminal on the product body and the target video switcher with a USB cable and connecting the cable extending from the body to the GPIO terminal of FlexTally. I will. Also, by connecting to a tablet * 1 with the included micro USB cable, it is possible to use a video switcher such as "V-1HD Remote" at the same time as an application that operates externally. You can easily expand the functions without sacrificing the convenience of the video switcher.

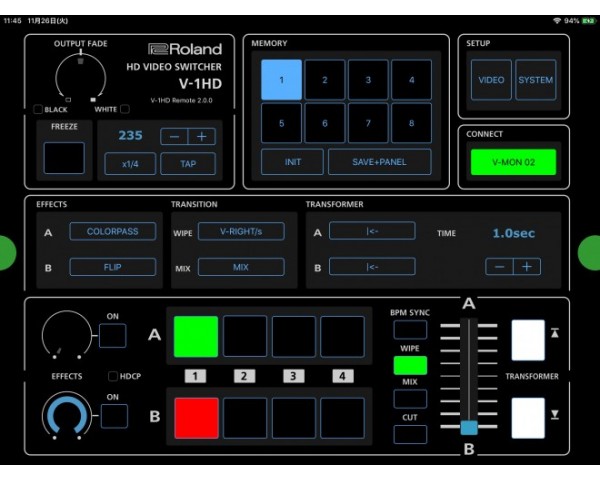

Connected to USB-GPIO Converter for FlexTally while using V-1HD Remote

Product Specifications

Size W: 55mm x D: 46mm x H: 30mm + 1m GPIO cable

Weight about 160g

Terminal USB type-A / micro USB type-B / D-SUB15pin (for FlexTally connection)

Power supply 5V 2A (USB power supply)

Included micro USB cable

Compatible models Roland: V-1HD / V-1 SDI, Lumantek: ez Pro VS4

Product warranty 1 year from purchase

* 1: When this product and the tablet are connected with a micro USB cable, it is necessary to supply power to the tablet at the same time using the dedicated connector.

FlexTally

FlexTally is a tally lamp system that includes one station (master unit) that connects to the video switcher and four lamps (slave units) that are attached to the camera. Up to 8 lamps (sold separately) can be connected to each station. When shooting with multiple cameras at the site of program recording or live distribution, the FlexTally lamp automatically lights up according to the switching operation of the switcher, so which camera image is used by the performer. You can easily figure out what it is.

For more information on FlexTally products, please also visit our product website.
