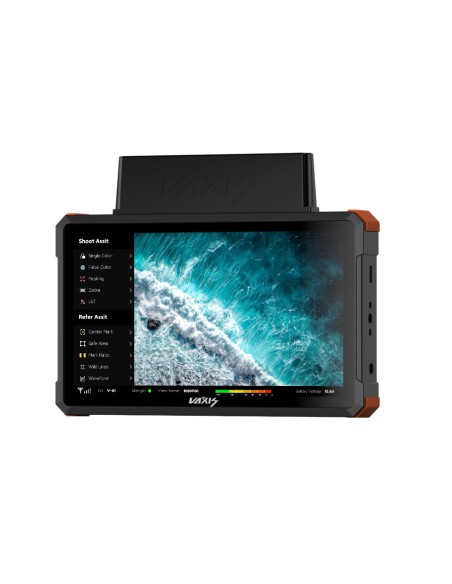

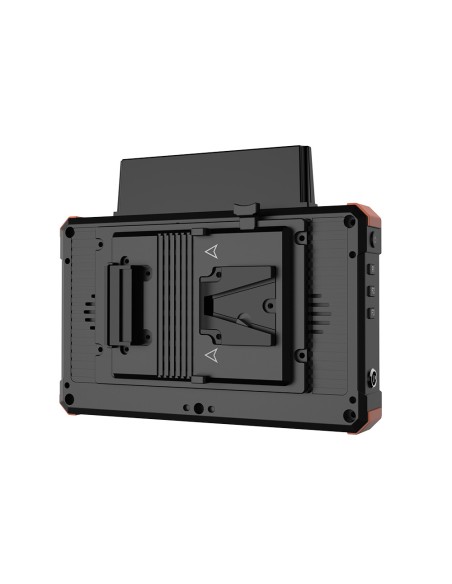

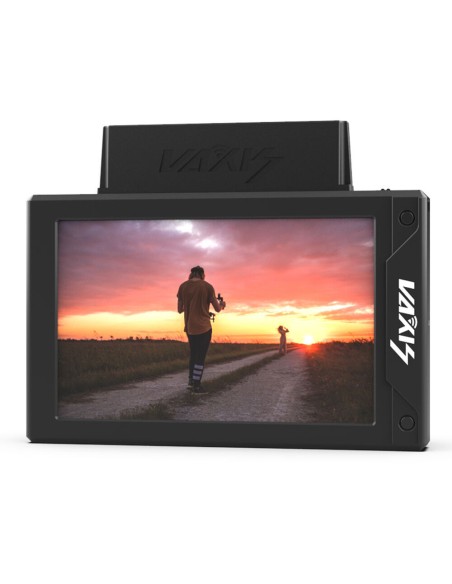

Vaxis 7" Storm 072 Monitor/Receiver with V-Mount Battery Plate

Vaxis - Storm 072 7" Monitor with V-Mount Battery Connection Eliminate cables and go wireless with the Storm 072 7" monitor/receiver from Vaxis. Compatible with Storm Vaxis transmitters, this monitor/receiver supports video up to 1080p60 and has a wireless range of up to 984'. Suitable for both monitoring and focus pulling, the Storm 072 features a bright 1500 cd/m² display for outdoor use. A headphone jack allows you to monitor the audio embedded in the video stream. Power the Storm 072 using a long-lasting V-Mount battery or via the included D-Tap cable and a compatible power source.

Features

Integrated Wireless Receiver: Compatible with Vaxis Storm Wireless Transmitters - V-Mount Battery Plate: The V-Mount Battery Plate allows you to power the monitor/receiver with V-Mount batteries longer lasting - Supports 1080p60 video: wirelessly receives up to 1080p60 video - Wireless range: up to 984' wireless receiving range - Bright 7" LCD: daylight viewable, 1500 cd/m² with LCD brightness 7" - Wireless frequency: 5150 to 5850 MHz wireless range - Antenna housing: A screw-in enclosure serves to protect the six antennas of the monitor / receiver - Image viewing tools: Red Focus Peaking Hue, saturation and contrast High, medium and low brightness settings High and low sharpness settings Wireless channel frequency and strength display Selectable noise reduction Button and slider controls

Technical details:

SCREEN - Number of displays: 1 - Panel type: IPS type LCD - Display size: 7.0" / 17.8cm - Screen resolution: 1920 x 1080 - Aspect ratio: 16:9 - Touchscreen: no - Maximum brightness: 1500 cd/m2 - Pixels per inch (ppi): 315 ppi - Picture controls: Focus Peaking I/O - Integrated audio: wireless - Audio: 1 x 1/8"/3.5mm headphone output - Built-in speaker: none - Power: 1 x 2-pin LEMO input - Card slot: none - Video format: Wireless 1080p: 60 / 59.94 / 50/30 / 29.97 / 25/24 / 23.98 1080i: 60 / 59.94 / 50 720p: 60 / 59.94 / 50 POWER - DC Input Power: 7 to 18V DC - Battery Type: 1 x V-Mount - Power Consumption: 9W GENERAL - Dimensions: 7.6 x 4.7 x 1" / 192 x 120 x 25mm - Operating temperature: 32 to 104°F / 0 to 40°C

Technical Sheet

• Dimensions 7''
• Dimensions 192 X 120 X 25 Mm / 7.6 X 4.7 X 1 ''
• Touch screen no
• Audio 1 3.5mm / 1/8'' Headphone Output
• Aspect ratio 16 9
• operating temperature 32 to 104° F / 0 to 40° C
• Video format Wireless
• Power consumption 9 W.
• Battery type 1 X V-Mount
• Energy 1 X 2 Pin Lemo Input
• Maximum brightness 1500 Cd / M 2
• Built-in speaker None
• Panel type IPS type LCD
• Built-in Audio Wireless
• Card Slot None
• Pixels Per Inch (Ppi) 315 Ppi
• Image Controls Focus Peaking
