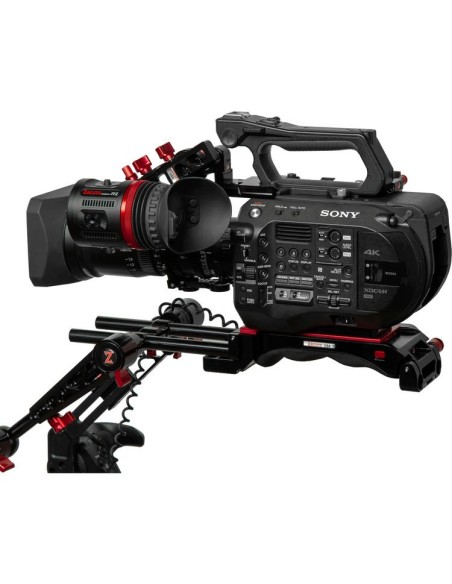

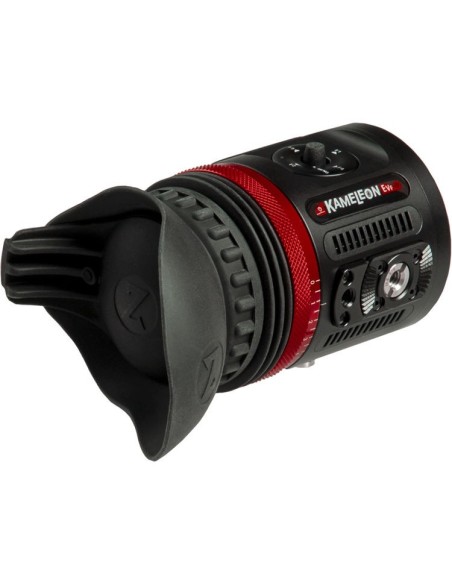

Zacuto Kameleon EVF Pro

The Kameleon EVF Pro, powered by JTZ, is an electronic 0.71" micro OLED viewfinder with HDMI and 3G-SDI input for numerous camera systems. The Kameleon EVF Pro is the successor of the Kameleon EVF and offers a revised interface with the software functions waveform and vectorscope. The new overlay allows a brighter, more colorful image and helps to prevent burn-in. The Kameleon EVF Pro supports video resolutions up to 4K DCI (4096 x 2160 pixels) via HDMI or Full HD (1920 x 1080 pixels) via HDMI and 3G-SDI. Numerous integrated software functions allow in-depth analysis of the image. The EVF is powered via the 4-pin LEMO 0B connector with 7 to 20 V DC. ARRI rosettes are available on both sides for mounting.

• Built-in diopter correction wheel from -1 to +4
• Integrated 2-stage anti-fog protection technology
• Automatically closing eyecup against incident sunlight
• Menu navigation via joystick and function keys
• ARRI rosette on both sides
• LUT import
• Built-in silent fan against overheating

Technical Specifications:

• Display: 0.71" Micro-OLED with approx. 6.5 million pixels
• Contrast Ratio: 10,000:1
• Aspect Ratio: 16:9
• Native Resolution: 1,920 x 1,080 pixels (Full HD)
• Color Depth: 24-bit RGB
• Pixel Density: 3,103 ppi
• Supported Video Resolutions:
  HDMI - 4K DCI (4096 x 2160), Ultra HD (3840 x 2160), Full HD (1920 x 1080p/i), HD (1280 x 720p)
  3G-SDI - Full HD (1920 x 1080p/i), HD (1280 x 720p)
• Sonftware Functions: Waveform, Vectorscope, Custom Scaling, Frame Lines, Calibration Settings, Center Marker/Crosshair, Anamorphic, 4:1 Zoom, Image Flip, False Color, Red Line Peaking, Freeze Frame, Zebras, Histogram, Audiometers, 4 programmable hotkeys, 3D LUT Import, SMPTE Color Bars, Edge Enhancement Levels 1-3 (Peaking)

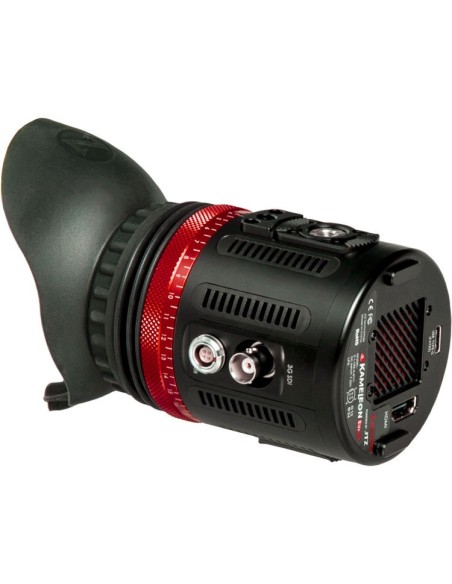

Data Links:

• 1x HDMI via HDMI-A
• 1x 3G-SDI via BNC
• 1x USB via USB-C (for LUT import and firmware updates)
• 1x Power supply DC via 4-pin LEMO 0B

General Product Information:

• Dimensions (W x H x D): 124.46 x 69.85 x 71.88 mm (4.9 x 2.75 x 2.83 in)
• Weight: 425.24 g (15 oz)
• Operating Voltage: 7 - 20 V DC (via LEMO 0B)
• Power Consumption: 5 W
