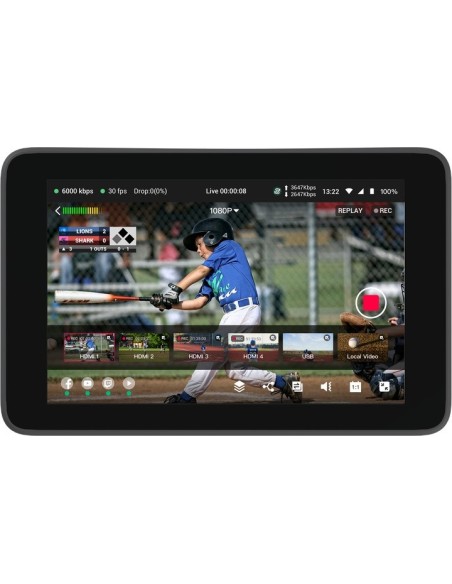

YoloLiv YoloBox Ultra 8″ Display

YoloBox Ultra is everything you would expect from a YoloBox product. It's your gateway to incredibly fast and effective video production, and it comes with a CPU upgrade and a host of new features. What is worth mentioning are the NDI and SRT. With them, you can deliver the highest quality 4K video with ultra-low latency even on the worst networks. Give your audience a truly immersive and uninterrupted live streaming experience. YoloBox Ultra also offers multiple versatile inputs and outputs to connect various cameras, microphones, laptops, webcams, monitors and other devices, giving you unprecedented control and the ability to create professional-level productions.

YoloBox Ultra combines the strengths of the YoloBox and Instream series in a single solution, with even more features.

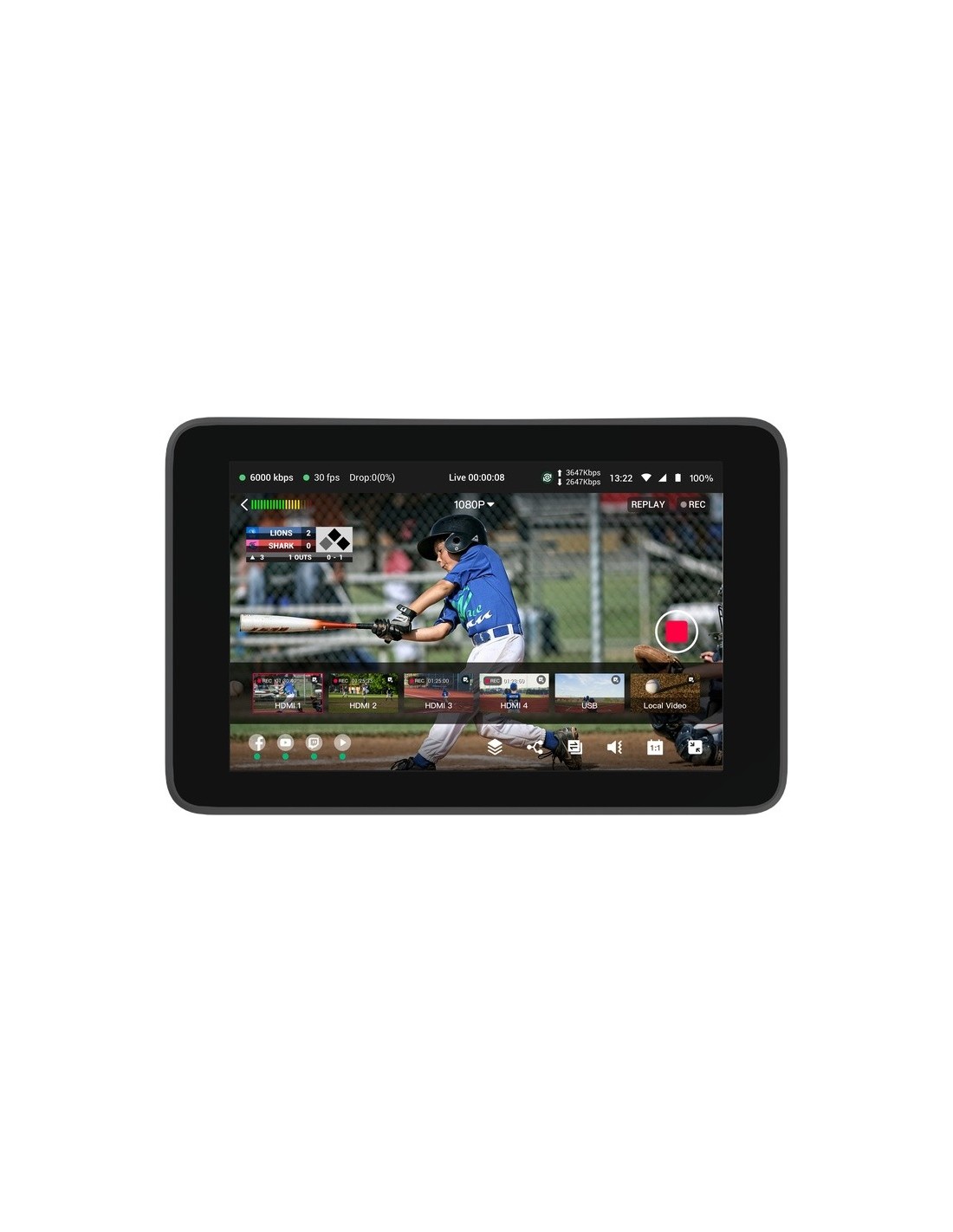

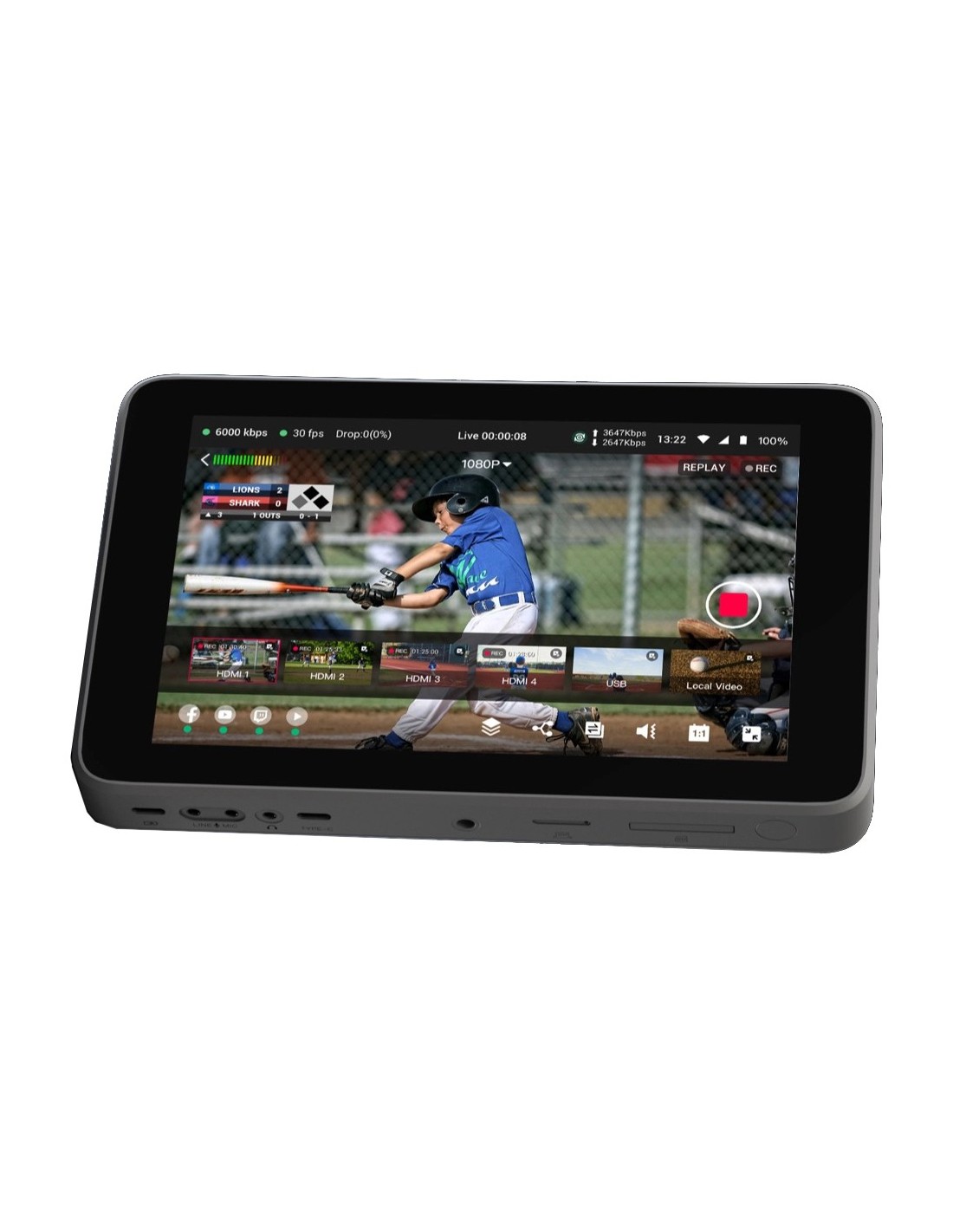

The look of the YoloBox Ultra hasn't changed much from the previous YoloBox series. The new platform has the same form factor as before, with an 8-inch screen. The Ultra, however, is better equipped with more features. The unit uses a strong 20,000mAh battery, the largest in the series, and this means it can stream for up to 6 hours. This new unit is designed so you can handle 2 to 3 hour live streams with plenty of time without having to prepare an extra power source. The display has a brightness of 650 nits, making it the brightest in the series.

Inputs and network connectivity

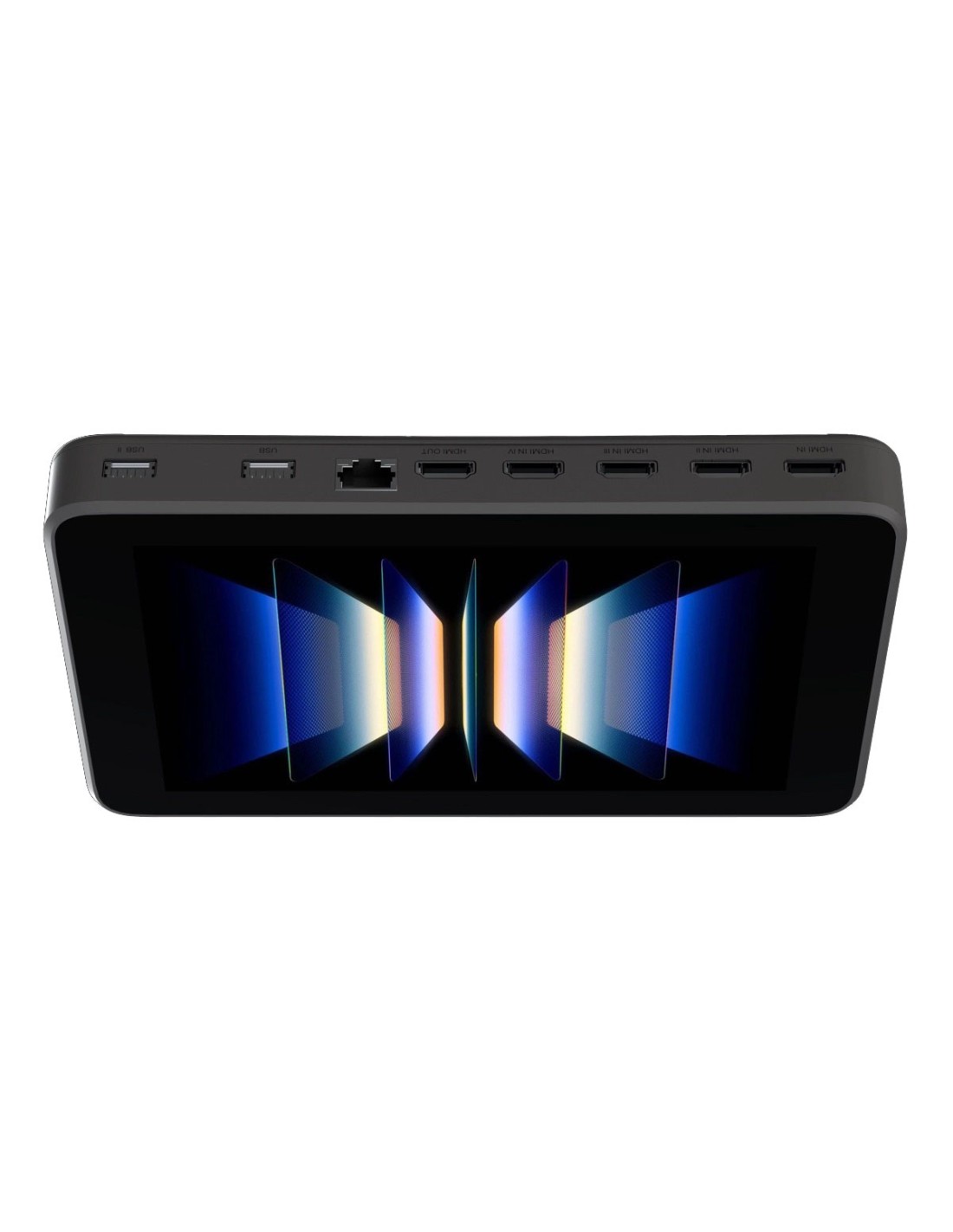

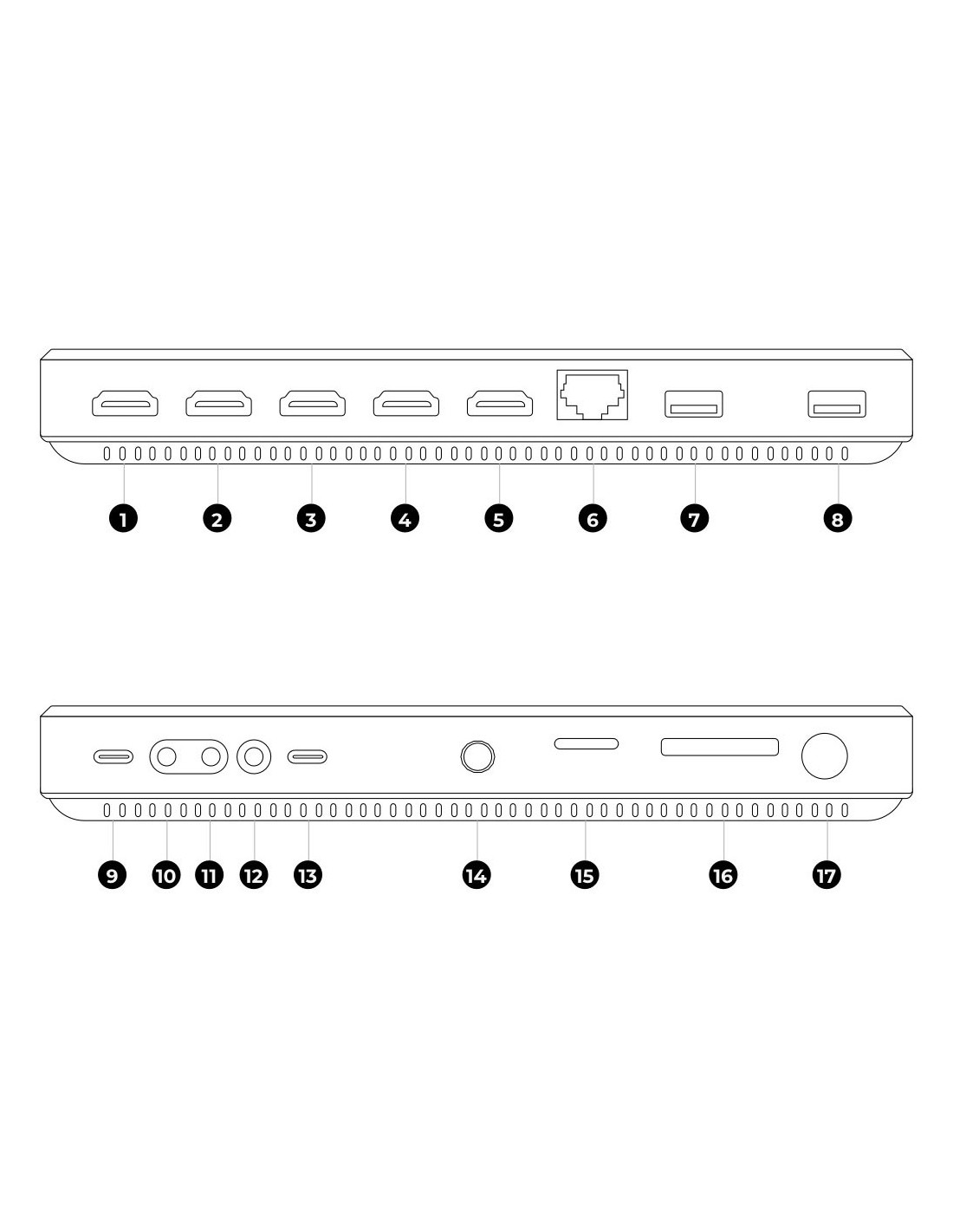

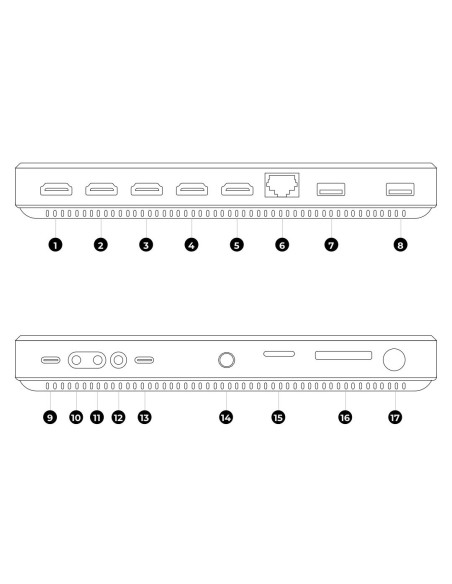

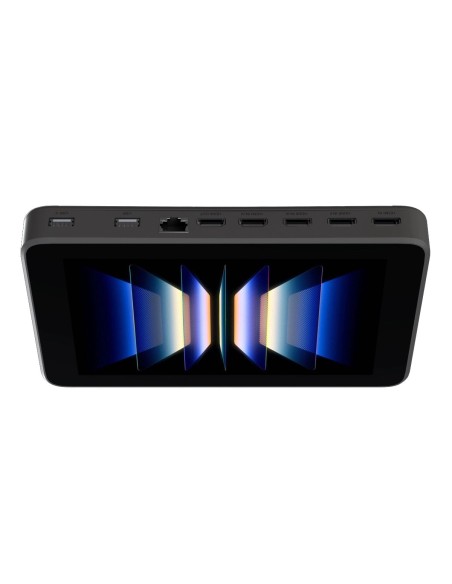

Yolobox Ultra features 4 full HDMI inputs, making it easier to support more professional multi-cam videos. Equipped with two USB Type-A 3.0 ports, it supports webcams, portable storage devices, wireless USB dongles and other connectable devices.

Yolobox Ultra also supports “network bonding” which combines a total of 5 network connections including 3 cellular, Wi-Fi and Ethernet into a fast and reliable live stream. The CPU is equipped with an 8-core Qualcomm Snapdragon 845 processor, which contains 2.5 times more processing power. This is a significant improvement in connectivity over previous Yolobox entries.

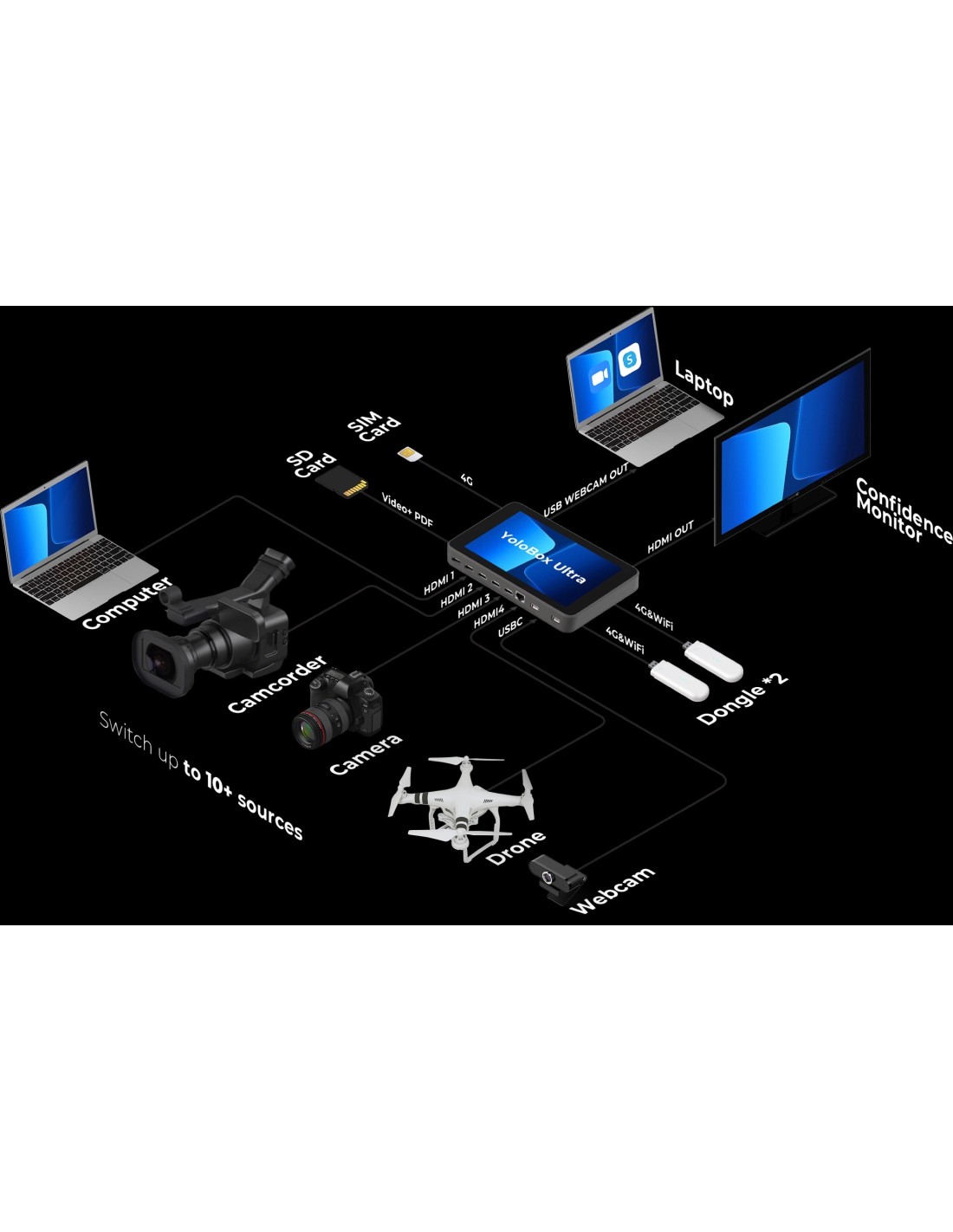

Capable of supporting a variety of inputs and outputs

Yolobox Ultra now supports ISO recording function, allowing you to simultaneously save up to 4 HDMI sources (1080 60p) to an external hard drive. The distribution is compatible with Facebook/YouTube/RTMP and Instagram/TikTok streaming platforms.

Spec

Input Power
DC5V/9V/, 12V/15V
Power Consumption
45W
Power Supply
USB Type-C
USB Rated Output
USB-A:5V/1A
Battery Capacity
6800mAh
Monitor Screen Size
8inch LCD Resolution: 1200*1920; Brightness: 650nits;
Contrast ratio(1500:1), Viewing Angle (full viewing Angle), NTSC 80%
Local Video Inputs
HDMI,USB-A
Video Over Ethernet
RTMP/RTMPS/SRT
Video Input Connectors
HDMI,USB-A,RJ-45,USB Type-C
Video Input Aspect Ratios
16:9; 4:3; 1:1
Video Input Deinterlacing
No
Live Broadcast Video input Resolution
480p/720p/1080p(up to 60fps)/4k 30fps
Video Encoded Format
H.264 H.265
Video processing Bitrate control
CQ, VBR, CBR
Hardware-Accelerated Video Encoding
Optional
Video Output Signal Types
FLV-RTMP,HDMI,UVC
Video Output Connectors
HDMI OUT, USB-C
Video Output Streaming protocols
RTMP, RTMPS, MJPEG, SRT
Live Broadcast Video Output Resolution
480p/720p/1080p(up to 60fps)/4k 30fps
Analog Audio Input Connectors
Line In, Mic In, 3.5mm
Digital Audio Inputs
USB, HDMI, RTMP(From internet), Local video(From SD card)
Digital Audio Input Connectors
USB-A, HDMI, USB-C
Audio Input Mute
Yes
Audio Input Format
32KHZ/44.1KHZ/48KHZ :16bit
Audio Encoded Format
(AAC)44.1K/48KHZ 2Ch 16bit
Analog Audio Output
3.5mm headphone jack
Digital Audio Outputs
HDMI audio (Embedded), USB Audio (Embedded)
Record Formats
MP4
Wi-Fi
2.4G/ 5G（Support WiFi6）
4G Network
4G Network Countries & Frequency Band For
Users: [Variant for North America（US/Canada/Mexico)]
B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71
Notes: Mexico B4 For Non-US/Canada/Mexico
Users: (EU: Variant for EMEA/India/Korea/Taiwan/South Asia/Latin/America/Australia/New Zealand)
Users: B1/B3/B7/(B8) Notes: Thailand B1/B3
Please note that the certification of Yolobox Mini is in line with the mainstream open 4G band requirements of operators in this country or region. For details, please refer to the approval report of this country or region.
USB Communication Standard
USB 2.0 and USB 3.0
Ethernet Data Rate
10/100/1000M, half/full duplex with autodetect
SIM Card Size
Nano-SIM Card
SDCard format
FAT32(Under 128G), NTFS, EX-FAT
Operating Temperature
0℃-40℃
Operating Humidity
15%-85%, No Condensation
