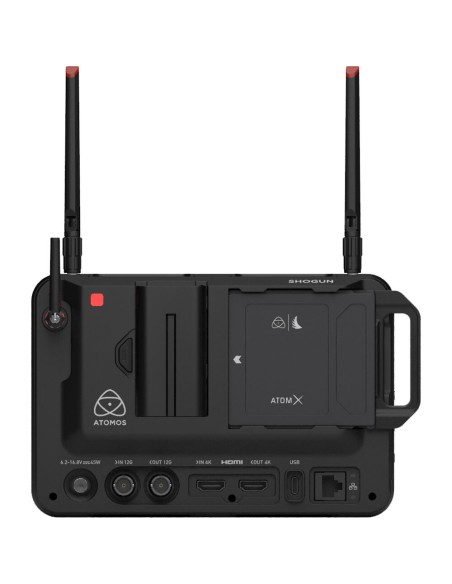

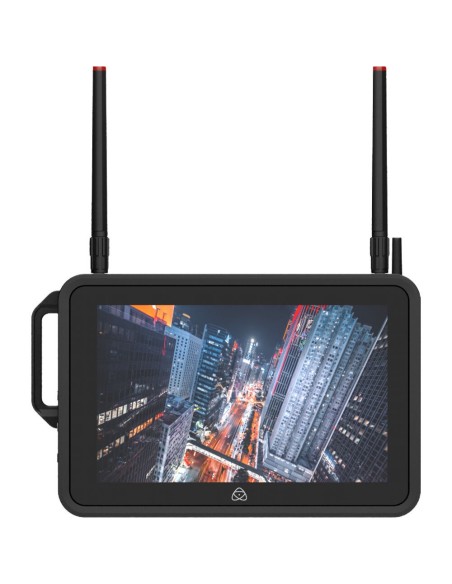

Atomos Shogun CONNECT 7" HDR Monitor, Recorder, and Cloud Device

The Shogun CONNECT from Atomos expands upon the HDR recording and monitoring capabilities of the Shogun by integrating cloud connectivity via its multiple wireless interfaces. The 7" 1920 x 1200 touchscreen display boasts a brightness of 2000 cd/m². A loop-through 12G-SDI input and output interface supports SDI RAW recording. Both the HDMI and 12G-SDI connections can record, monitor, and transmit 4K video with ease.


Adobe Frame.io support makes the Shogun CONNECT a camera to cloud device, allowing you to take footage from your camera and transfer it over a long-range connection between other devices. Wi-Fi 6, Bluetooth LE, Gigabit Ethernet, and USB Type-C connection ensure flexible, all-around connectivity. Remote collaboration brings production and post-production closer together with features like dual recording and progressive transfer technology. Power for the Shogun CONNECT can be achieved via the locking DC jack or with a separately available L-series battery.


CONNECT Upgrades
Features a new, brighter HDR screen and range of built-in interfaces
Loop through 12G-SDI input/output for SDI RAW and HDMI support an expansive range of professional cinema, DSLR, and mirrorless cameras
ATOMOS AirGlu technology enables direct, long-range communication between devices up to 0.2 miles and wireless timecode lock


Streaming Capabilities
Supports livestreaming to Facebook Live, Twitch, and YouTube
Built-in Wi-Fi 6, Gigabit Ethernet, Bluetooth LE, and the ability to join cellular hotspots

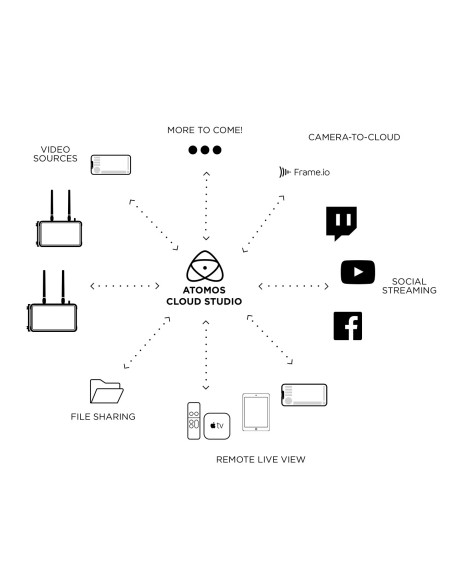

Camera to Cloud Device
Fully integrated Frame.io camera to cloud device
With support of HDMI and SDI equipped cameras, it offers advanced online workflows and remote collaboration between filmmakers
Record, monitor, and share your work from one device


Dual Recording
Creates matching "hero" Apple ProRes, ProRes RAW, or Avid DHxHR/HD files to a "proxy" HEVC (H.265) file simultaneously
Proxy files can be uploaded during capture using ATOMOS transfer technology for immediate availability in the cloud post-recording


Shogun Control
Auto HDMI trigger supports Canon, Sony, Atomos Open Standard
Camera selectable SDI trigger
Serial 2.5mm jack for LANC control and calibration with separately available USB to serial cable
Bluetooth LE control via AtomControl App for monitor assist functions
Wireless RF AirGlu remote start/stop trigger


Monitor Assist Functions

• 3D LUT
• Anamorphic de-squeeze
• Cine frame guides
• Display flip
• False color
• Focus peaking
• Frame grab
• Grid markers
• Isolate color channel
• Onion skin overlay
• RGB parade
• Safe areas
• Social frame guides
• Vectorscope
• Waveform
• Zebra
• Zoom


In the Box

• Atomos Shogun CONNECT 7" HDR Monitor, Recorder, and Cloud Device
• AtomX SSD Mini Handle
• MasterCaddy III with Screws
• Wi-Fi Antenna
• RF Antenna
• Antenna Storage Pouch
• Antenna Colored Caps
• Antenna Mount Covers
• 3.5mm Audio Cable
• Power Supply
• Screen Cloth
• Protective Pouch (7")
• Limited 1-Year Warranty, 3-Year Extension with Registration
