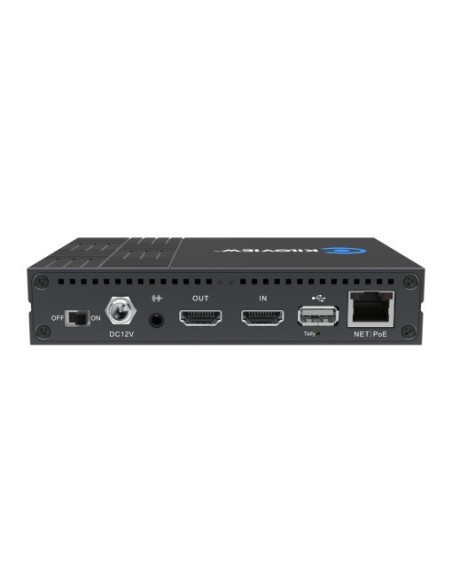

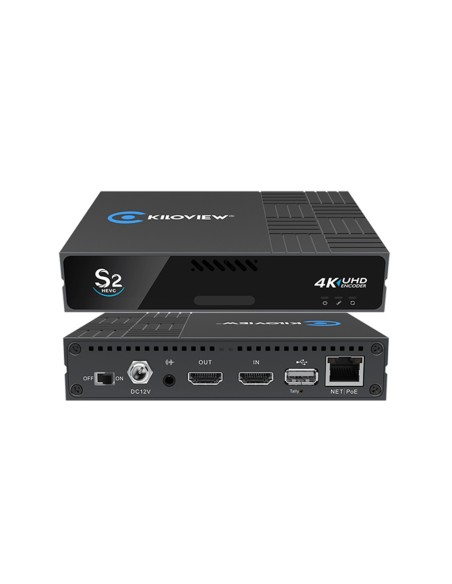

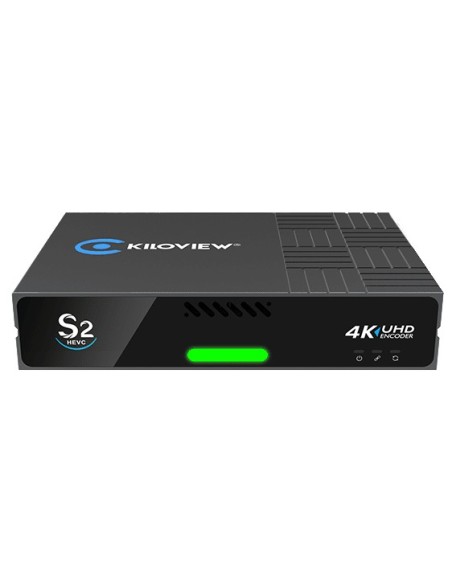

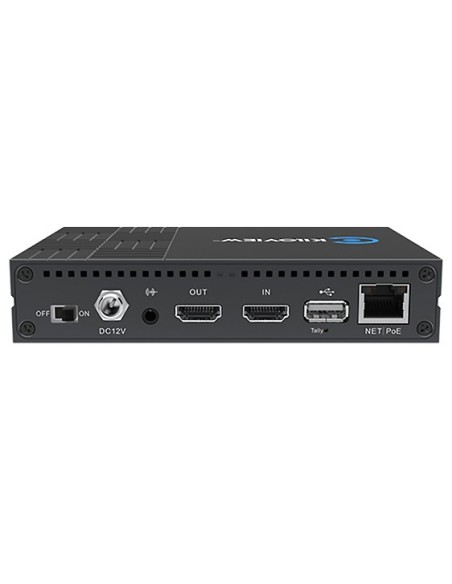

Kiloview S2 H.265 4K NDI|HX Video Encoder 4K60

The Kiloview S2 is an UHD 4K video encoder which is designed to meet the needs of all 4K video transmission applications. With the HDMI 2.0 input it support resolutions up to 4Kp60 and encoding resolutions up to 4Kp30. It is also compatible with SD/HD/VESA resolution etc., to meet your needs for a high-quality image. Protocols including NDI|HX/SRT/RTMP/RTMPS/HLS/UDP/RTSP/Onvif, etc. are all supported. With H.265 HEVC encoding, the Kiloview S2 realizes lower encoding bitrate and saves up to 50% bandwidth with same image quality compared to H.264. Both embedded HDMI audio and 3.5mm analog line are supported. Together with Kiloview intercom software, the S2 can support intercom functions for better communication. (Supported in software version 2.0+). Furthermore it supports dual stream output (main stream and sub stream). Each stream can be sent to 8 platforms with the same or different protocols, altogether S2 can simultaneously live stream to 16 streaming platforms. Main stream resolution up to 4KP30Hz, sub stream resolution up to 1080P60.

KEY FEATURES

• 4K60 HDMI 2.0 Input

• 4K30 encoding

• H.265/HEVC

• PoE

• SRT& NDI|HX

• PTZ control

• Voice intercom

• USB and NAS storage

• SDK /API provided

• 7*24h continuous working

• Multi platform live broadcast (up to 16 platforms simultaneously)

SPECIFICATIONS KILOVIEW S2

Model S2

Video input 1×HDMI 2.0

Input resolution Up to 4Kp60

Analog audio interface 1*3.5mmLine in

USBinterface 1*USB 2.0 Type-A

Network support 1*RJ451000Mbps Ethernet port(with PoE)

Video loop 1×HDMI 2.0

Loop resolution Up to 4Kp60

Videoencoding Support up to 4Kp30 and deinterlace encoding, details as below 3840x2160P60/24/25/29/30Hz

1920x1080P23/24/25/29/29.97/30/50/59/59.94/60Hz

1920x1080P50/59.94/60Hz;1280x720P59.94/60Hz;1280×1024 60Hz

1024×768 60Hz；800×600

Video encoding H.265/H.264

Colorspace 8bit RGB444

8bit YCBCR444

8bit YCBCR422

Encoding bitrate Up to 100Mbps

Audio HDMI embedded audio and analog audio

Audio encoding AAC/G.711

Audio sampling 8KHz, 16KHz, 11.025KHz, 22.05KHz, 24KHz, 32KHz, 44.1KHz, 48KHz, 64KHz

Audio encoding bitrate Up to 512Kbps

Networkprotocols SRT/RTP/RTSP/TS-UDP/RTMP/HLS/Onvif 1.1/2.0/NDI|HX

Image and text overlay Support

PoE Support

Record storage USB expansion and NAS network storage

Voice intercom USB expansion supported

Management APP/ Web/IMS remote management

Power supply/consumption DC 12V 1A/10W

Dimension 140x100x28mm

Operation temperature -20 ~60°C

INCLUDED BY DEFAULT

• Kiloview S2

• Power Supply

• Warranty Card

• Quickstart Guide
