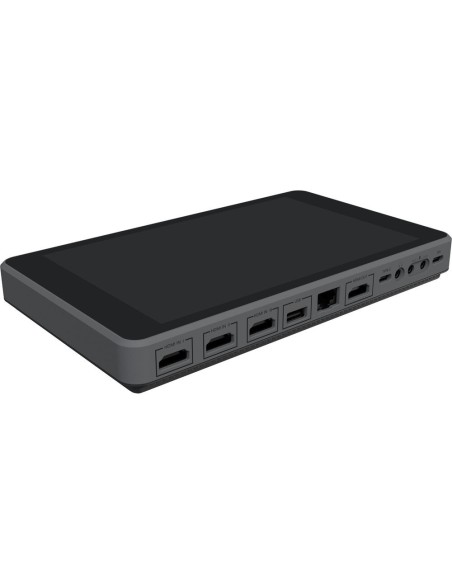

YoloLiv YoloBox Pro

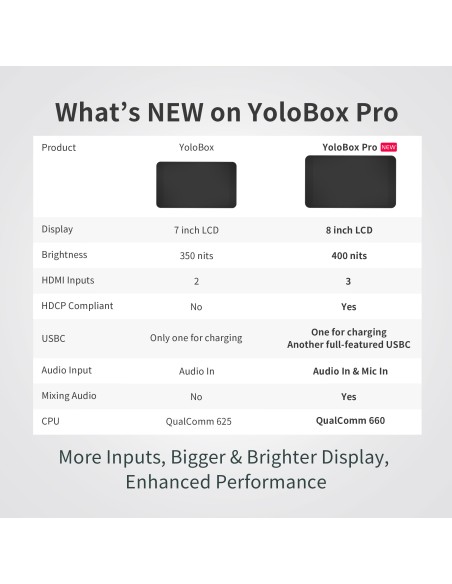

Encoder/Streamer/Switcher/Monitor/Recorder from YoloLiv. The YoloBox Pro can simultaneously broadcast up to three video streams via Wi-Fi, RJ45 Ethernet, or via 4G LTE with a separately available SIM card and subscription. The YoloBox Pro features multiple updates from the original YoloBox, including HDCP compliance, both mic and line analog audio inputs, a USB input, three HDMI inputs, a Qualcomm 660 encoder/processor, a high-capacity 10,000mAh internal battery, and a larger 8" LCD touchscreen display with 400 cd/m² brightness.

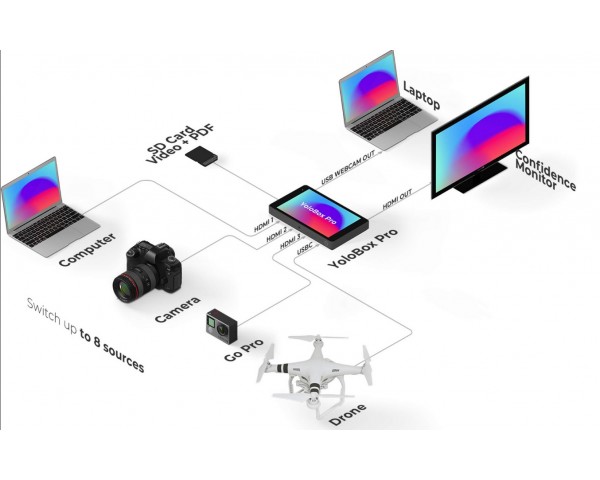

The YoloBox Pro allows you to connect and live switch up to 8 video sources, and then connect to a local area network via Wi-Fi, Ethernet, or LTE (LTE connection requires SIM card and data plan not included). The large 8" touchscreen display shows the streaming image, the input streams as well as the control interface, which allows you to switch between the info sources with a touch. It also features an HDMI output to display your stream locally on an optional HDMI display. It also has a line-level audio input, a mic-level audio input, and a discrete headphone audio out.

The YoloBox Pro supports input resolutions ranging up to 1080p using the H.264 codec, and you can stream resolutions from 540p to 1080p to YouTube, Twitch, and other streaming services via custom RTMP presets. Stream to the Internet using a 4G cellular network such as Verizon, T-Mobile, and AT&T, using a separately available nano-size SIM card and a separately available data plan. You can record your stream directly in .mp4 format to an optional SD card with up to 128 GB capacity using the built-in SD card slot.

Key Features

• Touch control without a computer
• 8" LCD display with 400 cd/m² brightness
• Built-in simultaneoulsy streaming to up to 3 destinations
• HDCP compliant
• Stream via Ethernet, Wi-Fi, LTE 4G
• Live switch up to 8 sources

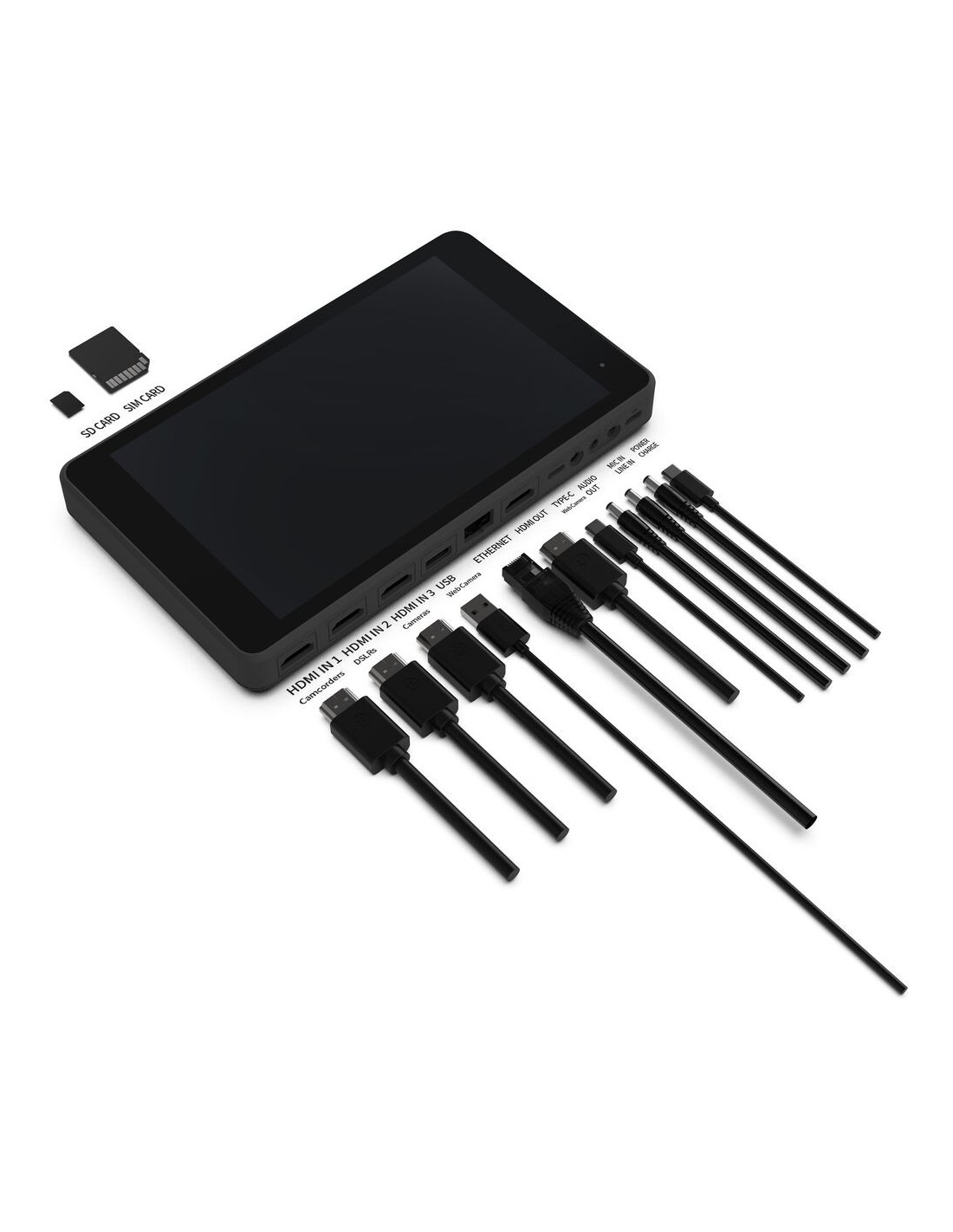

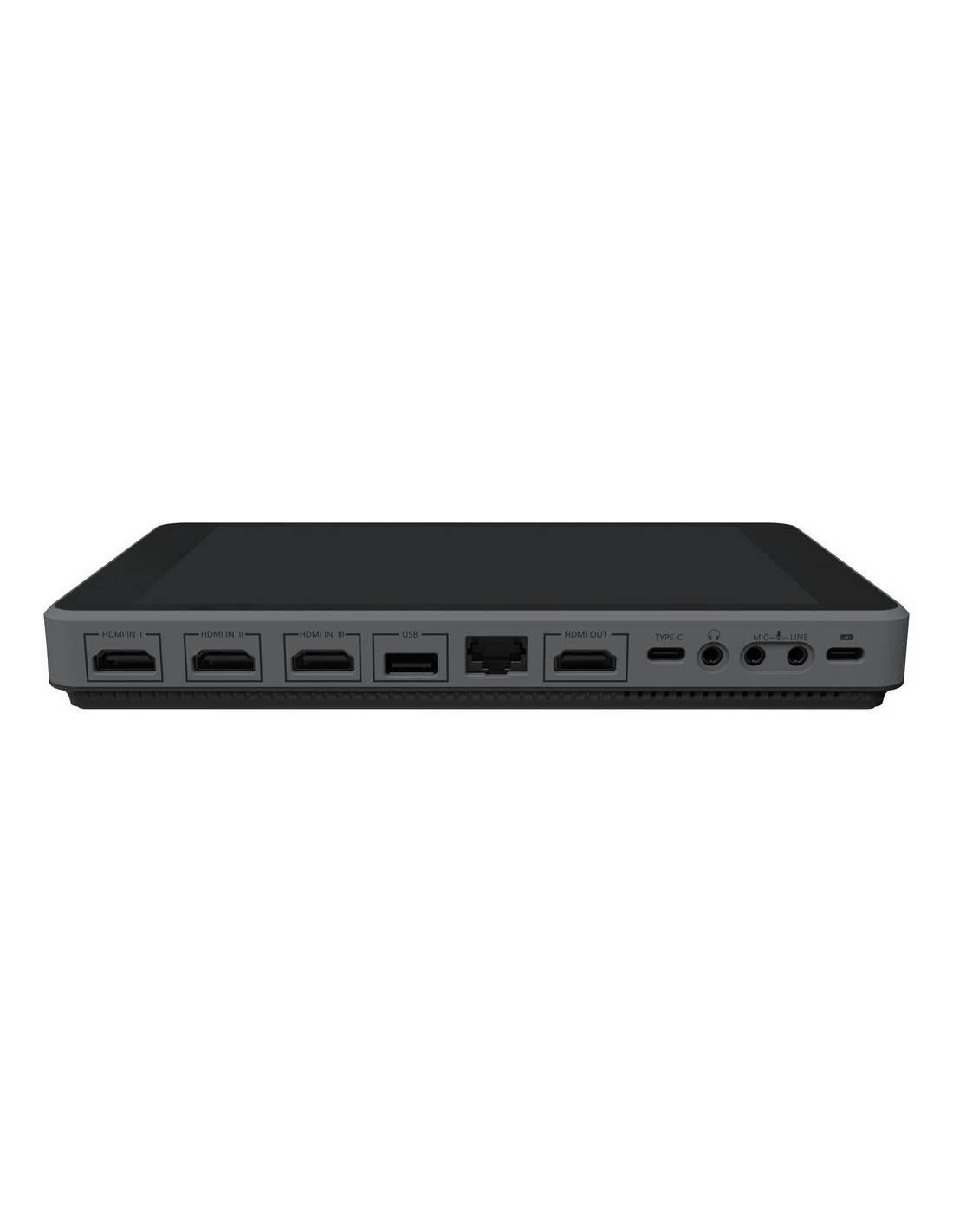

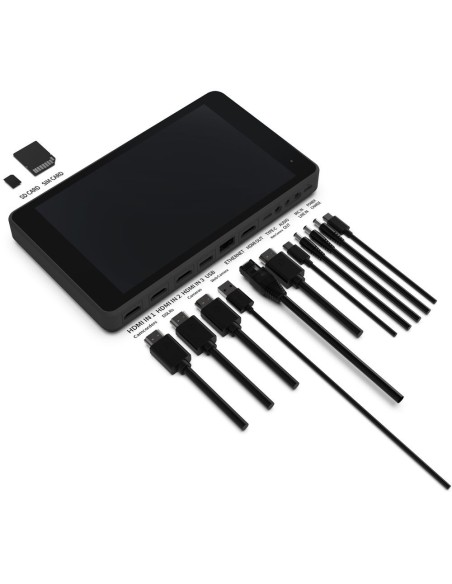

• 3 x HDMI inputs, 1 x USB video input, 1 x SD card slot, 1 x HDMI output
• One USB Type-C charging input
• Mic and Line audio input, 1 x audio output
• Ability to input PDF
• Add logos/comments to the stream
• Import pictures/videos from SD card
• Records internally to SD card up to 128GB
• Direct integration with YouTube/Facebook/RTMP(s)
• Supports up to 1080p60 video

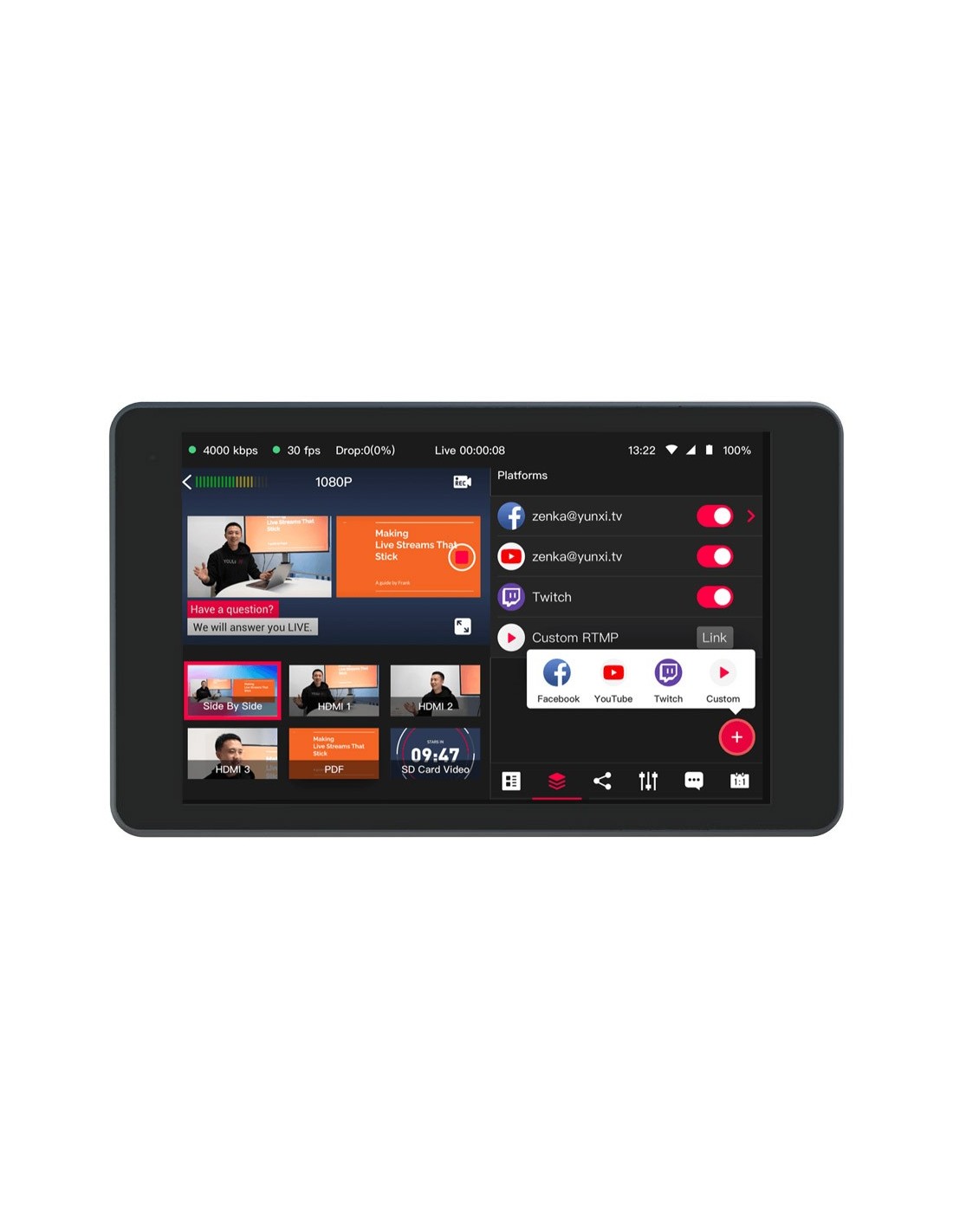

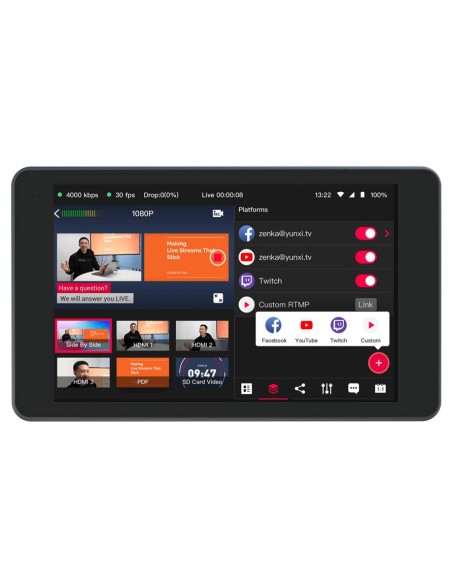

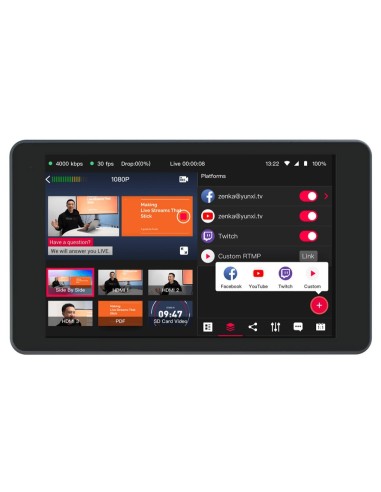

Touchscreen Control

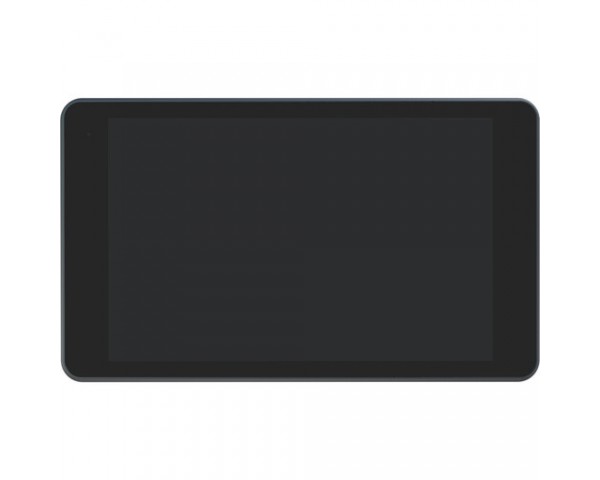

The YoloBox Pro provides you with a large touchscreen interface for easy streaming and control.


Functions
The device works as a switcher, with a variety of picture-in-picture templates as well as graphic layers. It has a built-in encoder that allows for live streaming, and it can record to optional SD cards up to 128GB.


Overlays
You can brand your live stream by adding logos/watermarks/rolling captions
Customized PiP options, including Interview mode, allow you to bring a unique look and feel to your stream
Engage with your audience in real time via feature comment overlays
The customizable scoreboard feature displays a real-time-controlled scoreboard for professional looking results
Built-in lower-thirds templates can be edited or you can add your own


Internet
You can connect to the internet using the integrated RJ45 (Ethernet) port, Wi-Fi, and via cell service using an optional SIM card.


Simultaneous Streaming
YoloBox Pro will first push your feed to the YoloLIV platform, from where it automatically forward your feed to a maximum of 3 destinations simultaneously.


Note:
Please note that at times a streaming service may change their policies, which will cause issues with integration; this is usually a temporary situation.


Streaming Platforms
Major steaming platforms such as Facebook live, YouTube, and twitch as well as YoloLIV are supported.
RTMP protocols allow you to stream to custom RTMP destinations including YouTube.


SD Card Input
Roll in pre-recorded videos for intro, countdown, B-roll, or special segments from an SD media card.
PDF
You can load a PDF as a local source to your YoloBox.


Battery Life
The internal 10,000mAh battery can power your YoloBox Pro for approximately 3 hours. The YoloBox Pro charges via a USB Type-C input, which is used for power only.

In the Box

• YoloLiv YoloBox Pro Portable Multi-Camera Encoder/Streamer/Switcher/Monitor/Recorder
• 2 x USB Type-C Cable
• Shoe Mount
• SIM Card Eject Pin
