Blackmagic Design Video Assist 7" 3G Recorder/Monitor

Add professional monitoring and high-quality recording to your camera with the Blackmagic Design 7" Video Assist 3G-SDI/HDMI Recording Monitor. It features a bright 7" 1920 x 1200 display with brightness of 300 cd/m² to help you frame and focus your shots, and provides 3G-SDI and HDMI inputs to record video output from professional and consumer cameras. You can monitor and record video resolutions up to 1080p60 10-bit 4:2:2 and up to 16 channels of embedded audio at 24-bit 48 kHz. This monitor also features two 3-pin balanced mini-XLR inputs with 48V phantom power support for clear audio recording. The 3.3.1 firmware update adds video output via the USB Type-C port which can be used to convert the connected camera for webcam use. It also adds XLR audio mapping to different channels, external XLR timecode, and select channel selection for audio monitoring.

Video Assist 3G 7" records to SDXC/SDHC memory cards via two UHS-I SD card slots. Use the USB Type-C port to record monitor setup and updates. Video is recorded using the Industry-standard Apple ProRes (HQ, 422, LT, or Proxy) and Avid DNxHD codecs.

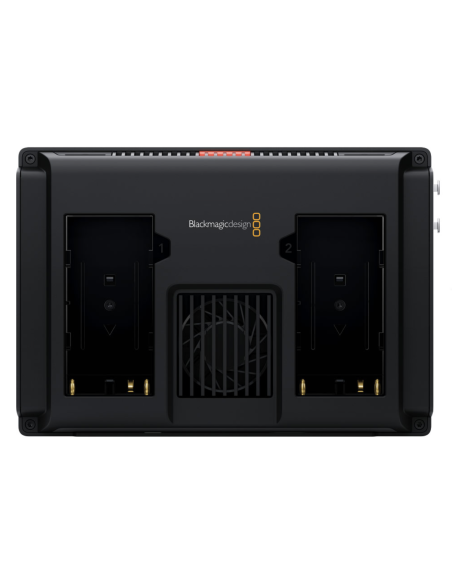

The touchscreen interface of this monitor allows you to adjust settings and access monitoring features such as histogram, waveform, RGB parade, vectorscope and many other scopes and exposure tools. There is also a count light on the top of the monitor to indicate that it is running and recording. Choose from 11 languages for easier use of on-screen text displays and menu options. Power on the monitor using the included 12V power supply or using separately available Sony L-series batteries on the two battery slots.

Up to 1080p60 video

Supports video formats up to 1080p60

Update older camera display/recording

Can be used to upgrade viewing and recording options with older cameras

7" touchscreen display

7" touchscreen LCD screen with customizable overlays

3G-SDI and HDMI input/loop-out

3G-SDI and HDMI input ports with loop-through outputs

3D LUT support

3D LUT support for custom viewing

1080p USB webcam output

Sends a streaming-friendly 1080p video signal to your computer, allowing the connected camera to be used as a webcam

Metadata entry

Direct entry of metadata

Double SD card slot

Dual SD card slots for ProRes recording

Image viewing tools

Multiple viewing tools including focus peaking, zebra and false color

Waveform and Vectorscope

Waveform, vectorscope, histogram and RGB parade

XLR audio mapping

XLR audio mapping to different channels

Timecode XLR

External XLR timecode

Selectable audio monitoring

Ability to select which audio channels you are monitoring

MacOS minimum system requirements

• macOS 10.15 Catalina
• macOS 10.14 Mojave
• USB 2.0 port for updates
• Minimum Windows system requirements
• Microsoft Windows 10 64-bit
• USB 2.0 port

Package contents

• Blackmagic Video Assist 7” 3G
• Universal power supply and international adapters
