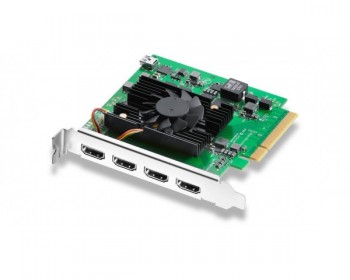

Blackmagic Design DeckLink Quad HDMI Recorder Capture Card

Blackmagic Design today announced DeckLink Quad HDMI Recorder, an all new PCIe capture card featuring 4 independent HDMI 2.0b input connections for simultaneously capturing any combination of SD, HD, Ultra HD, 4K DCI and even computer video formats.

DeckLink Quad HDMI Recorder is a high performance 8-lane Generation 3 PCIe capture card that can transfer data at rates up to 32Gb per second. Featuring 4 independent HDMI 2.0b input connections for multi-channel capture, DeckLink Quad HDMI Recorder can capture 4 different streams of video at up to 60 frames per second. Each HDMI input connection can capture a completely different video standard or computer input signal, so it’s like getting 4 capture cards in one.

DeckLink Quad HDMI Recorder plugs into an available PCIe slot and appears as 4 separate capture cards on the host computer. Using the freely available Blackmagic Desktop Video SDK (software developer kit) for Mac, Windows and Linux, software developers can choose different HDMI channels for recording. Different software applications can all record different video streams at the same time. This makes DeckLink Quad HDMI Recorder ideal for use with live streaming solutions, software production switchers, broadcast servers and more.

Customers can use any combination of different software applications such as vMix, Wirecast and OBS for multi-channel recording and streaming. For example, a customer using vMix can simultaneously record the input from 2 cameras, a computer and a game console, switch them live and broadcast live over the internet. Best of all, DeckLink Quad HDMI Recorder is designed to fit into a single slot, making it perfect for use in low profile rack mount servers that are commonly found in broadcast newsrooms, vans, and data centers.


The four HDMI 2.0b connections on DeckLink Quad HDMI Recorder can be used to record high quality 8 or 10-bit YUV and 10 or 12-bit RGB at up to 4K DCI 30p, or 8-bit RGB at up to 4K DCI 60p. DeckLink Quad HDMI Recorder even supports computer and gaming consoles in 8-bit RGB up to 2560 x 1600 resolution. That means customers can record a mixture of video from cameras, computers, game consoles and more, all at the same time.

Connections

HDMI 2.0b Video Inputs
4
HDMI Audio Inputs
8 Channels embedded in SD/HD/UHD/4K.
Computer Interface
PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots.
DeckLink Quad HDMI Recorder
Supported Codecs

AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10‑bit 4:2:2.

Software Included
Media Express, Disk Speed Test, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation
PCI Express 8 lane generation 3, compatible with 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements.


Software Applications

Wirecast, Wirecast, vMix, OBS, Other supported applications include: Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Livestream Producer, Metus Ingest, Softron MovieRecorder, Tools On Air Just: In.
Video Standards

SD Video Standards
525i59.94 NTSC, 625i50 PAL


HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60


Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60


4K Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Digital Video Interface (DVI) Standards
640x480p60, 800x600p50, 800x600p60, 1440x900p50 1440x900p60, 1440x1080p50 1440x1080p60, 1600x1200p50, 1600x1200p60, 1920x1200p50, 1920x1200p60, 1920x1440p50, 1920x1440p60, 2560x1440p50, 2560x1440p60, 2560x1600p50, 2560x1600p60


Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
HDMI Color Precision
8, 10, 12-bit RGB 4:4:4 in all modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 and 4:2:0 in all modes. 8‑bit RGB 4:4:4 in all DVI modes.
Color Space
REC 601, REC 709, REC 2020
HDMI Video Sampling
4:4:4, 4:2:2 and 4:2:0
HDMI Configuration
HDMI 2.0b supports Deep Color and HDR. Automatically configures to connected display.
Multiple Rate Support
HDMI inputs are switchable between SD, HD, Ultra HD, 4K DCI and DVI modes.
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

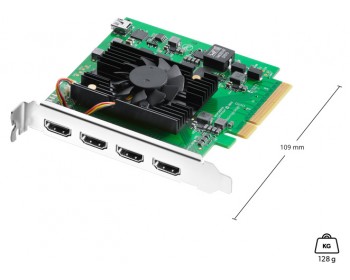

Physical Specifications

DeckLink Quad HDMI Recorder


Operating Systems

Mac 10.13 High Sierra,
Mac 10.14 Mojave or later.
Windows 7, 8.1 and 10, all 64-bit.
Linux

What's Included

DeckLink Quad HDMI Recorder
SD card with software and manual
