Blackmagic Design Videohub 20x20 6G-SDI - Used

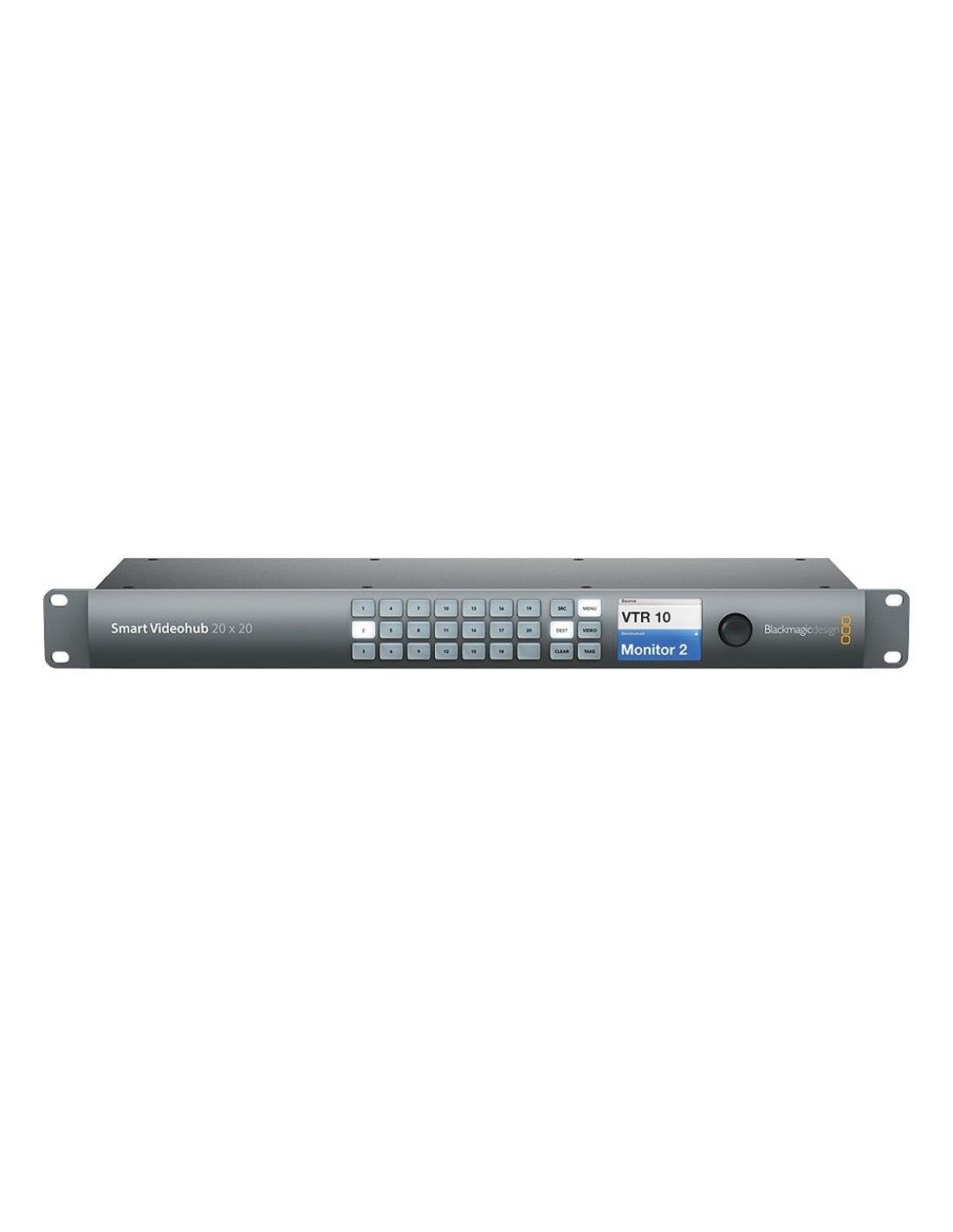

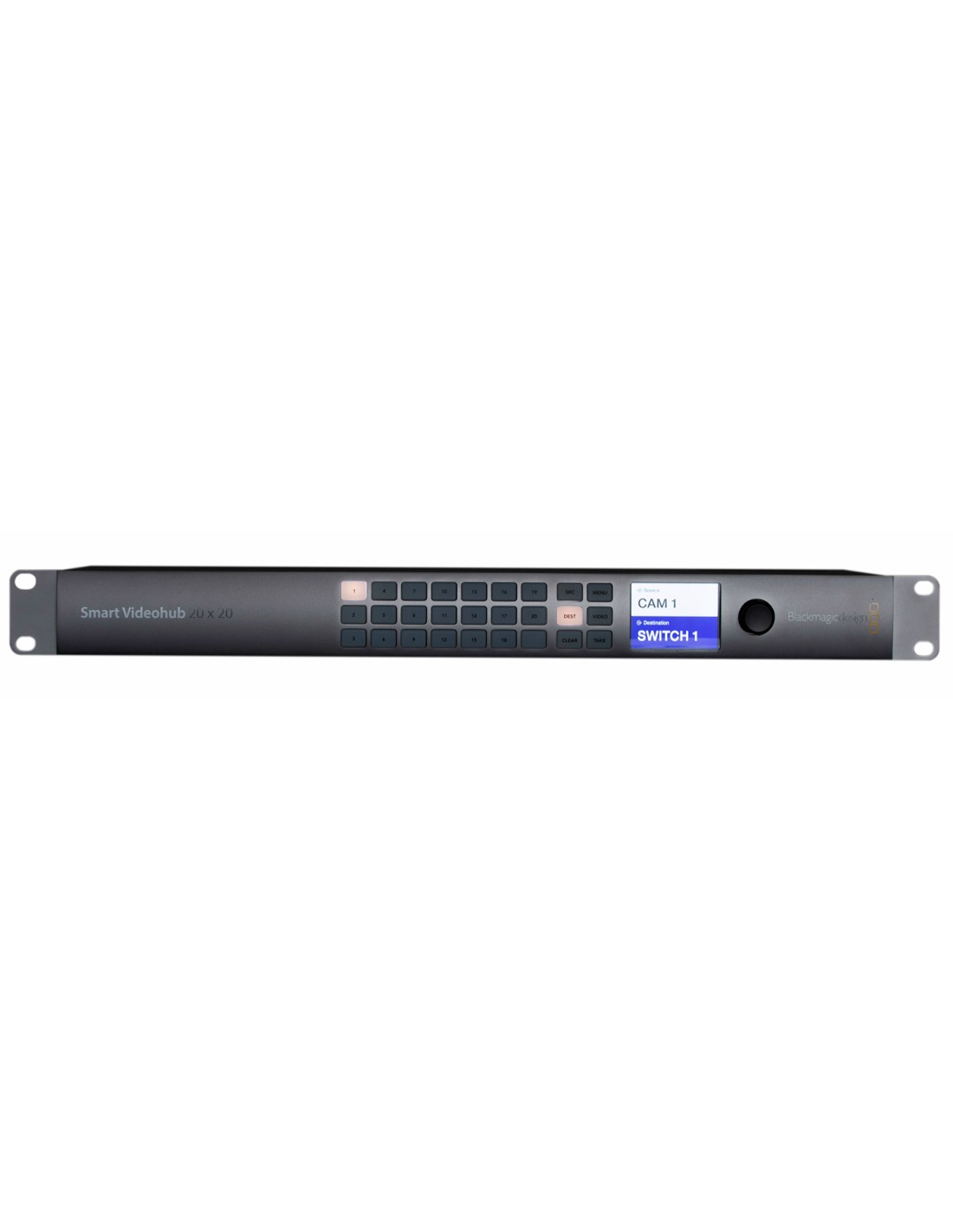

The Smart Videohub 20 x 20 from Blackmagic Design is a mixed format router with 20 6G-SDI inputs and 20 6G-SDI outputs for routing any combination of SD, HD, Ultra HD 4K, and DCI 4K video. It supports 4:2:2 and 4:4:4 color sampling and 10-bit processing for smoother gradations. Housed in a compact 1RU frame, the Smart Videohub ideal for use in both large broadcast systems or portable mini racks for live productions. A built-in LCD lets view your sources directly on the router itself, with simple push button and spin knob control. Routing can also be controlled using dedicated remote panels or over Ethernet using the included software for Mac OS X and Windows. You can even use the available iPad app to change routing over your wireless network.

Note: IEC power cable note included.

20x 6G-SDI inputs / 20x 6G-SDI outputs
Auto-detects between SD, HD, Ultra HD 4K, and DCI 4K and instantly switches standards
Built-in SDI reclocking on every 6G-SDI input
Supports 8-bit, 10-bit, and 12-bit 4:2:2 and 4:4:4 signals
4:2:2 or 4:4:4 color sampling with 10-bit processing
UHD 4K (3840 x 2160) up to 30p
Supports DCI 4K (4096 x 2160) at 24p
HD Video Resolutions up to 1080p60
Supports 16 channels of embedded audio on each SDI signal
Genlock
Reference input compatible with black burst and tri-sync

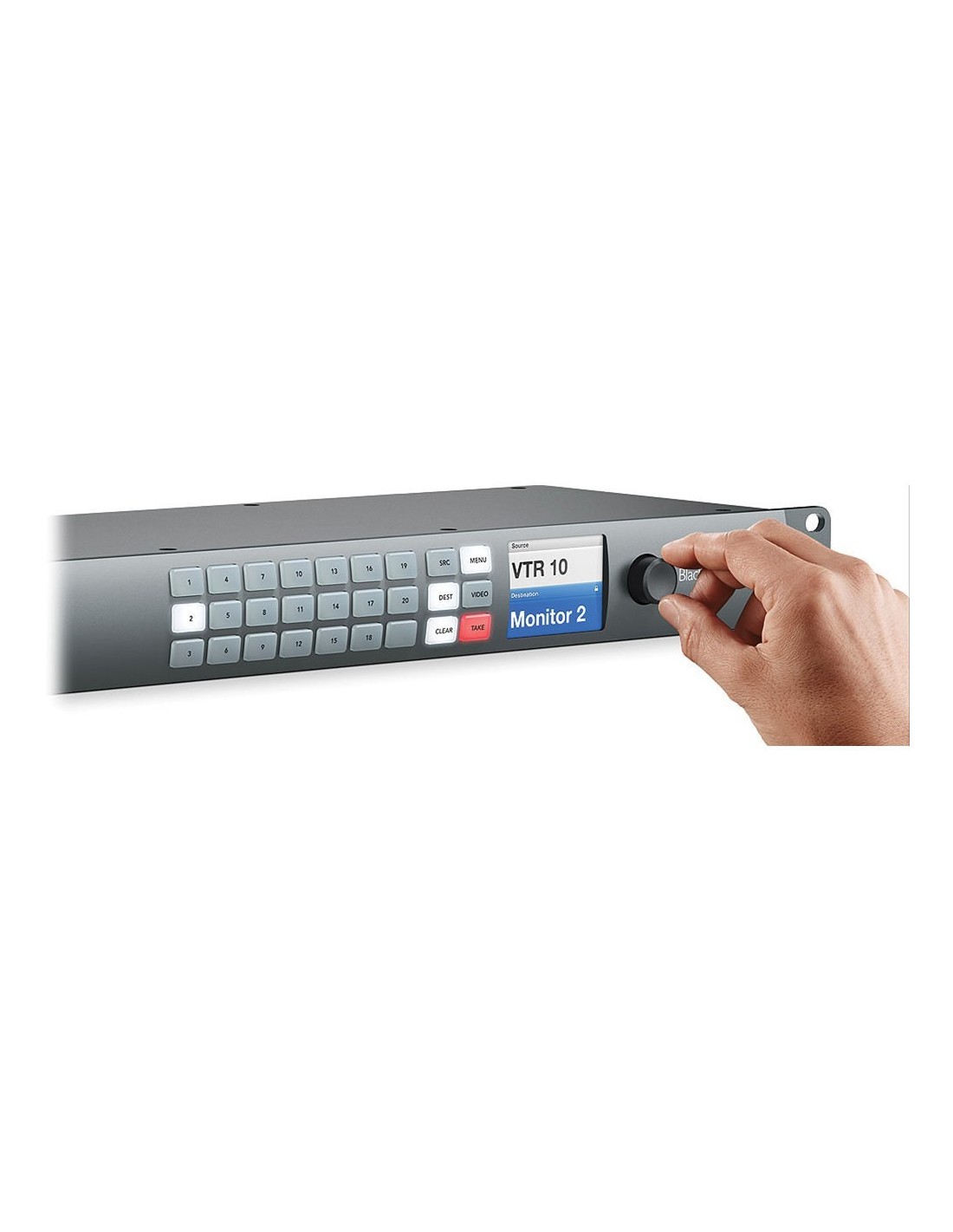

Built-in video monitoring and spin knob control
Push buttons on front panel
On-screen labels support Unicode so they work in non Roman character sets such as Chinese, Japanese, Korean, Russian, German, French, Spanish, and more
Videohub control software included for control over Ethernet
Ethernet control allows direct connection to the computer network and is compatible with Videohub Smart Control and Videohub Master Control panels
Apple iPad control panel app available
Create your own custom router control with free software developer kit
Machined aluminum 1RU chassis
IEC power cable required

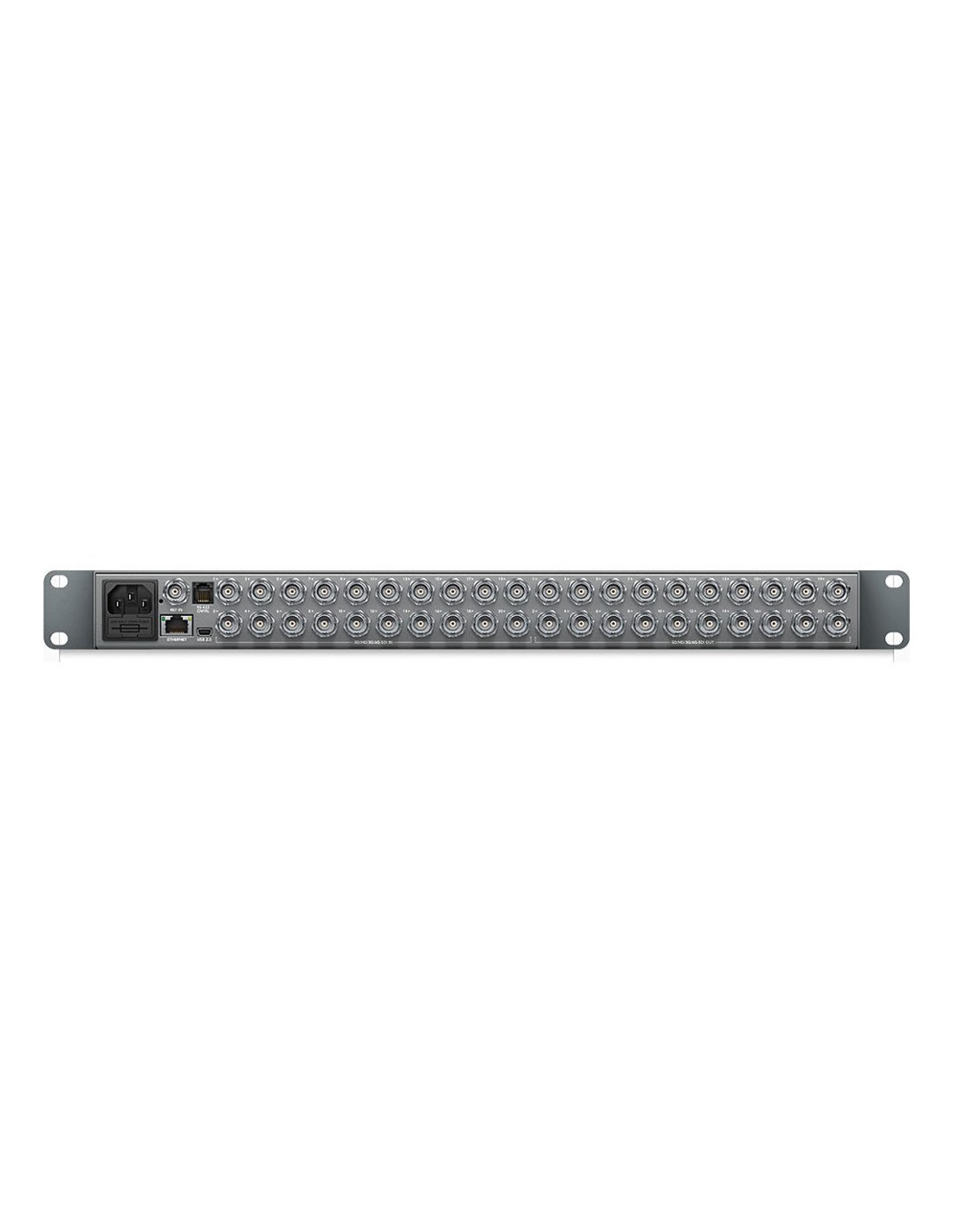

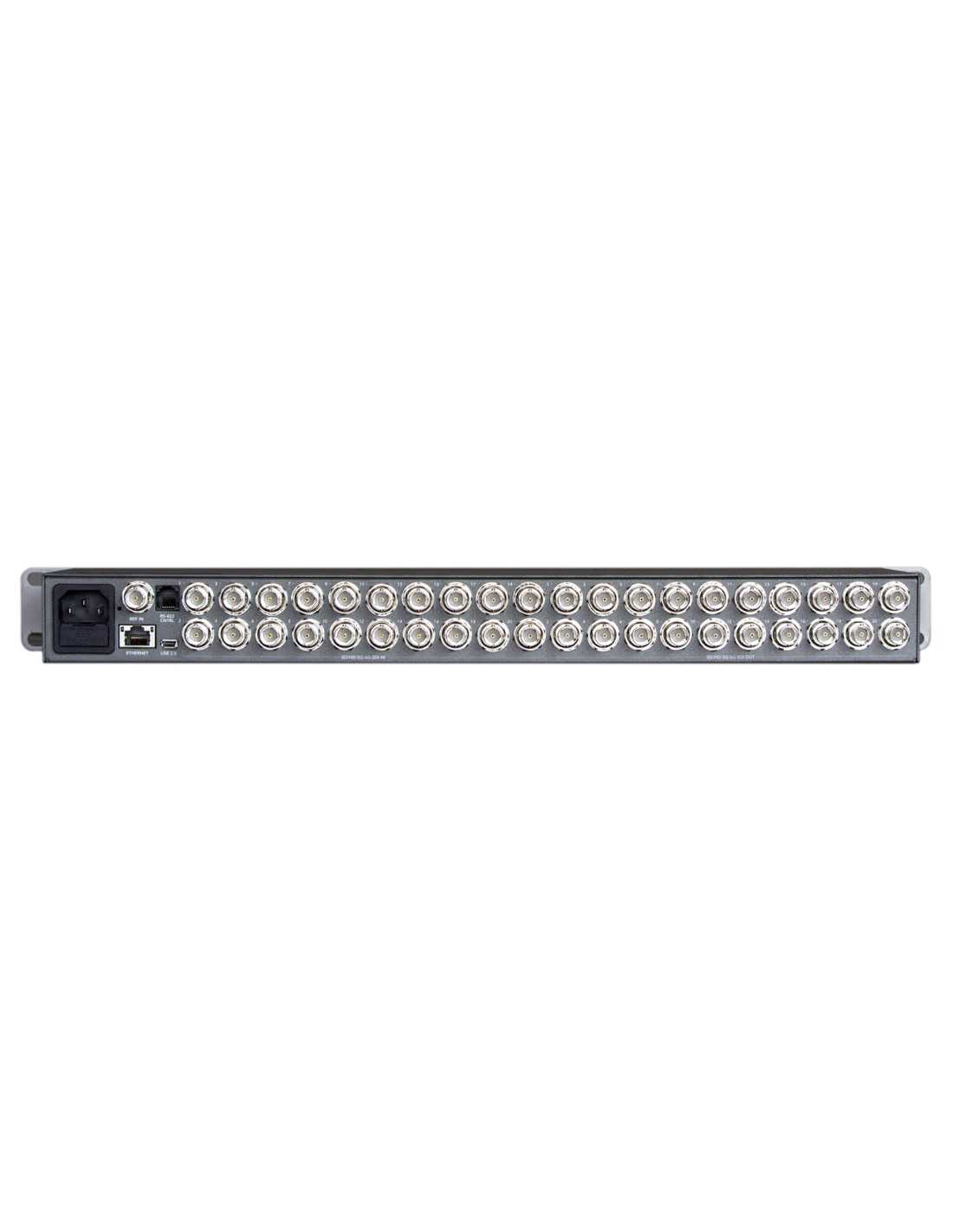

Connections
SDI Video Input     20 x 10 bit SD/HD/6G-SDI
SDI Video Output     20 x 10 bit SD/HD/6G-SDI
Reference Input     Blackburst and TriSync for SD, HD and UHD 4K
Multi-Rate Support     Auto detection of SD, HD, or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI
Updates     USB 2.0 high speed (480 Mb/s) interface or via Ethernet
Control     21 buttons for local control of Videohub
6 buttons and scroll wheel for control of LCD display
1 x RJ45 Ethernet
1 x RS-422 input for controlling router crosspoint switching
Configuration     Via front panel LCD or use either RJ45 Ethernet
USB 2.0 for setting IP address only
Reclocking     On all SDI outputs, auto switching between SD, HD, or 6G-SDI video
Standards
Format Support    SD Format Support
625/25 PAL
525/29.97 NTSC
525/29.98 NTSC

HD Format Support
720p 50/59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/60

2K Format Support
2048x1080p 23.98/24/25
2048x1080PsF 23.98/24/25

4K Format Support
3840x2160p 23.98/24/25/29.97/30
4096x2160p 24
SDI Compliance     SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656, and ITU-R BT.601
SDI Video Rates     SD-SDI: 270 Mb/s
HD-SDI: 1.5 Gb/s
3G-SDI: 3 Gb/s
6G-SDI: 6 Gb/s
SDI Video Sampling     4:2:2 and 4:4:4
SDI Color Precision     4:2:2 and 4:4:4 10-bit
SDI Audio Sampling     48 kHz and 24-bit
SDI Color Space     YUV or RGB
SDI Metadata Support     Video payload identification ancillary data as per SMPTE 352M
Software
Software Control     Router control included free for Windows and Mac OS X
Internal Software Upgrade     Via included updater application

General
Display     Built-in LCD for video and menu settings
Power Supply     IEC power cable required
90 to 240 VAC input
Power Fail Protection     Router connections preserved and restored instantly at power on
Operating Temperature     32 to 104°F (0 to 40°C)
Storage Temperature     -4 to 113°F (-20 to 45°C)
Relative Humidity     0 to 90% non-condensing
Rack Space     1 RU
Dimensions (W x H x D)     19.00 x 1.73 x 6.30" (48.26 x 4.39 x 16.00 cm)
Weight     4.4 lb (2.0 kg)
