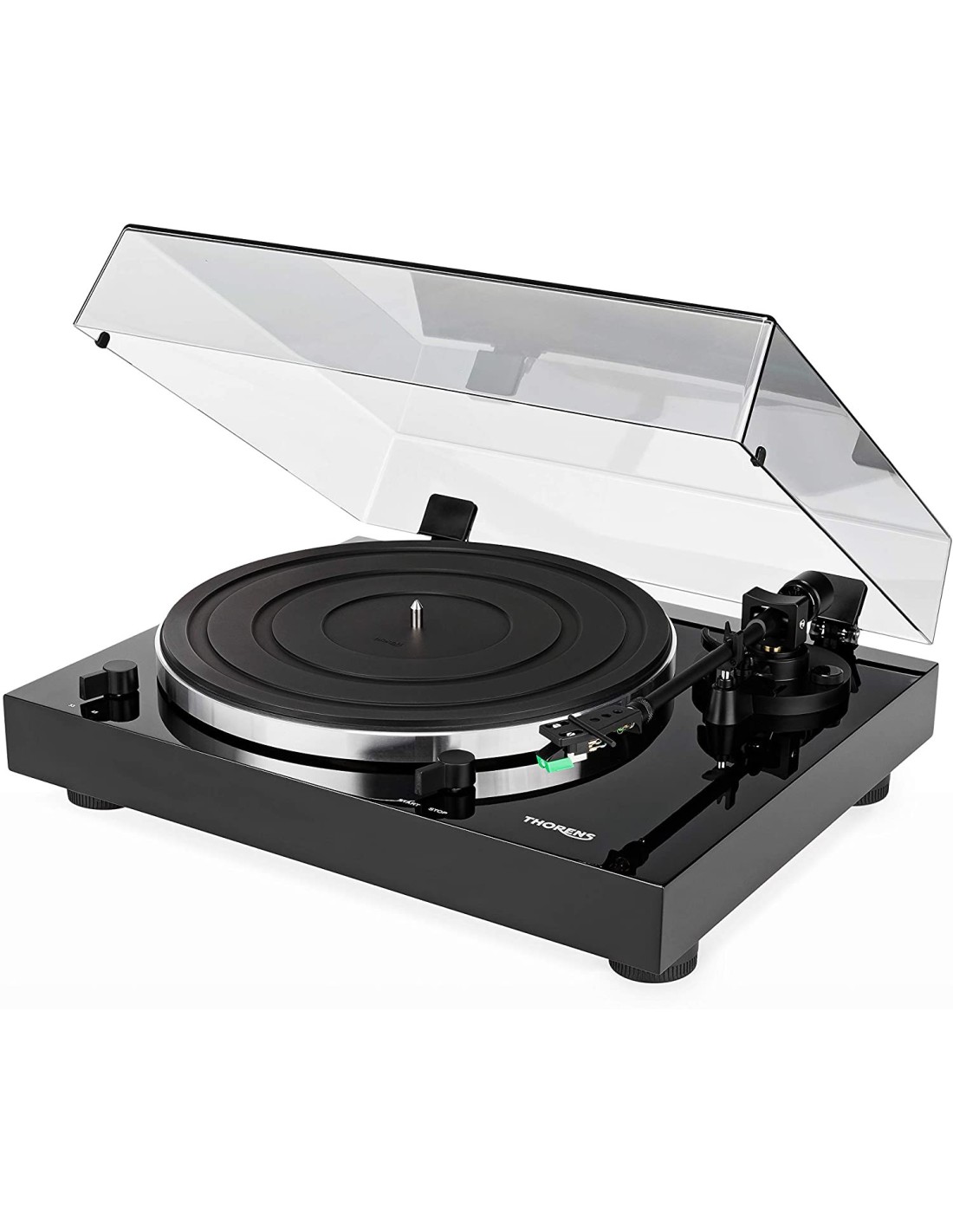

THORENS TD 202 Manual Two-Speed Turntable with Built-In Preamp (High Gloss Black)

The TD 202 Belt Drive Reinforced Rigid Frame Manual Turntable completes the new plug and play manual turntable series. In addition to a solid chassis, the TD 202 features an Audio-Technica AT 95 cartridge and a matching phono preamp. A special feature of this turntable is, unlike the TD 201, the presence of an analog / digital converter. The installation of this option offers the possibility to connect the turntable via USB to a PC and record the disc being played. There is software available that can be downloaded free of charge from various vendors on the Internet.

Spec

• Belt drive type
• DC motor
• Speed ​​33.3 / 45 rpm
• Deviation of nominal speed max. +/- 2%
• Max. Synchronization errors 0.2%
• Signal-to-Noise Distance:> 67dB (A-rated, 20kHz LPF) /> 60dB (unweighted, 20kHz LPF)
• Turntable aluminum casting
• Diameter 12 ", 300 mm

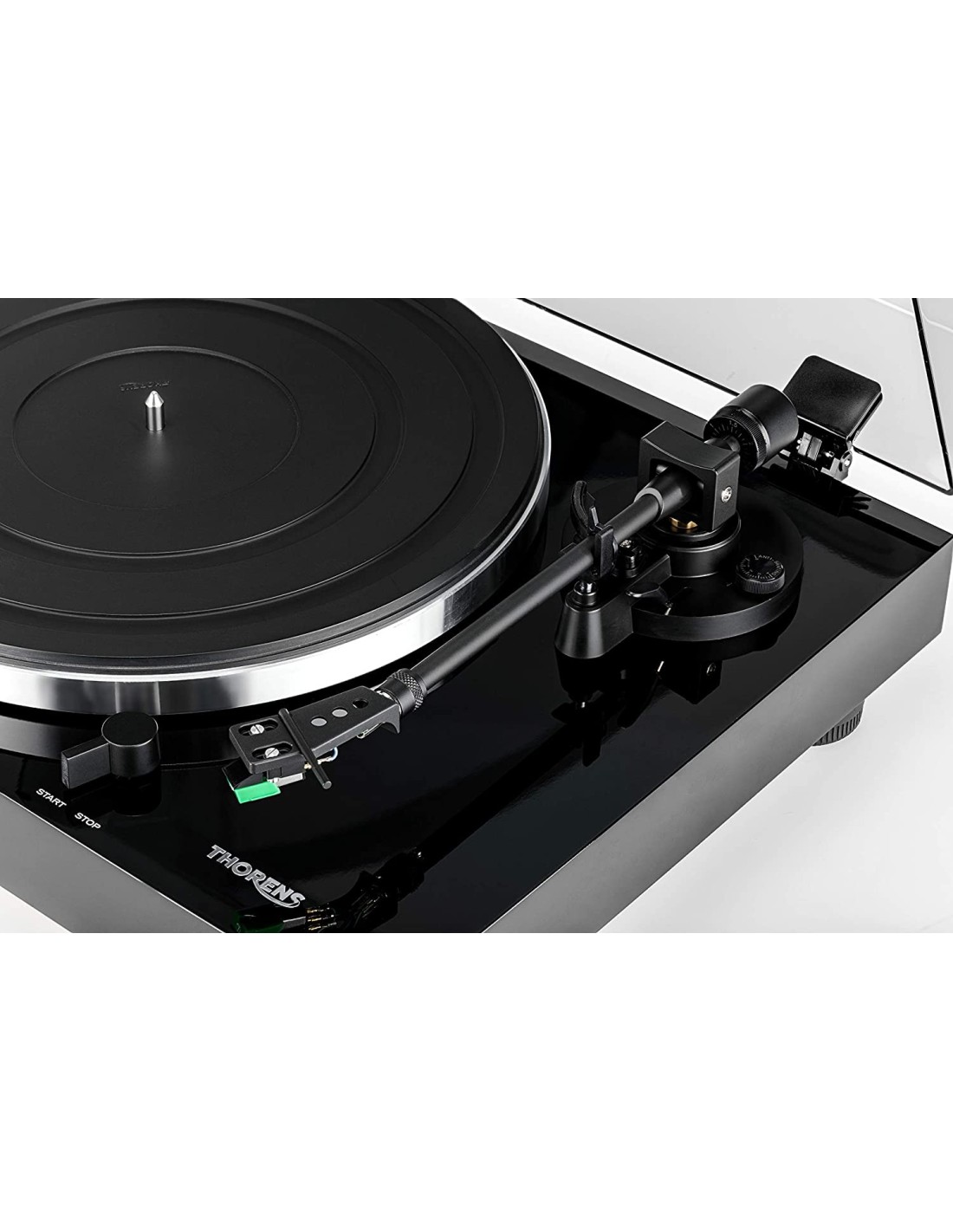

• Arm type:
• Arm in aluminum
• Straight, statically balanced
• Effective length 8.8 ", 223.6 mm
• Contact force from 0 to 4 g
• System weight 3.5 to 6.0 g
• Protrusion 18.6 mm
• Anti-skating setting available

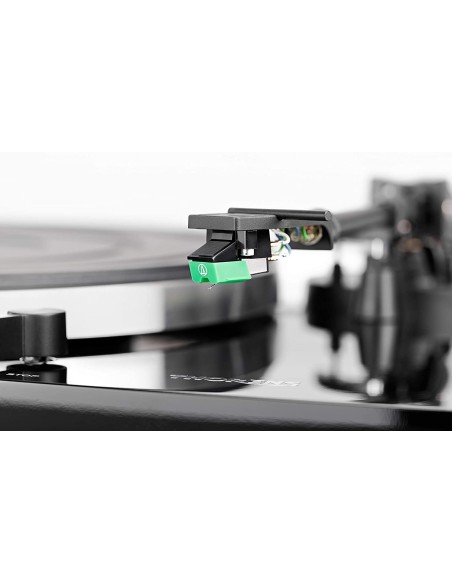

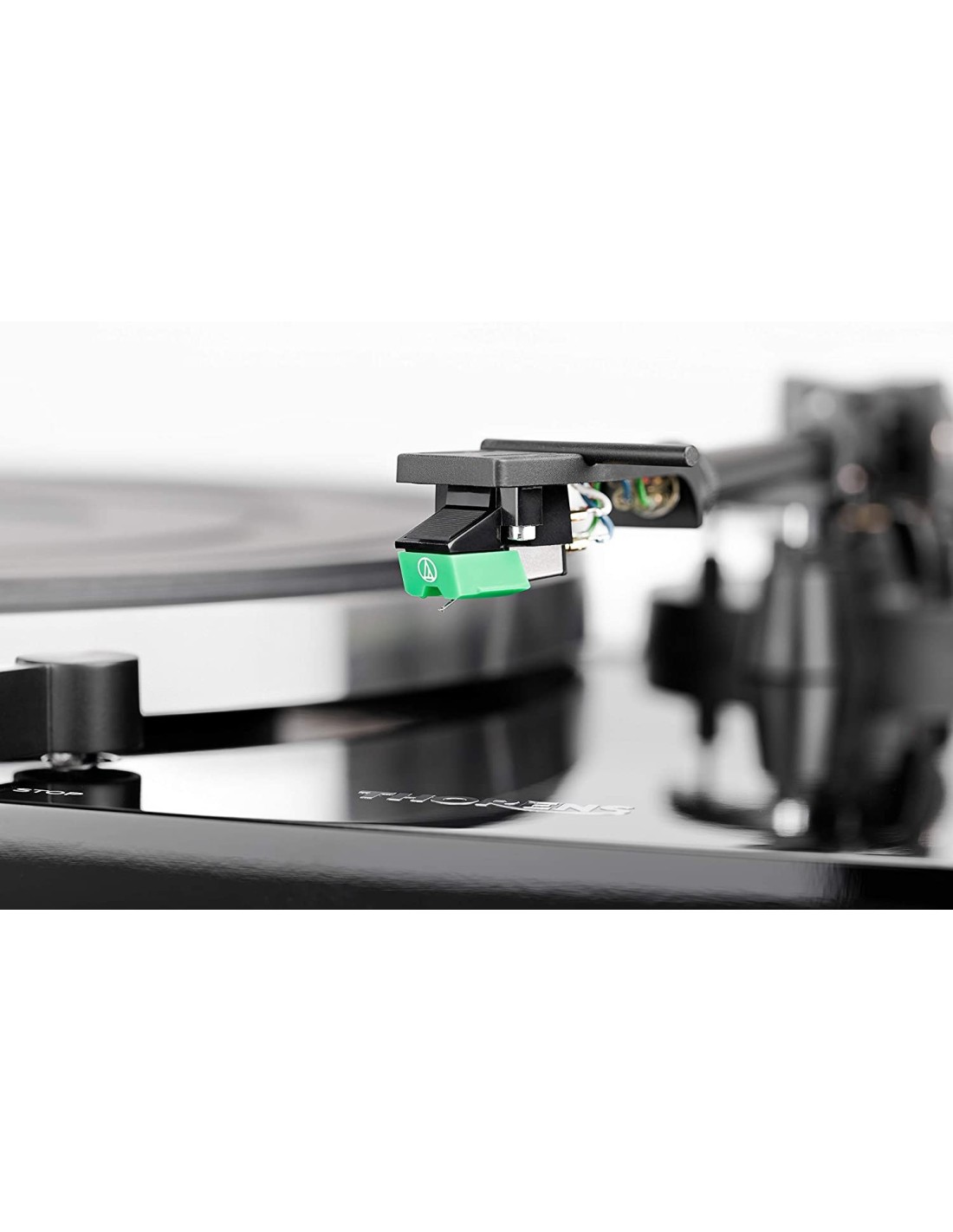

• Pick-up:
• MM type (Audio-Technica AT95)
• Diamond Bonded stylus
• Frequency response: 20Hz to 20kHz
• Channel separation:> 20 dB
• Channel Equivalence: <2dB
• Vertical angle of the tip of 20 degrees
• Impedance: 47 kOhm
• Output voltage: 2.5mV (1kHz, 3.54cm / sec)
• Recommended contact force 2.0g +/- 0.5g
• Weight: 5 g
• Headshell weight: 10g (including cable and socket)

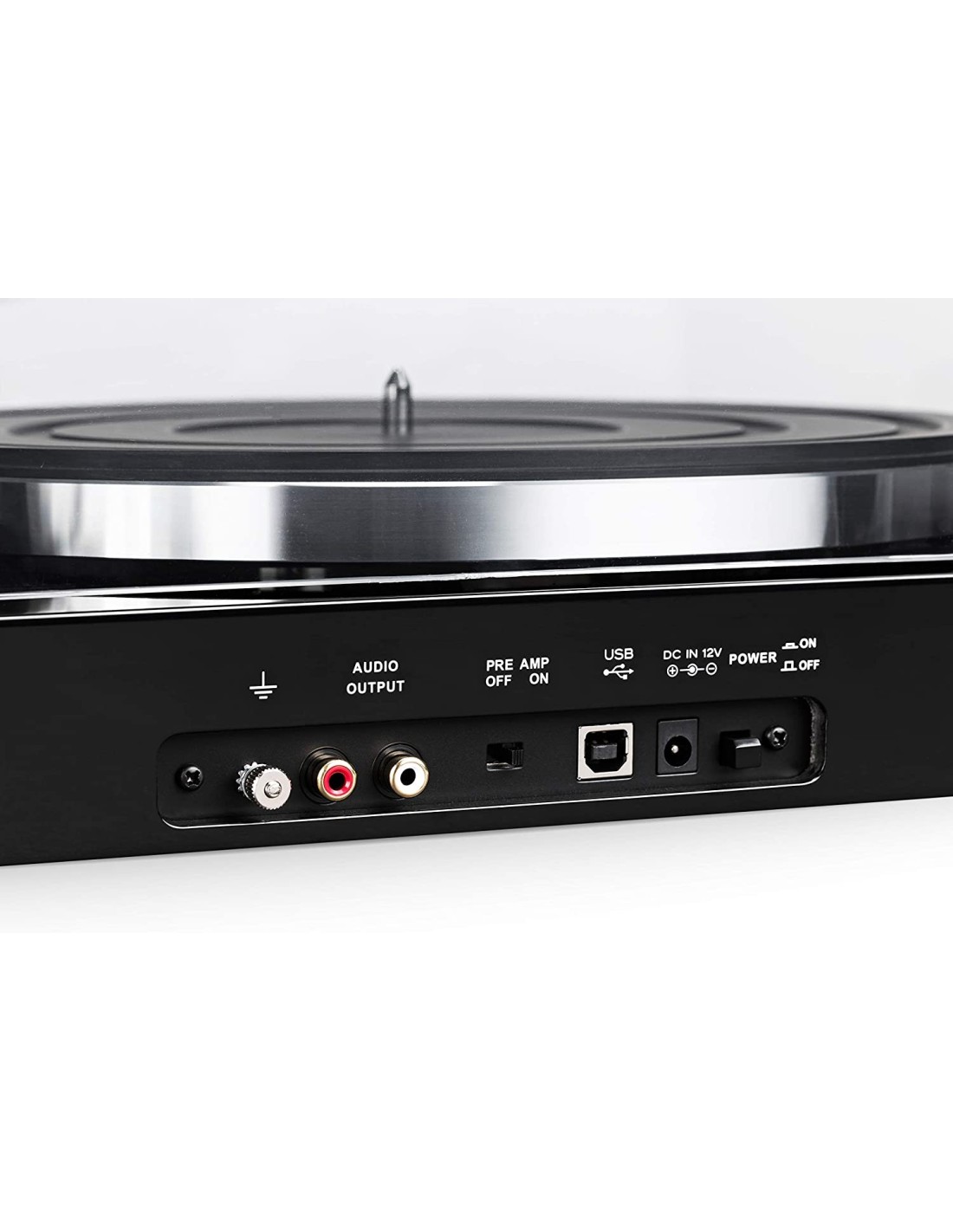

• Exit
• RCA connection (gold plated)
• USB Type B
• Power supply: AC 100 to 240 V, 50/60 Hz
• Power consumption: 1.5W (<0.5W in standby)
• Dimensions: 420 x 355x 141 mm
• Weight: 3.9 kg
