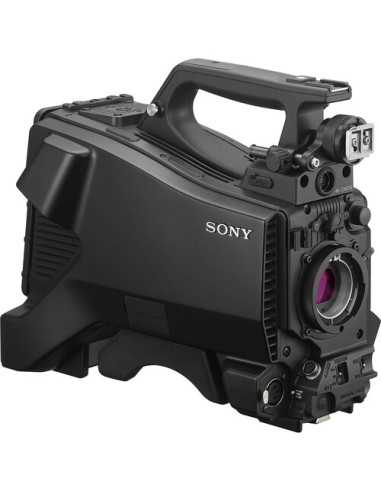

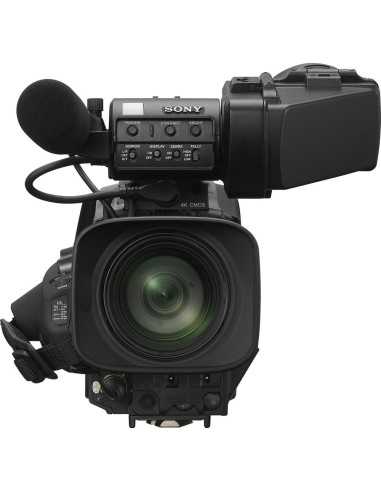

Sony HXC-FZ90 4K HDR Studio Camera with 20x Lens and 7.4" Viewfinder (LEMO)

The HXC-FZ90 4K HDR Studio Camera with 20x Lens and 7.4" Viewfinder from Sony incorporates a 2/3" 4K CMOS sensor for producing oversampled HD imaging or UHD 4K with a separately available license. This broadcast-style camera has a SMPTE LEMO connector for connecting to the separately available HXCU-FZ90 CCU. Ideally suited for 4K HDR productions, it supports both the BT.2020 color gamut and Sony's SR Live for HDR with HLG and S-Log 3. This version of the camera includes a Canon 20x servo zoom lens and an HDVF-EL75 7.4" OLED viewfinder monitor.

2/3" 4K CMOS Sensor

The highly sensitive Sony 2/3" 4K CMOS sensor captures optimal HD images with 2000 TVL resolution that are down converted from 4K.

Up to 1080p60 Video | Optional 4K License

The HXC-FZ90 natively supports 1080 HD video resolutions at rates up to 60p. UHD 4K imaging requires a separately available license for weekly, monthly, or permanent use. UHD 4K can be output directly via the 12G-SDI connection or using a HXCU-FZ90 CCU component.

Canon 20x Zoom Lens

The Canon 20x servo zoom included in this camera kit has a focal length of 8.2-164mm and a maximum aperture of f/1.9 for low-light capture. Focus, iris, and zoom functions are automatically or manually selectable, with a macro function providing focus down to 0.4" for extreme closeups.

7.4" HDVF-EL75 Viewfinder

The included 7.4" HDVF-EL75 Viewfinder uses organic LED technology that draws less energy and offers deep blacks to peak brightness with a contrast ratio of more than 1,000,000:1. Its user-friendly features include focus assist, four assignable switches, and a versatile mount with pan, tilt, and height adjustments.

Integrated Studio Operation

Easily integrated with your studio setup, the HXC-FZ90 offers simple iris, gain, and shutter control plus functions like Dynamic Focus and Focus Assist Indicator to help operators keep their images sharp.

Additional integration includes teleprompter data transmission and a Network Trunk connection for PTZ camera control.

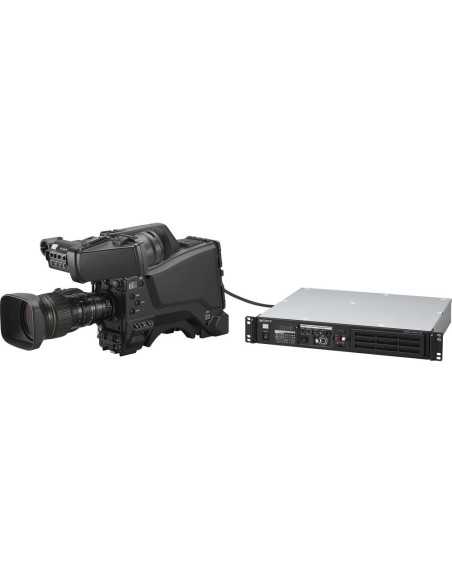

SMPTE LEMO Connector to CCU

The SMPTE LEMO connector enables the HXC-FZ90 to fit into your existing infrastructure and supports single-mode fiber extension at distances up to 6.2 miles.

Live Event Capture

This highly sensitive camera captures high-quality images for a variety of live events and offers a native 60p format for online streaming. The UMBRA dynamic contrast function provides focus assistance even in lower light settings.

The intercom supports 5-pin XLR input and both 5-pin XLR and stereo mini-jack output for using your own headphones.

TLCS Function

Ideal for smaller productions without an assigned full-time shader, Sony's TLCS (Total Level Control System) extends the auto-iris function so that the iris, gain, and shutter are controlled automatically based on the brightness of your subject.

ARIA Function

Use the ARI (Automatic Restoration of Illumination Attenuation) to compensate for remote back focus, f-drop, and peripheral light loss. This internal processing feature uses metadata and is only available with select lenses.

Crisp Sports Coverage

HDR and 1080p standards aid in capturing crisp sports footage, and a plug-and-play fiber connection speeds your on-location setup.

Versatile Connectivity

Versatile connectivity interface includes 8-pin RS-422, optical, BNC test output, BNC 3G/HD-SDI output, BNC HD prompter output/video trunk input, BNC prompter output/genlock input, DC output, DC input, dual XLR line/mic audio, and stereo mini earphone connectors.

In the Box

• Sony HXC-FZ90 4K HDR Studio Camera with 20x Lens and 7.4" Viewfinder (LEMO)
• Canon 20x Zoom Lens
• Sony 7.4" OLED HD ViewFinder for Portable Cameras
• Body Cap
• Flange Focus Chart
• Cable Clamp Belt
