Sony 24" 4K HDR Trimaster High-Grade Picture Monitor

The PVM-X2400 is a professional 24" 4K UHD LCD reference monitor for high-end productions. The monitor's screen is a special α-Si TFT Active Matrix LCD, which provides a native resolution of 3,840 x 2,160 pixels (Ultra HD) and a high luminance of 1,000 cd/m². The monitor is equipped with the TRIMASTER design architecture, resulting in accurate image reproduction, precise imaging and consistent image quality. In addition, the fast processing, accurate linearization of an input signal with optical electrical transfer function and accurate colour reproduction are made possible. The Dynamic Contrast Drive backlighting system dynamically changes luminance according to the scene of the imaged frame. This allows both highlights and dark lights to be examined and evaluated in detail. The video signals are input either via the two 12G-SDI inputs, the two 3G-SDI inputs or the HDMI input (compatible with HDCP 2.3 / 1.4). A DisplayPort input is also available for using the PVM-X2400 as a computer monitor. Two 12G-SDI and 3G-SDI loop-through outputs allow direct forwarding of the input video signal. Remote control of the video monitor is via a parallel remote control with an 8-pin RJ-45 connector with fixed pin assignment or a serial remote control via Ethernet with a standard RJ-45 connector. The PVM-X2400 is powered either with 100 - 240 V AC via the supplied power cord or mobile with 22 - 32 V DC (24 V) via 3-pin XLR.

• For high-end 4K UHD HDR productions
• TRIMASTER design architecture for accurate colour reproduction, precise imaging and consistent image quality
• Supports Waveform, Oscilloscope, Vectorscope, RGB/YCBCR Parade and RGB/YCBCR Overlay
• Quad-View display with User 3D LUT
• New user interface and channel selection button
• 19" rack mountable with the optional rack mount bracket PVMK-RX24

Technical Specifications:

Display Type: α-Si TFT Active Matrix LCD

Display Size (Diagonal): 24" (609.6 mm)

Effective Image Size (H x V): 531.6 x 299.1 mm (20.93 x 11.8 in)

Native Resolution: 3,840 x 2,160 pixels (Ultra HD)

Aspect Ratio: 16:9

Colours: approx. 1.07 billion colours

Frame Frequency: 48 Hz / 50 Hz / 60 Hz (48 and 60 Hz are compatible with frame rates of 1/1.001)

Viewing Angle: 89° / 89° / 89° / 89° (up / down / left / right, contrast greater than 10:1)

Colour Temperature: D60, D65, D93, DCI (x = 0.314, y = 0.351), User 1 - 10 (5,000 - 10,000 K adjustable)

Luminance: typ. 1,000 cd/m²

Colour Space (Colour Scale): ITU-R BT.2020 (not complete), ITU-R BT.709, DCI-P3, S-GAMUT3 (not complete), S-GAMUT3.Cine (not complete)

Transfer Matrix: ITU-R BT.2020 (non-constant luminance is supported), ITU-R BT.709

EOTF: 2.2, 2.4, 2.6, 2.4 (HDR), S-Log3, S-Log3 (Live-HDR), SMPTE ST 2048, ITU-BT.2100 (HLG)

Speaker: Stereo, 2 W + 2 W

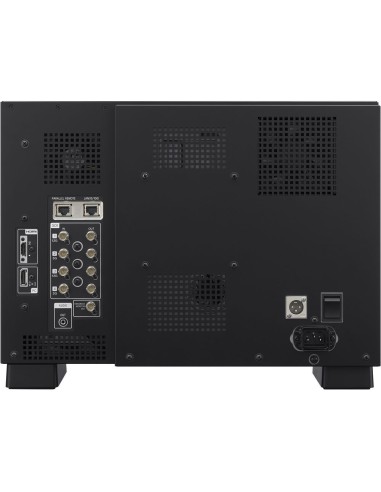

Data Links:

Input

2x 12G-SDI via BNC (asymmetric, 75 Ohm impedance)

2x 3G-SDI via BNC (asymmetric, 75 Ohm impedance)

1x HDMI via HDMI-A (HDCP 2.3 / 1.4)

1x PC via DisplayPort

1x Remote control (parallel) via 8-pin RJ-45 (fixed pin assignment)

1x Remote control (serial) / Ethernet via RJ-45 (10BASE-T / 100BASE-TX)

1x Power supply AC via power cord

1x Power supply DC via 3-pin XLR (max. 0.05 Ohm impedance)

Output

2x 12G-SDI loop via BNC (asymmetric, 75 Ohm impedance)

2x 3G-SDI via BNC (asymmetric, 75 Ohm impedance)

1x Enhanced Monitor via BNC

1x Audio via stereo jack

1x Headphone via stereo jack

Others

1x USB via USB-A

General Product Information:

Dimensions without Stand (W x H x D): 568 x 382 x 158.5 mm (22.36 x 15.04 x 6.24 in)

Dimensions with Stand (W x H x D): 568 x 403.5 x 178.5 mm (22.36 x 15.9 x 7.03 in)

Weight: approx. 10.5 kg (23.15 lbs)

Operating Temperature: 0° to +35° C (+32° to +95° F); +20° to +30° C (+68° to +86° F) recommended

Relative Air Humidity (Operation): max. 30 - 85 %, non-condensing

Storage Temperature: -20° to +60° C (-4° to +140° F)

Relative Air Humidity (Storage): max. 0 - 90 %, non-condensing

Maximum Pressure: 700 - 1,060 hPa (during operation, storage and transport)

Operating Voltage: 100 - 240 V AC, 50 / 60 Hz (via supplied power cord) / 22 - 32 V DC (via 3-pin XLR)

Included in Delivery:

1x EU power cord

1x Plug holder

1x CD-ROM

1x Notes on first-time use
