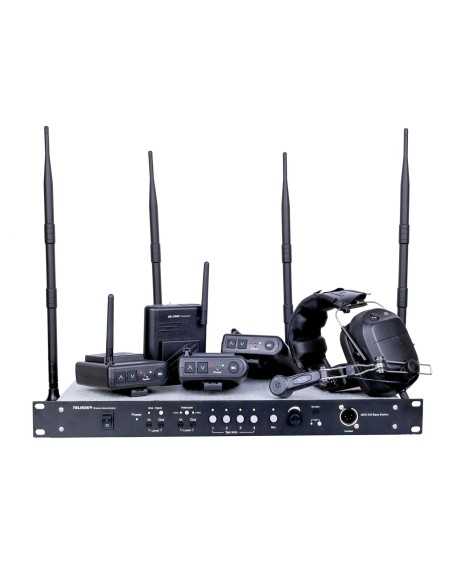

Telikou MDS-400 Wireless Intercom Kit

TELIKOU MDS-400 4 channel wireless intercom main station adopts 2.4GHz frequency. It is full two-way audio transmitter and receiver. MDS-400 is suitable for stage communication, outside broadcast van, show, and other applications where wireless communication is required.

Each MDS-400 can work with four BK-2400 wireless belt pack together.

Technical Specification

Power Input: 85~230V Radio Specifications
1. General
1) RF Input/output Impedance is 50Ohms
TELIKOU MDS-400 Wireless Main Station
6
2) RF 75CHs Frequency Hopping Spread Spectrum(FHSS) in RF Operation Frequency Band
3) Transmitting Modulation Data Rate is 576Kbps
4) Modulation is GFSK，BT=0.6
5) RF Operation Frequency Range is from 2401.808203~2479.398926MHz, Frequency Space is 891.871 KHz. 350m in opened area.
2. Transmitting
Normal Transmitting Power (NTP): 20+/-4 dBm Frequency Deviation: +/-190 KHz Frequency Offset: +/-10KHz（CW Mode） RF Output 20dBc Bandwidth: <=- 30dBm RF 1st & 2nd Order Harmonic Output Level: <=- 30dBm

In the Box

1 x Telikou MDS-400 4-channel Base Station

4 x Telikou BK-2400 Wireless Belt Packs

5 x Telikou HE-121 Headsets

4 x Antennas
