Blackmagic Design Videohub 80x80 12G Zero-Latency Video Router

Blackmagic Design Videohub 80x80 12G Zero-Latency Video Router

Blackmagic Design Videohub 80x80 12G Zero-Latency Video Router, Zero-Latency Routing Switcher, 80 x 12G-SDI Inputs/80 x 12G-SDI Outputs, Supports up to DCI 4K60 Video, Combines SD, HD, UHD 4K & DCI 4K Video, 4:2:2 & 4:4:4 Video Sampling Supported, Push-Button, Knob & Ethernet Control, 32 Channels of Embedded Audio, SDI Reclocking, Includes Videohub Mac/Windows Software

Support a mix of multiple video formats using the Videohub 80x80 12G Zero-Latency Video Router from Blackmagic Design. This advanced router provides 80 x 12G-SDI inputs and 80 x 12G-SDI outputs for routing any combination of SD, HD, UHD 4K, and DCI 4K video. The Videohub 80x80 12G centralizes all your SDI cables in one hub, enabling you to connect any video input to any video output, or even a single video input to multiple video outputs while eliminating clusters of cables and the need for complex diagrams. This versatile unit can be used with multiple HyperDeck recorders for redundant mastering to route video to multiple streaming processors for all your broadcast platforms, or to add extra inputs to an ATEM switcher.

12G-SDI Multi-Rate Connections

• Multi-rate 12G-SDI connections enable you to route up to 80 different video standards at the same time.

• Supports up to DCI 4K60 video resolutions.

• Provides 4:2:2 8 or 10-bit color routing in any standard.

• Works with 4:4:4 12-bit SDI up to DCI 4K30 for feature films.

SDI Reclocking

• Reclocking on every 12G-SDI input regenerates the signal, providing the maximum video quality.

• Reduces or eliminates signal loss and jitter when using longer cables.

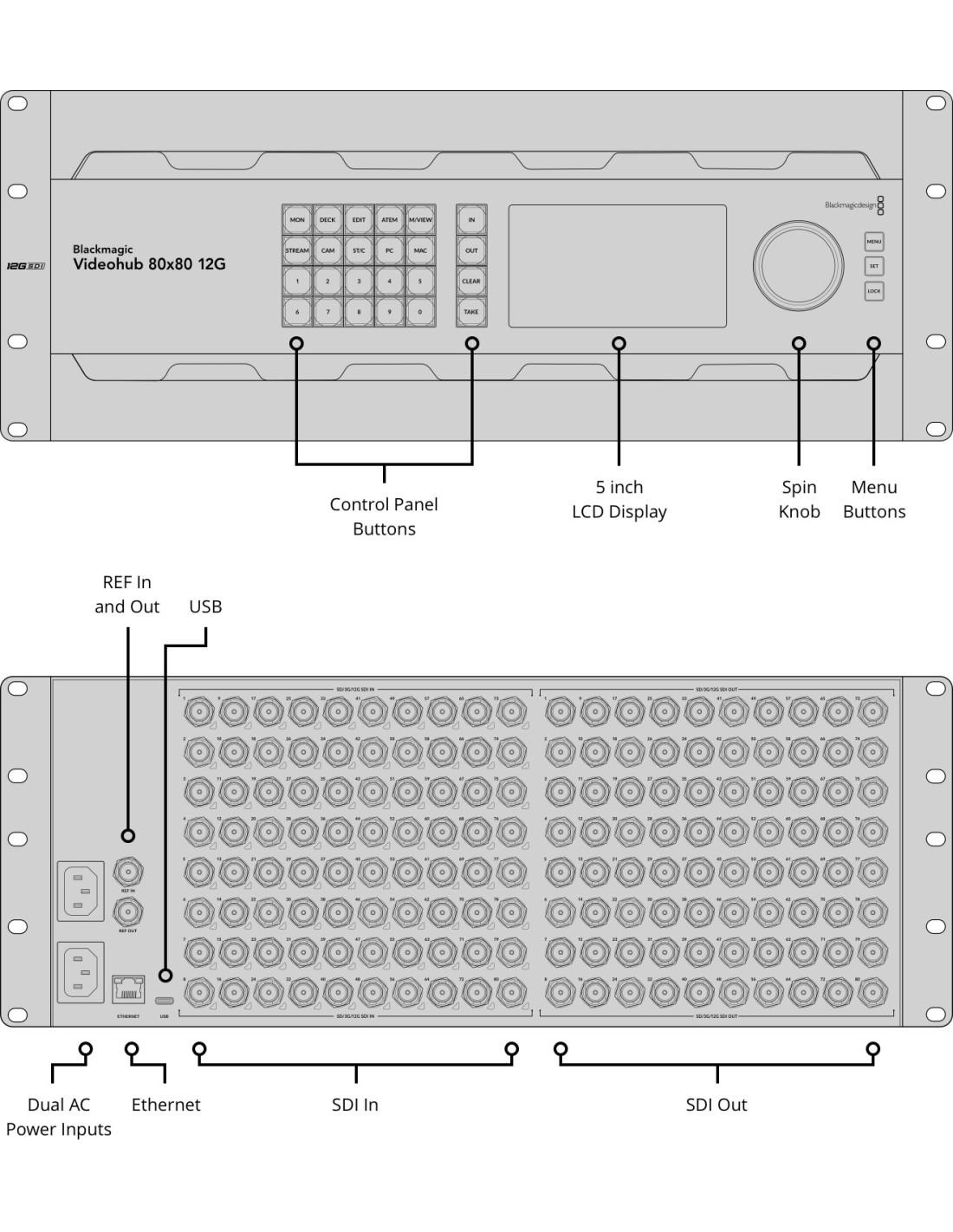

Front-Panel Controls

• A sleek front panel offers multiple control options.

• Buttons include assignable shortcuts and In, Out, Clear, and Take buttons.

• The machined metal spin knob provides precise control using an electronic clutch.

Optional Hardware Control Panels

• Can be used with optional hardware panels for easier control when components are spaced out in large facilities.

• Compatible with both the Videohub Master Control Pro and the Videohub Smart Control Pro.

Flexible Control

The Mac and Windows-compatible Videohub Software Control provides easy-to-use touchscreen router control.

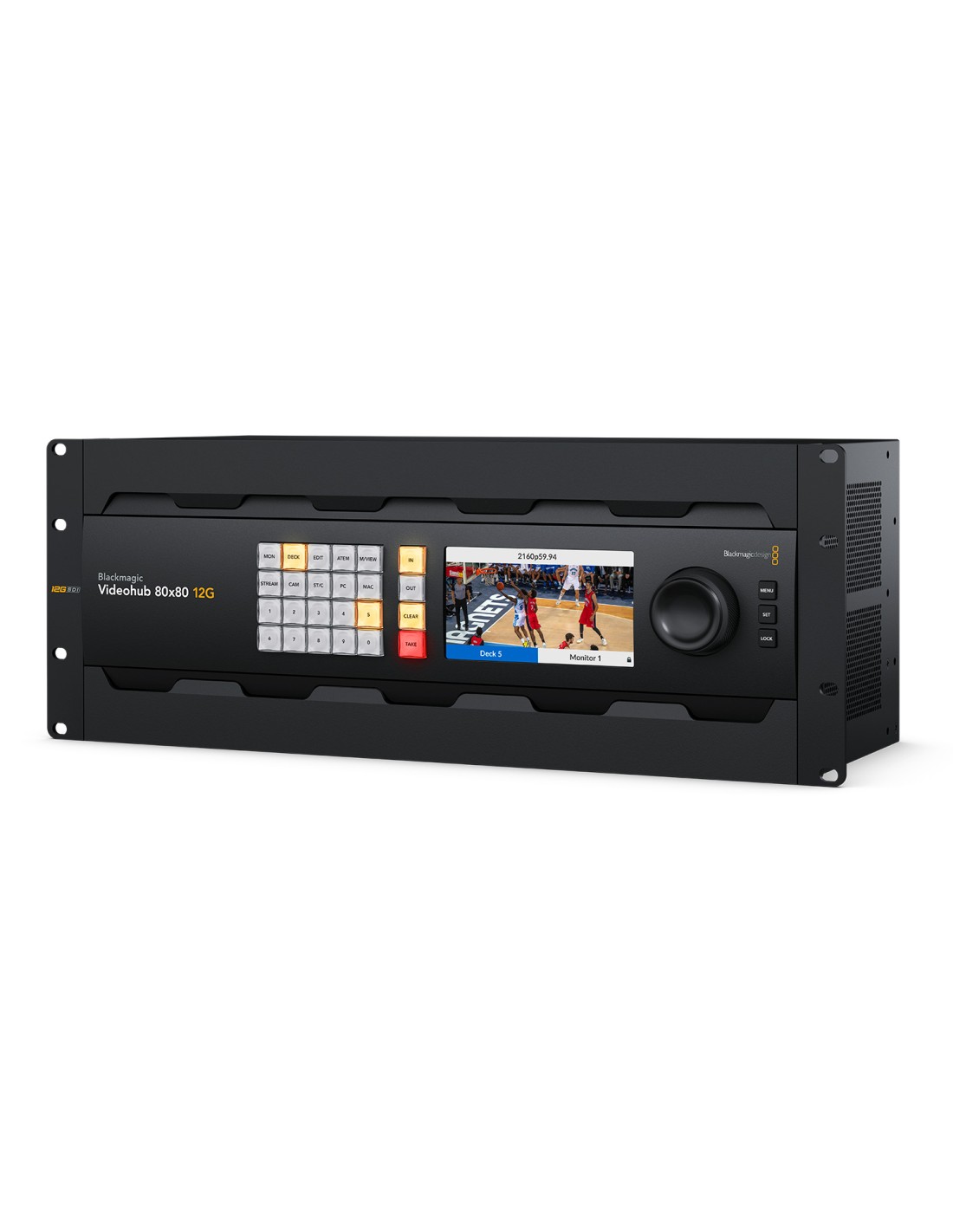

Built-In LCD

• View your live input before routing the signal on the built-in 5" LCD screen.

• Bottom labels enable you to scroll through your sources in alphabetical order.

• Eliminates the need to add an external SDI monitor to your setup.

Setup Utility and SDK

Use the Videohub Setup software to get started or the SDK to add protocol support for broadcast automation systems.

Multiple Language Support

Customized support is available in:

• English, Chinese, Japanese, Korean

• Spanish, German, French, Russian

• Italian, Portuguese, Turkish, Polish, Ukrainian

In the Box

Blackmagic Design Videohub 80x80 12G Zero-Latency Video Router

Router Control Software

Internal Software Updater Application

Limited 3-Year Manufacturer Warranty

Reference VHUBSMAS12G8080

Condition New

ean13 9338716008616
