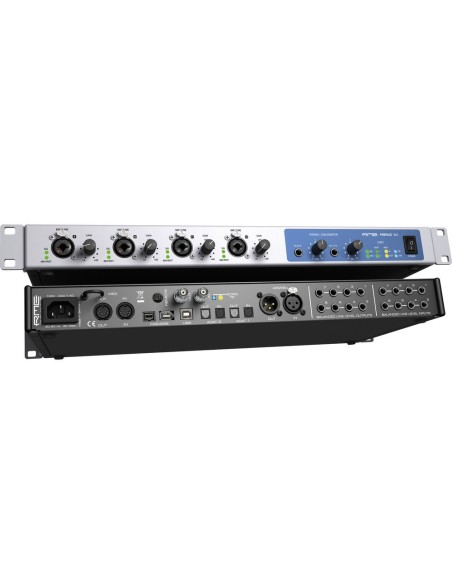

RME Fireface 802 USB / FireWire Audio Interface

The Fireface 802 from RME-Audio is a high-definition, 60-channel audio interface with 4 professional quality preamps and reference class converters. The 802 features 12 analog and 18 digital inputs and outputs, all available simultaneously. Low latency operation and stability stem from RME's own proprietary USB and FireWire hardware and drivers.


The SteadyClock jitter suppression technology ensures high quality sound from input to output. Should an external clock source fail, the Intelligent Clock Control (ICC) will retain the last valid input sample rate. All of the Fireface 802's hardware and software are fully compatible with Windows and Mac operating systems.
Driven by two DSP chips, the TotalMix FX software offers a complete digital mixer and signal router with integrated EQ, dynamics and reverb/echo. The software's built-in monitor controller allows for any physical output to be assigned as main or phones output. Talkback, listenback, mono, dim, recall and external inputs will work automatically on the assigned monitor control channels. The 802 also offers 6 memory slots for permanently saving different TotalMix configurations, which may be recalled without a computer. The TotalMix FX app for iPad allows for complete control over all functions without a computer connection. The Fireface 802 ships with driver CD, USB cable, IEC power cable, and optical cable.


30 Input / 30 Output channels
12 x Analog I/O
4 x Mic/Instrument preamps
1 x AES/EBU I/O
2 x ADAT I/O
1 x SPIDIF (Available through ADAT 2 port)
1 x Word Clock I/O
1 x MIDI I/O


FireWire or USB operation
TotalMix FX software with monitor management
SteadyClock jitter suppression
Intelligent Clock Control (ICC) retains sample rate in case of external clock failure
DigiCheck software offers comprehensive tools for metering, testing, measuring and analyzing audio streams
Stand-alone operation with setup recall
Universal power supply ensures worldwide compatibility


In the Box
RME Fireface 802 USB / FireWire Audio Interface
USB 2.0 Cable (6' / 1.8 m)
RME Driver CD
IEC Power Cable
TOSLINK Optical Cable (6.6' / 2 m)
