Panasonic Telecamera PTZ SDI/NDI UHD 4K per esterni con zoom ottico CMOS 24x

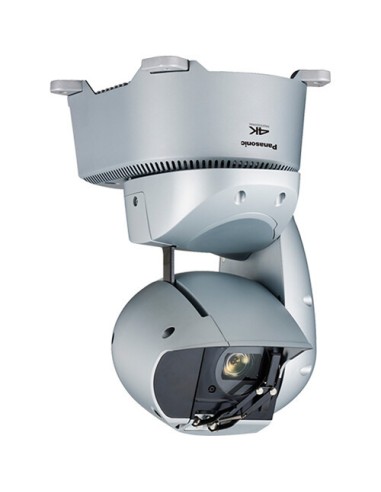

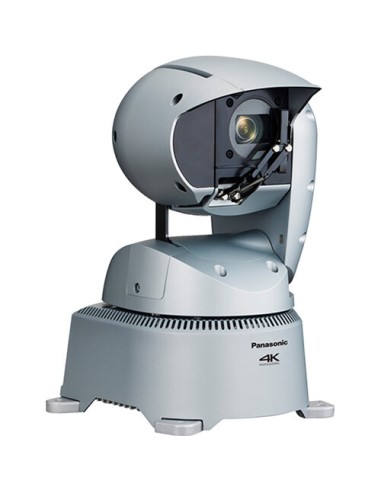

Add an outdoor, weather-resistant PTZ camera to your security, event, or broadcast production with the AW-UR100 UHD 4K Outdoor PTZ Camera from Panasonic. The AW-UR100 uses a 1/2.5" UHD 4K MOS sensor to output clear video up to UHD 4K60. The IP65-rated camera stands up to the elements with its salt-resistant silver finish and built-in wiper, heater, and defroster. Three stabilization functions help keep images captured with the 24x optical zoom lens smooth, even when mounted in windy environments. It also features a 10x digital zoom to extend your range even further.

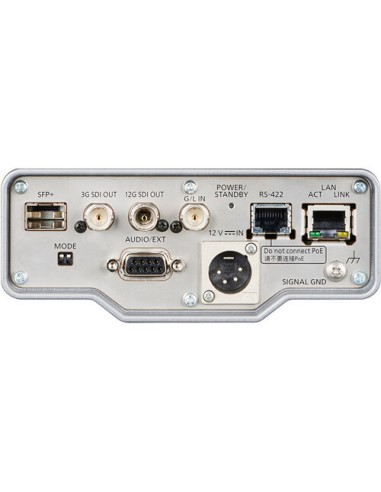

Video is output via 3G-SDI, 12G-SDI, and SFP+ optical fiber connections. The camera supports IP protocols like NDI, SRT, and RTMP. A genlock input supports black burst sync and tri-level synchronization, while a D-Sub 9-pin connector offers an audio input. Power the AW-UR100 using PoE++ or via a separately available power supply. Control can be achieved via IP or RS-422 connections or with the integration of separately available remote camera controller units.

24x Optical Zoom, Wide Horizontal Angle of View

The camera's wide-angle lens features a horizontal angle of view of 74.1° at its widest and 3.3° at the tele end. The 24x optical zoom further expands the shooting range of the AW-UR100.

Three Image Stabilization Modes

Three types of image stabilization—Optical Image Stabilization (OIS), Electronic Image Stabilization(EIS), and Dynamic Image Stabilizing System (DISS)—ensure image capture remains stable regardless of environmental factors. Easily mount your camera on a high pole and resist wind velocities up to 15 m/sec DISS facilitates pan/tilt function and has improved responsiveness to minimize trembling and maintain smooth rotation. The OIS and EIS in combination provide two-step vibration correction for a stable image regardless of the installation environment.

Durability in Harsh Environments

The paint and resin used in the AW-UR100's construction are salt, corrosion, and water resistant, as well as unaffected by ultraviolet rays. It has an IP65 rating and comes with an integrated wiper, heater, and defroster for environments as cold as 5°F.

Robust Video Connections

The camera comes equipped with video transmission IFs that can support baseband transmissions of 3G-SDI, 12G-SDI, and SFP+ fiber. Major IP transmissions of NDI, SRT, and RTMP are also supported for integrations with existing system configurations.

Built-In Cropping Function

Crop a portion of UHD 4K video using three cropping positions and 10x digital zoom. Access these parameters using a separately available remote camera controller or a PC and the PTZ control center software.

FreeD Compatibility

Connect the AW-UR100 with an AR/VR system thanks to its FreeD-compliant command output. Easily construct a digital environment without an encoder by utilizing the tracking data of the camera in conjunction with synchronization signals.
