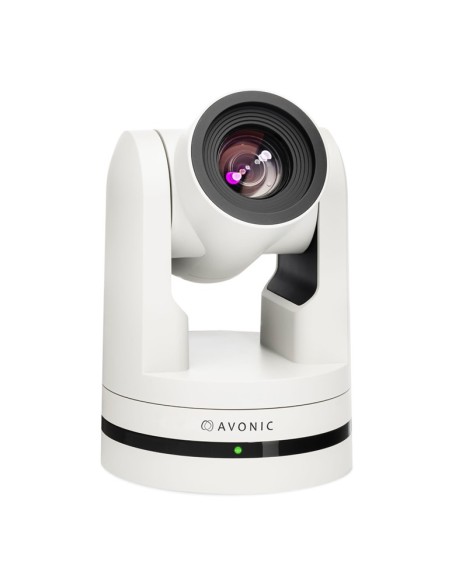

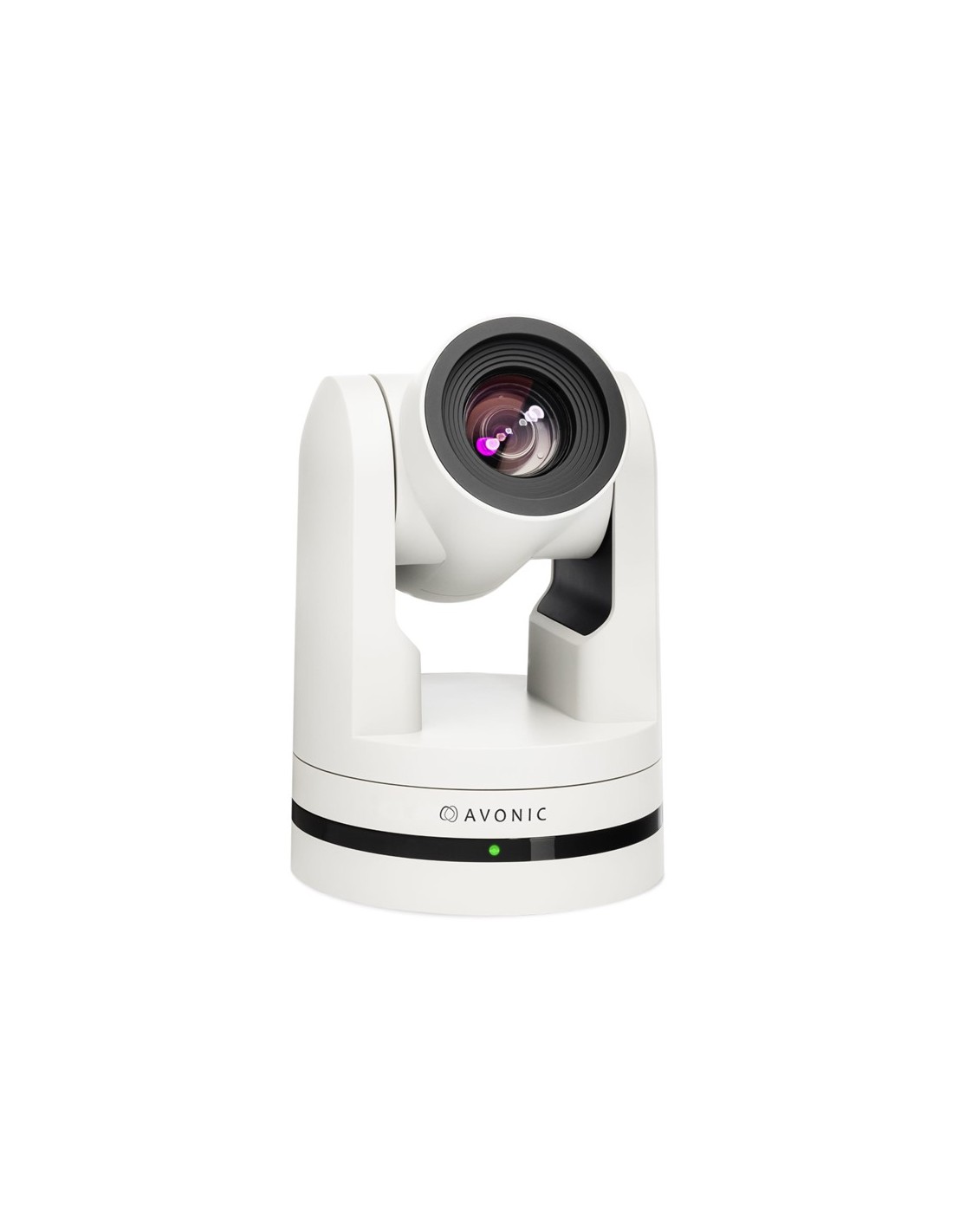

Avonic AV-CM70-IP PTZ camera 20x zoom HDMI- 3G-SDI, IP and USB 2.0 1080p60

The Avonic AV-CM70-IP is a high quality PTZ camera, with concurrent HDMI, 3G-SDI, USB 2.0 and IP stream ethernet outputs. The camera is designed for fixed installations in less then optimal light conditions. The CM70-IP includes a rich featureset usually found on broadcast-grade cameras, including a user-adjustable Colour Matrix and SRT streaming (licensed premium functions). The CM70-IP has the ability to deliver outstanding quality under low light conditions, thanks to its high SNR CMOS sensor. The sensor delivers Full HD 1080p60 video.

Lens

High-quality glass lens, 20x zoom and Horizontal wide: 60.38° – tele: 3.72°, Vertical wide: 35.80° – tele: 2.14°, field of view.

Full HD 1080p60

The camera has a Full HD resolution of 1920 x 1080p60 and achieves a pristine image quality.

Control

VISCA , Pelco-D/P via RS232, RS485, IP (VISCA), Onvif or IR. 255 presets with 0.1° accuracy.

IP-features

The camera can be powered using PoE (802.3af) and can be accessed by webGUI, controlled by VISCA over IP/ Onvif and stream the video.

Audio embedding

Balanced audio input with embedding into IP stream, SDI and HDMI outputs. Includes configurable audio offset.

Low light

High SNR CMOS combined with digital noise reduction for a clear picture even under very low light conditions.

Outputs

3G-SDI, HDMI, USB 2.0 (1080p30) and IP.

DUAL low latency IP-Stream

H265, H264, optional SRT and MJPEG compression at a bitrate up to 40Mbit enabling Full HD video stream by ultra-low latency over RTSP, RTMP, UDP, Unicast and Multicast support.

Optional Premium features

SRT streaming, Tally light, configurable Color Matrix. License AV-LC70-1 sold separately.

– weight 2.4 kg

– dimensions 26.5 x 25 x 23 cm

- White color

– balanced analog audio input

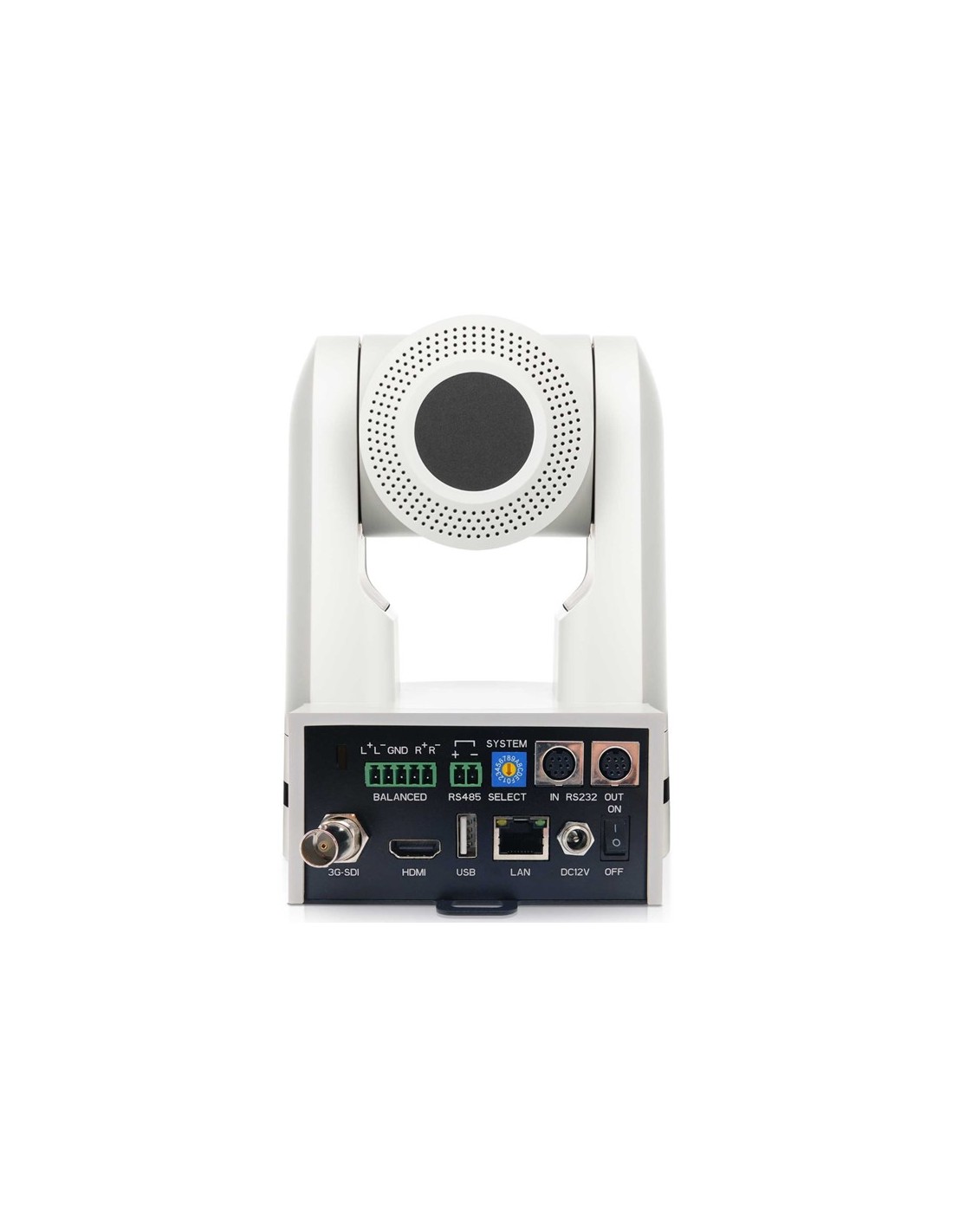

– 3G-SDI video output, H.264 IP stream, H.265 IP stream, HDMI, MJPEG IP stream, USB 2.0

– IR remote control, ONVIF, RS-232, RS-485, USB UVC, VISCA over IP

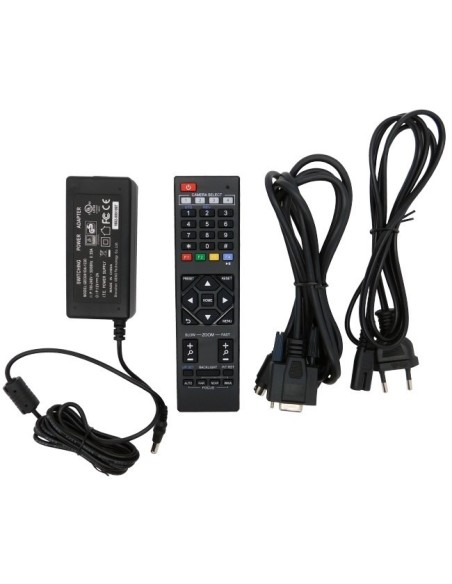

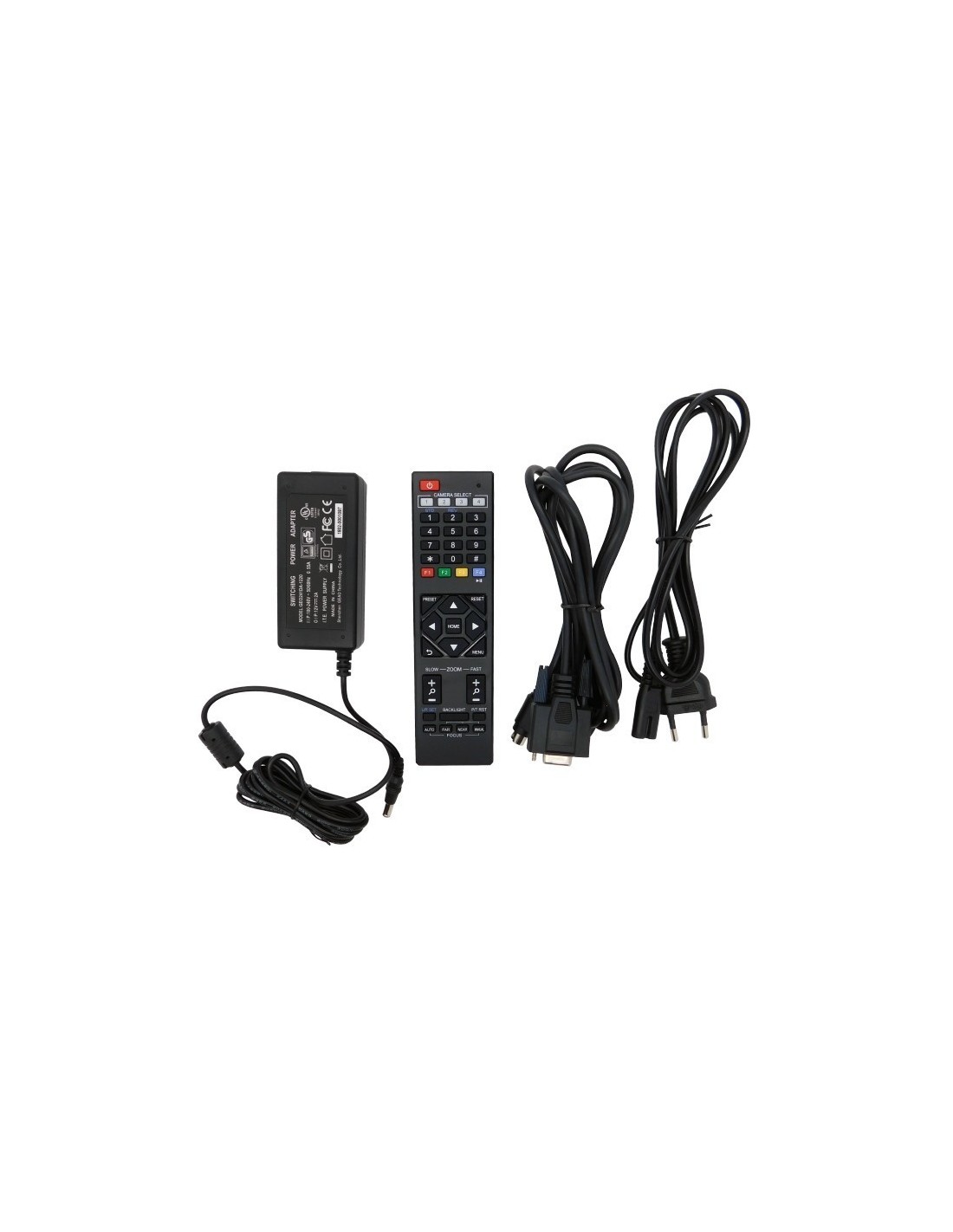

– 12V power adapter, PoE (802.3af)
