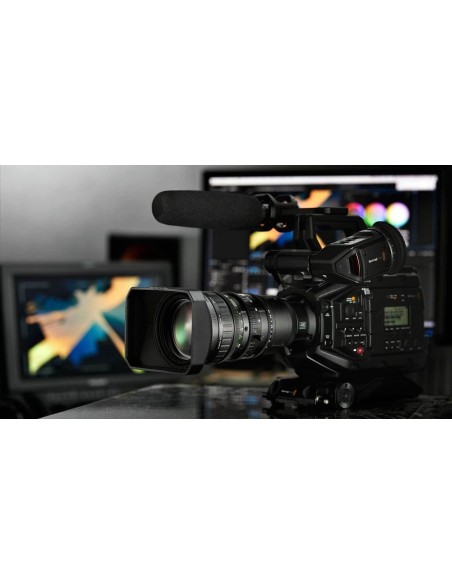

Fujinon LA16X8BRM-XB1A 2/3" 4K Lens with Servo for Blackmagic URSA Broadcast

Bundle consists of:

• Blackmagic Design URSA Broadcast camera
• Fujinon LA16x8BRM UHD 2/3" B4 zoom lens

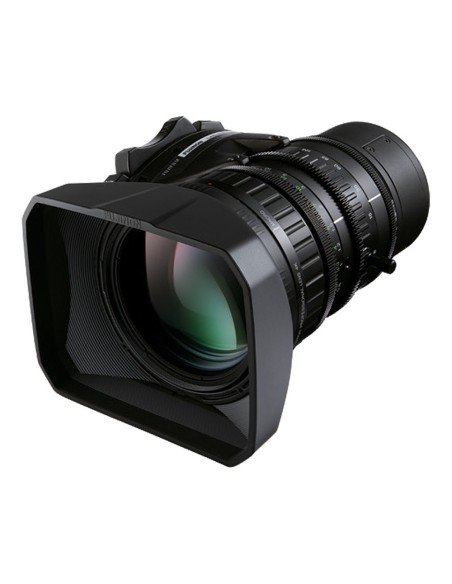

Properties Fujinon LA16x8BRM:

• Suitable for the B4 mount of the URSA Broadcast
• Focal length: 8-128 mm
• Zoom: 16x
• Maximum relative aperture: 1:1.9 (8 mm); 1:2.8 (128 mm)
• Closest focusing distance: 0.8 m (with macro function: 0.05 m)
• Aspect ratio: 16:9
• Viewing angle: 61.86°x37.25° (8 mm); 4.29°x2.41° (128 mm)
• Filter thread: M82 x 0.75

General product information:

• Dimensions (LxD): 16.38 x 8.5 cm
• Weight: 1.6 kg

Properties Blackmagic Design URSA Broadcast:

The URSA Broadcast is an ultra HD broadcast camera that works with your existing B4 mount HD and Ultra HD lenses. The camera offers professional controls, built-in ND filters, non-stop recording of 12-bit ProRes and DNx files on dual SD-UHS-II or CFast cards, and the new extended-video-range mode for brilliant ready-to-broadcast sequences for immediate broadcast. The URSA Broadcast combines two cameras in one. Use the camera for production work or transform it into a live studio camera with remote control and built-in color corrector using a Blackmagic URSA Studio Viewfinder.

• Interchangeable lens mount
• Fold-out monitor with touchscreen
• Built-in ND filters
• Recording on CFast 2.0 and SD cards
• Time code generator
• Compatible with many other Blackmagic Design products
• 12 months limited manufacturer's warranty

Technical Specifications:

• Sensor Size: 13.056 x 7.344 mm
• Lens Mount: 2/3" B4
• Dynamic Range: 12+ apertures
• Recording Resolutions: 3840 x 2160 / 1920 x 1080
• ND Filters: Clear / 2 / 4 / 6
• Display Size: 4" LCD with capacitive touch screen
• Audio: Built-in stereo microphone, built-in mono speaker
• Supported Frame Rates: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
• Video Formats HD:
  1080p / 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  1080i / 50 / 59.94 / 60
• Video Formats UHD: 2160p / 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
• SDI Compliance: SMPTE 292M / 424 Level B / 2081-1 / 2082-1
• SDI Audio Sampling: 48 kHz, 24 Bit
• Supported Codecs:
  DNxHD 220X / 145
  Apple ProRes 4444 XQ QuickTime / 4444 QuickTime / 422 HQ QuickTime / 422 QuickTime / 422 LT QuickTime / 422 Proxy QuickTime
  CinemaDNG RAW / RAW 3:1 / RAW 4:1
• Color Correction: DaVinci YRGB
• Included Software: URSA Mini Operating System, Blackmagic Camera Setup

Data Links:

Input

• 1x HD- / 3G- / 6G- / 12G-SDI via BNC
• 2x Analog Audio via XLR
• 1x Reference (Timecode) via BNC
• 2x Remote via 2.5 mm LANC
• 1x USB-C (Updates)
• 1x Lens via 12-pin
• 2x CFast 2.0 Card
• 2x SD UHS-II Card
• 1x External power supply via XLR 4-pin
• 1x External power supply via Molex 12-pin

Output

• 1x HD- / 3G- / 6G- / 12G-SDI via BNC
• 1x SDI Monitoring via BNC
• 1x Headphones via 3.5 mm jack

General Product Information:

• Dimensions (W x H x D): 149.85 x 146.89 x 255.9 mm
• Weight: 2.6 kg
• Operating Temperature: 0° to +40° C
• Storage Temperature: -20° to +45° C
• System Requirements: macOS X 10.11 or later, Windows 8.1 or later
• Mounting Points: 4x 1/4"
• Power Supply: 12 V Power Adapter

Included in Delivery:

• 1x Module Cap
• 1x B4 Lens Mount
• 1x Power Adapter
• 1x SD card with software and user manual
