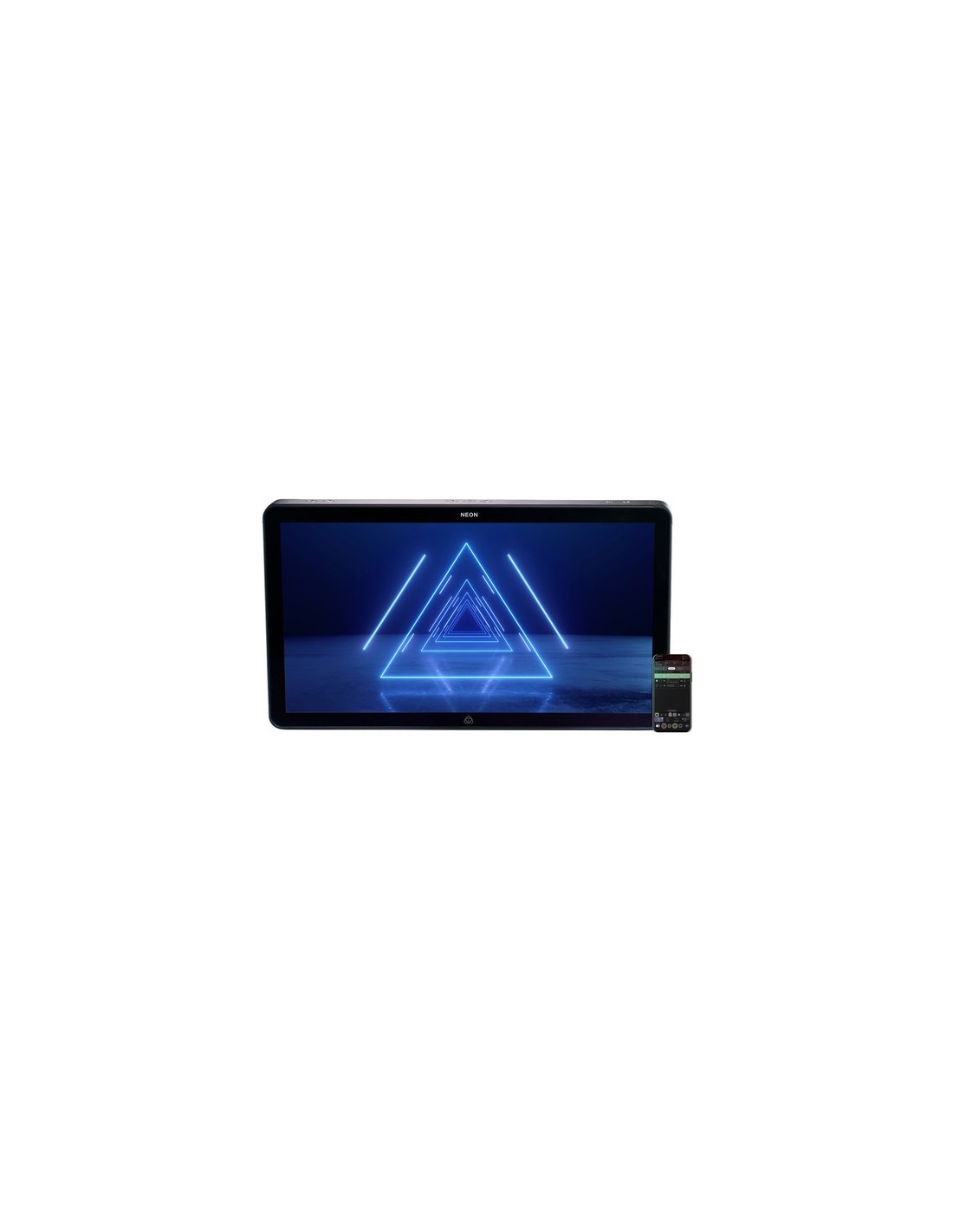

Atomos NEON 24" 4K HDR Monitor/Recorder

This Atomos NEON 24" 4K HDR Monitor/Recorder is part of the NEON family of monitor/recorders designed to create a consistent viewing and recording pathway for productions. This 24" monitor/recorder features a 4096 x 2160 native resolution while supporting DCI and UHD 4K, as well as 1080p/i and 720p. The monitor provides a clear image well capable of supporting HDR and displaying a 10-bit image that covers 100% of the DCI P3 standard. Its 1000 cd/m² brightness and 512 zones of backlight allow the monitor to achieve a contrast ratio of 1,000,000:1.

The NEON features a Master Control Unit that runs the AtomosOS, controlling the monitor. The Master Control Unit is user-replaceable, so you can have the latest Atomos technology without having to replace the entire monitor. Limited control over the NEON is via an included IR remote, but for full control, it is best to use the downloadable app and your iOS mobile device. Input your video for display via HDMI or SDI (using the included SDI expansion module) and the monitor displays your video. It can also capture your footage as ProRes Raw, ProRes, DNx, or Cinema DNG to a 2.5" SSD (not included) in the Master Caddy II or to a separately available AtomX SSDmini. The monitor features loop-through and cross conversion outputs, and supports both Rec 709 and Dolby Vision.

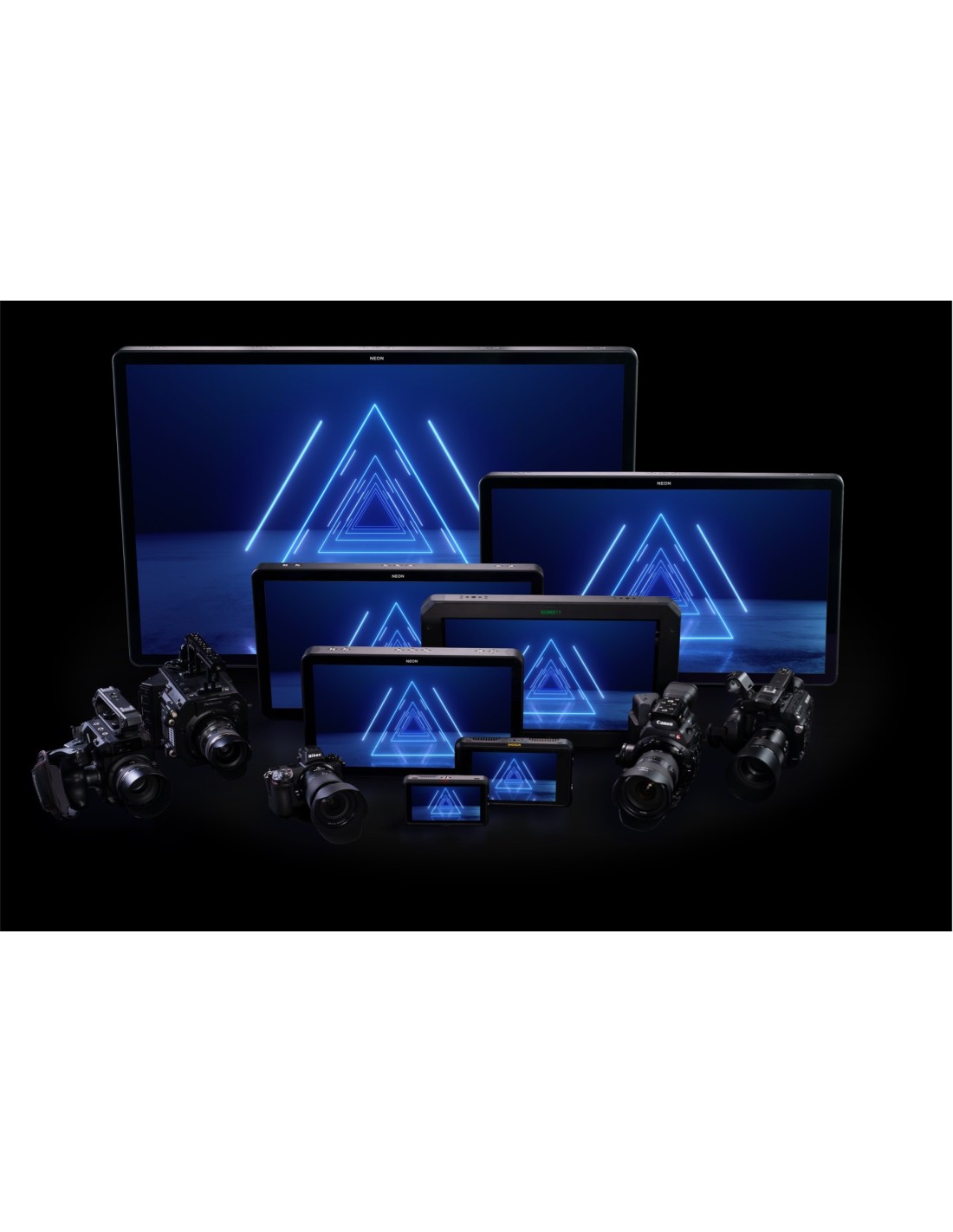

The Neon Lineup of Monitor/Recorders

The Neon line is a series of precision on-set and in-studio 4K HDR monitor/recorders that can be synced together to provide a consistent image display and recording system. Multiple NEON monitors, up to 1000, can all be controlled by the Atomos app running on a single mobile device. This allows you to have each camera outputting to its own NEON, and the synced up NEONs will record footage with matching timecode.

ProRes Raw Recording

With the built-in 4Kp60/HDp240 Apple ProRes Raw recorder capturing each take, Neon enables quick review and real-time playout with Dolby Vision to domestic TVs so you can see your images on a properly set-up monitor, the NEON, and what your images will look like on a consumer TV.

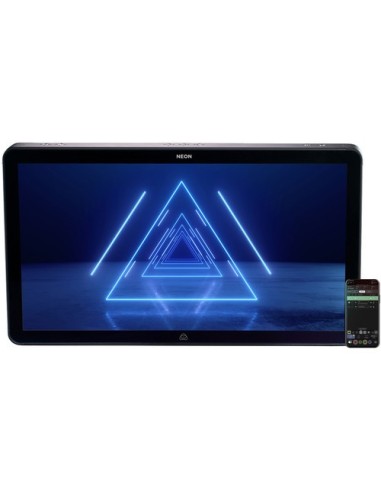

The App

NEON uses Bluetooth to connect to your iOS mobile device running the Atomos iOS app that controls the built-in AtomosOS. The app provides controlled playback, slow motion, frame-by-frame analysis, and preview tools. Multiple NEONs sync to each other using sub-gigahertz RF that gives them a range up to 656'.

Imaging Tools

Imaging tools include focus peaking, exposure, calibration, zoom, waveform monitor, RGB monitor, vectorscope, and LUT selection.

Inputs and Outputs

The NEON is ready for your HDMI production out of the box, supporting HDMI 2.0b. The included SDI Expansion Module provides you with 12G-SDI in, out, and loop-through, as well as cross conversion between SDI and HDMI and vice versa.

Video Output

The monitor outputs to Rec.709, HLG, PQ, LUT, and it can display in SDR or HDR, converting as necessary to Rec.709, HLG, PQ, and LUT.

Flexibility

You can record, edit, and grade in online quality at 4Kp60 in real time with ProRes Raw, ProRes, Cinema DNG, and Avid DNx with playout to Dolby Vision.

Supported Input Gamma

Sony: SLog / SLog2 / SLog3

Canon: CLog / CLog2 / Clog3

ARRI: Log CEI160 / LogCEI200 / LogCEI250 /LogCEI320 /LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800/ LogCEI1000 / LogCEI1280 / LogCEI1600

Panasonic: Vlog

JVC: JLog1

RED: RED Log3G10 / RED LogFilm

FUJIFILM: F-log

PQ10k

HLG

Supported Input Gamut

Sony: SGamut / SGamut3 / SGamut3.cine

Canon Cinema: / DCI P3 / DCI P3+

Nikon: NLog

Panasonic: V Gamut

ARRI: ALEXA Wide Gamut

Rec. 709 / BT.2020

JVC

RED: WideGamut / DragonColor / DragonColor2 / Color2 / Color3 / Color4

Mounting

The NEON comes with support feet and follows the following mounting protocols: ARRI compatible, 3 left, 3 right, 7 top, 7 bottom; VESA mount.

Transportability

An included shock resistant, watertight road case helps protect your NEON monitor while in transit or storage.
