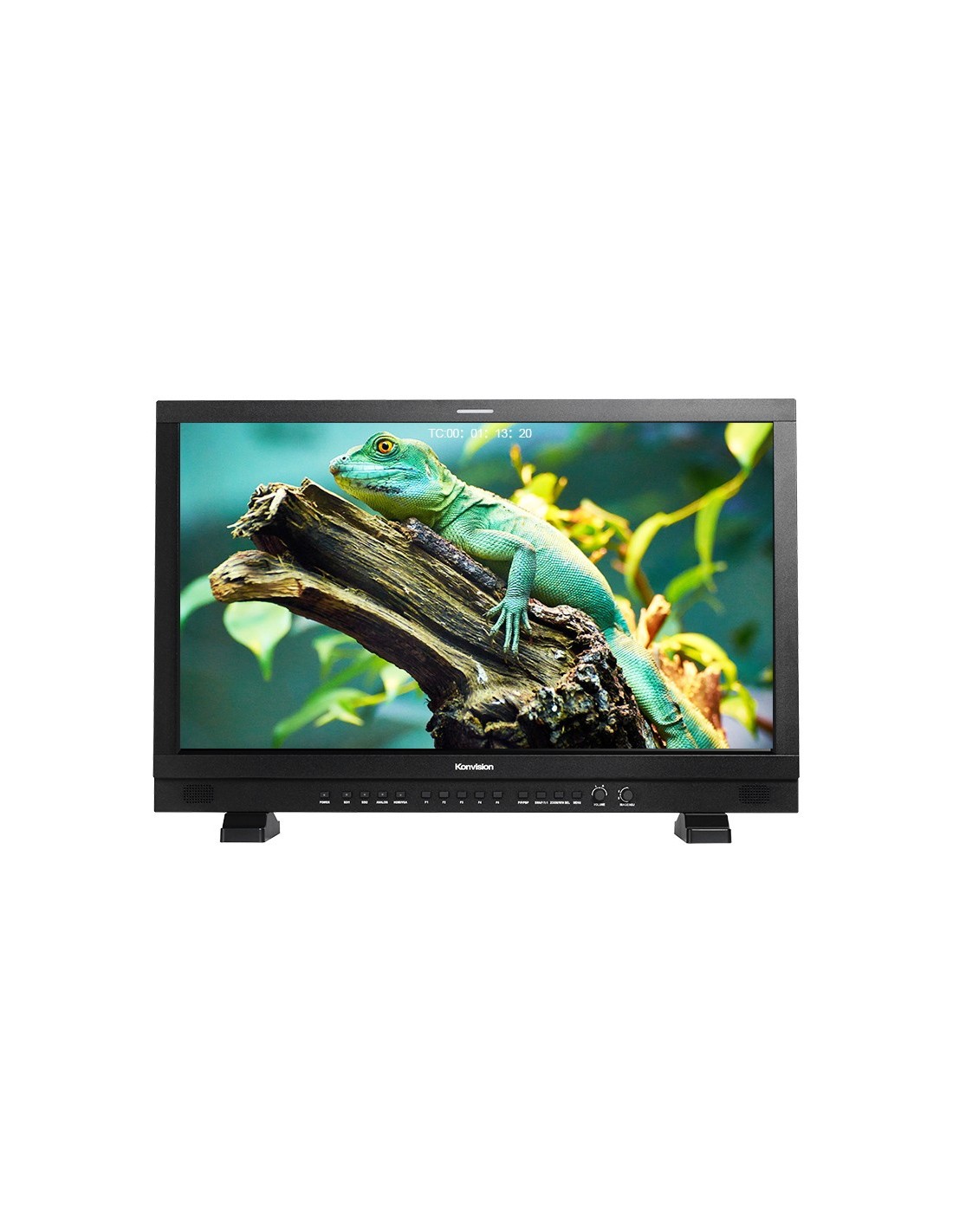

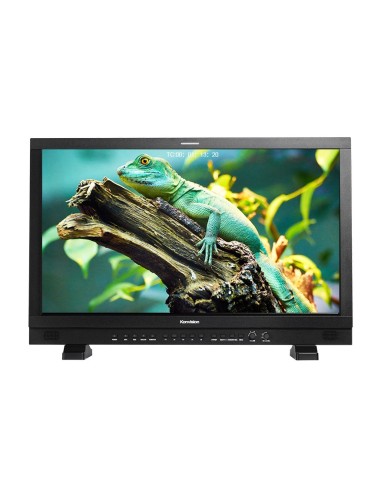

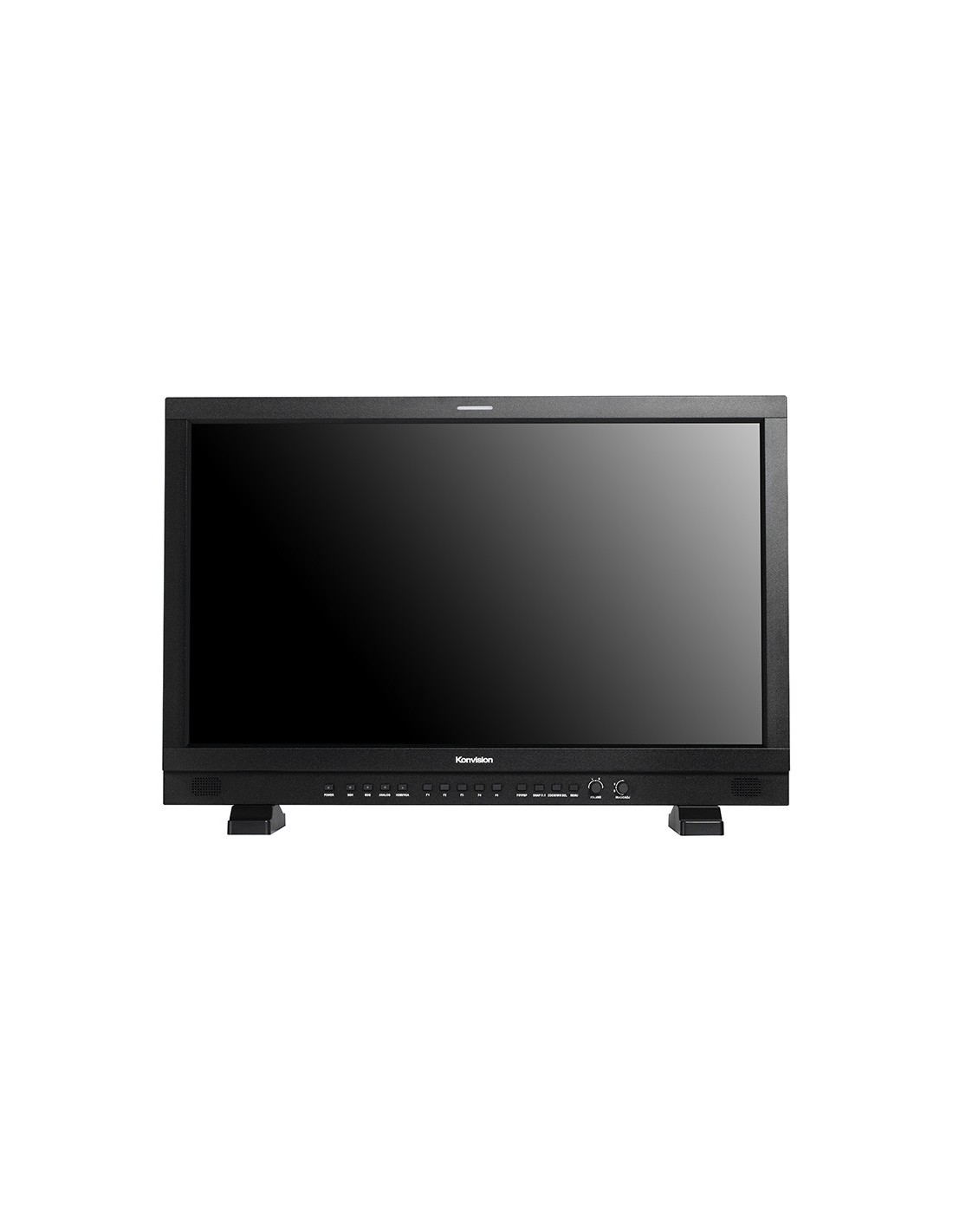

Konvision KVM-2461W 24" FHD HDR Premium Monitor, 24" FHD Premium Broadcast Monitor, multi-functional broadcast features, support user importing LUT tables into the monitor.1920×1080 native resolution, 12Bit video processing, 3D LUT color calibration, Waveform, Vectorscope, Audio Meter for SDI1,SDI2, Histogram, Pixel Measurement
HDR display:
Offering high dynamic range(HDR) display,which including PQ(SMPTE ST2084),HLG and S-Log 3 in flexible mode.It provides extremely high level of picture quality and image reproduction.
3D LUT Color Calibration
Integrated 3D LUT color calibration technology, Konvision KVM-6X series monitors are compatible with Lightspace and Calman. Support various color gamuts like REC709/DCI-P3/EBU/SMPTE-C/REC2020/USER1/USER2, user can import their own lut files into the monitor. Lightspace and Calman for Konvision are competible with popular colorimeters including CA210, CA310, CS200, CR100, CR250, Klein K10A, X-rite i1 Display OEM.
Waveform, Vector, Audio Meter for All Signals
All SDI1, SDI2 and HDMI support Waveform, WaveformAlarm, Vectorscope, Histogram, Pixel Measurement, Audio Meter display etc professional picture analysising functions.
Pixel Measurement
Support 2 SDI signals display at same time, also one SDI with any other signals of Video, HDMI/DVI/VGA. Two pictures can swap between each other freely.
Features:
24" 1920×1080 native resolution
3G-SDI 4:4:4 12bit signals (SMPTE 425M A/B)
12 Bit Video Processing
3D LUT Color calibration with LightSpace & CalMAN
Color space: REC709/DCI-P3/EBU/SMPTE-C/REC2020/USER
User 3D LUT file import
2K/3G/HD-SDI 2x In & 2x Out
High Dynamic Range(HDR) display, User-HDR supported
HDR supports HLG, PQ and S-Log 3
PBP/PIP(size/position adjustable)
Waveform, Vectors, Histogram for SDI, HDMI, DVI
Pixel Measurement and Audio Phase
Picture Flip, Histogram, H/V Delay
Focus Assist, Zoom, False Colour, Zebra
Over Scan, Markers, Blue Only/Mono Only
Audio Level Meter(16CH for SDI, 2CH for HDMI)
Dynamic UMD(TSL3.1/4.0), Time Code Display
LED Tally Light and On-screen Tally display
On-screen Alarms: no video, video black, freeze frame, no audio
F-key configuration and Key Lock function
Remote control: Ethernet/GPI, RS422 In/Out
Built-in AC IN and DC IN power supply
Specification:
LCD :
Display Size 24"
High Resolution Full HD 1920×1080
Aspect Ratio 16:9
Wide Viewing Angle 178°(H) / 178°(V)
Pixel Pitch 0.2745×0.2745(mm)
Color Depth 16.7M
Back Light LED
Brightness 250cd/m2
Contrast Ratio 1000:1
INPUT:
2 × BNC SDI1/2 Channel Input (3G/HD/SD-SDI Auto-Detected)
3 × BNC YPbPr/Video/Y/C
1 × HDMI HDMI Imput
1 × DVI DVI/I input
OUTPUT:
2 × BNC SDI1/2 Channel Output (3G/HD/SD-SDI Auto-Detected)
3 × BNC YPbPr/Video/Y/C
COMPANTIBLE SDI FORMATS:
SMPTE-425M-A/B
4:2:2 YCbCr 10-bit 1080p(50/59.94/60)
4:4:4 YCbCr/RGB 10-bit 1080i(60/59.94/50)
4:4:4 YCbCr/RGB 12-bit 1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
4:2:2 YCbCr 12-bit 1080i(60/59.94/50)
1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
4:4:4 YCbCr/RGB 10-bit 720p(60/59.94/50/30/29/25/24/23.98)
SMPTE-274M 1080i(60/59.94/50)
1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
SMPTE-296M 720p(60/59.94/50/30/29/25/24/23.98)
SMPTE-260M 1035i(60/59.94)
SMPTE-125M 480i(59.94)
ITUR BT.656 576i(50)
AUDIO IN / OUT:
SDI Audio In 16 Channel Embedded Audio
Audio Meter Display(VU+PPM) H/V Audio Level Meter Display
Analog Audio Input 3.5mm Headset Switch Cable
Audio Headset Output 3.5mm Headset Jack
Built-in Speaker 2.5W×2
GENERAL:
Operating Temperature -10℃50℃
Input Voltage AC 100-240V 50/60Hz/ DC 12V
Power Consumption 37W
Power-Saving Mode Turn off unimportant Key Automatically if No Signal Input
VESA Installation ESA MIS-D(100X100mm)
Shell Materials Aluminum on Front-Shell/Base Supporter/Rust-Proof iron on Back-Shell
Accessory Power Cord /Desktop stand
Optional DVI-HMDI adapter/Wall-Mount VESA bracket
KVM-2461W
