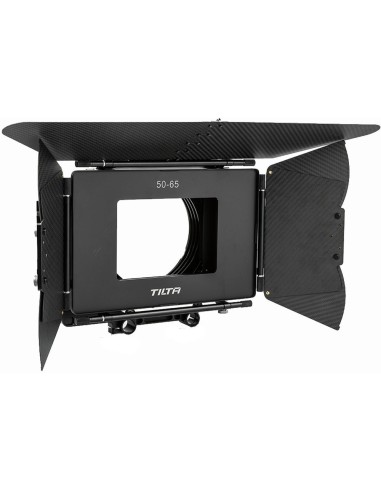

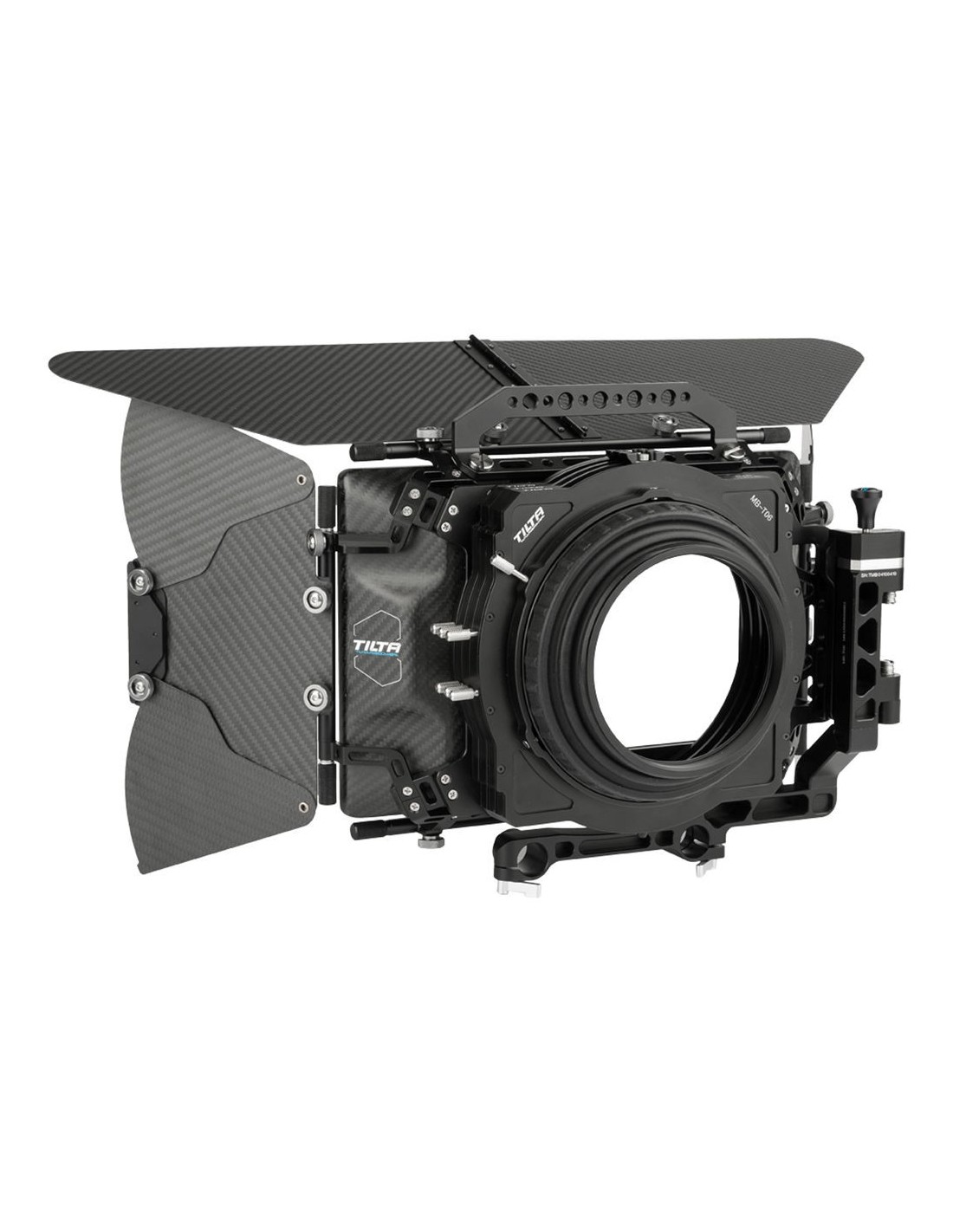

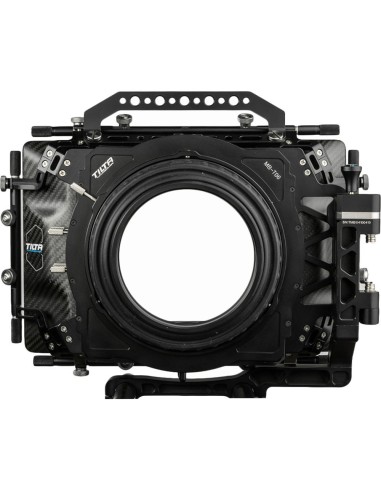

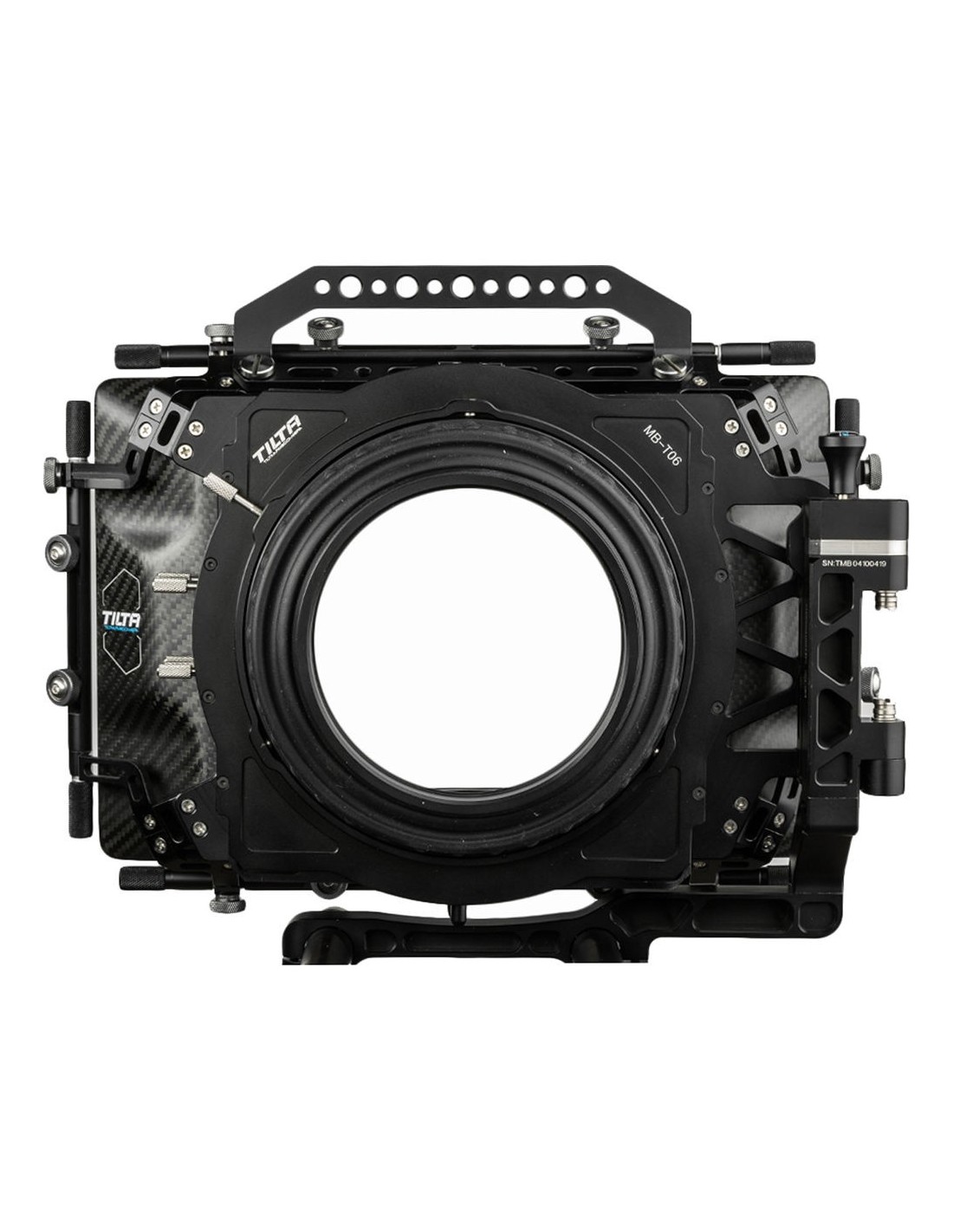

Tilta MB-T06 6.6 x 6.6" Carbon Fiber Matte Box

The Tilta 6.6 x 6.6" Carbon Fiber Matte Box is a 15-piece matte box kit designed for studio camera setups. Constructed from carbon fiber and aluminum, the matte box is designed to be strong and lightweight and features a 19mm swing-away rod mount for quick lens changes between shots. It provides three rotating filter stages that accommodate 6.6 x 6.6" filters, with the trays height adjustable for optical center alignment. It also provides a removable top handle with 1/4"-20 and 3/8"-16 threads for attaching various accessories. Included with the matte box are carbon fiber top and side flags to help prevent unwanted light from hitting your lens. The rear opening diameter of the mate box supports lens up to 165mm, with a set of adapter rings to reduce the rear opening as low as 80mm. A set of five matte inserts is also included.

Key Features
19mm rod adapter to easily mount to industry-standard 19mm camera support systems
Swing away design allows you to move the matte box away when not in use and allows for easy lens replacement
Three rotating aluminum filter holders accept 6.6 x 6.6" filter
Carbon fiber top and side flags
Removable top handle with 1/4"-20 and 3/8"-16 accessory threads
80, 95, 114, 134mm, and 147mm lens adapters for use with a wide range of lenses
100mm rubber insert
Five matte inserts to accommodate various focal lengths from wide angle to telephoto

Matte Box Specifications:
Matte Box:
Weight: 4.3 lbs
Weight (Metric): 1.94 kg

Rod Compatibility 19 mm
Rod Spacing 104 mm
Filter Size
6.6 x 6.6 in.

# of Stages
3

Stage Rotation
3 x 360 degrees

Rear Opening Diameter
165 mm

Distance Between Optical Center & Rods
118-130 mm Adjustable

Swing-Away Mount
90 Degree Lock

Material
Carbon Fiber, Aluminum

Top Flag

Dimensions: 21.6 x 5.9 x .06 in.
Dimensions (Metric): 548.6 x 149.8 x 1.5 mm
Weight: .28 lb

Weight (Metric): .128 kg

Material:
Carbon Fiber

Quantity:
1

Side Wing

Dimensions (Collapsed): 7.9 x 5 x .5 in.
Dimensions (Collapsed) (Metric): 200.6 x 127 x 12.7 mm
Dimensions (Fully Extended): .63 lb

Dimensions (Fully Extended) (Metric): .284 kg

Weight
.19 lb

Weight (Metric)
.068 kg

Material Carbon Fiber

Quantity
2

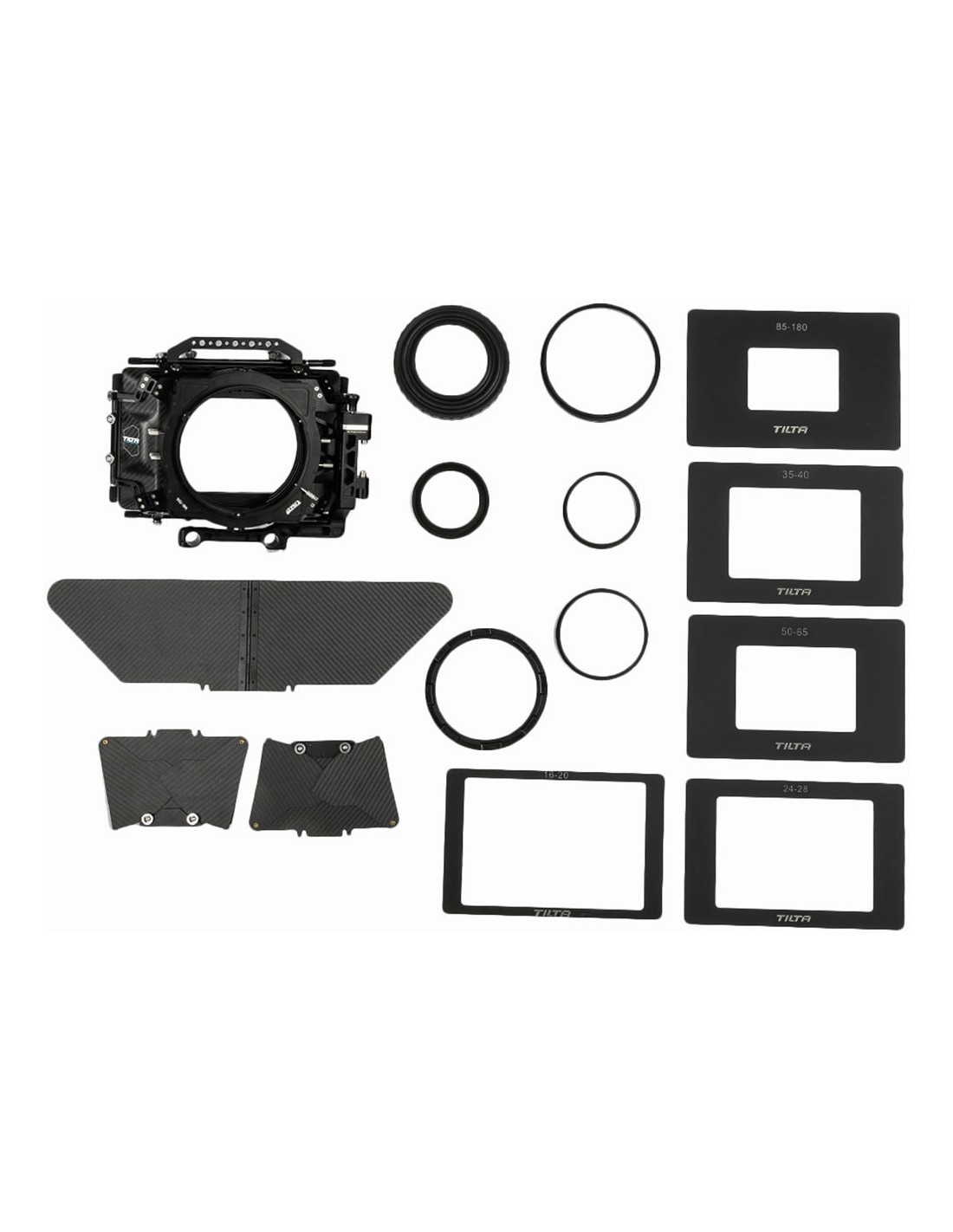

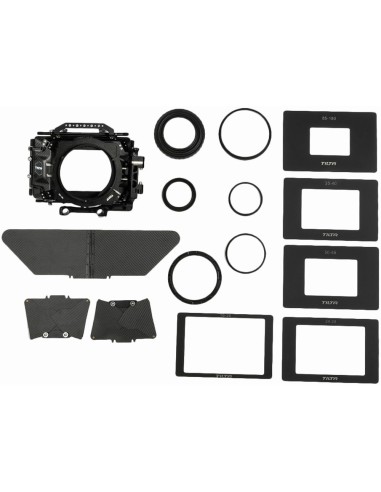

WHAT'S INCLUDED:
1 X French Flag
16-20 Matte
2 X Side Wings
24-28 Matte
35-40 Matte
50-65 Matte
85-180 Matte
Matte Box
ø100 Mm Rubber Insert
ø114 Mm Adapter Ring
ø134 Mm Adapter Ring
ø147 Mm Adapter Ring
ø80 Mm Adapter Ring
ø95 Mm Adapter Ring

SPECIFICATIONS:
Shipping Dimensions: 15.7 x 13.1 x 11.7 in.
Shipping Dimensions (Metric): 398 x 332 x 297 mm
Shipping Weight: 10 lb
Shipping Weight (Metric): 4.5 kg
