ATEN Hub True 4K DisplayPort MST a 2 porte

The ATEN VS92DP 2-Port True 4K DisplayPort MST Hub was developed with an inexpensive yet advanced DisplayPort MST solution in mind and enables the transmission of high-resolution video to two different locations without loss of quality. Productivity is increased by the function that enables the connection of up to two displays to a Windows-based laptop / PC. Users can also mirror the same image on two displays or view independent content on each display for multitasking.

The VS92DP supports up to 4K at 60 Hz (4: 4: 4) video resolution, HDR Dolby TrueHD and DTS-HD Master Audio 7.1 and thus ensures distortion-free and excellent video / audio quality. It is ideal for home theater systems, commercial facilities, educational centers, conference rooms or any scenario where high quality video is required.

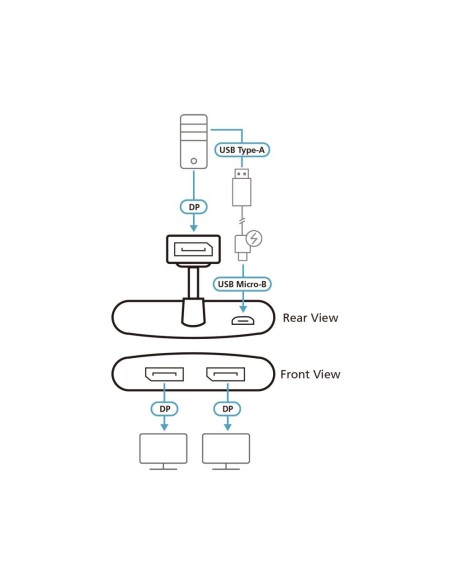

• Sends a True 4K source to two DisplayPort displays at the same time
• Supports Single Stream Transport (SST) and Multi Stream Transport (MST) mode
• Supports 4K resolution for dual output - up to 3840 x 2160 at 30 Hz (4: 4: 4)
• DisplayPort 1.2; HDCP 1.3 compliant
• Provides Dolby TrueHD and DTS-HD Master 7.1 audio channel
• High quality and durable aluminum housing
• scope of delivery
• 1x VS92DP 2-Port True 4K DisplayPort MST Hub
• 1x USB Type-A to USB Micro-B cable
• 1x instruction manual
• LEDsStatusDisplayPort output x 2 (blue)

• Power connection x 1 (blue) Video input Interfaces 1 x DisplayPort connector (black) Max. Distance 15 cm
• Video output Interfaces 2 x DisplayPort socket (black) Max. Distance Max 3m at 3840x2160 at 60 Hz (4: 4: 4) - single output
• Max 3m at 3840x2160 at 30 Hz (4: 4: 4) - dual output (MST / SST mode)
• VideoMax. Data rate 21.6 Gbps (5.4 Gbps per rail) Conformity DisplayPort 1.2 / HDCP 1.3 Max. Resolutions Up to 3840x2160 at 60 Hz (4: 4: 4, 8 bit) Connections USB port USB type Micro B x 1 (firmware update & power source) Power consumption 2 WATT (max.) BTU environment Operating temperature 0 - 40 ° C Storage temperature -20 - 60 ° C Humidity 0 - 80% Relative humidity, non-condensing Physical properties Housing Metal (aluminum) Weight 0.09 kg (0.2 lb) Dimensions (L x W x H) 8.80 x 6.00 x 15.00 cm
• (3.46 x 2.36 x 5.91 inches) Carton items, 10 pieces Note: For some rack-mount products, please note that the usual dimensions of WxDxH are given in a LxWxH format.
