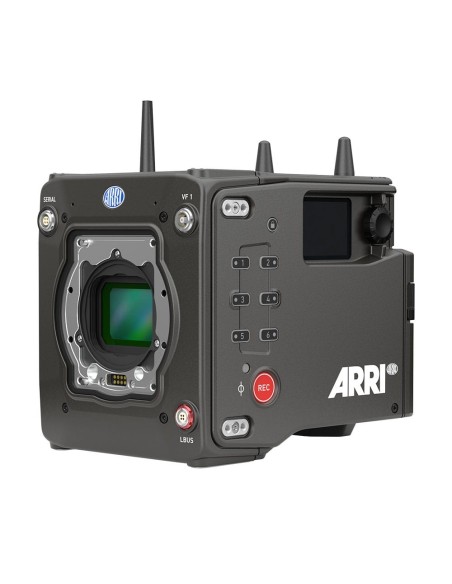

ARRI ALEXA 35 Production Set - 15mm Studio

The ALEXA 35 is the latest addition to ARRI's ALEXA series. It has been designed to meet the highest demands and offers outstanding image quality. The ALEXA 35 is equipped with a 4.6K sensor that supports frame rates up to 120 fps. The dynamic range of 17 stops includes 2.5 more stops than previous ALEXA camera models. The high exposure index of up to EI 6400 enables outstanding shots even in difficult lighting conditions.

• New ARRI sensor after 12 years
• Dynamic range of 17 stops, 2.5 more than previous ALEXA camera models
• High sensitivity thanks to exposure index up to EI 6400 with low image noise
• Brilliant picture quality for the highest demands
• Technical Specifications:

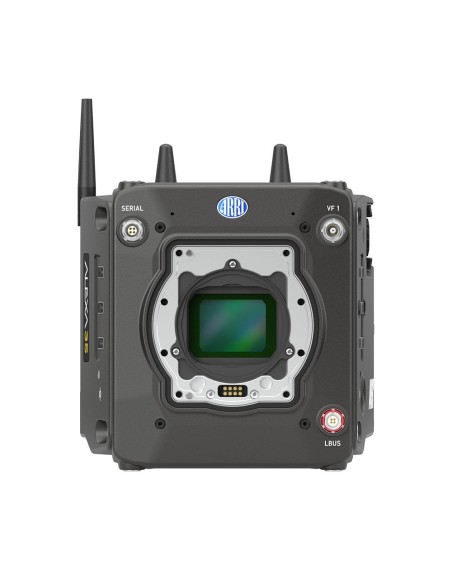

• Sensor: Super 35 format ARRI ALEV 4 CMOS sensor with Bayer pattern color filter array
• Sensor Size: 4608 x 3164 pixels, Ø 33.96 mm
• Sensor Frame Rates: 0.75 - 120 fps
• Project Frame Rates: 23.976, 24, 25, 29.97, 30, 47.952, 48, 50, 59.94, 60 fps
• Exposure Index: EI 160 - 6400 in 1/3 steps, adjustable
• Dynamic Range: 17 stops
• Shutter: electronical, 5° - 356° or 1 - 1/8000 seconds
• Filter: ND (Clear, 0.6, 1.2, 1.8), low pass, UV, IR
• Recording Codecs: MXF/ARRIRAW, MXF/Apple ProRes 4444 XQ, MXF/Apple ProRes 4444, MXF/Apple ProRes 422 HQ

Maximum Video Resolution:
4.6K (with 1 TB Drive) - 4608 x 3164p / 35 (ARRIRAW) / 60 (Apple ProRes)
4.6K (with 2 TB Drive) - 4608 x 3164p / 75 (ARRIRAW) / 60 (Apple ProRes)

Recording Modes: Standard real-time recording, Pre-recording

Viewfinder Type: Multi Viewfinder MVF-2 with OLED viewfinder display (1920 x 1080) and 4" LCD flip-out monitor (800 x 400)

Viewfinder Diopter: adjustable from -5 to +5 diopter

Colour Output: Rec 709, Rec 2020, Rec 2100 PQ, Rec 2100 HLG, LogC4

Look Control: ARRI Textures, Custom color look (via ARRI Look File ALF4 or ARRI Look Library)

White Balance: Manual or auto, adjustable from 2000 to 11000 K, colour correction adjustable from -16 to +16 CC

Connectivity: WiFi (IEEE 802.11b/g), White Radio (for ARRI ECS)

Recording Media: Codex Compact Drive 1TB (CA08-1024), Codex Compact Drive 2TB (CB16-2048)

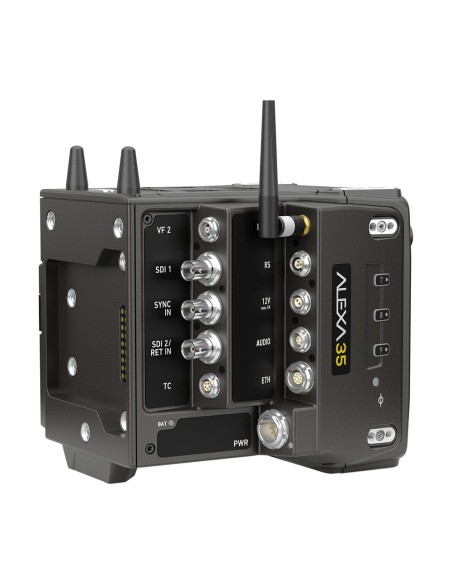

Data Links:

Input

1x Audio via 6-pin LEMO

1x SYNC via BNC

1x RET via BNC

1x Power supply DC via 8-pin LEMO

1x Power supply DC via battery adapter

Ausgang

2x 12G-SDI via BNC

1x Headphone via 3.5 mm mini jack

1x Power supply DC via 3-pin Fischer (RS)

1x Power supply DC via 2-pin LEMO (12 V)

1x Power supply DC via 4-pin LEMO (LBUS)

1x Power supply DC via 6-pin LEMO (AUDIO)

1x Power supply DC via 10-pin LEMO (ETH)

Others

1x SERIAL via 4-pin LEMO

1x Timecode (TC) via 5-pin LEMO

1x USB via UBS-C

General Product Information:

Dimensions (W x H x D): 152.5 x 147 x 203 mm (with LPL-mount)

Weight: 2.9 kg (body with three antennas and LPL-mount)

Operating Temperature: -20° to +45° C

Storage Temperature: -30° to +70° C

Relative Air Humidity: max. 95 %, non-condensing

Power Consumption: ~ 90 W (body and MVF-2)

Protection Class: IP 51

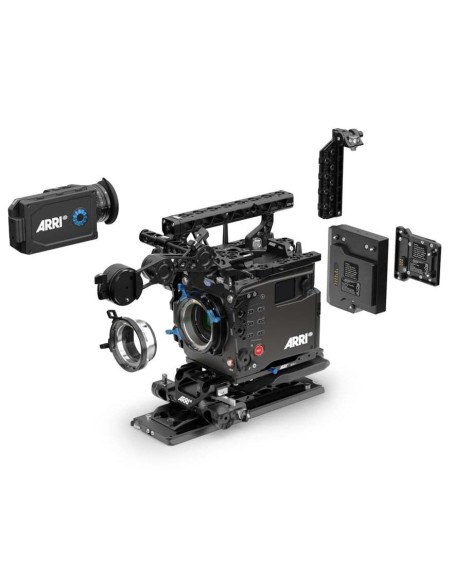

Scope of Delivery:

• 1x ALEXA 35 Body
• 1x ALEXA 35 Cine Licence
• 1x ARRI LPL Mount (LBUS)
• 1x ARRI PL-to-LPL Adapter
• 1x Balance Utility Dovetail BUD-1
• 1x B-Mount Battery Adapter
• 1x Multi Viewfinder MVF-2
• 2x Kabel VF Right Angle (0.5m/1.5ft)
• 1x Camera Power Cable Straight 2m/6.6in KC-50
• 1x Power Distribution Module PDM-1
• 1x Production Support Set - Top
• 1x Production Support Set - Side
• 1x Production Support Set - Bottom (159mm)
