Blackmagic Design OpenGear Converter da SDI ad Audio

Blackmagic Design converters are fully compatible with the OpenGear standard, an open standard for rack-mounting cards for video and audio signal conversion and processing for television broadcasters.

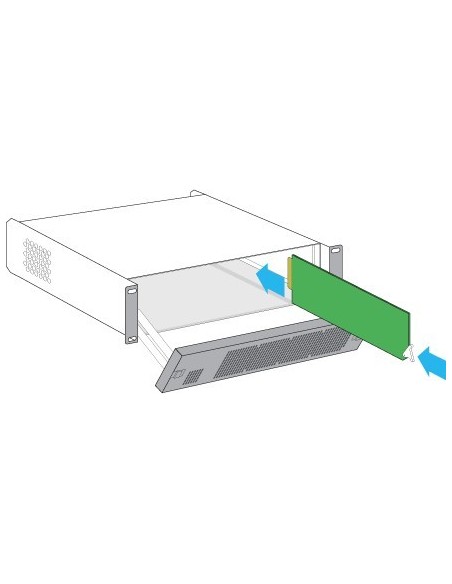

Thanks to this system it is possible to combine multiple cards inside the DFR8321-C-P Slot Frame OpenGear basket according to production needs with centralized control and monitoring via the OpenGear DashBoard software for Windows, Mac OS p>

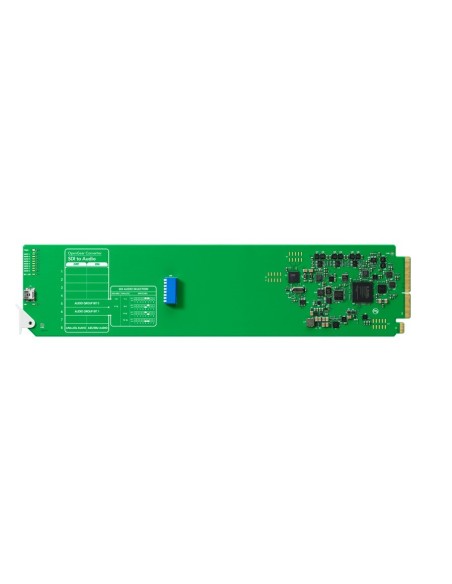

OpenGear converts from SDI to Audio

Includes everything you need to de-embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection.
You can easily access the audio from any SDI video connection to audio equipment such as audio mixers, analog broadcast bridges, audio monitors and much more!

Redundant SDI input

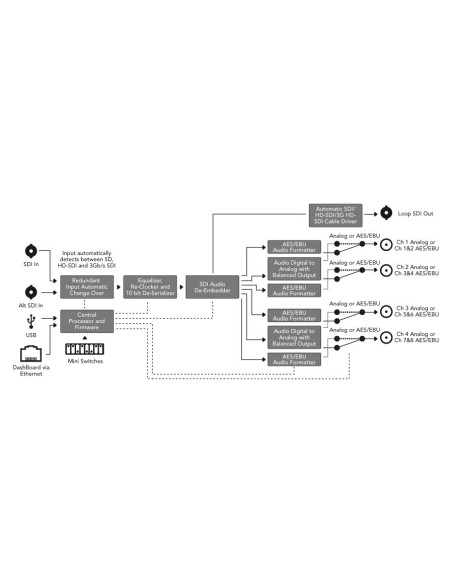

Blackmagic OpenGear Converter SDI to Analog and SDI to Analog and Digital Audio cards feature a redundant SDI input. Simply connect a redundant cable to the second input and if the primary SDI input is lost, the Blackmagic OpenGear Converter automatically switches to the second input in an instant. Furthermore, an SDI pass-through output is provided for connection to other devices. It is also possible to loop to other Opengear Blackmagic converters to de-embedding multiple audio channels.

Technical Features

Connections

• SDI Video Input:Switchable between SD, HD and 3 Gb/s


• SDI Video Output:direct switching between SD, HD and 3 Gb/s SDI input
• Analog Audio: 4 professional balanced channels with standard 3-pin OpenGear connections
• AES/EBU Digital Audio:8 balanced professional channels with standard 3-pin OpenGear connections
• SDI redundant input:Automatically switches if main SDI input is lost
• Multi Rate Support:Automatic detection of standard definition or HD SDI
• Updates and configuration:Via high-speed USB 2.0. (480 Mb/s)
• Re-clocking

Standard

• SDI format support:625/25 PAL, NTSC 525/29.97, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p60 and 720 p59.94</li >
• SDI Compliance:SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 and SMPTE 297m SDI for optical fiber
• SDI Video Rates:SDI video connections are switchable between standard definition and high definition
• SDI Video Sampling:4:2:2
• SDI Audio Sampling:standard television sampling rate of 48 kHz and 24 bit.
• SDI Color Space: YUV
• SDI automatic switching:Automatically select between SD SDI, HD-SDI and 3 Gb/s SDI
• Analog format support:625/25 PAL, NTSC 525/29.97, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p60 and 720p59.94
• Analog color space:YUV
• Color accuracy in analogue: 4:2:2

Extras

• Control software:Mac OS
• Settings Control:via OpenGear DashBoard network control software, Mini Switches or USB software
• Firmware update: via included firmware update application
• Warranty: 3 year warranty from the manufacturer
