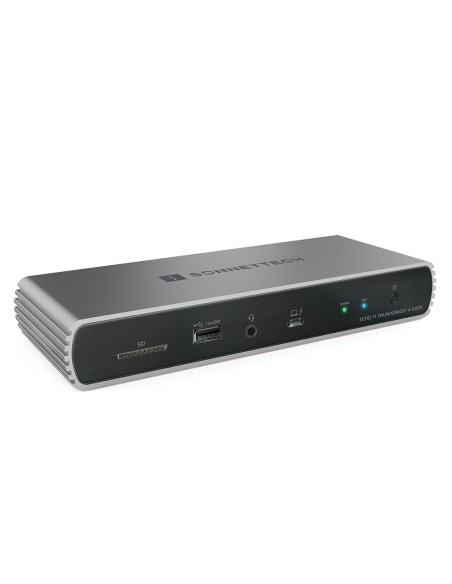

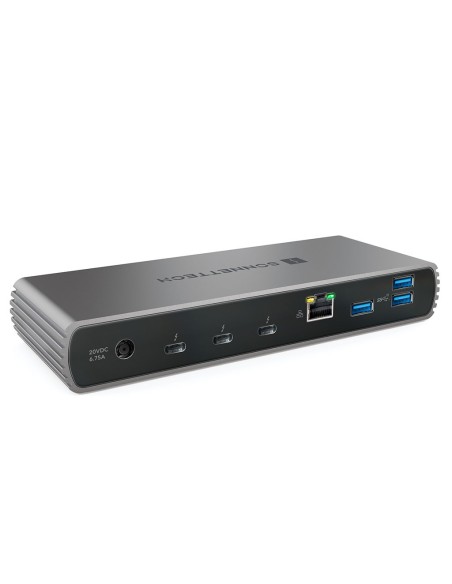

Sonnet Echo 11 Thunderbolt 4 Dock TB4

Echo 11 Thunderbolt 4 Dock - A universal Thunderbolt 4 docking station with four Thunderbolt 4 ports and 8K display support. Compatible with all Thunderbolt 4 computers, all M1 Macs and all Thunderbolt 3 Macs; also compatible with new models of Thunderbolt 3 Windows computers. Connects your peripherals and charges your computer with a single cable. Connect your monitors, Thunderbolt devices, USB peripherals and Ethernet cables to the Echo 11. Then connect all the devices with a single Thunderbolt cable from the dock to the computer. The Echo 11 Thunderbolt 4 Dock even charges your computer with up to 90W charging current. When you're done, simply pull out the Thunderbolt cable and stow away your laptop.

Features

- Eleven interfaces - including four Thunderbolt 4, three USB 3.2 Gen 2 Type A, one USB 2.0 Type A (charging port), one RJ45 Gigabit Ethernet and one 3.5 mm combined audio port; one SD 4.0 card slot.
- Supports 4K, 5K, 6K and 8K @ 60Hz monitors. Depending on the computer, up to two 5K monitors or a single 4K, 5K, 6K, or 8K monitor are supported. Many monitor interfaces are supported.
- Connection with peripherals via a cable! Simply connect peripheral devices to the Echo 11 and connect them to the computer using the supplied Thunderbolt 4 cable.
- Charge your laptop - Use the included Thunderbolt 4 cable to power and charge your laptop with up to 90W charging current.
- Apple M1 compatible - supports all Apple M1 Macs, Intel Mac compatible - supports all Thunderbolt 3 Mac computers, Intel Windows compatible - supports all Thunderbolt 4 and latest models Thunderbolt 3 Windows computers. Windows 10 (64-bit edition version 1909 or higher)

Mac Compatibility
• Mac (M1) with Thunderbolt/USB 4 ports
• Mac (Intel) with Thunderbolt 3 ports
• macOS 11.1+ (Big Sur) required
• See Compatibility PDF for Mac display support

Windows Compatibility
• Windows computer with a Thunderbolt 4 port
• Late-model Windows computer with Thunderbolt 3 port (see Compatibility PDF)
• Windows 10 (64-bit Edition Version 20H2 or newer)
• See Compatibility PDF for Windows display support

Hardware
Part Number
• ECHO-DK11-T4

Warranty
•2-year
Form Factor
•Thunderbolt 4 docking station

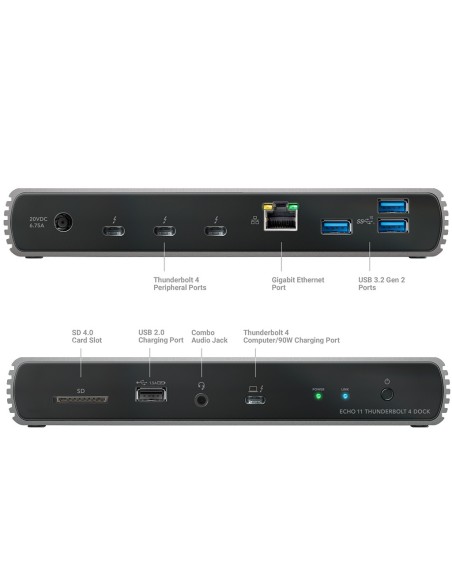

External Connectors
• Four Thunderbolt 4 ports
• Three USB 3.2 Gen 2 (10Gbps) Type A ports
• One USB 2.0 Type A charging port
• One RJ45 (Gigabit Ethernet) port
• One 3.5 mm combination audio headphone/microphone jack
• One SD 4.0 card slot
• One power connector

Display Connectivity
• Resolution and number of monitors supported dependent on computer specification

Thunderbolt 4 Peripherals Ports
• Connectivity: With USB-C connector
• Peripherals Supported: Thunderbolt 3; Thunderbolt 2(1) (macOS); USB4; USB 3, 2.0 and 1.1 devices; Thunderbolt 3 and USB-C monitors; DisplayPort and HDMI monitors(3)

USB 3.2 Gen 2 Type A Ports
• Connectivity: With USB Type A connector
• Peripherals Supported; USB 3, 2.0 and 1.1 devices
• Data Transfer Rate:USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps

USB 2.0 Type A Port (Front Panel)
• Connectivity: With standard male USB-A connector
• Peripheral Supported: USB 3, 2.0 and 1.1 devices
• Data Transfer Rate: USB 3 or 2.0 peripherals: 480 Mb/s
• Charging: 7.5W capacity to charge iPad, iPhone, or other device; USB Battery Charging 1.2–compliant; Supports simultaneous charging and syncing

RJ45 (Gigabit Ethernet) Port
• Network Support: Supports 1000 Mb/s, 100 Mb/s, and 10 Mb/s network speeds and Auto-MDI/MDI-X
• Standard:Compliant with 10/100/1000 IEEE 802.2 Specification
• Network: Gigabit Ethernet (1000BaseT, 100BaseTX, 10BaseT)
• Packets
•Maximum packet size: 9000 bytes (Jumbo packets)
• Chip: Realtek RTL8153B

SD Card Slot
• Cards Supported: SD, SDHC, SDXC

Package Contents
• Echo 11 Thunderbolt 4 dock
• Power adapter
• Power cord
• 0.7-meter Thunderbolt 4 cable
• Documentation
