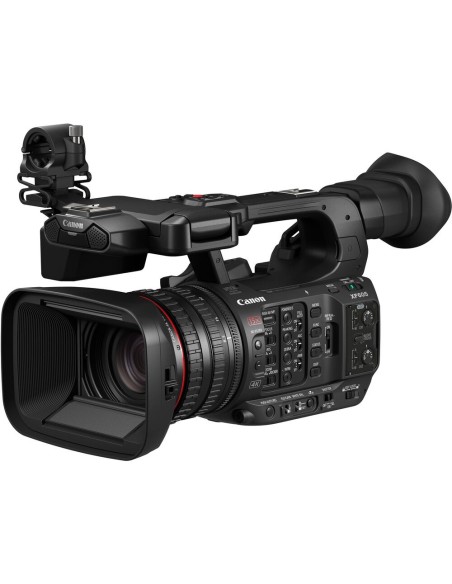

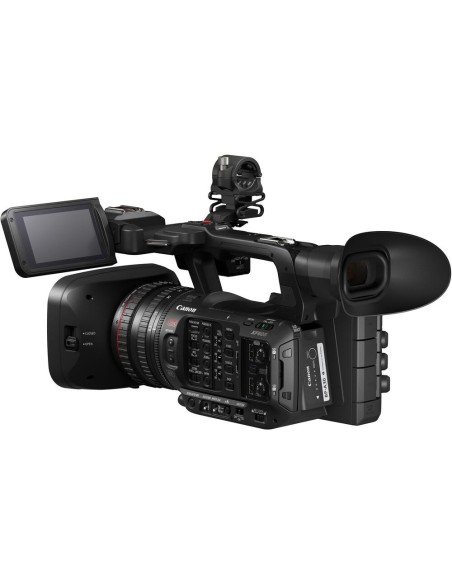

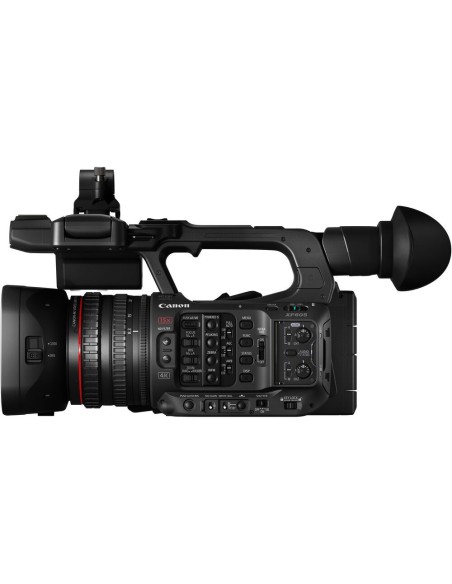

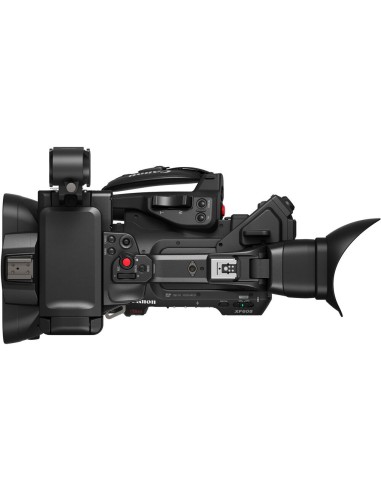

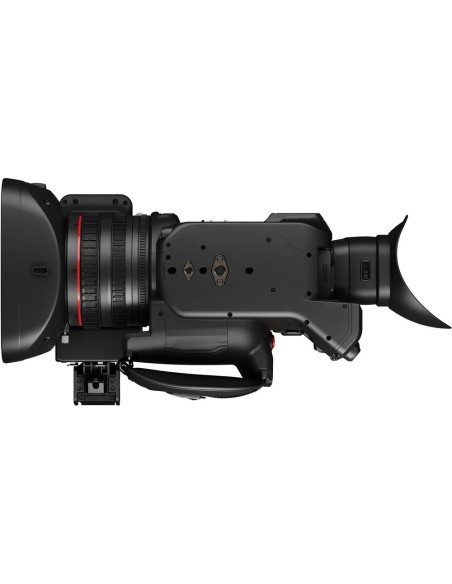

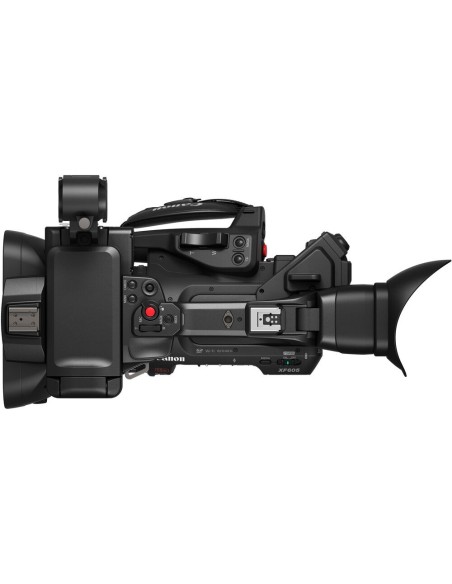

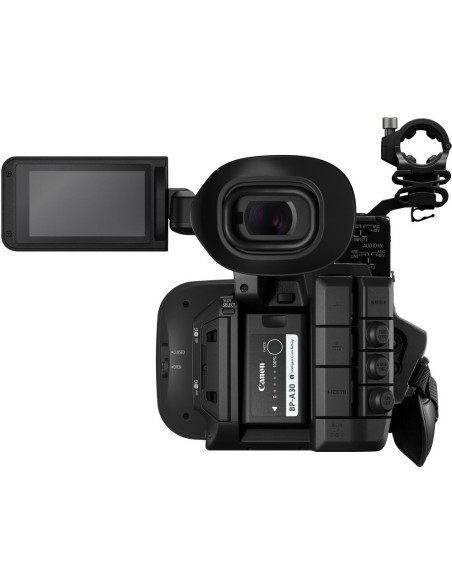

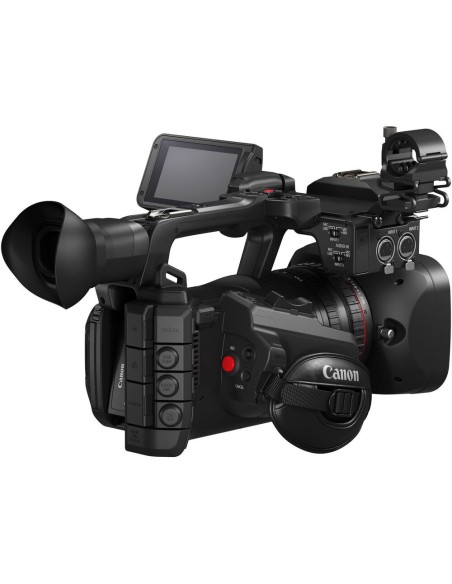

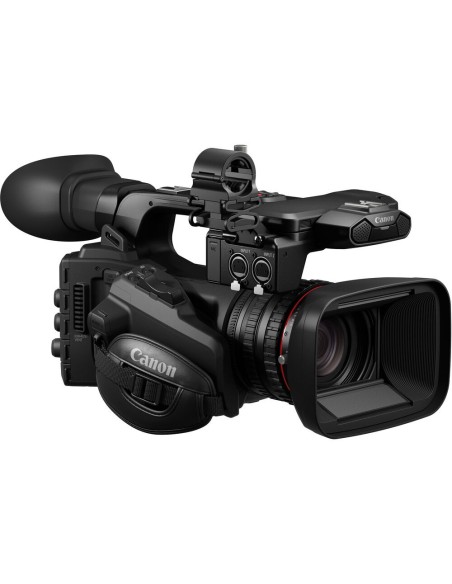

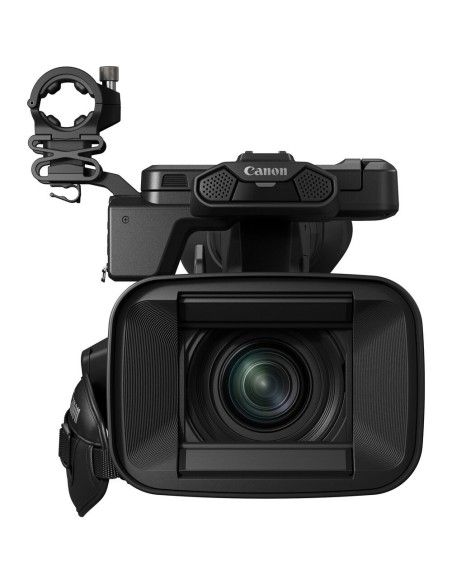

Canon XF605 UHD 4K HDR Pro Camcorder

Combining high-resolution capture with a mobile workflow, the 15x zoom XF605 UHD 4K HDR Pro Camcorder from Canon is a go-to choice for ENG, sports, entertainment, and narrative applications. This compact 1" CMOS sensor camera with a DIGIC DV 7 engine features high sensitivity, Canon cinema color matrix choices, Canon Log 3, HDR support, and Eye AF and EOS iTR AF X (head detection) autofocus modes. It offers up to UHD 4K60 4:2:2 10-bit capture in a variety of both All-I and Long-GOP XF-AVC and MP4 H.264/H.265 formats with the ability to capture different codecs and rates simultaneously to its dual SD card slots. A Direct Touch Control touchscreen menu, four-channel XLR audio, simultaneous outputs, a USB Type-C video output, and an iPhone app build on established XF series features such as individual focus, iris, and zoom rings, and built-in ND filters.

High-Resolution Performance

Whether you shoot ENG, sports events, live entertainment, or broadcast-style footage, the Canon XF605 is poised to deliver high-resolution video using a compact form and mobile workflow options, including an iPhone app, a LAN port, and built-in dual-band, MIMO Wi-Fi.

UHD 4K CMOS Sensor

Capture rates of up to UHD 4K 10-bit 4:2:2 include broadcast-friendly 59.94 frame rates

High-speed capture at 1080p120 for revealing slo-mo shots

A high sensitivity of up to 2000 lux at f/12 is perfect for dimly lit locations

DIGIC DV 7 Engine

The DIGIC DV 7 engine powers the caThe XF605 is a 4K UHD broadcast camcorder with a 1" CMOS sensor and DIGIC DV7 image processor for video formats up to Ultra HD (3,840 x 2,160 pixels) at 60p. The camcorder is equipped with a built-in lens with a focal length of 25.5 to 382.5 mm and 15x optical zoom, which can be extended to 30x in Full HD. In Full HD, high frame rates (HFR) up to 120p are also supported. Dual Pixel CMOS autofocus with Eye AF and EOS iTR AF X enables fast and reliable focusing even with lots of movement. Recording is done on up to two SD cards simultaneously and output is via 12G-SDI and HDMI. The camcorder is powered by either the supplied battery or the supplied AC adapter.

• For EB, sports, event, documentation, streaming and other applications
• 1" CMOS sensor and DIGIC DV7 image processor
• Recording up to 4K UHD 50/60p in 4:2:2, 10-bit as XF-AVC or MP4
• Support for high frame rates up to 120 fps at Full HD
• Fast Dual Pixel CMOS autofocus with Eye AF and EOS iTR AF X
• Supports Canon Log3 and HDR (PQ / HLG)
• Built-in L-series lens with 15x optical zoom
• Simultaneous recording on two SD cards possible
• Multifunctional accessory shoe

Technical Specifications:

Camera

Sensor: 1" CMOS

Filter: RGB primary colour filter

Total Pixels: approx. 13.4 MP

Effective Pixels: approx. 8.29 MP (3,840 x 2,160 pixels)

Image Processor: DIGIC DV7

Display: 3.45" touchscreen LCD (2.76 million dots)

Viewfinder: 0.36" (1.77 million dots)

Colour Sampling: XF-AVC - 4:2:2; MP4 - 4:2:2, 4:2:0 H.265 / 4:2:0 H.264; XFAVC / MP4 Proxy files - 4:2:0

Bit Depth: XF-AVC / MP4 H.265 - 10-bit; MP4 H.264 - 8-bit; XF-AVC / MP4 Proxy files - 8-bit

Gain Boost Function: Yes, increases gain to 36 dB (can be activated via user-defined button)

Sensitivity (PAL): F13, 50p, 2,000 lux, 89.9 % reflectance

Minimum Illumination (PAL): 50p/i approx. 2.5 lux (1/50 sec. shutter speed) / 25p approx. 1.3 lux (1/25 sec. shutter speed)

ISO Range: ISO200 - ISO12,800, 1 or 1/3 stop increments

Gain Range: -6 to -21 dB, auto / manual

Exposure Control: Auto / Manual (P, Tv, Av, M (manual exposure))

Custom Picture Menu (CP9 Files): BT.709 Normal / Wide DR / Standard, Canon Log3, PQ (BT.2020), HLG (BT.2020), EOS Standard / Neutral, User-defined

Supported Video Formats:

Ultra HD - 3840 x 2160p / 23.98 / 25 / 29.97 / 50 / 59.94

Full HD - 1920 x 1080p / 23.98 / 25 / 29.97 / 50 / 59.94

Full HD - 1920 x 1080i / 50 / 59.94

Full HD - 1920 x 1080PsF / 25 / 29.97

HD - 1280 x 720p / 50 / 59.94

SD - 720 x 480i / 59.94; 720 x 576i / 50

High Frame Rate: Yes, up to 120p (Full HD, 4:2:2 8-bit) including 50 Hz mode

Audio: MPEG-2 AAC-LC, 16-bit 2-ch / LPCM, 16-bit 4-ch (MP4); LPCM, 24-bit 4-ch (XF-AVC)

White Balance:

Auto - Shockless AB, AWB Response, AWB Hold (via assigned button)

Preset -Daylight (approx. 5,600 K), Tungsten (approx. 3,200 K)

Manual - 2,000 - 15,000 K (Standard value for set 1 and set 2 5,600 K)

Supported Storage Media: SD/SDHC/SDXC (2 slots), Class U3 V90 recommended, FAT32 / exFAT

IP Streaming Protocols: UDP, RTP, RTP+FEC

Connectivity: Wi-Fi IEEE802 11 a/b/g/n/ac (2.4 / 5 GHz)

Lens

Focal Length (35 mm equivalent): approx. 25.5 - 382.5 mm (standard IS/IS Off)

Zoom: 15x, optical (30x advanced zoom in Full HD)

Maximum Aperture: F2.8

Aperture Blades: 9

Closest Focusing Distance: 10 mm wide-angle), 60 cm over the entire zoom range

ND Filter: 3 densities (ND 1/4, ND 1/16, ND 1/64)

Filter Diameter: 58 mm

Image Stabilization System: Optical (Lens Shift) and elektronical stabilization (Dynamic, Standard, Powered, Off)

Zoom Speed: Variable or constant speed (Fast/Normal/Slow), 16 speed levels

Fokus Control: Dual Pixel CMOS AF, Contrast AF, Eye AF, EOS iTR AF X

Iris Control: Touchscreen, Auto, Lens ring

Input

2x Audio via 3-pin XLR (switchable phantom power)

1x Audio via 3.5 mm mini jack

2x Storage media via SD

1x Power supply DC via AC adapter

Output

1x 12G-SDI via BNC

1x HDMI via HDMI-A

1x Headphone via 3.5 mm mini jack

Others

1x USB via USB-A (power output 5 V / 900 mA)

1x USB via UB-C (UVC compliant)

1x Timecode via BNC

1x Genlock

1x Ethernet via RJ-45

1x Remote control via 2.5 mm jack

1x Remote control (RS-422) via 8-pin connector

General Product Information:

Dimensions (W x H x D): approx. 200 x 219 x 385 mm (7.87 x 8.62 x 15.16 in)

Weight: 2.46 kg (5.42 lb)

Operating Temperature: approx. 0° to +40° C (+32° to +104° F)

Storage Temperature: approx. -5° to +45° C (+23° to +113° F)

Relative Air Humidity: max. 85 %, non-condensing

Operating Voltage: 14.5 V DC (via battery) / 24 V DC (via DC IN)

Scope of Delivery:

1x Camera

1x Lens hood

1x Lens cap

1x Microphone holder

1x Eye cup

1x Battery BP-A30

1x Battery charger CG-A20

1x AC adapter CA-200L

1x Power cord
