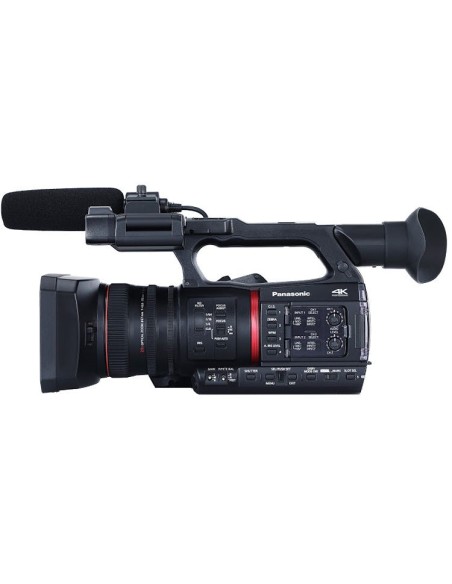

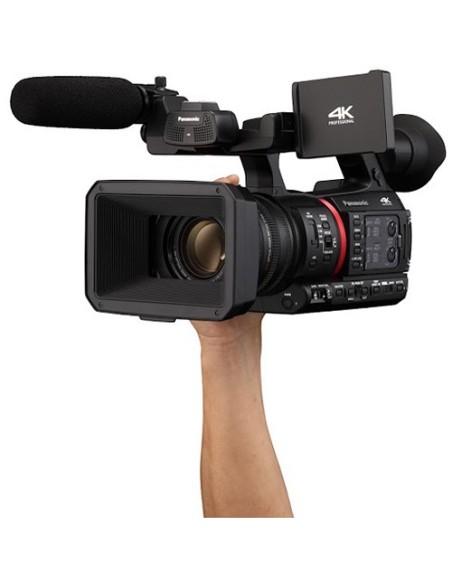

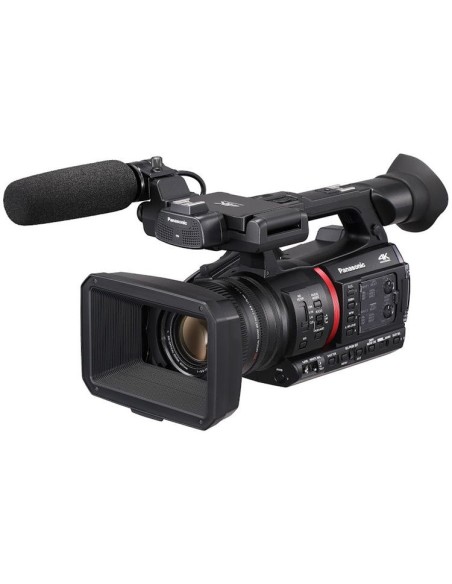

Panasonic AG-CX350EJ 4K HDR 10-bit Handheld Camera

The AG-CX350 is a 4K UHD handheld camcorder with a 1" MOS solid-state image sensor, built-in wide-angle lens with a focal length of 8.8 to 175 mm, an aperture of F2.8 to F4.5 and 20x optical zoom and 5-axis hybrid image stabilization. The camcorder supports video formats up to 3840 x 2160p at 59.94 frames per second (4K Ultra HD). In addition to the optical zoom, the AG-CX350 also features 24x (Ultra HD) or 32x (Full HD) intelligent zoom and three-stage digital zoom. Recording is done either on microP2 cards or SDHC / SDXC cards with UHS-II interface. The camcorder supports MOV (AVC), MOV (HEVC) and AVCHD video recording formats.

• Largest wide-angle lens in its class with 32x intelligent zoom (Full HD)
• 5-axis hybrid image stabilization
• Supports HLG (Hybrid Log Gamma) and SDR monitoring
• HD livestreaming for direct connections to Facebook and YouTube Live
• 4K recording with 10-bit ALL-I, 422LongG and HEVC LongG codecs

Technical Specifications:

• Sensor: 1" MOS solid-state image sensor
• Effective Pixels: 15.03 MP
• Focal Length: 8.8 - 175 mm
• Zoom Factor: 20x, motorized
• Aperture: F2.8 - F4.5
• Filter Diameter: 67 mm
• LCD Monitor: 3.5" TFT LCD
• Viewfinder: 0.39" OLED
• ND Filter: Clear, 1/4, 1/16, 1/64
• IR Filter: Includes the ON/OFF control function
• Minimum Object Distance (M.O.D.): approx. 10 cm (W) / approx. 1 m (T)
• Gain: -3 dB to +18 dB (adjustable in 1 dB steps); 24 dB, 30 dB, 36 dB switched
• White Balance: ATW, ATW Lock, A ch, B ch, Preset 3,200 K, Preset 5,600 K, VAR (2,000 - 15,000 K)
• Shutter Speed: 1/24 to 1/10.000 sec (depending on mode)
• Shutter Speed (Slow Shutter): 1/1 to 1/30 sec (depending on mode)
• Shutter Speed (Synchro Scan): 1/24 to 1/7.200 sec (depending on mode)
• Sensitivity (at 2,000 lux, 3,200 K, 89.9 % reflectance): F12 - F13
• Horizontal Resolution: 2,000 TV lines or higher (UHD: center) / 1,000 TV lines or higher (FHD: center)
• Intelligent Zoom: 32x (Full HD), 24x (Ultra HD)
• Digital Zoom: 2x / 5x / 10x
• Recording Media: SDHC (4 - 32 GB), SDXC (32 - 128 GB), microP2 (A / B)
• System Frequency: 59.94 Hz / 50.00 Hz
• Recording Formats: MOV (AVC), MOV (HEVC), AVCHD
• Supported Video Formats:
  4K UHD - 3840 x 2160p / 23.98 / 25 / 29.97 / 50 / 59.94
  Full HD - 1920 x 1080p / 23.98 / 25 / 29.97 / 50 / 59.94
  Full HD - 1920 x 1080i / 50 / 59.94
  Full HD - 1920 x 1080PsF / 23.98 / 25 / 29.97
  HD - 1280 x 720p / 50 / 59.94
  SD - 720 x 480p/i / 59.94; 720 x 576p/i / 50
• Video Compression Formats: H.264 / MPEG-4 AVC High Profile, H.265 / MPEG-H HEVC Main10 Profile
• Audio Compression Formats: AAC-LC
• Audio Signals: 48 kHz / 24 bit, 2-ch, Linear PCM (MOV) / 48 kHz / 16 bit, 2-ch, Dolby Audio™ (AVCHD)
• Network Protocols: RTSP / RTP / RTMP

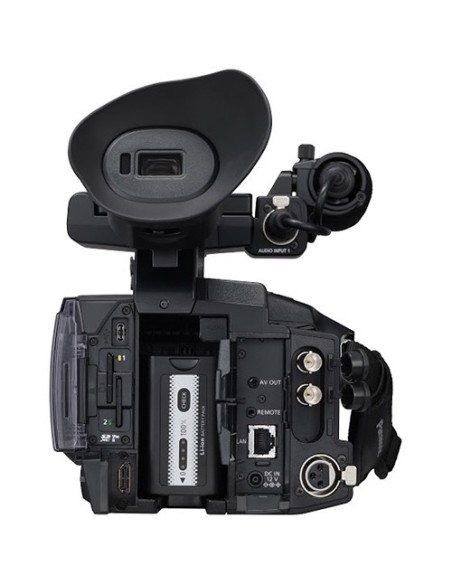

Data Links:

Input

• 2x Audio via XLR 3-pin (MIC: -40 / -50 / -60 dBu; LINE: +4 / 0 dBu)

Output

• 1x SDI via BNC (4:2:2, 10 bit)
• 1x HDMI via HDMI-A (4:2:2, 10 bit)
• 1x AV via 3.5 mm TRS
• 1x Headphones via 3.5 mm TRS
• 2x microP2 / SDXC UHS-II card slot
• 1x Power supply DC via AC adapter (12 V DC)

Others

• 1x Timecode via BNC
• 1x Remote via 2.5 mm super mini jack
• 1x LAN via RJ-45 (1000BASE-T / 100BASE-TX / 10BASE-T)
• 1x USB 2.0 via USB-A (5 V, 0.5 A, for optional wireless module)
• 1x USB 3.1 via USB-C (for mass storage, no bus power)

General Product Information:

• Dimensions without protrusion and eyecup (W x H x D): 180 x 173 x 311 mm
• Weight (body only): approx. 1.9 kg
• Operating Temperature: 0° to +40° C (10 - 80 % rel. air humidity)
• Operating Voltage: 7.28 V DC (via battery) / 12 V DC (via AC adapter)
• Power Consumption: max. 17 W

Included in Delivery:

• 1x Battery AG-VBR59
• 1x Battery charger AG-BRD50
• 1x AC adapter
• 1x Power cord
• 1x Microphone mounting kit
• 1x Shoulder strap
• 1x Eye cup
• 1x Sun hood
• 1x Grip belt
• 1x Instruction manual
