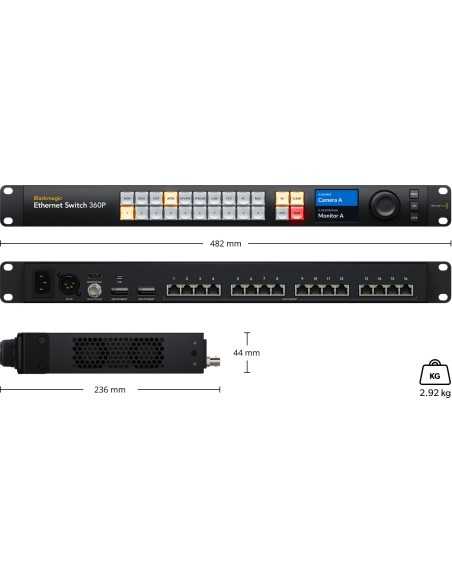

Blackmagic Design Internet Switch 360P

Blackmagic Ethernet Switch 360P is the first Ethernet switch designed specifically for the film and television industry. It is a high performance low latency Ethernet switch with 16 fast 10G Ethernet and 2 high speed 100G Ethernet ports, QSFP connection for high speed copper cables or longer optical fiber cables, rear Ethernet connections for better cable management and NMOS protocol for 2110 IP video workflows.

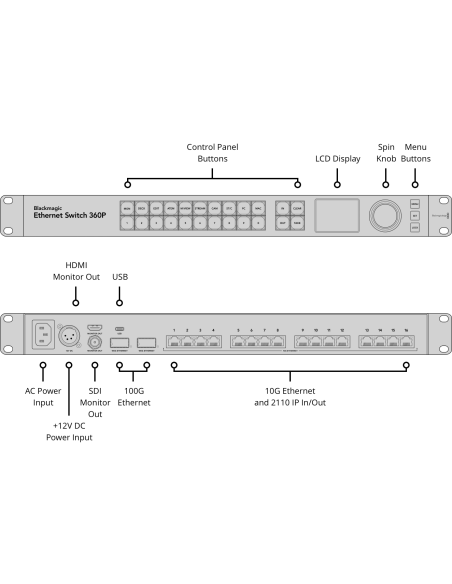

Connections

• 10G Ethernet Ports
• 16 x 10Gb/s RJ‑45 connectors supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates.
• 100G Ethernet Ports
• 2 x 100Gb/s QSFP connectors supporting 10/100/1000/10G/100G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates.
• 1x SDI Monitor Outputs
• 1x HDMI Monitor Outputs

Computer Interface

USB‑C

IP Video Compliance

• Precision Time Protocol
• IEEE 1588-2008 (PTP v2)
• ST 2059‑1
• ST 2059‑2
• NMOS IS-04 Discovery and Registration
• v1.3.2
• Peer-to-peer via mDNS/DNS‑SD
• NMOS IS-05 Connection Management
• v1.1.2
• NMOS BCP‑002‑01
• Natural Grouping
• NMOS BCP‑004‑01
• Receiver capabilities

Displays

• SDI Monitor Out Standards
• 1080p50, 1080p59.94, 1080p60
• HDMI Monitor Out Standards
• 1080p50, 1080p59.94, 1080p60
• Monitor Out Displays

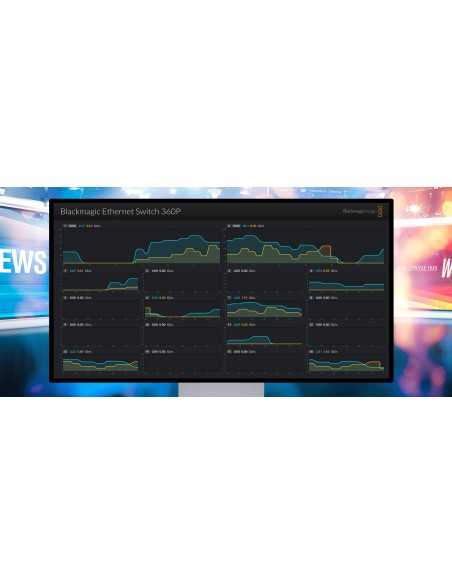

• Device Name, network connections, network activity.
• Front Panel Display
• Built in 2.2 inch LCD for video and menu settings.

Control

• Built in Control Panel
• 24 buttons for local control of Blackmagic Ethernet Switch 360P with 3 buttons and search dial for video and menu settings menu control. 2.2 inch color display.

Software

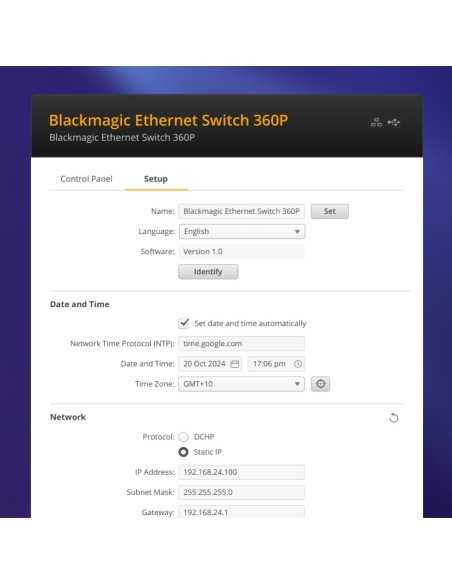

• Software Control
• Internal Software Upgrade
• Via included updater application.
